Title: NuMI Decay Pipe


1

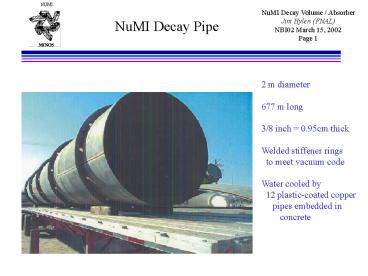

NuMI Decay Pipe
2 m diameter 677 m long 3/8 inch 0.95cm
thick Welded stiffener rings to meet vacuum
code Water cooled by 12 plastic-coated
copper pipes embedded in concrete
2
Decay Volume
  • Vacuum is the default (1 torr adequate)
  • helium fill is the backup if a significant leak
    develops
  • Entrance window 1.5 mm thick stainless steel, 1
    meter diameter welded to thicker
    material that extends to 2 meter diameter.
  • Designed to meet the requirements of the ASME
    Pressure Vessel Code
  • No shutter
  • Alignment tolerance is pair of circles, 97.155 cm
    and 100.965 cm radii
  • Alignment is achieved by utilization of a GPS
    network on the surface, transferred underground
    by sight-risers, geo-theodolite, etc.

3
Radiation Shielding Design
  • Decay pipe
  • surrounded by poured concrete shielding
  • (Tunnel Boring Machine was 6.55 m in diameter)
  • Space for a 112 cm width walkway on one side is
    provided.
  • Pipe and tunnel centers are offset as needed to
    shield groundwater.
  • (The limit on concentration of radio-nuclides in
    groundwater at the tunnel walls depends on the
    amount of water inflow)
  • Walkway
  • residual gamma activity 2 mSv/hr (30 day
    activation, 1 day cool-down)
  • Hadron Absorber
  • Design goal is residual gamma activity lt 1 mSv/hr
    on the walkway side

4
Sample Decay Pipe / Shielding Cross Section
Target hall to absorber secondary access
Decay pipe
concrete radiation shielding, density 2.1 g/cm3
Relative centers vary along length
5
Energy Deposition, Cooling
  • Decay region power deposition
  • 63 kW in 1 cm thick steel decay pipe
  • 52 kW in shielding concrete
  • Peak deposition in the steel is 360 W/m ( 50 m
    from target hall)
  • Drops to 20 W/m (at 610 m)
  • Heat is removed by twelve copper water-cooling
    pipes, limiting decay pipe temperature to 50
    deg C
  • Absorber core
  • 8 modules of aluminum with dual water-cooling
    paths
  • 30.5 x 129.5 x 129.5 cm3 each
  • 8 kW peak power in one module (normal beam
    conditions)
  • followed by 10 plates of steel, each 23.2 cm
    thick.
  • Total power in Absorber region 60 kW
  • (nearly entire 400 kW beam power in accident
    condition)

6
Absorber / CavernCross Section
Steel blocks Absorber core Concrete
blocks
beam west
Steel block dimensions are 132 x 132 x 66 cm3
Egress path
7
Absorber Core
Steel slabs Aluminum slabs
Two water lines from each Al. block run
back through holes in other blocks.
1.3 m
