Interfaces, Inhteritance, Polymorphism

1

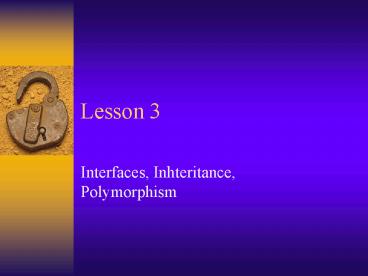

Lesson 3

• Interfaces, Inhteritance, Polymorphism

2
What is an Java interface?

• Like a class but only contains abstract methods
  and final variables
• example
• interface FooInterface
• void foo1()
• int foo2(double x)
• abstract interface FooInterface
• public abstract void foo1()
• public abstract int foo2(double x)

Both are correct! the abstract and
public keywords are implied, so the shorthand is
recommended.
3
Interfaces, cont.

• Unlike a class, an interface cannot be
  instantiated!
• Rather, an interface is implemented by some other
  class
• class FooClass implements FooInterface
• ....
• This means one thing only FooClass must contain
  versions of both foo1 and foo2 that actually do
  something useful. We say that FooClass must
  provide implementations for all of the methods in
  FooInterface.

4
Interfaces, cont.

• When a class implements an interface, think of
  the class as entering a contract to provide meat
  for all methods in the interface.
• The compiler will check that this contract is
  adhered to.
• Otherwise, the class implementing the interface
  can contain anything else that a regular class
  contains.
• Again do not try to instantiate an interface
  this is meaningless!

5
More interface rules

• A class may implement any number of interfaces
  as
• class FooClass implements A, B, C
• ...
• An interface may also contain public static final
  variables. Usually, these qualifiers are left
  off. We just say
• interface MyConstants
• double PI 3.141592
• double E 1.7182818

can be acessed as either MyConstants.PI or just
PI by any class that implements the interface
6
Certification-type questions

• What happens when multiple interface
  implementation results in name conflicts?
• if the methods have different signatures, they
  are considered overloaded and there is no problem
• if the methods have the same signature and the
  same return type, they are considered to be the
  same method.
• if they have the same signature and different
  return types, a compilation error will result.
• If they have same signature/return type but throw
  different exceptions, they are considered to be
  same, and resulting throws list is union of
  original two

7
Marker Interfaces

• Some interfaces contain no methods or constants
  at all (ie they are empty).
• These are called marker interfaces.
• Examples are Cloneable and Serializable in java
  library.
• We will understand these better once we
  understand subtype-supertype relationships.

8
Subtyping with Interfaces

• Understanding mechanics of interfaces is only
  about 1/3 of the story.
• Next, we have to understand how interfaces allow
  for polymorphism.
• Finally, we study probably the hardest part how
  to best use polymorphism to really write superior
  code.

9
Rules of subtyping

• If class C implements interface I, then C is a
  subtype of I.
• What does this imply? We can do things like
• C aC
• aC new C()
• I aC
• aC new C()
• In the latter case, we often say that the runtime
  type of aC is C, but the static or declared type
  is I.
• In the former case, both types are C

This is the regular stuff
Can do this also!
10
Substitutability of Types

• Rule A value of a subtype can appear wherever a
  value of its supertype is expected. In other
  words, a value of a sybtype can always substitute
  for a value of a supertype.
• To rephrase for objects An instance of a
  subclass can appear wherever an instance of a
  superclass is expected.
• Note superclass here refers to interface at this
  point. We will make more general soon.

11
Generic examples of subtyping
class Circle implements Drawable, Scalable
... Circle aCircle Drawable aDrawable Scalable
aScalable aCircle new Circle() //ok aCircle
new aDrawable() //BAD! aDrawable new
Circle()//ok aScalable new Circle()
//ok 1,3,4 are ok because a Circle object is
created and it is assigned to a declared type of
either Circle or one of its supertypes.
12
More examples
Drawable aDrawable Circle aCircle aCircle new
Circle()//fine aDrawable aCircle//fine
aDrawable is type superclass aDrawable new
Circle() aCircle aDrawable //NO cannot
assign more general to
//more specific without an explicit
//cast aCircle
(Circle) aDrawable //this is ok explicit
cast!
13
Widening and Narrowing

• The conversion of a subtype to one of its
  supertypes is called widening. The conversioning
  of a supertype to one of its subtypes is called
  narrowing.
• Widening happens automatically during an
  assignment. Nothing special is required. This is
  also typically called upcasting.
• Narrowing requires a proper explicit cast,
  otherwise the compiler will complain. This is an
  example of Javas very strong typing. It is your
  best friend. Narrowing is also known as
  downcasting.

14
ClassCasts and instanceof

• The java compiler will allow any cast. If the
  cast is illegal, a runtime exception will be
  thrown (ClassCastException).
• There are two ways to safeguard against this.
• with a try-catch block (later)
• Using the instanceof operator as
• if (aDrawable instanceof Circle)
• aCircle (Circle) aDrawable
• instanceof tells the actual type of an object
  rather than its declared type.

15
Why on earth do this?

• How could this ever be used to your advantage?
  Why not simlply type all Circles as Circle, etc.
  In other words, why ever do
• Drawable aCircle new Circle()
• vs.
• Circle aCircle new Circle()
• Much easier to understand if we use upcasting in
  method calls.

16
Using Upcasting in method calls
Imagine there is a class Renderer that has a
method Render that can operate on any object that
knows how to morph any two objects that can draw
themselves. e.g. class Renderer ...
public void morph(Drawable o1, Drawable o2)
// calls made to o1.draw(), o2.draw() here\
You can call morph as e.g. Renderer rn new
Renderer() Circle c new Circle() Rectangle r
new Rectangle() rn.morph(c,r) //c,r are
automatically upcast to Drawables
17
Comparable interface

• Another good example is Javas Comparable
  interface, which contains the compareTo method.
• One of the Arrays.sort methods operates on any
  array of Objects that implement the Comparable
  interface.
• Thus, specific objects to be sorted are
  implicitly upcast when passed to the sort method.

18
When is downcasting needed?

• Once an object is upcast, you cannot call methods
  that do not exist in the supertype.
• For example, if Rectangle objects have a method
  called rotate(), that method cannot be called
  from within morph unless an explicit downcast is
  performed.
• This is an example of Javas strong typing. The
  compiler cannot be sure that the actual object
  passed in has a rotate method, so it forces you
  to say so explicitly.

19
Extending interfaces

• An interface may also extend another interface.
• In that case, the extender is known as the
  superinterface and the extendee is the
  subinterface.
• Example
• interface FooInterface
• int foo1()
• interface FooInterface2 extends
  FooInterface
• int foo2()
• FooInerface2 contains both methods foo1 and foo2,
  and anything that implements
• FooInterface2 must implement both of these.

20
Part III How interfaces are used

• This is difficult because there is no single,
  simple answer to the question.
• Like any semantic feature in a programming
  language, there are no hard and fast rules about
  in what situations it should best be exploited.
• However, there are many guidelines and general
  strategies (or else the feature would have never
  bee included).
• Well cover a few ways in which interfaces are
  typically used.

21
Some interface uses

• To simply clarify the the functionality
  associated with a particular abstraction.
• To abstract functionality in a method to make it
  more general, such as pointers to functions are
  used in C. sort is a good example.
• To implement callbacks, such as in GUI
  programming
• To write more general, implementation depending
  code that is easy to extend and maintain.
• To simulate global constants.

22
Clarifying functionality

• Often you just want to write a code to do
  something. It will never do anything else. You
  are not concerned about extensibility.
• Even in such a case, it can be nice to organize
  your program using interfaces. It makes the code
  easy to read and the intent of the author very
  clear.

23
Callbacks

• Callbacks are a general programming technique
  where a method call another method which then
  calls the calling method (typically to inform the
  caller when some action has taken place).
• Timer and Swing ActionListeners are good examples.

24
To write more general implementation

• A method that operates on a variable of type
  interface automatically works for any sub-type of
  that interface.
• This is much more general than writing your
  program to operate only on a particular subtype.
• See Shape example.

25
Abstracting functionality

• A method can often be made more general by
  customizing its work based on the implementation
  of some other function that it calls.
• sort(...) is a good example. A sort() function
  can sort any list of items as long as you tell it
  how to compare any two items.
• Numerical methods for solvering differential
  equations often depend on taking discrete
  derivatives you can make such a routine general
  by specifying the derivate technique
  independently.

26
Ineritance
27
Basic inheritance

• Interfaces can be thought of as a special case of
  a more general class relationship called
  inheritance.
• When a class C2 inherits from or extends another
  class C1, C1 is called the superclass of C2, and
  C2 the subclass of C1.
• This means that all of the public and protected
  members of the superclass are available to the
  subclass. This includes implementation and
  instance variables!
• Any class that is not explicitly declared as
  final can be extended.

28
Inheritance syntax
For one class to be a subclass of another, we
use the extends keyword class GradStudent
extends Student ... class Manager extends
Employee... etc. The superclass requires no
special syntax.
29
Subtyping

• Everything we learned about typing and subtyping
  holds a fortiori for super and subclasses.
• Specifically, classes which extend other classes
  are of both type superclass and type subclass.
• A class can only extend a single class (no
  multiple implementation inheritance).

30
Method overriding

• Overriding refers to the introduction of an
  instance method in a subclass that has the same
  name, signature, and return type of a method in
  the superclass.
• Implementation of this method in the subclass
  replaced the implementation of the method in the
  superclass.

31
Overriding example
class A public void m1()... class B
extends A public void m1()... For objects
of class B, its own unique version of m1 will
be called. We say that the method m1 in B
overrides the method m1 in its superclass.
32
Enough for now
