No Articulation of Preferences

1

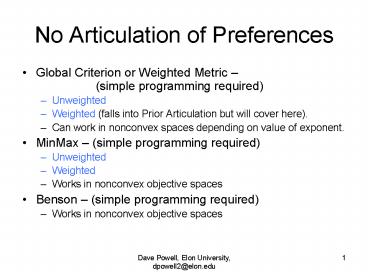

No Articulation of Preferences

• Global Criterion or Weighted Metric (simple
  programming required)
• Unweighted
• Weighted (falls into Prior Articulation but will
  cover here).
• Can work in nonconvex spaces depending on value
  of exponent.
• MinMax (simple programming required)
• Unweighted
• Weighted
• Works in nonconvex objective spaces
• Benson (simple programming required)
• Works in nonconvex objective spaces

2
No Preference Articulation
Most frequent values of p are 1 and 2 Obtains a
single point.
Figure from Anderson
3
iSIGHT Steps Evaluate No Preference Articulation

• Added a Calculation Block to calculate the No
  Preference Objective
• Set a value for p
• Execute
• Perhaps change p and run again.

4
Add Calculation
5
No Preference Problem Formulation
6
Optimization Results with GRG
7
Standard Tradeoff Curve
8
Trying Other Values of P

• Could manually change values of p and rerun to
  explore impact of p.
• Alternatively, create a parent DOE task to
  automatically vary p.
• DOE parameter study will aggregate results
• Display with new EDM tool.

9
Create a Parent Task to Vary P
10
Parameter Mapping
11
Create a DOE Parameter Study for Parent Task to
Vary P
12
Parameter Study to Vary P
13
Must Clear Best Solution for Each Subtask Entry
14
Solution Monitor of Parameter Study
15
Standard Tradeoff Curve updated with 6 Points for
varying P
16
EDM Data Configuration Specification
17
EDM Parallel Coordinates
18
Scatter Plot Matrix
19
Weighted No Preference

• User supplied weighting of each objective
• Can add a top level DOE to vary weights
• For p1 can get all solutions in a convex space
• For p 1 cannot get all solutions in non convex
  space.
• For large p can get all solutions in non convex
  space
• Uniform varying of weight does not guarantee
  uniform distribution

Belongs in Prior Articulation Category but
introduced here since on topic.
20
DOE Driven Weight Variance
21
DOE Values From Data File
22
Sample of Data File
23
Remember to Unset Best Run Info in Child Task
24
Solution Monitor
25
Standard Tradeoff Curve
26
Nonconvex Objective Space
27
Simple Nonconvex Problem
Minimize f1(x) x1 Minimize f2(x) 1 x2 x2
x1 a sin( b p x1) Subject to 0 lt x1
lt 1 -2 lt x2 lt 2 a .1 and b
3.0
Deb page 50
28
Non convex

• P 1 does not perform well in nonconvex spaces
  (essentially is just a weighted sum)
• As P increases the performance in nonconvex
  spaces gets better. Try P 5
• P infinity will be demonstrated with MinMax
  approach shown shortly.

29
Scatter Plot Matrix
P 1
P 5
NSGA 2
30
MinMax Approach p -gt infinity
First will assume that weights are 1.
31
MinMax Approach p -gt infinity
32
MinMax Problem Formulation
33
Optimization Results with GRG
34
Standard Tradeoff Curve
35
Weighted MinMax

• Add weights to calculation
• Add an upper level DOE to vary weights
• Insure you call api_UnsetBestRunInfo in child
  task Optimization Prolog
• Can discover all points in convex and non convex
  space.
• Implementation issues

36
Add Weights to Calculation
37
Add a DOE Parent Task
38
Clear Run Info Before Each Optimization
39
Solution Monitor
40
Standard Tradeoff Curve
41
Nonconvex Objective Space
42
Standard Tradeoff Curve
43
Scatter Plot Matrix
Weighted MinMax
NSGA 2
44
Vanderplaats Recommendation
Minimize Z Subject to abs(F1Weight
(F1 F1Optimal)/F1Optimal) lt Z
abs(F2Weight (F2
F2Optimal)/F2Optimal) lt Z
Z gt 0 Design Variables X1, X2, Z
45
Bensons Method

• M
• Maximize S m1 max(0, (zm0 - fm(x))) m
  1,2,,M
• Subject to fm(x) lt zm0 , m1,2,,M
• gj(x) lt 0, j 1,2,.,J
• hk(x) 0, k 1,2,.,K
• xi(L) lt xi lt xi(U) , i 1,2, , n
• Need to normalize each objective for weights to
  be meaningful. Normalize with z0

46
Bensons Method

• Advantages
• Can find pareto solutions in convex and non
  convex regions.
• Disadvantage
• Requires additional constraints

47
Benson Approach
Figure from Deb
48
iSIGHT Formulation

• First time we have Maximize Objective
• Initial feasible design point is 72,45,2,2
• Select a point in the feasible region as a
  reference solution. Some suggest nadir point (see
  next slide)
• Nadir point for IBeam is (850, .0613)

49
Utopian Objective Vector
Figure from Deb p. 27
50
Calculation for BensonObjective
51
Problem Formulation for Benson
52
Optimization with GRG
53
Standard Tradeoff Curve
54
Summary of No Articulation of Preferences

• Global Criterion or Weighted Metric (simple
  programming required)
• Unweighted
• Weighted (falls into Prior Articulation but will
  cover her.
• Can work in nonconvex spaces depending on value
  of exponent.
• MinMax programming
• Unweighted
• Weighted
• Works in noncovex objective spaces
• Benson programming
• Works in nonconvex objective spaces
