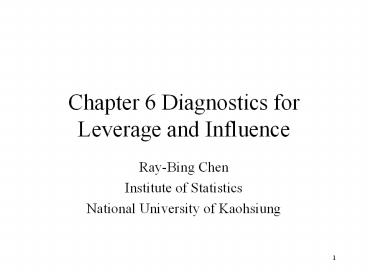

Chapter 6 Diagnostics for Leverage and Influence

1
Chapter 6 Diagnostics for Leverage and Influence

• Ray-Bing Chen
• Institute of Statistics
• National University of Kaohsiung

2
6.1 Important of Detecting Influential
Observations

• Usually assume equal weights for the
  observations. For example sample mean
• In Section 2.7, the location of observations in
  x-space can play an important role in determining
  the regression coefficients (see Figure 2.6 and
  2.7)
• Outliers or observations that have the unusual y
  values.
• In Section 4.4, the outliers can be identified by
  residuals

3

• See Figure 6.1

4

• The point A is called leverage point.
• Leverage point
• Has an unusual x-value and may control certain
  model properties.
• This point does not effect the estimates of the
  regression coefficients, but it certainly will
  dramatic effect on the model summary statistics
  such as R2 and the standard errors of the
  regression coefficients.

5

• See the point A in Figure 6.2

6

• Influence point
• For the point A, it has a moderately unusual
  x-coordinate, and the y value is unusual as well.
• An influence point has a noticeable impact on the
  model coefficients in that it pulls the
  regression model in its direction.
• Sometimes we find that a small subset of data
  exerts a disproportionate influence on the model
  coefficients and properties.
• In the extreme case, the parameter estimates may
  depend on the influential subset of points than
  on the majority of the data.

7

• We would like for a regression model to be
  representative of all of the sample observations,
  not an artifact of a few.
• If the influence points are bad values, then they
  should be eliminated from the sample.
• If they are not bad values, there may be nothing
  wrong with these points, but if they control key
  model properties we would like to know it, as it
  could affect the end use of the regression model.
• Here we present several diagnostics for leverage
  and influence. And it is important to use these
  diagnostics in conjunction with the residual
  analysis techniques of Chapter 4.

8
6.2 Leverage

• The location of points in x-space is potentially
  important in determining the properties of the
  regression model.
• In particular, remote points potentially have
  disproportionate impact on the parameter
  estimates, standard error, predicted values, and
  model summary statistics.

9

• Hat matrix plays an important role in identifying
  influential observations.
• H X(XX)-1X
• H determines the variances and covariances of the
  fitted values and residuals, e.
• The elements hij of H may be interpreted as the
  amount of leverage exerted by the ith observation
  yi on the ith fitted value.

10

11

• The point A in Figure 6.1 will have a large hat
  diagonal and is assuredly a leverage point, but
  it has almost no effect on the regression
  coefficients because it lies almost on the line
  passing through the remaining observations.
  (Because the hat diagonals examine only the
  location of the observation in x-space)
• Observations with large hat diagonals and large
  residuals are likely to be influential.
• If 2p/n gt 1, then the cutoff value does not apply.

12

• Example 6.1 The Delivery Time Data
• In Example 3.1, p3, n25. The cutoff value is
  2p/n 0.24. That is if hii exceeds 0.24, then
  the ith observation is a leverage point.
• Observation 9 and 22 are leverage points.
• See Figure 3.4 (the matrix of scatterplots),
  Figure 3.11 and Table 4.1 (the studentized
  residuals and R-student)
• The corresponding residuals for the observation
  22 are not unusually large. So it indicates that
  the observation 22 has little influence on the
  fitted model.

13

• Both scaled residuals for the observation 9 are
  moderately large, suggesting that this
  observation may have moderate influence on the
  model.

14
(No Transcript)
15
6.3 Measures of Influence Cooks D

• It is desirable to consider both the location of
  the point in x-space and the response variable in
  measuring influence.
• Cook (1977, 1979) suggested to use a measure of
  the squared distance between the least-square
  estimate based on the estimate of the n points
  and the estimate obtained by deleting the ith
  point.

16

• Usually
• Points with large values of Di have considerable
  influence on the least-square estimate.
• The magnitude of Di is usually assessed by
  comparing it to F?, p, n-p.
• If Di F0.5, p, n-p, then deleting point I would
  move to the boundary an approximate 50
  confidence region for ? based on the complete
  data set.

17

• A large displacement indicates that the
  least-squares estimate is sensitive to the ith
  data point.
• F0.5, p, n-p ? 1
• The Di statistic may be rewritten as
• Di is proportional to the product of the square
  of the ith studentized residual and hii / (1
  hii).
• This ratio can be shown to be the distance from
  the vector xi to the centroid of the remaining
  data.
• Di is made up of a component that reflects how
  well the model fits the ith observation yi and a
  component that measures how far that points is
  from the rest of the data.

18

• Either component (or both) may contribute to a
  large value of Di.
• Di combines residual magnitude for the ith
  observation and the location of that point in
  x-space to assess influence.
• Because ,
  another way to write Cooks distance measure is
• Di is also the squared distance that the vector
  of fitted values moves when the ith observation
  is deleted.

19

• Example 6.2 The delivery Time Data
• Column b of Table 6.1 contains the values of
  Cooks distance measure for the soft drink
  delivery time data.

20
(No Transcript)
21
(No Transcript)
22
6.4 Measure of Influence DFFITS and DFBETAS

• Cooks D is a deletion diagnostic.
• Blesley, Kuh and Welsch (1980) introduce two
  useful measures of deletion influence.
• First one How much the regression coefficient
  changes.
• Here Cjj is the jth diagonal element of (XX)-1

23

• A large value of DFBETASj,i indicates that
  observation i has considerable influence on the
  jth regression coefficient.
• Define R (XX)-1X
• The n elements in the jth row of R produce the
  leverage that the n observations in the sample
  have on the estimate of the jth coefficient,

24

• DFBETASj,i measures both leverage and the effect
  of a large residual.
• Cutoff value 2/n1/2
• That is if DFBETASj,i gt 2/n1/2, then the ith
  observation warrant examination.
• Second one the deletion influence of the ith
  observation on the predicted or fitted value

25

• DFFITSi is the number of standard deviation that
  the fitted value changes if observation i is
  removed.
• DFFITSi is also affected by both leverage and
  prediction error.
• Cutoff value 2(pn)1/2

26
(No Transcript)
27
(No Transcript)
28
6.5 A Measure of Model Performance

• The diagnostics Di, DFBETASj,i and DFFITSi
  provide insight about the effect of observations
  on the estimated coefficients and the fitted
  values.
• No information about overall precision of
  estimation.
• Generalized variance

29

• To express the role of the ith observation on the
  precision of estimation, we define
• If COVRATIOi gt 1, then the ith observation
  improves the precision of estimation.
• If COVRATIOi lt 1, inclusion of the ith point
  degrades precision.

30

• Because of 1 / (1 hii), a high-leverage point
  will make COVRATIOi large.
• The ith point is considered influential if
  COVRATIOi gt 1 3p/n or COVRATIOi lt 1 3p/n
• Theses cutoffs are only recommended for large
  sample.
• Example 6.4 The Delivery Time Data
• The cutoffs are 1.36 and 0.64.
• Observation 9 and 22 are influential.
• Obs. 9 degrades precision of estimation.
• The influence of Obs. 22 is fairly small.

31
6.6 Delecting Groups of Influential Observations

• The above methods only focus on
  single-observation deletion diagnostics for
  influence and leverage.
• Single-observation diagnostic gt
  multiple-observation case.
• Extend Cooks distance measure
• Let i be the m ? 1 vector of indices specifying
  the points to be deleted, and

32

• Di is a multiple-observation version of Cooks
  distance measure.
• Large value of Di indicates that the set of m
  points are influential.
• In some data sets, subsets of points are jointly
  influential but individual points are not!
• Sebert, Montgomery and Rollier (1998) investigate
  the use of cluster analysisto find the set of
  influential observation in regression.
  (signle-linkage clustering procedure)

33
6.7 Treatment of Influential Observations

• Diagnostics for leverage and influence are an
  important part of the regression model-builders
  arsenal of tools.
• Offer the analyst insight about the data, and
  signal which observations may deserve more
  scrutiny.
• Should influential observations ever be
  discarded?
• A compromise between deleting an observation and
  retaining it is to consider using an estimation
  technique that is not impacted as severely by
  influential points as least squares.
