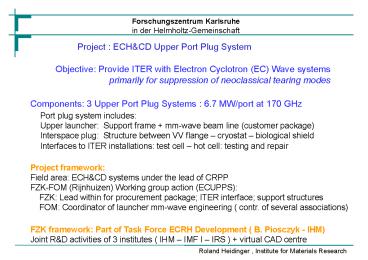

Project ECHCD Upper Port Plug System
Objective Provide ITER with Electron Cyclotron
(EC) Wave systemsprimarily for suppression of
neoclassical tearing modes
Components 3 Upper Port Plug Systems 6.7
MW/port at 170 GHz
Port plug system includes Upper launcher
Support frame mm-wave beam line (customer
package) Interspace plug Structure between VV
flange cryostat biological shield Interfaces
to ITER installations test cell hot cell
testing and repair
Project framework Field area ECHCD systems
under the lead of CRPPFZK-FOM (Rijnhuizen)
Working group action (ECUPPS) FZK Lead
within for procurement package ITER interface
support structures FOM Coordinator of
launcher mm-wave engineering ( contr. of several
associations)
FZK framework Part of Task Force ECRH
Development ( B. Piosczyk - IHM)Joint RD
activities of 3 institutes ( IHM IMF I IRS )
virtual CAD centre
Roland Heidinger , Institute for Materials
Research
