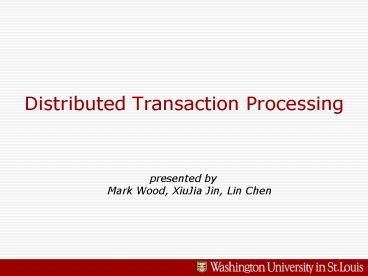

Distributed Transaction Processing

1
Distributed Transaction Processing

• presented by Mark Wood, XiuJia Jin, Lin Chen

2
Overview of Transactions

• Transaction
• An action or series of actions, carried out by a
  single user of application program, which reads
  or updates the contents of the database.
• A logical unit of work
• Execution of an application one or more
  transactions with non-database processing in
  between.

3
Overview of Transactions

• An example
• Staff (staffNo,fName,lNmae,position,sex,DOB,sala
  ry,branchNo)
• PropertyForRent (propertyNo, street, city,
  postcode, type, rooms, rent, ownerNo,
  staffNo,branchNo)
• Read (staffNo x, salary)
• Salary salary 1.1
• Write (staffNo x, salary)
• Transaction consists of 2 database operations
  (read and write) and a non-database operation
  (salarysalary1.1).
• A transaction should always transform database
  from one consistent state to another.
• Allow inconsistency during the middle of the
  transaction

4
Transaction Outcomes

• 2 outcomes Committed and Aborted
• Committed
• Transaction completes successfully.
• Aborted
• Transaction does not execute successfully.
• Restore database to a consistent state
• Rolled back or undone ? if transaction is
  aborted
• Compensating transaction ? if transaction is
  committed
• Committed transaction can not be aborted!!!

5
ACID

• 4 properties
• Atomicity
• All or nothing property
• Indivisible
• DBMSs responsibility
• Consistency
• Transform database from one consistency state to
  another
• Both DBMS and application developers
  responsibility
• Isolation
• Transaction execute independently of one another.
• Concurrency control subsystems responsibility.
• Durability
• the results of a successful transaction are
  permanently recorded in the database and must not
  be lost because of a possible future failure.

6
Database Architecture
Transaction manager
Scheduler
Buffer manager
Recovery manager
Access Manager
File manager
Access Manager
System manager
Database and system catalog
7
Concurrency Control

• Definition
• The process of managing simultaneous operations
  on the database without having them interfere
  with one another.
• Lost update problem
• A successfully completed transaction is
  overwritten by another user
• Uncommitted dependency (dirty read) problem
• When one transaction is allowed to see the
  intermediate results of another transaction
  before it has committed.
• Inconsistent analysis problem
• When a transaction reads several values from the
  database but a second transaction updates some of
  them during the execution of the first.

8
The lost update problem
Initial balance 100 A withdraw 10 B deposit
100 To solve prevent A from reading the value
of bal until after Bs update has completed.
9
Dirty read problem
A reads a dirty value To solve Prevent A from
reading balx until after the decision has been
made to either commit or abort fo Bs effects.
10
Inconsistent analysis problem
To solve Prevent transaction A from reading balx
and baly until after B has completed its updates.
11
Other problems

• Nonrepeatable (fuzzy) reads
• When a transaction T rereads a data item it has
  previously read but, in between, another
  transaction has modified it. So, T reads two
  different value of the same item.
• Phantom read
• When T executes a query that retrieves a set of
  tuples from a relation satisfying a certain
  predicate, re-executes the query a later time but
  finds that the retrieved set contains a
  additional (phantom) tuple that has been inserted
  by another transaction in the meantime.

12
Serializability

• Serializability a means of helping to identify
  those executions of transactions that are
  guaranteed to ensure consistency.
• Schedule
• A sequence of the operations by a set of
  concurrent transactions that preserves the order
  of the operations in each of the individual
  transactions.
• Serial schedule
• A schedule where the operations of each
  transaction are executed consecutively without
  any interleaved operations from other
  transactions.
• Nonserial schedule
• A schedule where the operations from a set of
  concurrent transactions are interleaved.

13
Serializability

• The ordering of read and write operations is
  important
• If 2 transactions only read a data item, they do
  not conflict and order is not important
• If 2 transactions either read or write completely
  separate data items, they do not conflict and
  order is not important
• If one transaction writes a data item and another
  either reads or writes the same data item, the
  order of execution is important.

14
Serializability Example
S1 S2 S3
Schedule S3 is a serial schedule. Non-serial
Schedule S1, S2 are equivalent to serial schedule
S3, So S1 and S2 are serializable
15
Testing for conflict serializability

• Constrained write rule
• A transaction updates a data item based on its
  old value, which is first read by the
  transaction.
• A procedure graph can be produced to est for
  conflict serializability.
• Create a node for each transaction
• Create a directed edge Ti ? Tj, if Tj reads the
  value of an item written by Ti
• Create a directed edge Ti ? Tj, if Tj writes a
  value into an item after it has been read by Ti.
• Create a directed edge Ti ? Tj, if Tj writes a
  value into a item after it has been written by
  Ti.
• If an edge Ti ? Tj exists in the precedence graph
  for S, then in any serial schedule S equivalent
  to S, Ti must appear before Ti. If precedence
  graph contains a cycle the schedule is not
  conflict serializable.

16
Example of a precedence graph
x
A
B
y
The transaction is not conflict serializable
17
View Serializability

• Less stringent
• A schedule is view serializable if it is view
  equivalent to a serial schedule.
• Every conflict in a serializable schedule is view
  serializable, although the converse is not true.
• Testing for View Serializability more complex
  than Conflict Serialization
• Proven to be NP-complete (Papadimitrio 1979)

18
View Serializability Example
B and C do not conform to the constrained write
rule B and C perform blind writes This view
serializable schedule is not conflict
serializable
19
View Serializability Example Precedence Graph
A
B
This edges should not have been inserted
C
This precedence graph contains a cycle. Thus, it
is not conflict serializable. The view
serializable schedule was equivalent to the
serial schedule A followed by B followed by C.
20
Concurrency control techniques

• Goal Allow transactions to execute safely in
  parallel.
• Concurrency control techniques
• Locking
• Timestamp
• Optimistic method

Main techniques
21
Locking

• Locking
• A procedure used to control concurrent access to
  data. When one transaction is accessing the
  database, a lock may deny access to other
  transactions to prevent incorrect results.
• Shared lock
• If a transaction has a shared lock on a data
  item, it can read the item but not update it.
• Exclusive lock
• If a transaction has an exclusive lock on a data
  item, it can both read and update the item
• Implementation on Data item
• Set a bit on data item

22
Granularity of data items

• Granularity the size of data items chosen as the
  unit of protection by a concurrency control
  protocol.
• The entire database
• A file
• A page
• A record
• A field value of a record
• Granularity of data item VS the concurrency
  degree.
• The best item size depends upon the nature of the
  transactions.

Locking info
Concurrency Degree
Granularity
Granularity
23
Two-phase locking (2PL)

• 2PL A transaction follows the two-phase locking
  protocol if all locking operations precedes the
  first unlock operation in the transaction.
• Growing phase where the transaction acquires all
  the locks needed but cannot release any locks.
• Shrinking phase where it releases its locks but
  cannot acquire any new locks
• Rules
• A transaction must acquire a lock on an item
  before operating on the item. The lock may be
  read or write, depending on the type of the
  access needed.
• Once the transaction releases a lock, it can
  never acquire any new locks.

24
Example of using lock
Get it
25
2-PL (Continue)

• Advantage
• Guarantee Serializability
• Problems
• Cascading rollbacks
• A single transaction leads to a series of
  rollbacks, which potentially lead to the undoing
  of a significant amount of work.
• Deadlock
• When 2 transactions wait for locks on items held
  by the other.
• Livelock
• Transactions are left in wait indefinitely.

26
An example of cascading rollback
27
An example of deadlock
28
Timestamping methods

• Timestamp
• A unique identifier created by the DBMS that
  indicates the relative starting time of a
  transaction.
• No locks, no waiting
• Transactions are only rollbacks and restarts
• Timestamping
• A concurrency control protocol that orders
  transactions in such a way that older
  transactions , transactions with smaller
  timestamps, get priority in the event of
  conflict.
• Timestamps can be for transactions, and for data
  items.
• Ts(T) T is a transaction
• Read_timestamp(x) x is a data item
• Write_timestamp(x) x is a data item

29
Basic timestamp ordering
ts(T19)ltts(T20)ltts(T21)
ts(T19)gtts_w(balx)0
ts(T20)gtts_w(baly)0
ts(T21)gtts_w(baly)0
ts(T20)ltts_r(baly)ts(T21)
ts(T21)gtts_r(baly)ts(T21)? ts(T21)gtts_w(baly)0
restart
ts(T19)ltts(T21)ltts(T20)
read(x) ts(T)ltwrite_timestamp(x) ? abort and
restart ts(T)gt write_timestamp(x) ? proceed
write(x) ts(T)ltread_timestamp(x) ? rollback and
restart ts(T)ltwrite_timestamp(x) ? rollback and
restart Otherwise proceed
30
Database Recovery

• Recovery manager guarantees 2 of 4 ACID
  properties
• Atomicity and Durability
• Problem writing is not atomic
• The transaction is committed, but effects have
  not reached to database yet, i.e. data updates
  have not been recorded in the database.

Database (on secondary storage)
Database buffer (in Main Memory)
flushing

• Flushing buffer writes data back to secondary
  storage.
• Force-writing explicit writing of the buffers to
  secondary storage.
• Update operation is regarded permanent only after
  flushing.

31
Buffer management

• Buffer replacement strategy FIFO, LRU
• 2 policies when a page is written back to disk
• Steal policy (or no-steal)
• Write a buffer to disk before a transaction
  commits.
• Force policy (or no-force)
• All pages are written to disk when the
  transaction commits.
• A steal, no-force policy
• steal avoids the need for a very large buffer
  space to store all updated pages
• No-force avoids rewriting a page to disk for a
  later transaction that has been updated by an
  earlier committed transaction and may still be in
  a database buffer.
• Used by most DBMS.

32
Recovery facilities

• Backup mechanism
• Makes periodic backup copies of the database
• Logging facilities
• Keeps track of the current state of transaction
  and database changes
• A checkpoint facility
• Enables updates to the database that are in
  progress to be made permanent.
• A recovery manager
• Allows the system to restore the database to a
  consistent state following a failure.

33
Log file (log or journal)

• Log files
• Transaction records
• Checkpoint records
• Important!!! Log files are duplicated or
  triplexed.

34
Checkpointing

• Problem how far back do we need to look in the
  log file?
• Checkpoint can eliminate the searching time
• Checkpoint
• The point of synchronization between the database
  and the transaction log file. All buffers are
  force-written to secondary storage.
• Checkpoint operation
• Write all log records in main memory to secondary
  storage
• Write the modified blocks in the database buffers
  to secondary storage
• Write a checkpoint record to the log file. This
  record contains the identifiers of all
  transactions that are active at the time of the
  checkpoint.

35
Use of UNDO/REDO
t0
t1
DBMS starts at t0, fails at t1 DBMS Action UNDO
T1, T6 REDO T2, T3, T4, T5
36
Use of UNDO/REDO with checkpoint
t0
tc
t1
DBMS starts at t0, fails at t1, a checkpoint at
tc DBMS Action UNDO T1, T6 REDO T4, T5
No need to REDO T2, T3 (before tc)
37
Recovery techniques

• Recovery depends on how bad the damage is.
• Database storage is physically damaged. (disk
  head crashed)
• Database is in inconsistent state.
• Recovery techniques
• Deferred update
• Immediate update
• Shadow paging

Our concentration
38
Deferred update

• Updates are not written to the database until
  after a transaction has reached its commit point.
• In case of failure before commit,
• UNDO is unnecessary
• REDO is necessary
• Use log file to do following
• When a transaction starts, write a transaction
  start record to the log
• When any write operation is performed, write a
  log record containing all the log data specified
  previously. Do not write the update to the
  database buffers or the database itself
• When a transaction is about to commit, write a
  transaction commit log record, write all the log
  records for the transaction to disk, and then
  commit the transaction
• If a transaction aborts, write a transaction
  abort log record, ignore the log records for the
  transaction and do not perform the writes.

39
How to recover using deferred update

• Starting at the last entry in the log file, go
  back to the most recent checkpoint record
• Any transaction with transaction start and
  transaction commit log records should be redone.
• Use the after-image log records for the
  transaction,
• In the order in which they were written to the
  log
• For any transactions with transaction start and
  transaction abort log records, we do nothing
  since no actual writing was done to the database.
• No transactions need to be undone.

40
Immediate update

• Using this approach, updates are applied to the
  database as they occur without waiting to reach
  the commit point.
• In case of failure
• Both UNDO and REDO are necessary
• Use log file to do following
• When a transaction starts, write a transaction
  start record to the log
• When any write operation is performed, write
  record containing the necessary data to the log
  file
• Once the log record is written, write the update
  to the database buffers.
• The updates to the database itself are written
  when the buffers are next flushed to secondary
  storage
• When the transaction commits, write a transaction
  commit record to log.

41
How to recover using immediate update

• For any transactions for which both a transaction
  start and transaction commit record appear in the
  log, we redo using the log records to write the
  after-image of updated fields.
• For any transactions for which the log contains a
  transaction start record but not a transaction
  commit record, we need to undo that transaction.
• The log records are used to write the
  before-image of the affected fields, and restore
  the database to its state prior to the
  transactions start.
• In the reverse order to which they were written
  to the log

42
Nested Transaction Model
Nested transaction model A transaction is viewed
as a collection of related subtasks, or
subtransactions, each of which may also contain
any number of subtransactions
T2
T2
T3
T1
T5
T6
43
Distributed DBMSs

• Distributed database
• A logically interrelated collection of shared
  data (and a description of this data) physically
  distributed over a computer network.
• Distributed DBMS
• The software system that permits the management
  of the distributed database and makes the
  distribution transparent to users.
• Distributed processing
• A centralized database that can be accessed over
  a computer network

44
DDBMS and Distributed Processing

• Distributed processing

• DDBMS

• Data is physically distributed.
• Consists of a single logical database that is
  split into a number of fragments.
• It is not necessary for every site in the system
  to have its own local database

• Data is centralized
• Users may access the data over the network

45
Distributed Transaction

• A distributed transaction accesses data stored at
  more than one location.
• Each transaction is divided into a number of
  subtransactions
• A subtransaction is represented by an agent
• Transaction transparency

46
Transaction Transparency

• Two aspects of transaction transparency
• Concurrency transparency
• All concurrent transactions execute independently
  and are logically consistent with the result that
  are obtained if the transactions are executed one
  at a time.
• DDBMS must ensure that both global and local
  transactions do not interfere with each other.
• Failure transparency
• DDBMS must ensure the atomicity of the global
  transaction.

47
Distributed Transaction Management

• Must ensure the atomicity of the global
  transaction and each component subtransaction.
• Four high-level database modules that handle
  transactions, concurrency control, and recovery
  in a centralized DBMS also exist in each local
  DBMS in a DDBMS.
• Transaction manager, scheduler, recovery manager,
  and buffer manager.
• In addition, there is also a global transaction
  manager or transaction coordinator at each site
  to coordinate the execution of both the global
  and local transactions initiated at that site.
• Inter-site communication is through the data
  communications component.

48
Distributed Transaction Management

• TC1 divides the transaction into subtransactions
• The data communication component at S1 sends the
  subtransactions to the appropriate sites, say, S2
  and S3.
• The transaction coordinators at S2 and S3 manage
  the subtransactions.
• The result of the subtransactions are sent back
  to TC1 via data communication components

49
Distributed Concurrency Control

• A good concurrency control mechanism for DDBMS
  should
• resilient
• permit parallelism
• incur modest overhead
• perform satisfactorily
• place few constraints
• Additional problems arise as a result of data
  distribution.
• Multiple-copy consistency problem

50
Distributed Serializability

• If the schedule of transaction execution at each
  site is serializable, then the global schedule
  (the union of all local schedules) is also
  serializable provided local serialization orders
  are identical.
• All subtransaction should appear in the same
  order in the equivalent serial schedule at all
  sites.

• The concurrency control solutions are based on
  locking and timestamping.

51
Locking Protocols

• Four types of locking protocol for distributed
  DBMSs
• Centralized 2PL
• Primary copy 2PL
• Distributed 2PL
• Majority locking

52
Centralized 2PL

• A single site maintains all locking information
• The coordinator requests exclusive locks on all
  copies before updating each copy.
• Local transaction managers request and release
  locks from the centralized lock manager using the
  normal 2PL rules.
• Only one scheduler/lock manager
• Advantage and Disadvantage
• Advantage
• The implementation is straightforward
• Communication costs are relatively low.
• Disadvantage
• The centralization in a distributed DBMS causes
  bottlenecks and low reliability.
• The failure of the central site would cause major
  system failures.

53
Primary Copy 2PL

• Attempts to overcome the disadvantage of
  centralized 2PL protocol.
• Distributes lock manager to a number of sites.
• For each replicated data item, one copy is chosen
  as the primary copy, and the others are slave
  copies.
• The site chosen to manage the locks for the
  primary copy does not have to hold the primary
  copy.
• This protocol only guarantees the primary copy is
  current.
• Advantages and Disadvantages
• Advantages
• Lower communication costs
• Better performance than centralized 2PL (less
  remote locking)
• Disadvantages
• Deadlock handling is more complex (multiple lock
  managers).
• Still has a degree of centralization (lock
  request for a specific primary copy can only be
  handled by one site)

54
Distributed 2PL

• Also attempts to overcome the disadvantages of
  centralized 2PL.
• Distributes the lock managers to every site.
• Each lock manager is responsible for managing the
  locks for the data at that site.
• Equivalent to primary copy 2PL if the data is not
  replicated.
• Otherwise, it implements a ROWA
  (Read-One-Write-All) replica control protocol.
• Any copy of a replicated item can be used for a
  read operation
• But all copies must be exclusively locked before
  an item can be updated

55
Distributed 2PL

• Advantage and Disadvantage
• Advantage
• Deals with locks in a decentralized manner, thus
  avoiding the drawbacks of centralized control.
• Disadvantage
• Deadlock handling is more complex.
• Communication costs are higher than primary copy
  2PL since all items must be locked before update.

56
Majority Locking

• An extension of distributed 2PL
• Overcome having to lock all copies of a
  replicated item before an update.
• Also maintains a lock manager at each site.
• How majority locking works
• If a transaction wishes to read or write a data
  item that is replicated at n sites, it must
  obtain locks on a majority of the copies (by
  sending lock request to more than n/2 sites).
• Any number of transactions can simultaneously
  hold a shared lock on a majority of the copies.
• Only one can hold an exclusive lock on a majority
  of the copies.

57
Majority Locking

• Advantage and Disadvantage
• Advantage
• Overcomes the drawbacks of centralized control
• Disadvantage
• Deadlock handling is more complicated
• This protocol is overly strong in the case of
  shared locks

58
Distributed Timestamp Protocols

• Need to generate unique timestamps both locally
  and globally.
• General approach is to use the concatenation of
  the local timestamp with a unique site identifier
• ltlocal timestamp, site identifiergt (Lamport,
  1978)
• Sites synchronize their timestamps to prevent a
  busy site generating larger timestamps than
  slower sites.
• Example
• S1 S2
• lt10, 1gt lt15, 2gt --site 2 would not change its
  timestamp
• lt10, 1gt lt5, 2gt --site 2 would change its
  timestamp to
• lt11, 2gt

send
send
59
Distributed Deadlock Management

• Deadlock detection may be more complicated in
  distributed environment if lock management is not
  centralized.
• Example

60
Centralized Deadlock Detection

• A single site which is appointed as the Deadlock
  Detection Coordinator (DDC) has the
  responsibility of constructing and maintaining
  the global Wait-For Graph (WFG).
• Each lock manager transmits its local WFG to the
  DDC periodically.
• The DDC checks the cycle in the global WFG and
  break each cycle by selecting the transactions to
  be rollback and restarted.
• The local lock managers only send the change that
  have occurred in the local WFG since it sent the
  last time.
• The failure of the central site would cause
  problems.

61
Hierarchical Deadlock Detection

• The sites in the network are organized into a
  hierarchy
• Each site sends its local WFG to the deadlock
  detection site above it in the hierarchy.
• The root of the tree is a global deadlock
  detector that would detect deadlock between all
  sites.
• Advantage
• Reduces the dependence on a centralized detection
  site.
• Disadvantage
• Much more complex to implement, especially in the
  presence of site and communication failures.

62
Distributed Deadlock Detection

• An external node Text is added to each local WFG.
• Example

Text-gtT2-gtT3-gtText
Text-gtT3-gtT1-gtText
Text-gtT1-gtT2-gtText
Text-gtT3-gtT1-gtT2 -gtT3-gtText
Text-gtT3-gtT1-gtT2-gtText

• The global WFG contains a cycle that does not
  involve the external node, so we could conclude
  that the deadlock exists
