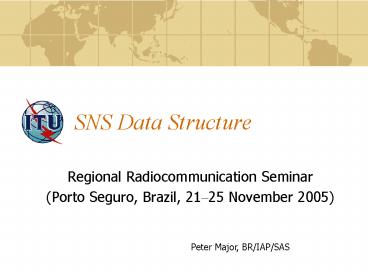

Title: SNS Data Structure


1
SNS Data Structure
  • Regional Radiocommunication Seminar
  • (Porto Seguro, Brazil, 2125 November 2005)

Peter Major, BR/IAP/SAS
2
Introduction
  • BR databases
  • SNS alphanumeric data
  • INGRES used for production in BR
  • MS-Access distributed via CD-ROM and BRIFIC
  • GIMS graphical data
  • SNS version 5
  • Appendix 4, Annex 2 used as basis

3
SNS Database versions
  • Version 4 used previously
  • Was in conformity with Appendix 4 of WRC-2000
  • WRC-03 revised Appendix 4 with provisional
    application as of 1.1.04
  • Version 5 now in production refer to BR
    circular-letter 211

4
Changes in SNS version 5
  • Restructuring of non-geostationary satellite
    orbital data (modified tables)
  • More precise specification of commitments and
    compliances with pfd/epfd limits (additional
    data)
  • Many additional data items added for beams and
    frequency groups

5
Changes continued
  • Additional tables added to improve notice
    processing
  • Link API, Coordination Requests (CR) and
    Notifications (N)
  • Resolution 49 filing linked with target
  • Additional data items added due to changes in
    other parts of RR

6
BR Databases
  • The SNS database (Ingres) contains satellite
    networks and earth stations
  • Recorded in the Master International Frequency
    Register (MIFR)
  • In process of coordination in accordance with
    Section II of Article 9
  • Submitted under the advance publication of
    information process
  • Filed under Resolution 49

7
BR Databases continued
  • The srs.mdb file (MS-Access format on CD-ROM),
    provides a snapshot taken half-yearly from the BR
    SNS database contains satellite networks and
    earth stations
  • Recorded in the Master International Frequency
    Register (MIFR)
  • In process of coordination in accordance with
    Section II of Article 9
  • Submitted under the advance publication of
    information process
  • Filed under Resolution 49

8
BR Databases continued
  • The ificxxxx.mdb file (MS-Access format on BRIFIC
    CD-ROM and ), is published bi-weekly and contains
    satellite networks and earth stations
  • Submitted under No. 11.2 and 11.12 and published
    in Parts 1, 2 3 of the IFIC
  • Submitted under No. 9.6 9.7A and published in a
    CR/C or CR/D Special Section
  • Submitted under No. 9.2 and published in an API
    Special Section
  • The data is published in a fully merged form in
    the database

9
BR Databases continued
  • The sps_all_ificxxxx.mdb file (MS-Access format
    on BRIFIC CD-ROM), is published bi-weekly and
    contains satellite networks and earth stations
  • Data that are in AP30/30A Plans and Lists and
    pending Article 4 cases
  • Notified frequency assignments that have been
    recorded in the Plan Master International
    Frequency Register (MIFR)
  • That have been submitted under Article 5 of
    Appendices 30 30A
  • Can be downloaded from
  • http//www.itu.int/ITU-R/space/plans/MIFR/index.h
    tml

10
BR Databases continued
  • The GIMS database (MS-Access format), is
    published every 6 months on the SRS-on-CDROM. It
    is also published bi-weekly on the BRIFIC CD-ROM
    with the increment.
  • Contains graphical data for geostationary
    satellites relating to
  • Antenna gain contours
  • Service area diagrams
  • Gain towards the geostationary orbit

11
Space PC-Software Suite
SpaceVal
SpaceQry
Capture
exported ascii text
IFIC
SRS
GIBC
SpaceCap
GIMS
MSPACEg
SPS
SpaceCom
SpacePub
GIMS DB
export GXT
Local DB
IFIC TSUM
12
Space Notified Data
13
Space Notified Data
14
SNS Data Structure
  • Three levels
  • - Station-and-related-tables
  • - Group-table
  • - Group-related-tables

15
Station-and-related-tables
  • Primary key is Notice Id number
  • Tables are
  • notice, strap, ngma, geo, non_geo, orbit, phase,
    c_pfd, cmr_syst and s_beam for satellite networks
  • notice, e_stn, e_ant, hor_elev and e_ant_elev
    for earth stations

16
Group-related-tables
  • Primary key is Group Id number plus a sequence
    no. (and sometimes other data) to provide
    uniqueness
  • Tables are
  • -assgn,emiss, provn, srv_cls, gpub_ssn,
    srv_area, fdg_ref, e_as_stn, e_srvcls and s_as_stn

17
Group table
  • Primary key is Group Id number
  • Foreign keys are Notice Id beam_name,
    emission/reception indicator of the owning
    antenna/beam

18
Attachments
  • Graphical data
  • Alphanumeric data (includes epfd mask data)
  • Use attch table to indicate how provided
  • - attch_type P (paper), E (electronic)
  • - file_name attachment file name
  • - extension three character file extension
  • - text additional information

19
List of Attachments
20
Action Code
  • Indicates how to process the notice
  • Add a notice for a new satellite / earth station
  • Modify an existing satellite / earth station
  • Suppress an existing satellite / earth station
  • Must provide value for Action-Code at the notice
    level (in the notice table)

21
Add Notice
  • Notify a new satellite network / earth station
  • Should contain A in the field act_code in the
    notice table
  • Action-Code values in other tables should not be
    provided
  • All data as required by Appendix 4 should be
    provided validation will check it

22
Sup Notice
  • Suppress a previously notified satellite network
    / earth station
  • Should contain S in field act_code in the
    notice table and notice id number of the target
    in field tgt_ntc_id in the notice table
  • Only key data to identify clearly the target
    should be provided, in the notice and geo /
    non_geo / e_stn table no other data should be
    provided

23
Mod Notice
  • Modify an existing satellite network / earth
    station
  • Should contain M in field act_code in the
    notice table and notice id number of the target
    in field tgt_ntc_id in the notice table
  • Can be complex action-codes exist in other
    tables / levels in order to indicate clearly the
    modification desired

24
Mod Notice - Levels
  • Notice level tables are notice, geo, non_geo,
    orbit, phase, c_pfd, e_stn, hor_elev
  • Antenna / beam level tables are s_beam, e_ant
  • Group level tables are grp, assgn, emiss,
    provn, srvcls, gpub_ssn, srv_area, fdg_ref
  • Below-group level tables are e_as_stn,
    e_srvcls, s_as_stn

25
Mod Notice Specify whats changed
  • Indicate changes by using the Action-Code values
    available at various levels
  • At beam level
  • A add a new antenna / beam to existing network
  • M modify existing antenna / beam data
  • and / or make changes at lower level
  • S suppress existing antenna / beam

26
Mod specify changes
  • At group level
  • A add new group of frequencies associated
    data to an existing beam
  • M modify existing frequency group and / or
    group-related data (below-group level)
  • S suppress existing frequency group
  • IMPORTANT provide target group id no.

27
Mod specify changes
  • Group level continued
  • When adding / modifying /suppressing frequencies,
    emissions, coordination data, class-of-station /
    nature-of-service, special-section references,
    service-area countries, the entire list must be
    provided as they would look following the
    modification

28
Mod specify changes
  • At level below-group applies to associated
    earth / space stations
  • A add associated station to existing frequency
    group
  • M modify an existing associated station
  • S suppress an existing associated station

29
Mod specify changes
  • Strap and noise-gamma (ngma) data
  • A add new strap / ngma row to an existing
    satellite network
  • M modify existing strap / ngma row
  • S suppress existing strap / ngma row
  • Important strap id no. and ngma id no. of the
    target are required for M and S.

30
Conclusion
  • Best way to create electronic notice is to use
    BRs SpaceCap software
  • MS-Access database can be loaded from other
    sources but the coherence and integrity of the
    data should be ensured
  • BRs space validation software should be run on
    the notice to check its completeness and
    correctness.

31
Contact
  • Peter Major BR/IAP/SAS
  • E-mail peter.major_at_itu.int
