Title: Penn State Talk EE 497F


1

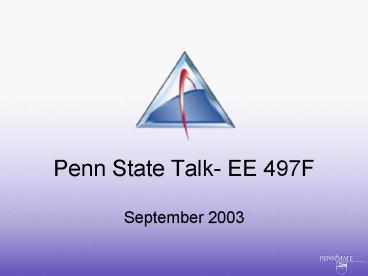

Penn State Talk- EE 497F
  • September 2003

2
What is STK?
  • Satellite Tool Kit (STK) is a commercial
    off-the-shelf (COTS) geospatial analysis and
    visualization software package
  • STK (free) and the comprehensive set of STK
    add-on modules provide users with integrated
    land, sea, air, and space elements
  • The STK software suite provides technology
    solutions for all phases of industry programs and
    initiatives.

3
STK Video
4
STK 5.0 Terminology
  • STK Workspace - The outer most space of the
    primary STK window. It serves as a container for
    all other components.
  • Grey Space - The darker grey area in the center
    of the STK Workspace that contains Secondary
    Windows in their default state.
  • Secondary Window - All windows within the primary
    window (Object Browser, Visualization Window, or
    HTML Viewer)
  • Object Browser - Secondary window that is used to
    hold all instances of STK objects created by the
    user.

5
STK 5.0 Terminology
  • Visualization Window - Any instance of either 2-D
    or 3-D (VO) Graphics window.
  • HTML Viewer Any instance of an embedded HTML
    window.
  • Title Bar Appears at the top of the STK
    Workspace and displays the name of the last
    selected secondary window.
  • Message Viewer Returns information about STK
    with respect to data sources and mouse actions.
  • Status Bar Appears at the bottom of the STK
    Workspace and displays information about most
    recently selected Object, current lat/long of
    your cursor in 2-D Graphics window, current
    scenario time, time step, animation frame rate,
    and resolution level used to display on selected
    2-D Graphics window.

6
Toolbar Manipulation
  • Open the View Menu and select Toolbars -gt
    Customize
  • Here we show/hide existing toolbars or create new
    ones
  • You can also create a new toolbar by holding down
    the Ctrl key and dragging a button to the Grey
    space
  • Create a New toolbar
  • You can add buttons to your new toolbar by
    dragging buttons from other toolbars
  • By holding down the Ctrl key you are copying the
    button to the new bar, without the Ctrl key you
    are cutting the button from the old toolbar
  • You can also add buttons by clicking on the
    Command tab in the Customize tool and dragging
    the buttons from the different categories into
    the toolbar
  • You can delete your toolbar by highlighting your
    toolbar in the Toolbar tab, and clicking Delete

7
Window Management
  • STK has four window state options that can be
    selected by right-clicking on the title bar of
    the windows
  • Integrated The default window state. An
    Integrated window is confined to the grey area,
    when it intersects the STK Workspace it goes
    behind it
  • Docked Is a window that is fixed or parked
    somewhere in the STK Workspace
  • Floating Is a window that is detached from the
    STK Workspace. Floating windows are useful when
    you need a window to be in front of, or outside
    the STK Workspace
  • Full Screen Is useful for visualizing certain
    events that require more Desktop space.

8
Create a New Scenario
  • To create a new scenario either click on or
    click File -gt New
  • Double click on Scenario1 in the Object Browser,
    or highlight Scenario1 and click
  • Under Basic -gt Time Period change the Start time
    to 29 Sep 2003 000000.00, the Stop time to 30
    Sep 2003 000000.00, and the Epoch to 29 Sep
    2003 000000.00
  • Now go to the Animation menu. Make sure that
    your Start Time matches the time we entered in
    the Time Period menu, and change the Time Step to
    10 sec
  • Now go to the Units menu and set the units to
    Kilometers, Seconds, Gregorian UTC, and Degrees

9
Save Your Scenario
  • Lets save the scenario weve got so far. Click
    File -gt Save As
  • Create a new folder with the same name as you
    intend to name your scenario, well call ours
    HubbleLink
  • This avoids accidental overwrites when two
    scenarios have the same object names
  • Open your new folder, change the file name to
    HubbleLink.sc, and click Save

10
Create a Satellite
  • Click on the in the menu bar. The Orbit
    Wizard will appear. In the Orbit Wizard you can
    define a number of generic types of orbits for
    your satellite. Lets dismiss this window.
  • Right click on the satellite and rename it mysat.
  • Open up the satellite properties and go to the
    Basic -gt Orbit menu and check to make sure that
    the Start, Stop, and Orbit Epoch times match your
    scenario times. Also check to see that your Step
    Size is the same as we set it earlier.

11
Set The Orbit Properties
  • Lets create a circular orbit. Set the following
    parameters
  • Semimajor Axis 7000 km
  • Eccentricity 0
  • Inclination 40 deg
  • RAAN True Anomaly 0 deg
  • Click OK and we can view the orbit track in the
    2D and 3D windows
  • If we press the Start button we can animate
    the scenario view our orbit
  • Now reset the scenario by pressing the button

12
Create a Satellite Using the Satellite Database
  • Click Insert -gt Satellite From Database
  • Check the Common Name Box and type in Hubble
  • Click on the HUBBLE satellite, make sure Auto
    Propagate is checked, and that the times matched
    what we entered earlier, and click OK
  • Using the same method as before, insert TDRS_East
    into your scenario from the Satellite database
  • Now would be a good time to save your scenario
  • Since weve already created a folder to save to,
    we can just hit the button
  • Close the Satellite Database

13
Insert Facility From Database
  • Click Insert -gt Facility From Database
  • Check Site Name, and type in Greenbelt
  • Highlight Greenbelt, make sure that the Creation
    Class says Facility, and click OK
  • Now rename Greenbelt to Goddard
  • Click Insert -gt City From Database
  • Check City Name, and type in State College
  • Highlight State College, make sure that the
    Creation Class says Facility, and click OK

14
Creating Sensors
  • Highlight TDRS_East in the Object and click on
    the Sensor button
  • Change the name to TDRSxmit, and then open up its
    properties
  • Lets make the sensor type Simple Sensor and the
    Cone Angle 45 deg
  • Click on Pointing in the left menu
  • Change the Pointing Type to Targeted
  • Under Available Targets Select Goddard and click
    the button to add it as a target
  • Create another sensor named TDRSrcv with the same
    settings, but this time target Hubble
  • Now create a sensor on the Goddard Facility with
    the same properties, but lets name it
    GoddardSensor and target it to TDRS_East
  • Add a sensor to Hubble
  • Simple Conic 5 deg Cone Angle
  • Target TDRS_East

15
Transmitters
  • Insert a transmitter on the TDRSxmit, name
    it TDRSxmit
  • Simple Source Transmitter
  • Details 14.5 Ghz Freq., 30 dbW EIRP, 16
    Mbits/sec Data Rate, Mod. Type BPSK
  • Insert a transmitter onto HubbleSensor with the
    same properties, name it HubbleXmit

16
Receivers
  • Now add a Receiver to TDRSrcv, name it
    TDRSrcv
  • Make it type Simple Receiver
  • Details 20.0 g/T and set Frequency/Bandwidth to
    Auto Track/Scale
  • Create a Receiver on GoddardSensor with the same
    properties as the Receiver on TDRSrcv, but name
    it GoddardRcv
  • Save your scenario

17
Link Budget
  • Highlight the GoddardReceiver and click the
    button
  • Select the TDRS_East/TDRStrans and click the
    Compute button
  • Click on the Link Budget button under Reports

18
Create a Constellation
  • Create a new constellation by clicking the
    button
  • Rename it TDRSx
  • Under the Properties -gt Basic -gt Definition
  • Highlight the TDRS transmitters under Available
    Objects and click the button
  • Create a TDRSr constellation and add TDRSrcv to
    the available options list

19
Create a Chain
  • Click the button to add a Chain
  • Rename it Link
  • Open up the Properties -gt Basic -gt Definition
  • Double click on the following objects listed
    under Available Objects in the following order
  • HubbleTrans
  • TDRSr
  • TDRSx
  • GoddardReceiver
  • Click OK
  • Right Click on Link, go to Chain Tools, and
    Select Compute
  • Now animate the Scenario and watch for the link
    between Hubble and Goddard

20
Bent Pipe Link Budget
  • Right click on Link and go to Chain Tools
  • Click on Reports
  • Create a Bent Pipe Comm Link report

21
Reference Material
22
Classical Orbital Elements
  • Semimajor Axis (a) This is the distance from
    the center of the ellipse to the farthest edge
  • Eccentricity (e) A number between 0 and 1 that
    describes how circular the orbit is. An
    eccentricity of 0 is a circle
  • Inclination (i) A number in degrees that
    describes the tilt of the orbit relative to the
    Earths equator. 0 inclination is an equatorial
    orbit. 90 is a polar orbit. Anything between 90
    and 180 is a retrograde orbit one that goes
    against the Earths rotation
  • Argument of Perigee A number in degrees that
    describes where the perigee of the orbit occurs
    measured relative from where the satellite
    crosses the equator headed Northward
  • Right Ascension of the Ascending Node (RAAN) or
    Longitude of the Ascending Node (LAN) This
    describes where the ellipse crosses the equator
    of the Earth on its way Northward
  • True Anomaly or Mean Anomaly Where the
    satellite is in the orbital ellipse at the Epoch
  • Epoch The moment in time at which these values
    have been defined for the orbit, creating a
    snapshot of where the satellite was at this moment

23
Classical Orbital Elements
24
Comm terms and equations
  • Antennas are Described by their Gain Pattern, g
  • Indicates how Gain is Spatially Distributed with
    Respect to the Antenna Coordinate System
  • Gain
  • Max Value of Gain Pattern
  • Efficiency x 4p/l2 x Area of Antenna Aperture
  • Area is Function of Antenna Type (Function of the
    Diameter, d)
  • l speed of light/frequency
  • Beamwidth
  • Measure of the Angle Over which Most of the Gain
    Occurs
  • l/d x Square Root(Efficiency)
  • Sidelobes Amount of Gain in Off-Axis Directions
  • NOTE Ideally, You Want Highly Directional
    Antenna Patterns with Max Gain Over Narrow
    Beamwidth with Negligible Sidelobes

25
Comm terms and equations
  • EIRP
  • Effective Isotropic Radiated Power. Pronounced
    urrpp. A handy figure of merit used when
    comparing transmitters. Equal to the gain times
    the output power. A 10 watt transmitter with an
    antenna gain of 10 has an EIRP of 100 watts, the
    same as a 5 watt transmitter with an antenna gain
    of 20. EIRP is most often described in units of
    dBW
  • RIP
  • Received Isotropic Radiated Power. Pronounced
    rip. Its basically the EIRP minus all the
    losses you encountered on your way from the
    transmitter to the receiver

26
Comm terms and equations
  • Flux Density
  • How much power per unit area. Usually measured in
    db(watts/meter2).
  • g/Tº
  • Receiver gain divided by the equivalent noise
    temperature. Common figure of merit for comparing
    receivers.
  • C/N0
  • Carrier to Noise Density. Advantage is that it
    is bandwidth independent. Pronounced see over N
    nought. Basically the received carrier power
    divided by the background noise power density.
    Every system has some background noise associated
    with it. The larger the C/No the better.

27
Comm terms and equations
  • C/N
  • Carrier to noise ratio. Also abbreviated as CNR.
    Similar to C/No, but in this case the receiver
    bandwidth is included.
  • Eb/N0
  • Energy per bit over noise. The digital
    communications equivalent to signal to noise
    ratio for analog communications. The higher the
    Eb/No the better.
  • BER
  • Bit Error Rate. The number of bad bits divided by
    the total number of bits. Comm links typically
    require a BER of 10-6 or better.

28
Analog Communications System
29
Digital Communications System
30
Comm terms and equations
  • C/N (dB) RIP g/T K(BW)
  • K Boltzmans Constant 1.38062259e-23 J/K
    -228.6 dBJ/K
  • BW Bandwidth (Hz)
  • RIP Received Isotropic Power (dBW)
  • Bandwidth Despread BW (dB) CDMA Gain (dB)
  • C/No (dB) C/N (dB) Bandwidth Despread
  • Eb/No (dB) C/No(dB) Predemod Gain/Loss(dB)
    DataRate (dB)
  • For BER, You Need to Look Up the Eb/No in the
    Appropriate Source Mod File and Retrieve the BER
    Value from the Lookup Table

31
Comm terms and equations
  • Link budget
  • A summary of the all gains and losses for a given
    link.
  • Typically done on a spreadsheet.
  • Spreadsheet solutions do not allow for time
    varying parameters or geometry varying
    parameters.
  • Contour plots
  • Most common is EIRP. Gives user instant idea of
    where they have coverage and where they dont.

32
Communications Systems Modeling
33
Transmitter models (common)
  • 4 transmitter models in STK
  • Carrier frequency
  • Raw data rate
  • Signal modulation type, CDMA coding gain
  • Transmitter polarization
  • Type (Vertical, Horizontal, RHC, LHC, Linear,
    Elliptical)
  • Alignment (w.r.t. Antenna body, X, Y or Z Axis)
  • RF bandwidth
  • Auto-scale (based on modulation type and data
    rate)
  • User specified transmitter bandwidth
  • Post transmit gains and losses

34
Transmitter models
  • Simple model
  • Transmitter output (EIRP in watts, dBW)
  • Medium model
  • EIRP Power x Gain (models isotropic antenna)
  • Complex model
  • Model antennas, analytical as well as gain
    measurement data
  • Gaussian, Parabolic, Square Horn, Aperture,
    Dipole, Helix, ITU specs
  • EIRP Power x Antenna gain (computed by STK)
  • Multibeam model
  • Model multiple antenna beams, analytical as well
    as gain measurement data
  • EIRP Power x Antenna gain (computed by STK)

35
Receiver models (common)
  • 4 receiver models in STK
  • Receiver RF frequency
  • Auto-track (transmitter) frequency
  • Receiver tuned frequency
  • Receiver RF bandwidth
  • Auto-scale (receiver) bandwidth to the
    transmitted signal (patented algorithm)
  • Fixed receiver bandwidth
  • Receiver polarization
  • Pre-receive gains and losses
  • Pre-demodulation gains and losses
  • Rain outage

36
Receiver models
  • Simple model
  • Receiver g / T (dB / K)
  • Medium model
  • Isotropic antenna gain
  • Model system noise temperature
  • Compute g / T
  • Complex model
  • Model antennas and system/antenna noise
    temperature
  • Compute g / T
  • Multibeam model
  • Model multiple beam antennas and system/antenna
    noise temperature
  • Compute g / T

37
Complex Antenna Model File Formats
  • GIMROC
  • ITU GIMROC Satellite Antenna Files are Sample
    Data Points of Antenna Gain Contours Projected
    onto the Surface Of The Earth
  • Data Points are Recorded in Terms Of Latitude and
    Longitude
  • Resolution of Data Points is Limited and in Some
    Cases Only a Few (1-4) Contours are Provided
  • Very Little Additional Information Available
    Regarding Antenna Dish Type, Size, Transmitter
    Frequency and Actual Maximum Gain
  • Intelsat
  • Gain for an Intelsat Antenna is Determined from
    Data Stored in an External File in a Format
    Commonly Used by Intelsat
  • Other External Files
  • PhiThetaPattern, ThetaPhiPattern and
    SymmetricPattern
  • AzElPattern and ElAzPattern

38
Theta-phi coordinates
  • Theta - ?
  • Angle off the boresight.
  • Range is 0 to 180 degrees.
  • Phi - ?
  • Angle about the boresight.
  • Range is 0 to 360 degrees.
  • Commonly used to model traditional antennas such
    as parabolic.
  • For a symmetric pattern, pattern is symmetric
    about the boresight (gain is independent of ?)

?
39
Azimuth-elevation coordinates
  • Azimuth
  • Rotation angle about -y.
  • Range is -180 to 180 deg.
  • Elevation
  • Rotation angle about x.
  • Range is -180 to 180 deg.
  • Traditionally used by geo-stationary satellites
    where azimuth is from the boresight toward the
    east and elevation is from the equator to the
    north.

Azimuth
Elevation
40
Analog vs. digital
  • Computations for analog and digital
    communications links are common until C/N
  • Signal to Noise ratio computations for analog
    links are usually handled in post processing
  • Eb/No and BER are computed for digital links

41
STK modulation types
  • Analytical modulation schemes
  • BPSK Bi-Phase Shift Keying
  • QPSK Quadrature Phase Shift Keying
  • OQPSK Offset Quadrature Phase Shift Keying
  • MSK Minimum Shift Keying
  • FSK Frequency Shift Keying
  • NFSK Non-Coherent Frequency Shift Keying
  • DPSK Differential Phase Shift Keying
  • QAM Quadrature Amplitude Modulation

42
BPSK Binary Phase Shift Keying
43
Code Division Multiple Access
  • Code Division Multiple Access (CDMA) is a
  • Digital Wireless Technology Developed by QUALCOMM
    in 1995
  • Digital Spread-Spectrum Modulation Technique
  • Used Mainly with Personal Communications Devices
    Such as Mobile Phones
  • Digitizes the Conversation and Tags it with a
    Special Frequency Code
  • Data is then Scattered Across the Frequency Band
    in a Pseudorandom Pattern
  • Receiving Device is Instructed to Decipher Only
    the Data Corresponding to a Particular Code to
    Reconstruct the Signal
  • In 1999, the International Telecommunications
    Union Selected CDMA as the Industry Standard for
    New Third-Generation" (3G) Wireless Systems
  • Leading Wireless Carriers are Building/Upgrading
    to 3G CDMA Networks
  • Over 100 Million Consumers Worldwide Rely on CDMA

44
CDMA bandwidth spread
  • Transmitter
  • Signal bandwidth is spread by the spreading gain
  • Receiver
  • Signal bandwidth is de-spread by the spreading
    gain
  • C/No is improved by the CDMA spreading gain

45
Transmission light speed delay
  • Near Earth and GEO satellites
  • Impact on data transmission
  • Significant impact on satellites beyond GEO
  • Telemetry and control
  • Data transmission protocols
  • Access timing and tracking
  • STK access computations take into account the
    light speed delay for transmitter and receiver
    accesses

46
Polarization
  • Polarization
  • Quantity Describing the Orientation of the
    Electric Field Vector with Reference to the
    Antenna's Orientation
  • 3 Basic Types
  • Linear
  • Elliptical
  • Circular
  • Linear Polarization can be Horizontal or Vertical
  • Circular polarization can be right-handed or
    left-handed
  • Polarization Orientation is a Direct Function of
    the Attitude of the Antenna's Parent Body
  • When Parent Body Attitude Changes, Polarization
    Alignment Between the Receiver and the
    Transmitter May Change, and these Changes Will
    Impact G/T and Subsequent Link Performance Values
    such as C/N, Eb/No, BER, etc.

47
Transponders
  • Analog (bent-pipe)
  • Power amplifiers with RF frequency up/down
    conversion
  • Modeled as a back-to-back connection of a
    receiver and a re-transmitter
  • Digital (re-generative)
  • Complete demodulation and re-modulation of
    information signal
  • Combination of a receiver and a source
    transmitter (all source transmitter parameters
    can be set)

48
Transponders (all analog models)
  • ANALOG Re-Transmitters (Bent-pipe)
  • Saturated input flux density
  • Polarization
  • Transponder output power back-off transfer
    function
  • Modeled as a polynomials (linear or dB scale)
  • Transponder frequency conversion
  • Modeled as a polynomial
  • Post-transmit gains / losses

49
Transponder models
  • Simple model
  • Saturated output EIRP
  • Output of the Transmitter when the Amplifier is
    at its Saturated State
  • Medium model
  • Saturated EIRP Saturated Power Gain
    (isotropic antenna)
  • Complex model
  • Model antennas
  • Saturated EIRP Saturated Power Antenna gain
    (computed)

50
Link constraints
  • Minimum and/or maximum parameter values to be
    satisfied before a link is considered available
    (closed) between a transmitter and receiver

51
Link constraints
  • Basic communication link constraints
  • RIP, frequency, Doppler shift, flux density, C/N,
    C/No, Eb/No, BER
  • Refracted elevation angle range
  • System antenna noise temperature
  • Special
  • GEO belt exclusion
  • Space object exclusion

52
Communications graphics
  • 2-D contours
  • EIRP, antenna gain, RIP, flux density at user
    specified levels
  • Drawn on the surface of the oblate Earth
  • Drawn on a spheroid at a given altitude
  • Access constraints
  • Show access between communications transmitters
    and receivers graphically
  • 3-D antenna beam gain patterns
  • Antenna body axis vectors

53
Propagation and Noise Models
54
Propagation and Noise Models
  • Rain models
  • Attenuation models
  • Noise calculation

55
Rain models - basics
  • STK can employ one of 4 different models
  • Slightly different data and empirical formulas
  • Calculations are based on geographic location
    data (rain regions)
  • Rain height
  • Rain rate
  • Outage percentage specified by the user
  • Ambient temperature
  • Empirical formulas are applied to this data along
    with information on frequency to determine the
    rain-induced noise and loss for a link

56
Rain models - implementation
  • STK does NOT compute the outage percentage
  • Users specify the outage, which the model turns
    into a loss
  • STK uses the lower of the Xmtr/Rcvr to select the
    rain region
  • Users may override the rain region data for rain
    height, rate, and temperature
  • Example - Death Valley and San Fransisco are in
    the same rain zone

57
Attenuation models - basics
  • Two models are currently available
  • Simple satcom model
  • Assumes one end of the link is on the Earth
    surface and the other is above the troposphere.
    Empirical data-based model
  • ITU model
  • Specifies specific attenuation and atmosphere
    models, which AGI incorporates into a ray-traced
    calculation

58
Attenuation models - implementation
  • AGI Ray Tracing - ITU Model
  • Generate a set of concentric spherical shells and
    break a line segment through the set of shells
    into individual segments
  • Atmospheric conditions are determined at the
    bottom of each shell (worst-case)
  • Determines the specific attenuation
  • Applied to the length of the segment through the
    shell
  • Total path attenuation is the sum of the
    attenuation on each line segment

59
ITU specific attenuation
  • Compute options
  • High fidelity physics-based calculation based on
    molecular spectral lines - good for frequencies
    up to 1,000 GHz
  • Curve-fit approximation - faster, slightly less
    accurate, limited to freq lt 300 GHz
  • Global standard atmosphere model
  • Atmospheric data as a function of season and
    latitude

60
Attenuation models - limitations
  • Simple satcom model is simple, fast and accurate
    for Earth-station to satellite links
  • Satcom model limited the same way as rain models
  • ITU Ray Traced model is recommended for all other
    scenarios
  • Ionospheric Attenuation (for STK 5.1)

61
System noise - basics
  • System noise Sum of all individual noise
    contributors
  • Noise due to the environment - referred to as
    antenna noise
  • Anything with a physical temperature radiates RF
    energy - Sun, Earth and cosmic background
  • A medium that absorbs RF energy re-radiates
    energy as noise - atmospheric gases, rain
  • Noise added by the waveguide between the antenna
    and the receiver circuitry
  • A function of the loss and the physical
    temperature of the waveguide
  • Noise due to losses within the receiver circuits
  • Noise figure

62
System noise - implementation
  • The only contributors that are difficult to
    compute are the environment noise terms
  • Antenna noise is the integral of the noise temp
    in a given direction multiplied by the antenna
    gain over the sphere enclosing the antenna

63
Frequency Spectrum Sharing Interference Analysis
64
Frequency Spectrum Interference
  • Definitions
  • Link performance analysis under interference
  • Desired link analysis
  • Interfering link analysis
  • EPFD validation tool for ITU-R
  • Examples
  • Questions and answers

65
Frequency spectrum sharing
  • Frequency spectrum sharing
  • Frequency spectrum is a very limited resource
  • Most frequency bands are already allocated to
    certain services
  • New emerging applications need more more
    bandwidth
  • Broadband data services
  • Satellites phones
  • Broadcast satellites
  • LEOs need to share frequency bands with
  • Terrestrial microwave links
  • Existing GEO satellite links
  • Share frequency bands AND avoid interference

66
Definitions
  • EPFDDOWN
  • Equivalent Power Flux Density being input into
    GEO Earth station receivers by the orbiting LEO
    transmitters
  • EPFDUP
  • Equivalent Power Flux Density being input into
    GEO satellites receivers by the orbiting LEO
    transmitters and LEO Earth station transmitters
  • EPFDIS
  • Equivalent Power Flux Density being input into
    satellites receivers of one constellation by the
    transmitters of another satellite constellation
  • Measured in units dBW / m2 per Ref bandwidth

67
Reference bandwidth
  • Reference Bandwidths are set for Power Flux
    Density (PFD) comparison of different systems
  • 4 KHz
  • 40 KHz
  • 1 MHz

68
Access time filter
  • Approach
  • Determine intervals of time when Desired
    Transmitters have line-of-sight with Receivers
  • Determine intervals of time when Interfering
    Transmitters have line-of-sight with Receivers
  • Compute times when interference opportunities
    exist

69
Near field objects
  • STK does not analyze objects in the near field
    (within d2/2l) of the antennas
  • Interference between receivers and transmitters
    on the same satellite or facility is not an issue

70
Selection Criteria
  • Satellite Selection Criteria (for CommSystem)
  • Satellite which offers highest elevation angle
    from the receiver position
  • Satellite which is the closest (minimum range) to
    the receiver position
  • Antenna Beam Selection Criteria (for Multibeam
    Antenna)
  • Beam which offers maximum antenna gain to the
    communications link
  • Beam which offers the minimum angle from the
    antenna bore-sight

71
Comm system graphics
  • Desired links
  • Identified for the duration when the link is
    available
  • Default color is green (All colors are user
    selectable)
  • Interfering links
  • Identified for the duration of interference
  • Default color is white
  • Highest interfering link
  • Identified for duration of the highest
    interference
  • Link is changed when the highest interfering
    source is changed
  • Default color is red

72
Comm Plugins
73
Communications Plugins
  • Transmitter Model
  • Plugin Source Transmitter for Transmitter Model
    Type
  • Receiver Model
  • Plugin Receiver for Receiver Model Type
  • Custom Antenna Gain Model
  • Transmitter or Receiver Antenna Beam Type
  • Comm Constraints User Plugin Model
  • Receiver (Implemented)
  • Transmitter (Future)

74
Communications Plugins
  • Rain Model
  • Scenario Level RF Environment Plugin Rain Model
    Type
  • Gaseous Absorption Model
  • Scenario Level RF Environment Custom Absorption
    Plugin Model Type
  • Satellite Selection Model
  • CommSystem Link Definition Link Criteria Plugin
    Selection Strategy Model
  • Antenna Beam Selection Model
  • Multibeam Source Antenna Beam Selection Criteria
    Custom Plugin Strategy Model

75
Dynamic Link Analysis with STK/Communications
76
Dynamic Link Analysis w/ Comm
  • Basic Static Comm Link (GEO Downlink) in STK
  • Static Downlink with a Dynamic Noise Source
  • Dynamic Links and RF Interference
  • Communications with a Satellite Constellation
  • STK/Chains for Link Analysis
  • End-to-End Communications Analysis

77
Basic Static Comm Link (GEO Downlink) in STK
  • Create Static Downlink From a Geostationary (GEO)
    Satellite to a Ground Station
  • Fundamental STK/Comm building blocks or objects
  • Transmitters
  • Receivers
  • Static link-budget calculations
  • STK/Coverage to Evaluate System Performance Over
    a Region
  • RF environmental models
  • Rain
  • Atmospheric Attenuation (Absorption Loss)

78
Create Scenario
  • S_AmGEO GEO Satellite
  • Long Asc Node 60 degrees W
  • GEOxmit Complex Source Transmitter on GEO
    satellite
  • Gaussian Antenna Type
  • Data Rate 10 MBits/Sec Freq. 5 GHz Power
    23 dBW
  • Beamwidth 12.5 deg Antenna Efficiency 55
  • Washington DC Facility
  • MediumGatewayRcv Receiver
  • Gain 38 dB
  • Transmission Line Temperature 290 K Noise
    Figure 1
  • Include Rain and Atmosphere in System Temperature

79
Link Budget Report
  • Compute Access
  • Generate Link Budget Report
  • Custom Report Link Budget Detailed
  • View link-budget report e.g.
  • Xmtr Power (dBW) Xmtr Gain (dB) EIRP (dBW)
  • 23.000 19.9567
    42.957
  • Atmos Loss (dB) Rain Loss (dB) Prop Loss
    (dB)
  • 0.0000 0.0000
    -197.9430
  • Tatmos (K) Tantenna (K) Tequivalent (K)
  • 4.003 294.003
    369.091
  • g/T (dB/K) Eb/No (dB) BER
  • 12.328666 15.9415 3.888376e-019

80
Define Coverage
  • Create US_Coverage Coverage Definition
  • Load usstates.rl Region List File for Custom
    Region
  • Use MediumGatewayRcv as Point Definition in
    Associate Class
  • Assign GEOxmit as Asset
  • Create Eb_No Figure of Merit
  • Access Constraint FOM Type
  • Constraints Eb/No

81
Add Atmosphere
  • Add Rain Model
  • Crane 1985
  • Surface Temperature 3.15 deg C
  • Add Gaseous Absorption Model
  • Simple Satcom
  • Water Vapor Concentration 7.5 gm-3
  • Temperature 293.15 K

Without atmospheric effects
With atmospheric effects
82
Atmospheric Effects on Link Budget
  • Refresh Link Budget Report
  • Xmtr Power (dBW) Xmtr Gain (dB) EIRP (dBW)
  • 23.000 19.9567
    42.957
  • Atmos Loss (dB) Rain Loss (dB) Prop Loss
    (dB)
  • -0.0597 -1.2670
    -199.2698
  • Tatmos (K) Tantenna (K) Tequivalent (K)
  • 4.003 437.301
    512.389
  • g/T (dB/K) Eb/No (dB) BER
  • 10.903998 13.1901 5.346490e-011

83
Static Downlink with a Dynamic Noise Source
  • Analyzing the Effects of Moving Objects
  • Sun Outage in GEO to Ground Station (Downlink)
  • Reports and Graphs of Link Performance and
    Availability
  • Parametric Analysis and Post-Processing
  • 3D Visualization Capabilities of STK/VO to
    Illustrate the Physical Effects that Occur During
    a Sun Outage

84
Create Groundstation
  • Facility at Quito, Ecuador
  • ParabolicRcv Complex Receiver
  • Parabolic Type Az 89.357 deg El 68.263 deg
  • Diameter 1.5 m Antenna Efficiency 55
  • Transmission Line Temperature 290 K Noise
    Figure 1
  • Include Sun, Rain and Atmosphere in System
    Temperature
  • Rain Outage 0.1
  • Compute Access to GEOxmit transmitter on S_AmGEO
    GEO Satellite

85
Generate Reports
  • Generate AER and Link Budget-Detailed Reports
  • Azimuth (deg) Elevation (deg) Range (km)
  • 89.356 68.263
    36173.369418
  • Xmtr Power (dBW) Xmtr Gain (dB) EIRP (dBW)
  • 23.000 22.3760
    45.376
  • Atmos Loss (dB) Rain Loss (dB) Prop Loss
    (dB)
  • -0.0427 -1.6797
    -199.3173
  • Tatmos (K) Tsun (K) Tantenna (K)
    Tequivalent (K)
  • 2.868 0.448 474.953
    550.041
  • g/T (dB/K) Eb/No (dB) BER
  • 7.907484 12.5654
    9.349201e-010
  • Indicates varying parameter due to sun effects

86
Generate Sun BER Graph
87
Evaluate Availability
  • Change Maximum BER Constraint to 1.0e-6
  • Examine Access and Gap Reports
  • Gap Start Time (UTCG) Stop Time (UTCG)
    Duration
  • 153223.88 154846.32
    982.434 (sec)
  • Gap due to BER exceeding 1.0e-6 due to sun outage
  • Compute range of antenna apertures using
    spreadsheet
  • Compute the corresponding availability and outage
    times
  • Note As the antenna aperture size increases, the
    beam width decreases as does the duration for
    which the sun is in the field of view of the
    antenna

88
Visualize the 3D Sun Interference
  • 3D Graphics Attributes of ParabolicRcv Receiver
  • Show Volume and Click on Details
  • Frequency 5 GHz
  • Gain Scale 100 km/dB
  • Set Azimuth and Elevation Together
  • Azimuth 0.2 deg and Elevation 0.2 deg
  • Max Elevation Angle 15 deg
  • 3D Graphics Vector of ParabolicRcv Receiver
  • Add Quito Sun Vector
  • Color Yellow Arrow Point Persistence
    Duration 1200 seconds
  • Vector Size Scale 6.6

89
Dynamic Links and RF Interference
  • Comm-System and Constellation Objects
  • Evaluate Comm-System Performance among Multiple
    Nodes
  • Include RF interference sources
  • Dynamic Link from a Low-Earth-Orbiting (LEO)
    Satellite to a Ground Station
  • In-Band interference from GEO
  • Use Sensor as a Dynamic Pointing Platform for a
    Receiver

90
Low Earth Orbiting (LEO) Satellite
  • Add LEO Satellite
  • Circular orbit Semimajor axis 10560.3 km
  • 75 deg inclined RAAN 154.296 deg mean anomaly
    0 deg
  • LEOxmit Complex Source Transmitter
  • Gaussian Antenna Type
  • Data Rate 10 MBits/Sec Freq. 5 GHz Power
    18 dBW
  • Beamwidth 45 deg Antenna Efficiency 55
  • Antenna Gain Contour at -5 dB relative to maximum
  • Compute Access from LEOxmit to MediumGatewayRcv

91
Constellations and CommSystem
  • Create LEOdown Constellation
  • Using LEOxmit Transmitter
  • Create WashingtonRec Constellation
  • Using MediumGatewayRcv Receiver
  • Create LEO_IF Constellation
  • Using GEOxmit transmitter
  • Create LEOCommSys
  • Transmit Constellation LEODown
  • Receive Constellation WashingtonRec
  • Disable Calculate Interference
  • IF_Sources Constellation LEO_IF
  • Compute LEOCommSys

92
BER Graph
BER BER I because Interference is disabled
93
Set GEO Interference
BER with Interference gt BER without Interference
94
Sensor Based Antenna
  • Create WashingtonPoint Sensor on Washington
    Facility
  • Complex Conic
  • Inner Half Angle 0 deg Outer Half Angle 10
    deg
  • Minimum Clock Angle 0 deg Maximum Clock Angle
    360 deg
  • Targeted Pointing to LEO Satellite
  • TwoMeterDish Complex Receiver
  • Gaussian Type
  • Diameter 2 m Antenna Efficiency 55
  • Transmission Line Temperature 290 K Noise
    Figure 1
  • Include Sun, Rain and Atmosphere in System
    Temperature
  • Add TwoMeterDish to WashingtonRec Constellation
  • Directivity of the antenna minimizes/eliminates
    RF interference outside the main lobe of the
    antenna pattern

95
BER and Interference
BER and the BER with interference are nearly
identical
96
Communications with a Satellite Constellation
  • Communications to a Constellation of LEO
    satellites
  • Evaluate Link Performance in the Presence of RF
    Interference
  • Use Report Data to Set Subsequent Constraints and
    Attributes for Analysis
  • Use Comm-System Analysis to Derive a Pointing
    Schedule for a Sensor
  • Optimize Communications Performance
  • Automate this Process Using Connect

97
Add a LEO Constellation
  • Create a Walker Constellation Using LEO Satellite
  • Number of Planes 5 Number of Satellites per
    Plane 5
  • InterPlane Spacing 1
  • Repoint WashingtonPoint Sensor to Constellation
  • Add All LEOxmit Transmitters in Satellite
    Constellation to LEODown Constellation
  • Recompute LEOCommSys

98
Link Information Report
  • Examine Link Information Report for LEOCommSys
  • The BER for the MediumGatewayRcv is generally
    low, but the BER with interference is not
  • MediumGatewayRcv is omni-directional, so the GEO
    satellite contributes significant interference,
    which degrades the link performance.
  • Use a Complex Receiver
  • Receiver Must Be Actively Pointed for Mobile
    Transmitters
  • BER for the TwoMeterDish Receiver for Many of the
    Accesses is High Due to Mis-pointing of the
    Receiver

99
Update Pointing
  • Use the Link Information Report to Define Proper
    Pointing Targets and Schedule for the Sensor
    Platform
  • Create a Custom Pointing Schedule for the
    WashingtonPoint Sensor in STK Object Browser
  • In the Pointing Panel, Click on Target Time
  • Deselect Use Access Times to Override the Default
    Pointing Targets
  • Click on Add and Enter the Scheduled Times Based
    on the Link Information Report
  • Process can be Automated by Using Connect

100
STK/Chains for Link Analysis
  • Using Chains object
  • Facilitate Availability Analyses Between LEO
    constellation and Ground Station
  • Bit-Error-Rate (BER) Constraints on the
    Communication-Link Performance
  • Evaluate Number of Available Accesses Between
    Constellation and Ground Station

101
Create Chain and Compute Availability
  • Create and Build the LEOchain
  • LEOdown Constellation
  • MediumGatewayRcv Receiver
  • Compute LEOchain
  • Compute Complete Chain Access Report
  • Note the 100 Availability Duration 43200
    seconds
  • Washington Receiver Always Sees at Least One LEO
    Transmitter

102
Set BER Constraint
  • Set Maximum BER Constraint for Receiver
  • BER Constraint Duration Availability
  • 1e-4 43200.0 100.0
  • 1e-6 41737.9 96.6
  • 1e-10 30624.1 70.9

103
End-to-End Communications Analysis
  • Trans-Continental Link through LEO Relay
    Satellites
  • Using Chains to Perform Link Analyses
  • Retransmitter Object
  • Models Transponder Links
  • Modeling Relay Nodes
  • Cross-Parent Coupling Between Constellations

104
Update Chain
  • Los Angeles Facility
  • MediumGatewayXmit Medium Source Transmitter
  • Data Rate 10 MBits/Sec Freq. 5 GHz
  • Power 28 dBW Gain 38 dB
  • Add LEOrec Complex Receiver to LEO Satellite
  • Gaussian Type
  • Diameter 0.102939 m Antenna Efficiency 55
  • Transmission Line Temperature 290 K Noise
    Figure 1
  • Include Sun, Earth and Cosmic Background in
    System Temperature
  • Replicate LEOrec Receiver for each Satellite in
    LEO_const Constellation

105
Update Chain (continued)
  • Change LEOxmit to Complex Retransmitter
  • Sat Flux Density -100 Sat Output Power 18
    dBW
  • Diameter 0.102939 m Antenna Efficiency 55
  • Replicate LEOxmit Retransmitter for each
    Satellite in LEO_const Constellation
  • Create LEOup Constellation with One LEOrec
    Receiver
  • Modify LEOdown Constellation to Have Only One
    LEOxmit Retransmitter
  • Modify LEOchain
  • MediumGatewayXmit transmitter on the Los Angeles
    facility
  • LEOup receiver constellation
  • LEOdown transmitter constellation
  • MediumGatewayRcv receiver on the Washington
    facility

106
Bent Pipe Link
  • Compute LEOchain
  • Generate Bent Pipe Link Report and Bent Pipe BER
    Graph
  • Note Differences in Link-Performance Parameters
    for the Uplink, Downlink and Aggregate
  • e.g. BER for Uplink is very low BER for Downlink
    is high
  • Composite BER is high

107
Bent Pipe Link BER
108
Update Constellation
  • Modify LEOup Constellation to Include All LEOrec
    Receivers
  • Modify LEOdown Constellation to Include All
    LEOxmit Retransmitters
  • Recompute LEOchain
  • Appearance of Crosslinks Illustrated in the
    Animations Even Though No Crosslinks Were
    Specified in the Chain Definition
  • Disable Cross Parent Access for LEOdown
    Constellation
  • Recompute LEOchain

109
LASER Link Analysis with STK/Communications
110
Laser Communications
  • Models Free Space Laser Communications in the
    Near Infrared, Visual and Ultraviolet Bands
  • Transmitted Laser Signal Properties
  • Strong Signal
  • Secure (Tamper Free)
  • Large Bandwidth
  • Highly Directional
  • Facilitates Communications Laser Link Budget
    Analysis
  • Contours, 3D Antenna Beam Patterns and
    Constraints are Unavailable at Present

111
Laser Source Transmitter Model
  • Medium Source Transmitter Model with Additional
    Parameters
  • Optics Area
  • Optics Efficiency
  • Gain Value is Queried First If Zero, Gain is
    Computed
  • Gxmtr (4p A/l2)n
  • A optics aperture area
  • l laser wavelength c/f
  • n optics efficiency

112
Laser Receiver Model
  • Medium Receiver Model with Additional Parameters
  • Laser Optics
  • Optics Area
  • Optics Efficiency
  • Laser Detector
  • Detector Area Detector Efficiency Detector
    Gain Detector Dark Current (Amps)
  • Detector Noise Factor Detector Noise
    Temperature Load Impedance
  • Parameters Used to Compute Signal-to-Noise Ratio
    and Eb/No for Laser Comm Link
  • Receiver Gain Value, if Zero or Negative, is
    Computed
  • Grcvr (4p A/l2)n
  • A optics aperture area
  • l laser wavelength c/f
  • n optics efficiency
  • Receiver Gain Value is Set to this Value for the
    Non-Tracking Receiver Types
  • Auto-Tracking Receiver Type Gain Value is Checked
    at Each Time Step If Zero or Negative, Gain is
    Computed by Using Above Equation and the Doppler
    Shifted Frequency Received at that Instant

113
Laser Transmitter Parameters
  • Geo_Sat1 GEO Satellite
  • Long Asc Node 100 degrees W
  • Transmit_Platform Sensor Targeted to Neighboring
    Geo_Sat2
  • Laser Source Transmitter on Transmit_Platform
  • Data Rate 1000 MBits/Sec
  • Frequency 375000 GHz
  • Power 0 dBW
  • Gain 120 dB
  • Optics Area 0.1 m2
  • Optics Efficiency 70

114
Laser Receiver Parameters
  • Geo_Sat2 GEO Satellite
  • Long Asc Node 0 degrees
  • Receive_Platform Sensor Targeted to Neighboring
    Geo_Sat1
  • Laser Receiver on Receive_Platform
  • Gain 60 dB System Temperature 290 K
  • Detector Area 0.01 m2 Detector Efficiency
    90
  • Detector Gain 60 dB Detector Noise Factor
    0.1 dB
  • Detector Noise Temperature 10 K
  • Detector Load Impedance 1.0e8

115
Laser Link Budget
  • Xmtr Power (dBW) Xmtr Gain (dB) EIRP (dBW)
  • 0.000 120.0
    120.0
  • Atmos Loss (dB) Rain Loss (dB) Prop Loss(dB)
  • 0.0000 0.0000
    -300.133
  • Tatmos (K) Train (K) Tequivalent (K)
  • 0.0 0.0 290.0
  • g/T (dB/K) Eb/No (dB) BER
  • 35.37602 42.4463 1.0e-025
Write a Comment
User Comments (0)
About PowerShow.com
