Title: Testing Harmonics and Flicker


1

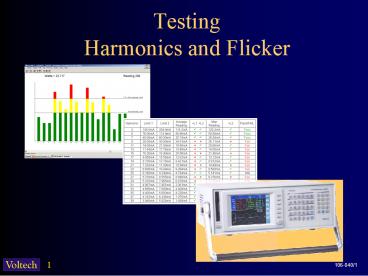

TestingHarmonics and Flicker
2
Harmonics Flicker
  • Two different test standards
  • EN61000-3-2 EN61000-3-3
  • EN 61000-3-2 controls the level of distortion of
    the current drawn by all equipment rated up to 16
    amps.
  • EN61000-3-3 controls the level of voltages
    changes that equipment rated up to 16 amps will
    impose on the ac supply.
  • Both standards have evolved over time
  • Harmonic standard. originally called IEC 555 Part
    2 1987
  • Flicker standard. originally called IEC 555 Part
    3 1987
  • Now referred to as EN61000-3-2 EN61000-3-3
    Standards
  • EN is short for Euro Norm the version
    enforceable in law in European countries. The EN
    is usually identical to the IEC version.

3
Current Harmonic Distortion
Most modern power supplies draw current that is
non-sinusoidal.
4
Current Harmonic Distortion
  • The distorted current causes problems for
    electricity suppliers, consumers and product
    manufacturers.
  • The extra distorted current drawn does no useful
    work. The power factor is WThis
    means more electricity must be generated,
    distributed and paid for than is consumed as
    useful energy.
  • The current distortion leads to to the phenomenon
    of triplen harmonic currents flowing in the
    neutral of three-phase systems a fire risk in
    large office installations.
  • and to voltage distortion that can cause
    overheating in motors.

5
Current Harmonic Distortion
Fourier analysis is used to describe any
repetitive waveform in terms of sine-waves that
are at multiples of the fundamental frequency.
EN61000-3-2 controls current distortion by setti
ng limits for the amplitude of the 1st 40 current
harmonics.
50HZ
100HZ
150HZ
6
Requirements of EN61000-4-7
  • How to measure to the harmonics is defined by
    EN61000-4-7
  • It is a not a simple requirement. The following
    measurements must be made
  • Power, Power Factor , Voltage Harmonics,
    Fundamental Current, POHC (Partial Odd Harmonic
    Current) as well as Current Harmonics.
  • And in a very specific way NEW REQUIREMENTS
  • Measurements are made every 200mS, continuously
    without gaps.(10 cycles _at_ 50Hz, 12 cycles _at_
    60Hz).
  • Inter-harmonics must also be measured for current
    harmonics

7
Requirements of EN61000-4-7
  • Harmonic measurements every 200mS - 400
    measurements!
  • Continuous no-gap analysis
  • All measurements filtered by 1.5s time-constant
    filter

8
Inter-harmonic groups
9
Example Inter-harmonic group
  • 6th harmonic (300Hz _at_ 50Hz)

1/2
1/2
10
Applying Limits to Harmonics - EN61000-3-2
  • The limits for pass and fail are set by product
    groups called Classes
  • The limits are different for each harmonic and
    each of the 4 classes, A, B, C D
  • Class Determination is -
  • If device power is 75-600W and a PC , Monitor or
    TV then Class D
  • If handheld portable tool, then Class B
  • If Luminaries then Class C
  • If not Class B ,C, or D, or 3 phase then class A.

11
Applying Limits to Harmonics - EN61000-3-2
  • Example Class C limits - calculated from AH01
    and PF
  • Information from the PC Software Help system

12
Applying Limits to Harmonics - EN61000-3-2
Limit 2
Limit 1
13
Applying Limits to Harmonics - EN61000-3-2
Maximum reading Vs Limit 2 Average reading Vs
Limit 1
  • Limits are set for the average of each harmonic
    during the test (L1) AND the maximum of each
    harmonic (L2).

14
Flicker - Causes
The AC supply cabling to a building will have a
source impedance Any variation of loads will caus
e a voltage change at the distribution point
This fluctuation of voltage will then make the
lamps Flicker
15
Flicker The Pst 1 Curve
  • The Human tolerance to light flicker is mapped on
    the Pst 1curve.
  • Any point on the curve has the same perceived
    level of annoyance
  • Pst Perceptibility short term

16
EN61000-4-15 The Flickermeter
  • For real-life random voltage changes, a
    flickermeter is used is used to duplicate the
    human perception of flicker.
  • A flickermeter measures rms voltage changes every
    half-cycle (10ms) and filters the measurements
    just like the lamp-eye-brain chain.
  • The filtered changes are classified to generate a
    table of the probability that a class of
    voltage change will occur.

17
Flicker Pst test results from Voltech software
18
Measurement Equipment
  • The Harmonics and Flicker standards require fast
    and accurate analysis of electrical power
    quantities
  • Continuous harmonics
  • 400 measurements every 200ms.
  • Discrete Fourier Transform for a reference
    instrument.
  • Continuous voltage changes
  • every 10ms (1/2 cycle_at_50 Hz),
  • real-time flickermeter processing.
  • Limit checking and reports
  • Calculation of harmonic limits from averaged and
    maximum readings
  • Comparison to different class limits
  • Recording and presentation of results

19
The PM6000
  • Up to 6 wattmeter channels
  • Accuracy 0.02 of reading, 0.05 of range
  • Bandwidth 10MHz
  • Sampling rate 40 MSPS
  • Display Bright color VGA
  • Connectivity RS232, IEEE488, Printer, Ethernet
  • Connectivity (Future Release) PCMCIA for analog
    I/O including torque and speed, USB

20
PM6000 Measurement Channel
  • Built on 15 years of Voltech analog know-how
  • Unrivalled accuracy and bandwidth combination
  • Layout and timing minimise phase delay for best
    Watts accuracy
  • PCI Bus
  • Continuous 5 MSPS data from every channel.
  • No analysis gaps, no missing data
  • A- D Convertor
  • 14-bit
  • 40MSPS Max
  • 5MSPS Min

5V
i
DSP 200MHz
v
  • Isolation
  • 4kVpk
  • CMRR
  • 140dB _at_ 60Hz
  • 95dB _at_ 1MHz
  • Pulse Transformers
  • Data and control.
  • Provide superior CMRR than opto-isolators

12V
21
Why the Voltech PM6000?
22
References
Harmonic Limits IEC 61000-3-2 -Consol.Ed.2.1 (200
1) All electrical and electronic equipment up to
16A. 220 to 240V 50 or 60Hz. IEC 61000-3-12. All
electrical and electronic equipment rated 16A to
75A. 230/400V 50 or 60Hz. Harmonic Measuring Equi
pment IEC 61000-4-7 (2002)- 200ms window and Int
erharmonics requirement mandatory end 2007
Flicker Limits IEC 61000-3-3 -Consol.Ed.1.1 (2001
) All electrical and electronic equipment up to 1
6A. 220 to 250V line to neutral at 50Hz.
IEC 61000-3-11 Ed.1 (2000) All electrical and ele
ctronic equipment 16A to 75A. 220 to 250V 50Hz.
Flickermeters IEC 61000-4-15 Ed.1.1.(2003) Hel
p information Voltech IEC61000 software for the P
M6000. Standards from www.iec.ch Software f
rom www.voltech.com (free download).
23
End of Presentation
  • Thanks for listening!
