Computer Graphics 2 Mini Module 2

1

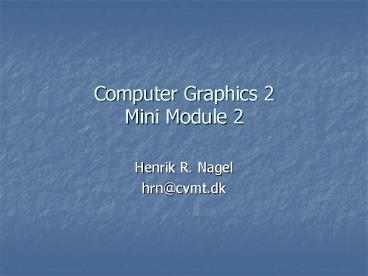

Computer Graphics 2Mini Module 2

• Henrik R. Nagel
• hrn_at_cvmt.dk

2
Outline

• Texture Mapping
• Rendering Polygons Efficiently
• Display lists
• Vertex arrays
• Rendering Curves and surfaces
• Quadrics
• Evaluators
• Polynomial curves and surfaces
• The OpenGL Rendering Pipeline

3
Texture Mapping
4
Texture Mapping

• Apply a 1D, 2D, or 3D image to geometric
  primitives
• Uses of Texturing
• simulating materials
• reducing geometric complexity
• reflections

5
Texture Mapping
screen
geometry
6
Texture Mapping and the OpenGL Pipeline

• Images and geometry flow through separate
  pipelines that join at the rasterizer
• complex textures do not affect geometric
  complexity

7
Applying Textures

• Specify a texture image
• read or generate image
• assign to texture
• enable texturing
• Specify texture parameters
• wrapping, filtering
• Assign texture coordinates to vertices

8
1 Generating a Texture Identifier

• Generate texture names
• glGenTextures( n, texIds )
• Example
• static GLuint texName
• glGenTextures(1, texname)

9
1 Binding Textures

• Create texture objects with texture data and
  state
• glBindTexture( target, id )
• Bind textures before using
• glBindTexture( target, id )
• Example
• glBindTexture( GL_TEXTURE_2D, texName )

10
1 Specifying Textures

• Define a texture image from an array in CPU
  memory
• glTexImage2D( target, level, internalFormat,
  width, height, border, format, type, texels )
• dimensions of image must be powers of 2
• Example
• glTexImage2D( GL_TEXTURE_2D, 0, GL_RGBA, width,
  height, 0, GL_RGBA, GL_UNSIGNED_BYTE, image )

11
1 Specifying LOD

• Mipmap allows for prefiltered texture maps of
  decreasing resolutions
• Lessens interpolation errors for smaller textured
  objects
• Declare mipmap level during texture definition
• glTexImageD( GL_TEXTURE_D, level, )
• GLU mipmap builder routines
• gluBuildDMipmaps( )

12
2 Texture Application Methods

• Filter Modes
• minification or magnification
• special mipmap minification filters
• Wrap Modes
• clamping or repeating
• Texture Functions
• how to mix primitives color with textures color
• blend, modulate or replace texels

13
2 Filter Modes
Example glTexParameteri( target, type, mode )
14
2 Wrapping Mode

• Example
• glTexParameteri( GL_TEXTURE_2D,
  GL_TEXTURE_WRAP_S, GL_CLAMP )
• glTexParameteri( GL_TEXTURE_2D,
  GL_TEXTURE_WRAP_T, GL_REPEAT )

15
2 Texture Functions

• Controls how texture is applied
• glTexEnvfiv( GL_TEXTURE_ENV, prop, param )
• GL_TEXTURE_ENV_MODE modes
• GL_MODULATE
• GL_BLEND
• GL_REPLACE
• Set blend color with GL_TEXTURE_ENV_COLOR

16
3 Mapping Texture

• Based on parametric texture coordinates
• glTexCoord() specified at each vertex

Texture Space
Object Space
t
1, 1
(s, t) (0.2, 0.8)
0, 1
A
a
(0.4, 0.2)
c
b
B
C
(0.8, 0.4)
s
0, 0
1, 0
17
Rendering Polygons Efficiently
18
Immediate Mode

• glBegin(GL_TRIANGLES)
• glVertex3f()
• glVertex3f()
• glVertex3f()
• glEnd()
• Easy, flexible, good match for early hardware
• Slow on current hardware
• Bus-limited, API-limited
• Hard to parallelize with strict ordering semantics

19
Display Lists

• Fast, but limited
• Immutable
• Requires driver to allocate memory to hold data
• Allows large amount of driver optimization
• Can sometimes be cached in fast memory
• Typically very fast

20
Immediate Mode versus Display Listed Rendering

• Immediate Mode Graphics
• Primitives are sent to pipeline and display right
  away
• No memory of graphical entities
• Display Listed Graphics
• Primitives placed in display lists
• Display lists kept on graphics server
• Can be redisplayed with different state

21
Display Lists

• Creating a display list
• GLuint id
• void init( void )
• id glGenLists( 1 )
• glNewList( id, GL_COMPILE )
• / other OpenGL routines /
• glEndList()
• Call a created list
• void display( void )
• glCallList( id )

22
Display Lists

• Not all OpenGL routines can be stored in display
  lists
• State changes persist, even after a display list
  is finished
• Display lists can call other display lists
• Display lists are not editable, but you can fake
  it
• make a list (A) which calls other lists (B, C,
  and D)
• delete and replace B, C, and D, as needed

23
Display Lists and Hierarchy

• Consider model of a car
• Create display list for chassis
• Create display list for wheel
• glNewList( CAR, GL_COMPILE )
• glCallList( CHASSIS )
• glTranslatef( )
• glCallList( WHEEL )
• glTranslatef( )
• glCallList( WHEEL )
• glEndList()

24
Vertex Arrays

• Best of both worlds
• Data can be changed as often as you like
• Data can be interleaved or in separate arrays
• Can use straight lists or indices
• Reduces number of API calls vs. immediate mode
• Little room for driver optimization, since data
  referenced by pointers can change at any time

25
Vertex Arrays

• List of vertices in an array
• Separate
• Interleaved
• Can render from subarrays
• Compiled vertex arrays
• Indexed vertex arrays
• Bandwidth
• Vertex cache

26
Vertex Arrays

• Pass arrays of vertices, colors, etc. to OpenGL
  in a large chunk
• glVertexPointer( 3, GL_FLOAT, 0, coords )
• glColorPointer( 4, GL_FLOAT, 0, colors )
• glEnableClientState( GL_VERTEX_ARRAY )
• glEnableClientState( GL_COLOR_ARRAY )
• glDrawArrays( GL_TRIANGLE_STRIP, 0, numVerts )
• All active arrays are used in rendering

27
Compiled Vertex Arrays

• Solve part of the problem
• Allow user to lock portions of vertex array
• In turn, gives driver more optimization
  opportunities
• Shared vertices can be detected, allowing driver
  to eliminate superfluous operations
• Locked data can be copied to higher bandwidth
  memory for more efficient transfer to the GPU
• Still requires transferring data twice

28
Why use Display Lists or Vertex Arrays?

• May provide better performance than immediate
  mode rendering
• Display lists can be shared between multiple
  OpenGL context
• reduce memory usage for multi-context
  applications
• Vertex arrays may format data for better memory
  access

29
RenderingCurves and Surfaces
30
What Does OpenGL Support?

• Quadrics
• GLU and GLUT contain polynomial approximations of
  quadrics
• Evaluators a general mechanism for working with
  the Bernstein polynomials
• Can use any degree polynomials
• Can use in 1-4 dimensions
• Automatic generation of normals and texture
  coordinates

31
Quadrics

• Quadrics are in both the GLU and GLUT libraries
• Both use polygonal approximations where the
  application specifies the resolution
• Sphere lines of longitude and lattitude
• GLU disks, cylinders, spheres
• Can apply transformations to scale, orient, and
  position
• GLUT Platonic solids, torus, Utah teapot, cone

32
GLUT Objects
Each has a wire and a solid form
glutWireCone()
glutWireTorus()
glutWireTeapot()
33
GLUT Platonic Solids
glutWireTetrahedron()
glutWireDodecahedron()
glutWireOctahedron()
glutWireIcosahedron()
34
Quadric Objects in GLU

• GLU can automatically generate normals and
  texture coordinates
• Quadrics are objects that include properties such
  as how we would like the object to be rendered

disk
partial disk
sphere
35
Defining a Cylinder

• GLUquadricOBJ p
• P gluNewQuadric() /set up object /
• gluQuadricDrawStyle(GLU_LINE)/render style/
• gluCylinder(p, BASE_RADIUS, TOP_RADIUS,
• BASE_HEIGHT, sections, slices)

36
One-Dimensional Evaluators

• Evaluate a Bernstein polynomial of any degree at
  a set of specified values
• Can evaluate a variety of variables
• Points along a 2, 3 or 4 dimensional curve
• Colors
• Normals
• Texture Coordinates
• We can set up multiple evaluators that are all
  evaluated for the same value

37
Setting Up an Evaluator
what we want to evaluate
max and min of u
glMap1f(type,u_min,u_max,stride, order,
pointer_to_array)
separation between data points
1degree of polynomial
pointer to control data
Each type must be enabled by glEnable(type)
38
Example
Consider an evaluator for a cubic Bezier curve
over (0,1)
point data .. /3d data
/ glMap1f(GL_MAP_VERTEX_3,0.0,1.0,3,4,data)
cubic
data are 3D vertices
data are arranged as x,y,z,x,y,z three floats
between data points in array
glEnable(GL_MAP_VERTEX_3)
39
Evaluating

• The function glEvalCoord1f(u) causes all enabled
  evaluators to be evaluated for the specified u
• Can replace glVertex, glNormal, glTexCoord
• The values of u need not be equally spaced

40
Example

• Consider the previous evaluator that was set up
• for a cubic Bezier over (0,1)

• Suppose that we want to approximate the curve
• with a 100 point polyline

glBegin(GL_LINE_STRIP) for(i0 ilt100 i)
glEvalCoord1f( (float) i/100.0) glEnd()
41
Equally Spaced Points

• Rather than use a loop, we can set up an equally
  spaced mesh (grid) and then evaluate it with one
  function call

glMapGrid(100, 0.0, 1.0)
sets up 100 equally-spaced points on (0,1)
glEvalMesh1(GL_LINE, 0, 99)
renders lines between adjacent evaluated points
from point 0 to point 99
42
Bezier Surfaces

• Similar procedure to 1D but use 2D evaluators in
  u and v
• Set up with
• glMap2f(type, u_min, umax, u_stride, u_order,
  v_min, v_max, v_stride, v_order, pointer_to_data)
• Evaluate with glEvalCoord2f(u,v)

43
Example
bicubic over (0,1) x (0,1)
point data44 glMap2f(GL_MAP_VERTEX_3,
0.0, 1.0, 3, 4, 0.0, 1.0, 12, 4, data)
Note that in v direction data points are
separated by 12 floats since array data is stored
by rows
44
Rendering with Lines
must draw in both directions
for(j0jlt100j) glBegin(GL_LINE_STRIP)
for(i0ilt100i) glEvalCoord2f((float)
i/100.0, (float) j/100.0) glEnd() glBegin(GL_L
INE_STRIP) for(i0ilt100i)
glEvalCoord2f((float) j/100.0, (float) i/100.0)
glEnd()
45
Rendering with Quadrilaterals
We can form a quad mesh and render with lines
for(j0 jlt99 j) glBegin(GL_QUAD_STRIP)
for(i0 ilt100 i) glEvalCoord2f
((float) i/100.0, (float) j/100.0)
glEvalCoord2f ((float)(i1)/100.0,
(float)j/100.0) glEnd()
46
Uniform Meshes

• We can form a 2D mesh (grid) in a similar manner
  to 1D for uniform spacing
• glMapGrid2(u_num, u_min, u_max, v_num, v_min,
  v_max)
• Can evaluate as before with lines or if want
  filled polygons
• glEvalMesh2( GL_FILL, u_start, u_num, v_start,
  v_num)

47
Rendering with Lighting

• If we use filled polygons, we have to shade or we
  will see solid color uniform rendering
• Can specify lights and materials but we need
  normals
• Let OpenGL find them
• glEnable(GL_AUTO_NORMAL)

48
