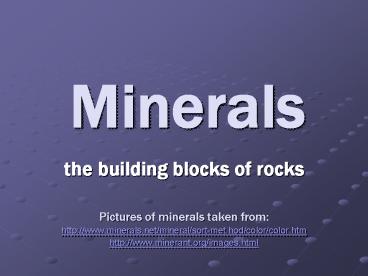

Title: Minerals


1
Minerals
  • the building blocks of rocks
  • Pictures of minerals taken from
  • http//www.minerals.net/mineral/sort-met.hod/color
    /color.htm
  • http//www.minerant.org/images.html

2
(No Transcript)
3
Minerals
  • A Mineral.
  • is naturally occuring
  • is inorganic
  • is solid
  • has an orderly atomic structure
  • has a definite chemical composition

4
Minerals vs. Rocks
  • A Rock is.
  • any solid mass
  • of minerals or mineral-like matter
  • that occurs naturally

5
Properties of Minerals
  • Crystal Form
  • Represents the internal arrangement of atoms

6
Properties of Minerals
  • Crystal Form
  • Represents the internal arrangement of atoms
  • Crystals may sometimes grow quite large

7
Properties of Minerals
  • Crystal Form
  • Represents the internal arrangement of atoms
  • Crystals may sometimes grow quite large
  • Usually they are small and/or intergrown

8
Properties of Minerals
  • Luster
  • describes the appearance of a mineral
  • ex. metallic
  • silky
  • waxy
  • dull
  • vitreous

9
Properties of Minerals
  • Color
  • not a good property to use to identify a mineral!

10
Properties of Minerals
  • Streak
  • the color of the mineral in its powdered form
  • from http//geology.csupomona.edu/alert/mineral/st
    reak.htm

from http//lewis.up.edu/mcs/wasowski/sci110/TnTkC
h02/sld026.htm
11
Properties of Minerals
  • Hardness
  • the resistance of a mineral to being
    scratched
  • Mohs Scale of Hardness (1-10)
  • 1 talc, 2 gypsum, 7 quartz, 10 diamond
  • 2.5 fingernail, 3 penny, 5.5 glass

12
Properties of Minerals
  • Cleavage
  • Cleavage is the tendency for a mineral to break
    along a flat surface.
  • Cleavage ? Crystal form!!!
  • Minerals that do not exhibit cleavage are said to
    fracture.
  • ex. Quartz conchoidal fracture

13
Properties of Minerals
  • Other Properties
  • taste (Halite)
  • reaction with hydrochloric acid (Calcite)
  • magnetism (Magnetite)
  • double refraction (Calcite Iceland Spar)

14
Mineral Groups
  • 4000 named minerals!
  • but only a few dozen are abundant
  • Most common mineral group Silicates
  • Other important minerals -
  • carbonate group
  • native elements
  • other important ores and economic resources

15
Silicate Minerals
  • Contain silicon and oxygen
  • building block SiO4
  • silica tetrahedron

16
Silicate Minerals
  • Silicate minerals can form many ways.
  • some form when magma cools and crystallizes
  • some form when other minerals react with water
    and gases in the atmosphere
  • still others form during metamorphism

17
Silicate Minerals
  • Dark Silicate Minerals
  • ferromagnesian silicates
  • the dark color indicates the presence of iron
    and/or magnesium in the crystal lattice
  • Light Silicate Minerals
  • nonferromangesian silicates
  • the light color indicates the lack of iron and/or
    magnesium in the crystal lattice

18
Silicate Minerals
  • Silicates are grouped according to how the
    tetrahedra are linked together
  • chains, sheets, or a 3-d network
  • Bonds between tetrahedra are very strong!
  • Cleavage planes will not form across Si-O bonds!

19
Silicate Minerals
  • Tetrahedra may form chains
  • Bonds between tetrahedra are very strong
  • cleavage planes exist between chains, not
    across them
  • - minerals tend to form long prismatic crystals

20
Silicate Minerals
  • Tetrahedra may form sheets
  • Bonds between tetrahedra are very strong
  • cleavage planes exist between sheets, not
    across them

21
Silicate Minerals
  • Tetrahedra may form a 3-dimensional
    network
  • Bonds between tetrahedra are very strong
  • - if other ions are in the mineral, 2-planes of
    cleavage exist
  • if pure Si O, cleavage planes do not exist!

22
Carbonate Minerals
  • Contain carbonate ions (CO3-)
  • Extremely important in sedimentary rocks!!
  • Calcite

23
Important Mineral Resources
  • Native Elements
  • gold, silver, copper, etc.
  • Important Ores
  • magnetite hematite (iron ores)
  • galena (lead ore)
  • Important Economic Minerals
  • gypsum (wallboard and plaster)
  • calcite (cement)
  • halite (salt)
  • Gemstones

24
Unit 2 Test Next Class
  • Properties of Minerals
  • Silicate Minerals
  • Carbonates, Other Mineral Resources, Specific
    Mineral Properties (lab related)
  • 20 multiple choice (1 point each)
  • 10 point essay on cleavage in silicate minerals

25
Geopardy
26
Properties of Minerals - 100
  • Define streak.
  • The color of a mineral in its powdered form.

Back to Geopardy Main Page
27
Properties of Minerals - 200
  • Define cleavage
  • The tendency of a mineral to break along flat
    parallel surfaces.

Back to Geopardy Main Page
28
Properties of Minerals - 300
  • Give both mineral 1 and 10 on Mohs Scale of
    Hardness
  • 1 talc 10 diamond

Back to Geopardy Main Page
29
Properties of Minerals - 400
  • Give two reasons why color is not a very good
    property upon which to base a mineral
    identification.
  • Different samples of the same mineral may have
    different colors, and samples of different
    minerals may have the same color.

Back to Geopardy Main Page
30
Properties of Minerals - 500
  • Give all five parts of the definition of Mineral
    (as presented in class).
  • A mineral is a naturally occurring, inorganic,
    solid material. It has an orderly atomic
    structure and a definite chemical composition.

Back to Geopardy Main Page
31
More Properties of Minerals - 100
  • What is the luster of a mineral?
  • Luster describes the way a mineral sample
    reflects light.

Back to Geopardy Main Page
32
More Properties of Minerals - 200
  • What does vitreous mean?
  • Glassy, or glass-like

Back to Geopardy Main Page
33
More Properties of Minerals - 300
  • This property of minerals represents the internal
    arrangement of atoms.
  • Crystal Form

Back to Geopardy Main Page
34
More Properties of Minerals - 400
  • A mineral that breaks along curved surfaces is
    said to have what?
  • Conchoidal fracture

Back to Geopardy Main Page
35
More Properties of Minerals - 500
  • How is a mineral different from a rock? (Be very
    specific!)
  • A rock does not have to have an orderly atomic
    structure. It does not have to have a definite
    chemical composition. A rock may also be
    organically formed.

Back to Geopardy Main Page
36
Silicates - 100
  • What is the name of the building block of
    silicate minerals?
  • Silica tetrahedron

Back to Geopardy Main Page
37
Silicates - 200
  • What is the chemical formula of the building
    block of silicate minerals?
  • SiO4

Back to Geopardy Main Page
38
Silicates - 300
  • What are dark-colored silicate minerals also
    known as?
  • Ferromagnesian silicates

Back to Geopardy Main Page
39
Silicates - 400
  • What does it mean when a silicate mineral has a
    dark color?
  • Iron and/or magnesium is present in the crystal
    lattice of the mineral.

Back to Geopardy Main Page
40
Silicates - 500
  • Explain the connection between the arrangement of
    silica tetrahedra in a silicate mineral and the
    formation of cleavage of the mineral.
  • No answer will be printed below!

Back to Geopardy Main Page
41
Other Minerals - 100
  • What mineral group is especially important in the
    formation of sedimentary rocks?
  • The Carbonate Group

Back to Geopardy Main Page
42
Other Minerals - 200
  • Give three examples of native elements.
  • The three most commonly thought of are gold,
    silver, and copper, but there are others.

Back to Geopardy Main Page
43
Other Minerals - 300
  • What is the chemical composition of the ion found
    in carbonate minerals?
  • Carbonate ion CO3-

Back to Geopardy Main Page
44
Other Minerals - 400
  • Give two examples of minerals that are important
    ores.
  • Some examples include hematite (iron ore), galena
    (lead ore), and magnetite (iron ore), but there
    are many others.

Back to Geopardy Main Page
45
Other Minerals - 500
  • Give two examples of important economic minerals
    (that are not ore minerals)
  • Examples include gypsum (used in plaster and
    wallboard), calcite (used in cement), salt (used
    as salt), but there are many others.

Back to Geopardy Main Page
46
Random Mineral Facts - 100
  • This mineral with a metallic luster is also known
    as fools gold.
  • Pyrite

Back to Geopardy Main Page
47
Random Mineral Facts - 200
  • This mineral was once used instead of glass in
    windows in Russia.
  • Muscovite

Back to Geopardy Main Page
48
Random Mineral Facts - 300
  • This mineral reacts with hydrochloric acid and
    has double refraction.
  • Calcite

Back to Geopardy Main Page
49
Random Mineral Facts - 400
  • This is the state mineral of California.
  • Benitoite

Back to Geopardy Main Page
50
Random Mineral Facts - 500
  • This mineral (in its finely granular, powdered
    form) helps to give Mars its red appearance.
  • Hematite

Back to Geopardy Main Page
