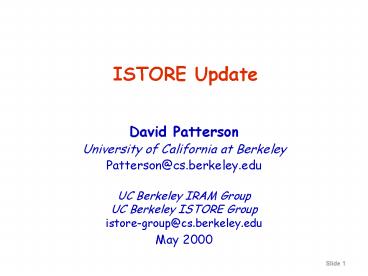

ISTORE Update

1
ISTORE Update

• David Patterson
• University of California at Berkeley
• Patterson_at_cs.berkeley.edu
• UC Berkeley IRAM Group
• UC Berkeley ISTORE Group
• istore-group_at_cs.berkeley.edu
• May 2000

2
Lampson Systems Challenges

• Systems that work
• Meeting their specs
• Always available
• Adapting to changing environment
• Evolving while they run
• Made from unreliable components
• Growing without practical limit
• Credible simulations or analysis
• Writing good specs
• Testing
• Performance
• Understanding when it doesnt matter

Computer Systems Research-Past and Future
Keynote address, 17th SOSP, Dec. 1999 Butler
Lampson Microsoft
3
Hennessy What Should the New World Focus Be?

• Availability
• Both appliance service
• Maintainability
• Two functions
• Enhancing availability by preventing failure
• Ease of SW and HW upgrades
• Scalability
• Especially of service
• Cost
• per device and per service transaction
• Performance
• Remains important, but its not SPECint

Back to the Future Time to Return to
Longstanding Problems in Computer Systems?
Keynote address, FCRC, May 1999 John
Hennessy Stanford
4
The real scalability problems AME

• Availability
• systems should continue to meet quality of
  service goals despite hardware and software
  failures
• Maintainability
• systems should require only minimal ongoing human
  administration, regardless of scale or complexity
• Evolutionary Growth
• systems should evolve gracefully in terms of
  performance, maintainability, and availability as
  they are grown/upgraded/expanded
• These are problems at todays scales, and will
  only get worse as systems grow

5
Principles for achieving AME (1)

• No single points of failure
• Redundancy everywhere
• Performance robustness is more important than
  peak performance
• performance robustness implies that real-world
  performance is comparable to best-case
  performance
• Performance can be sacrificed for improvements in
  AME
• resources should be dedicated to AME
• compare biological systems spend gt 50 of
  resources on maintenance
• can make up performance by scaling system

6
Principles for achieving AME (2)

• Introspection
• reactive techniques to detect and adapt to
  failures, workload variations, and system
  evolution
• proactive techniques to anticipate and avert
  problems before they happen

7
ISTORE-1 hardware platform

• 80-node x86-based cluster, 1.4TB storage
• cluster nodes are plug-and-play, intelligent,
  network-attached storage bricks
• a single field-replaceable unit to simplify
  maintenance
• each node is a full x86 PC w/256MB DRAM, 18GB
  disk
• more CPU than NAS fewer disks/node than cluster

Intelligent Disk Brick Portable PC CPU Pentium
II/266 DRAM Redundant NICs (4 100 Mb/s
links) Diagnostic Processor

• ISTORE Chassis
• 80 nodes, 8 per tray
• 2 levels of switches
• 20 100 Mbit/s
• 2 1 Gbit/s
• Environment Monitoring
• UPS, redundant PS,
• fans, heat and vibration sensors...

8
ISTORE-1 Status

• 10 Nodes manufactured 45 board fabbed, 40 to go
• Boots OS
• Diagnostic Processor Interface SW complete
• PCB backplane not yet designed
• Finish 80 node system Summer 2000

9
Hardware techniques

• Fully shared-nothing cluster organization
• truly scalable architecture
• architecture that tolerates partial failure
• automatic hardware redundancy

10
Hardware techniques (2)

• No Central Processor Unit distribute processing
  with storage
• Serial lines, switches also growing with Moores
  Law less need today to centralize vs. bus
  oriented systems
• Most storage servers limited by speed of CPUs
  why does this make sense?
• Why not amortize sheet metal, power, cooling
  infrastructure for disk to add processor, memory,
  and network?
• If AME is important, must provide resources to be
  used to help AME local processors responsible
  for health and maintenance of their storage

11
Hardware techniques (3)

• Heavily instrumented hardware
• sensors for temp, vibration, humidity, power,
  intrusion
• helps detect environmental problems before they
  can affect system integrity
• Independent diagnostic processor on each node
• provides remote control of power, remote console
  access to the node, selection of node boot code
• collects, stores, processes environmental data
  for abnormalities
• non-volatile flight recorder functionality
• all diagnostic processors connected via
  independent diagnostic network

12
Hardware techniques (4)

• On-demand network partitioning/isolation
• Internet applications must remain available
  despite failures of components, therefore can
  isolate a subset for preventative maintenance
• Allows testing, repair of online system
• Managed by diagnostic processor and network
  switches via diagnostic network

13
Hardware techniques (5)

• Built-in fault injection capabilities
• Power control to individual node components
• Injectable glitches into I/O and memory busses
• Managed by diagnostic processor
• Used for proactive hardware introspection
• automated detection of flaky components
• controlled testing of error-recovery mechanisms
• Important for AME benchmarking (see next slide)

14
Hardware techniques (6)

• Benchmarking
• One reason for 1000X processor performance was
  ability to measure (vs. debate) which is better
• e.g., Which most important to improve clock
  rate, clocks per instruction, or instructions
  executed?
• Need AME benchmarks
• what gets measured gets done
• benchmarks shape a field
• quantification brings rigor

15
Availability benchmark methodology

• Goal quantify variation in QoS metrics as events
  occur that affect system availability
• Leverage existing performance benchmarks
• to generate fair workloads
• to measure trace quality of service metrics
• Use fault injection to compromise system
• hardware faults (disk, memory, network, power)
• software faults (corrupt input, driver error
  returns)
• maintenance events (repairs, SW/HW upgrades)
• Examine single-fault and multi-fault workloads
• the availability analogues of performance micro-
  and macro-benchmarks

16
Benchmark Availability?Methodology for reporting
results

• Results are most accessible graphically
• plot change in QoS metrics over time
• compare to normal behavior?
• 99 confidence intervals calculated from no-fault
  runs

17
Example single-fault result
Linux
Solaris

• Compares Linux and Solaris reconstruction
• Linux minimal performance impact but longer
  window of vulnerability to second fault
• Solaris large perf. impact but restores
  redundancy fast

18
Reconstruction Policy

• Linux favors performance over data availability
• automatically-initiated reconstruction, idle
  bandwidth
• virtually no performance impact on application
• very long window of vulnerability (gt1hr for 3GB
  RAID)
• Solaris favors data availability over app. perf.
• automatically-initiated reconstruction at high BW
• as much as 34 drop in application performance
• short window of vulnerability (10 minutes for
  3GB)
• Windows favors neither!
• manually-initiated reconstruction at moderate BW
• as much as 18 app. performance drop
• somewhat short window of vulnerability (23
  min/3GB)

19
Transient error handling Policy

• Linux is paranoid with respect to transients
• stops using affected disk (and reconstructs) on
  any error, transient or not
• fragile system is more vulnerable to multiple
  faults
• disk-inefficient wastes two disks per transient
• but no chance of slowly-failing disk impacting
  perf.
• Solaris and Windows are more forgiving
• both ignore most benign/transient faults
• robust less likely to lose data, more
  disk-efficient
• less likely to catch slowly-failing disks and
  remove them
• Neither policy is ideal!
• need a hybrid that detects streams of transients

20
Software techniques

• Fully-distributed, shared-nothing code
• centralization breaks as systems scale up
  O(10000)
• avoids single-point-of-failure front ends
• Redundant data storage
• required for high availability, simplifies
  self-testing
• replication at the level of application objects
• application can control consistency policy
• more opportunity for data placement optimization

21
Software techniques (2)

• River storage interfaces
• NOW Sort experience performance heterogeneity
  is the norm
• e.g., disks outer vs. inner track (1.5X),
  fragmentation
• e.g., processors load (1.5-5x)
• So demand-driven delivery of data to apps
• via distributed queues and graduated declustering
• for apps that can handle unordered data delivery
• Automatically adapts to variations in performance
  of producers and consumers
• Also helps with evolutionary growth of cluster

22
Software techniques (3)

• Reactive introspection
• Use statistical techniques to identify normal
  behavior and detect deviations from it
• Policy-driven automatic adaptation to abnormal
  behavior once detected
• initially, rely on human administrator to specify
  policy
• eventually, system learns to solve problems on
  its own by experimenting on isolated subsets of
  the nodes
• one candidate reinforcement learning

23
Software techniques (4)

• Proactive introspection
• Continuous online self-testing of HW and SW
• in deployed systems!
• goal is to shake out Heisenbugs before theyre
  encountered in normal operation
• needs data redundancy, node isolation, fault
  injection
• Techniques
• fault injection triggering hardware and software
  error handling paths to verify their
  integrity/existence
• stress testing push HW/SW to their limits
• scrubbing periodic restoration of potentially
  decaying hardware or software state
• self-scrubbing data structures (like MVS)
• ECC scrubbing for disks and memory

24
Initial Applications

• ISTORE is not one super-system that demonstrates
  all these techniques!
• Initially provide middleware, library to support
  AME goals
• Initial application targets
• cluster web/email servers
• self-scrubbing data structures, online
  self-testing
• statistical identification of normal behavior
• information retrieval for multimedia data
• self-scrubbing data structures, structuring
  performance-robust distributed computation

25
A glimpse into the future?

• System-on-a-chip enables computer, memory,
  redundant network interfaces without
  significantly increasing size of disk
• ISTORE HW in 5-7 years

• building block 2006 MicroDrive integrated with
  IRAM
• 9GB disk, 50 MB/sec from disk
• connected via crossbar switch
• If low power, 10,000 nodes fit into one rack!
• O(10,000) scale is our ultimate design point

26
Future Targets

• Maintenance in DoD application
• Security in Computer Systems
• Computer Vision

27
Maintenance in DoD systems

• Introspective Middleware, Builtin Fault
  Injection, Diagnostic Computer, Isolatable
  Subsystems ... should reduce Maintenance of DoD
  Hardware and Software systems
• Is Maintenance a major concern of DoD?
• Does Improved Maintenance fit within Goals of
  Polymorphous Computing Architecture?

28
Security in DoD Systems?

• Separate Diagnostic Processor and Network gives
  interesting Security possibilities
• Monitoring of behavior by separate computer
• Isolation of portion of cluster from rest of
  network
• Remote reboot, software installation

29
Attacking Computer Vision

• Analogy Computer Vision Recognition in 2000 like
  Computer Speech Recognition in 1985
• Pre 1985 community searching for good algorithms
  classic AI vs. statistics?
• By 1985 reached consensus on statistics
• Field focuses and makes progress, uses special
  hardware
• Systems become fast enough that can train systems
  rather than preload information, which
  accelerates progress
• By 1995 speech regonition systems starting to
  deploy
• By 2000 widely used, available on PCs

30
Computer Vision at Berkeley

• Jitendra Malik believes has an approach that is
  very promising
• 2 step process
• 1) Segmentation Divide image into regions of
  coherent color, texture and motion
• 2) Recognition combine regions and search image
  database to find a match
• Algorithms for 1) work well, just slowly (300
  seconds per image using PC)
• Algorithms for 2) being tested this summer using
  hundreds of PCs will determine accuracy

31
Human Quality Computer Vision

• Suppose Algorithms Work What would it take to
  match Human Vision?
• At 30 images per second segmentation
• Convolution and Vector-Matrix Multiply of Sparse
  Matrices (10,000 x 10,000, 10 nonzero/row)
• 32-bit Floating Point
• 300 seconds on PC (assuming 333 MFLOPS) gt 100G
  FL Ops/image
• 30 Hz gt 3000 GFLOPs machine to do segmentation

32
Human Quality Computer Vision

• At 1 / second object recognition
• Human can remember 10,000 to 100,000 objects per
  category (e.g., 10k faces, 10k Chinese
  characters, high school vocabulary of 50k words,
  ..)
• To recognize a 3D object, need 10 2D views
• 100 x 100 x 8 bit (or fewer bits) per viewgt
  10,000 x 10 x 100 x 100 bytes or 109 bytes
• Pruning using color and texture and by organizing
  shapes into an index reduce shape matches to
  1000
• Compare 1000 candidate merged regions with 1000
  candidate object images
• If 10 hours on PC (333 MFLOPS) gt 12000 GFLOPS

33
ISTORE Successor does Human Quality Vision?

• 10,000 nodes with System-On-A-Chip Microdrive
  network
• 1 to 10 GFLOPS/node gt 10,000 to 100,000 GFLOPS
• High Bandwidth Network
• 1 to 10 GB of Disk Storage per Node gt can
  replicate images per node
• Need Dependability, Maintainability advances to
  keep 10,000 nodes useful
• Human quality vision useful for DoD Apps?
  Retrainable recognition?

34
Conclusions (1) ISTORE

• Availability, Maintainability, and Evolutionary
  growth are key challenges for server systems
• more important even than performance
• ISTORE is investigating ways to bring AME to
  large-scale, storage-intensive servers
• via clusters of network-attached,
  computationally-enhanced storage nodes running
  distributed code
• via hardware and software introspection
• we are currently performing application studies
  to investigate and compare techniques
• Availability benchmarks a powerful tool?
• revealed undocumented design decisions affecting
  SW RAID availability on Linux and Windows 2000
