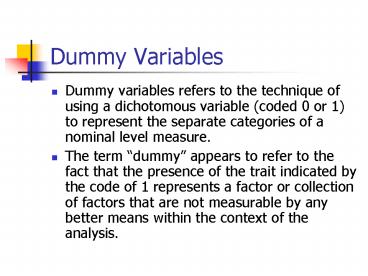

Dummy Variables

1
Dummy Variables

• Dummy variables refers to the technique of using
  a dichotomous variable (coded 0 or 1) to
  represent the separate categories of a nominal
  level measure.
• The term dummy appears to refer to the fact
  that the presence of the trait indicated by the
  code of 1 represents a factor or collection of
  factors that are not measurable by any better
  means within the context of the analysis.

2
Coding of dummy Variables

• Take for instance the race of the respondent in a
  study of voter preferences
• Race coded white(0) or black(1)
• There are a whole set of factors that are
  possibly different, or even likely to be
  different, between voters of different races
• Income, socialization, experience of racial
  discrimination, attitudes toward a variety of
  social issues, feelings of political efficacy,
  etc
• Since we cannot measure all of those differences
  within the confines of the study we are doing, we
  use a dummy variable to capture these effects.

3
Multiple categories

• Now picture race coded white(0), black(1),
  Hispanic(2), Asian(3) and Native American(4)
• If we put the variable race into a regression
  equation, the results will be nonsense since the
  coding implicitly required in regression assumes
  at least ordinal level data with approximately
  equal differences between ordinal categories.
• Regression using a 3 (or more) category nominal
  variable yields un-interpretable and meaningless
  results.

4
Creating Dummy variables

• The simple case of race is already coded
  correctly
• Race coded 0 for white and 1 for black
• Note the coding can be reversed and leads only to
  changes in sign and direction of interpretation.
• The complex nominal version turns into 5
  variables
• White coded 1 for whites and 0 for non-whites
• Black coded 1 for blacks and 0 for non-blacks
• Hispanic coded 1 for Hispanics and 0 for non-
  Hispanics
• Asian coded 1 for Asians and 0 for non- Asians
• AmInd coded 1 for native Americans and 0 for
  non-native Americans

5
(No Transcript)
6
Regression with Dummy Variables

• The dummy variable is then added the regression
  model
• Interpretation of the dummy variable is usually
  quite straightforward.
• The intercept term represents the intercept for
  the omitted category
• The slope coefficient for the dummy variable
  represents the change in the intercept for the
  category coded 1 (blacks)

7
Regression with only a dummy

• When we regress a variable on only the dummy
  variable, we obtain the estimates for the means
  of the depended variable.
• a is the mean of Y for Whites and aB1 is the
  mean of Y for Blacks

8
Omitting a category

• When we have a single dummy variable, we have
  information for both categories in the model
• Also note that
• White 1 Black
• Thus having both a dummy for White and one for
  Blacks is redundant.
• As a result of this, we always omit one category,
  whose intercept is the models intercept.
• This omitted category is called the reference
  category
• In the dichotomous case, the reference category
  is simply the category coded 0
• When we have a series of dummies, you can see
  that the reference category is also the omitted
  variable.

9
Suggestions for selecting the reference category

• Make it a well defined group other or an
  obscure (low n) is usually a poor choice.
• If there is some underlying ordinality in the
  categories, select the highest or lowest category
  as the reference. (e.g. blue-collar,
  white-collar, professional)
• It should have ample number of cases. The modal
  category is often a good choice.

10
Multiple dummy Variables

• The model for the full dummy variable scheme for
  race is
• Note that the dummy for White has been omitted,
  and the intercept a is the intercept for Whites.

11
Tests of Significance

• With dummy variables, the t tests test whether
  the coefficient is different from the reference
  category, not whether it is different from 0.
• Thus if a 50, and B1 -45, the coefficient for
  Blacks might not be significantly different from
  0, while Whites are significantly different from 0

12
Interaction terms

• When the research hypotheses state that different
  categories may have differing responses to other
  independent variables, we need to use interaction
  terms
• For example, race and income interact with each
  other so that the relationship between income and
  ideology is different (stronger or weaker) for
  Whites than Blacks

13
Creating Interaction terms

• To create an interaction term is easy
• Multiply the category the independent variable
• The full model is thus
• a is the intercept for Whites
• (a B1) is the intercept for Blacks
• B2 is the slope for Whites and
• (B2 B3) is the slope for Blacks
• t-tests for B1 and B3 are whether they are
  different than a and B2

14
Separating Effects

• The literature is unclear on how to fully
  interpret interaction effects
• There is multicolinearity between a dummy and its
  interaction terms, and also the regular
  independent variable
• It is suggested that you not use a model with
  Interactions, and no intercept

15
Non-Linear Models

• Tractable non-linearity
• Equation may be transformed to a linear model.
• Intractable non-linearity
• No linear transform exists

16
Tractable Non-Linear Models

• Several general Types
• Polynomial
• Power Functions
• Exponential Functions
• Logarithmic Functions
• Trigonometric Functions

17
Polynomial Models

• Linear
• Parabolic
• Cubic higher order polynomials
• All may be estimated with OLS simply square,
  cube, etc. the independent variable.

18
Power Functions

• Simple exponents of the Independent Variable
• Estimated with

19
Exponential and Logarithmic Functions

• Common Growth Curve Formula
• Estimated with
• Note that the error terms are now no longer
  normally distributed!

20
Logarithmic Functions
21
Trigonometric Functions

• Sine/Cosine functions
• Fourier series Harmonic Analysis
• See Wolframs Mathworld for pictures

22
Intractable Non-linearity

• Occasionally we have models that we cannot
  transform to linear ones.
• For instance a logit model
• Or an equilibrium system model

23
Intractable Non-linearity

• Models such as these must be estimated by other
  means.
• We do, however, keep the criteria of minimizing
  the squared error as our means of determining the
  best model

24
Estimating Non-linear models

• All methods of non-linear estimation require an
  iterative search for the best fitting parameter
  values.
• They differ in how they modify and search for
  those values that minimize the SSE.

25
Methods of Non-linear Estimation

• There are several methods of selecting parameters
• Grid search
• Steepest descent
• Marquardts algorithm

26
Grid search estimation

• In a grid search estimation, we simply try out a
  set of parameters across a set of ranges and
  calculate the SSE.
• We then ascertain where in the range (or at which
  end) the SSE was at a minimum.
• We then repeat with either extending the range,
  or reducing the range and searching with smaller
  grid around the estimated SSE
• Try the spreadsheet
• Try this for homework!

27
Regression Diagnostics

• Some cases are very influential in regression
  models
• There are two ways to describe the influence that
  case may exert
• Residual
• Leverage
• Examination of these particular cases may lead us
  to theoretical insight.

28
Regression Diagnostics

• Residual
• Outliers extreme measures weaken the goodness
  of fit indexes and hypothesis tests
• Studentized residuals
• where hii is the hat diagonal

29
Residual Diagnostics (cont.)

• RStudent

30
Residual Diagnostics (cont.)

• Leverage influential observation
• Hat diagonal a measure of the observations
  remoteness in X-space.
• Hat diagonals greater than 2 times the number of
  coefficients in the model divided by the number
  of observations are considered significant.

31
Residual Diagnostics (cont.)

• Leverage (cont.)
• Cooks D
• If D is greater than 1, then the observation is
  influential.

32
Residual Diagnostics (cont.)

• Leverage (cont.)
• dffits
• If dffits is greater than 1, then the observation
  is influential.

33
Residual Diagnostics (cont.)

• Leverage (cont.)
• Dfbetas an indicator of how much a given
  observation influences each regression
  coefficient

34
