Title: Environmental Technologies in Israel

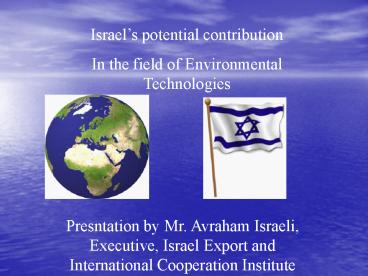

1
Israels potential contribution In the field of
Environmental Technologies
Presntation by Mr. Avraham Israeli, Executive,
Israel Export and International Cooperation
Institute
2
Israel Export Institute
Government
Private Sector
3
Environmental Technologies in Israel
  • Dealing With
  • Water, Waste Water,
  • Solid Waste, Alternative Energy, Air
    Pollution, Hazardous Waste, Polluted sites
  • other Global and Local Environmental Problems

4
Water and Waste Water
  • Desalination
  • Filters and Automatic Valves
  • Industrial Water Purification
  • Water Meters
  • Control and Automation
  • Sewage Systems

5
Desalination Technologies
  • Israeli companies are active in both R.O. and
    Evaporation methods, for large and small
    desalination plants.
  • Israeli systems exist in Cyprus, the Caribbean
    Islands, South America, U.N. Forces in
    Yugoslavia, India and many other countries. The
    largest plant is being built in Israel, will be
    operative in 2005

6
Desalination
?Israeli R.O. System
Scheme of Evaporation System ?
7
Filters and Automatic Valves
Israeli made Filters and Automatic Valves are
Exported to all the Continents and are in the
front edge of the technology.
8
Industrial Waste,, Brackish Water and Polluted
Ground Water Purification
Polluted Water Purification Unit
(Right) Industrial Water (Chemical) Treatment
(Left)
9
Water Meters
Israeli companies are leaders in the water
metering. Remote Control metering by electronic
devices are the fore-front of the technology
10
Control and Automation
Environmental monitoring, control and
communication are essential for environmental
maintenance. Israeli companies developed devices
for air quality monitoring, heavy metals in
water, hydrocarbons, specific ion analyzers and
other technologies and devices.
11
Fast and Accurate water monitoring by
luminousBacteria
  • Principle - changes in the level of luminescence
    indicate potential toxicity.
  • Reliable - highly accurate with only around 10
    deviation in precision.

http//www.checklight.co.il/
12
Sewage Systems
Central Sewage Treatment Systems, On-Site Compact
Treatment Systems for small and remote
communities, upgrading existing facilities up to
double their current capacity. Israel is leading
the World in the rate of water reclamation to
Agriculture. About 70 of the sewage is recycled.
13
Compact Waste Water Treatment Plants
  • Bio Robi- best solution for a single or a couple
    of houses

14
Bio Disk- Efficient solution for villages or
hotels
15
Wise solution for existing Sewage Plants
AqWise has developed the innovative AGAR
technology for performance enhancement, capacity
increase and nutrient removal for activated
sludge processes. The AGAR process, can double,
and even triple the capacity of existing
bio-reactors, usually with the existing
infrastructure.
16
Sludge Treatment
  • sludge stabilization
  • process, which blends
  • wastewater sludge cakes
  • with carefully selected
  • alkaline admixtures, to
  • produce a product,which
  • is a granular easy to
  • handle soil-like
  • pasteurized material.

Sludge Treatment Plant In Belgium
17
Solid Waste Treatment Since every human being
produces 1-2 kg of solid waste per day, disposal
became a major problem in most of the countries.
  • Main technologies
  • Sorting and Composting
  • Gasification
  • Bio-treatment of solid waste

18
Sorting and Composting
Video Clip
Double click on the brown area to see the video
19
Gasification Generating Energy
  • New and advanced technology, using
    Thermolysis-Gasification Method-
  • T.G.E

20
Schematic design of the process
21
TGE process
MSW 1kg/h
SYNGAS 2m3
ELECTRIC ENERGY 0,42-0.84 kw
REACTOR THERMOLYSIS AND GASIFICATION
INERT RESIDUE 0,15 kg
AIR PULSED
US 21-42 ENERGY
1Ton MSW
US 30-80 TIPPING FEE
22
Current status
  • A semi-industrial pilot with a 10 tons per day
    capacity is the current stage of the
    development.

23
10 tons / day pilot plant
24
Biological Treatment and Energy Generation
Biological Treatment Technology, generating clean
energy from the degradable organic matter and
sorting the recyclable materials out of the
waste, is the Israeli new development.
25
The ENERGY CYCLE
Todays Garbage Is Tomorrows Fuel
26
How Does it Work?
Double click on the black area to see the video
27
THE ArrowBio PROCESS
Bio-process liquid
FERROUS METALS
organic
NON-FERROUS METALS
GLASS
inorganic
OTHERS
Simulation
28
THE PROCESS (cont.)
PLASTICS
Bio-process liquid
organic
BIO-DEGRADABLE ORGANIC
HYDRO-CRUSHER
ACETOGENIC REACTOR
inorganic
METHANOGENIC REACTOR
BIO-GAS
WATER
FERTILIZER
Simulation
29
ArrowBio's ADVANTAGES
  • NO POLLUTION
  • BIO-GAS
  • COST
  • INTEGRAL RECOVERING

30
Solar Energy
Solar Water Heaters Solar Thermal Energy
Production- Electricity, Heat, Air
Condition. Photo Voltaic devices for Electricity
and Dual Applications-Electricity and Heating.
31
Solar Energy for Electricity and Air Condition
Solar Thermal power plant- supplies power, air
conditioning and heat to a factory.
32
New Solar Photo Voltaic Development
Concentrated Radiation up to 5001 gives an
efficient and cost0effective photo voltaic device
Israeli Photo Voltaic Technology in space
33
Tower-Heliostat Field Configuration
PCU, including
Sunlight reflected
receiver and solarized
off heliostats and
turbine sits on top of
onto PCU mounted
tower

on tower

Tower

Small heliostats provide
modular solar field,
scalable to required
power


34
Solar Test Site Full 70kWe System Demonstration
Work Station
Tower
Heliostat Field
Control Room
35
Solar Test
Irradiation spot at the CPC aperture sunlight
concentrated by a ratio of several hundred.
Heliostats tracking the sun, reflecting radiation
towards receiver aperture
36
EDIGs Solar-Hybrid Power Generator Advantages
  • Better performance and higher efficiency than
    other renewable energy technologies.
  • Efficient land use Needs less area compared to
    other solar systems, and not limited to flat
    terrain.
  • Dispatchability and reliability of power
    delivery.
  • Modularity Allows sizing to customers needs and
    expansion as demand increases.
  • Optional CHP configuration.

37
Geothermal Power Plants Ormat
  • Innovative Power From the EarthClean, reliable,
    baseload commercial power

38
Air Pollution Reducing
39
Air Pollution Prevention
Separation of the NOx and SOx emissions from
power plants and factories as well as solid
particle removal from stack, by the most
cost-effective existing technologies.
40
Vortex applications
Lime Industry
41
Consulting and Engineering
Israeli consulting and engineering companies are
active all around the World, offering the best
know-how, technologies and expertise. Water
Saving, Combating Desertification,
Agro-Ecology, Animal Waste Treatment,
Environmental Risk Assessment,
Monitoring and Control Management,
Water Total Management are just a few topics
of specialty.
42
Research Development
There are 24 Industrial Incubators in Israel,
many of which are dealing with development of
Environmental Technologies. In all academic
institutes there are environmental technology
researches, looking for partners and cooperation
for further research and for commercialization,
when getting maturity.
Most of the Environmental Technology companies
have RD departments. Many Start-Up companies
seek international partners.
