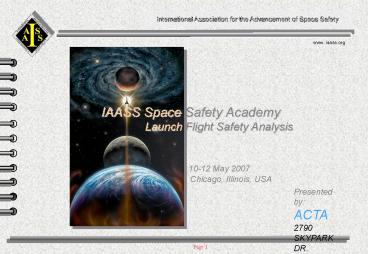

IAASS Space Safety Academy
Launch Flight Safety Analysis

10-12 May 2007 Chicago, Illinois,
USA

Presented by ACTA 2790 SKYPARK DR.SUITE
310Torrance, CA

2
Course Description 1/2

• Title of Training Launch Flight Safety Analysis
• Targeted Audience Students should be familiar
  with matrix and vector operations and have a
  background in physics or mechanical engineering
  equivalent to a BS.
• History of CourseThe course is based on
  material originally presented to top level
  organizations such as
• Korean Aerospace Research Institute (KARI)
• U.S. FAA Associate Administrator for Space
  Transportation (FAA/AST)
• U.S. Air Force Eastern and Western Ranges
• U.S. Navy Pacific Missile Range Facility and
  Naval Air Warfare Center
• Length of Course Three days.

3
Why, What, How Who
Why You Need to Know this -To design for launch
safety -To understand the significance and
procedures of the range safety process -To
identify resources for implementing launch
safety -To get safety certification to launch

• What you will Learn
• -Basic Risk Concepts
• Basic Mathematical and Statistical Principles
• Basic Computation and Presentation of Risk
• Approaches to Risk Analysis Modeling
• Evaluating Risk
• General Launch Risk Analysis Procedure
• -Impact Point Prediction and Impact Dispersions
• -Impact Dispersions of Normal and
• Malfunctioning Vehicles
• -Aircraft Probability of Impact
• -Impact Probabilities for Planned
• Events--Planned Jettisons
• -Introduction to Debris List Development
• -Failure Rate and Failure Mode Development
• -Introduction to Exposure and Vulnerability
• -Acceptable Risk

• Who leads You Through the Maze
• Leading instructors with long experience in range
  safetyand safety risk management

How You Will Learn It -Verbal instruction using
Power Point -Experts Lectures -Videos and
Photographs -Case studies -Group exercises
problem solving
What You will Take Away -The course binder with
all presentations -A selected set of
documents -Certificate of Course Completion
4
Course Outline 1/5

• 1) Introduction
• 2) Overview of Range Safety
• a) Phases of flight
• b) Tracking Requirements Overview
• i) Radar
• ii) GPS/IMU
• c) Range Safety System Requirements Overview
• d) Fundamentals of trajectory analysis
• e) Range Safety Planning
• i) Launch availability winds
• ii) Trajectory shaping
• iii) Population centers
• (1) Evaluate
• (2) Control access
• (3) Evacuate
• f) Locating a launch
• g) Launch commit considerations
• i) Winds
• ii) Managing airspace and roads

5
Course Outline 2/5

• 4) Basic Mathematical and Statistical Principles
• a) Mean vectors and covariance matrices
• b) Probability distributions
• 5) Basic Computation and Presentation of Risk
• a) Measures of risk (risk metrics)
• i) Individual risk
• ii) Collective risk
• iii) Catastrophic risk
• iv) Risk to assets
• b) Risk Dimensions
• i) Injury Severity
• (1) Fatality
• (2) Casualty
• ii) Damage Severity
• (1) Considerations
• (a) High value assets
• (2) Go/No-Go
• (a) Impact by hazardous debris
• 6) Approaches to Risk Analysis Modeling

6
Course Outline 3/5

• 7) Evaluating Risk
• a) Tumble Corridor governing equations
• b) Risks from Planned Jettisons governing
  equations
• 8) General Launch Risk Analysis Procedure
• a) Hazard Identification
• b) Failure probabilities and missile response
• c) Debris generating events
• i) Malfunctions
• (1) Self-destruct
• (2) Aerodynamic breakup
• (3) Effect of flight termination actions
• (a) Flight termination criteria
• (b) System time delays (data latency, decision
  times, time to effect termination)
• ii) Planned events--Jettisoned hardware /stages
• d) Debris lists
• e) Debris propagation
• f) Impact probability calculations
• g) Compute risk measures
• i) Individual risk

7
Course Outline 4/5

• 9) Impact Point Prediction and Impact Dispersions
• a) Propagators
• b) Debris Dispersions
• 10) Impact Dispersions of Normal and
  Malfunctioning Vehicles
• a) Normal Vehicles --Typical GP dispersions
• b) Malfunctions
• i) Off course malfunctions
• ii) On course malfunctions
• iii) Effect on impact distributions
• 11) Aircraft Probability of Impact
• 12) Impact Probabilities for Planned
  Events--Planned Jettisons
• 13) Introduction to Debris List Development
• a) Malfunction debris
• i) Semi-analytic
• ii) Empirical
• iii) Piece parts lists

8
Course Outline 5/5

• 14) Failure Rate and Failure Mode Development
• a) Failure Probabilities
• i) Databases
• (1) Boosters
• (a) Challenges of classification and
  compartmentalization
• (b) What is available
• b) Allocation of failure probability by failure
  mode and time
• i) Vehicle designer
• ii) Historical data
• 15) Introduction to Exposure and Vulnerability
• a) Exposure
• i) Development of a Population Library
• (1) Population mapping guidelines
• (a) Resolution
• (b) Accuracy
• (c) Completeness
• (d) Data sources
• (e) Sheltering
• b) Vulnerability Overview (People, Buildings,
  Aircraft)

9
