Chicago Area Transportation Study

1

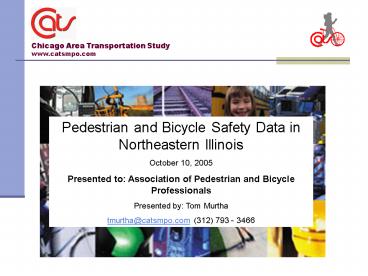

Chicago Area Transportation Study www.catsmpo.com
Pedestrian and Bicycle Safety Data in
Northeastern Illinois October 10, 2005 Presented
to Association of Pedestrian and Bicycle
Professionals Presented by Tom
Murtha tmurtha_at_catsmpo.com (312) 793 - 3466
2
Soles and Spokes Pedestrian and Bicycle Plan for
Chicago Area Transportation
Task 2 Existing Conditions Regional Trends
Task 1 Public Involvement
Task 4 Policy Development
Task 3 Best Practices
3
Journey to Work Trends Walking
There has been a long-term reduction in walking
trips to work.
4
Journey to Work Trends Bicycling
Limited data points to a rapid increase in work
trips by bicycle.
5
Journey to Work Trends Public Transportation
Figure 9. Work Trips by Public Transportation,
Northeastern Illinois, 1960-2000
There has been a long-term reduction in public
transit trips to work. Leveling off?
6
Journey to Work 2000 Snapshot
Driving alone is the dominant mode of journeys to
work, accounting for half of work trips in
Chicago, more elsewhere.
7
Snapshot of All Non-Motorized Trips
Table 7 Summary of Daily Non-Motorized Trips by
Trip Purpose and Relation to Transit Northeastern
Illinois, 1999-2005 Estimates, Tuesday -
Thursday1
Prepared by Chicago Area Transportation Study,
August, 2003. Data reflects Tuesday-Thursday
daily trips.
1 Source Chicago Area Transportation Study.
2020 and 2030 RTP Conformity Analyses,
unpublished data. Figures exclude independent
travel by those less than 14 years of age.
Figures exclude automobile access or egress trips
(e.g., walking to a downtown parking garage from
work).
8
Trends in Household Vehicle Availability City of
Chicago
9
Relationship between Median Income and Vehicle
Availability, City of Chicago Community Areas
For Chicago Community Areas, there is a strong
inverse relationship between vehicle availability
and household income.
10
Trends in Vehicle Availability Suburban Cook
County
11
Trends in Vehicle Availability Collar Counties
12
Snapshot of Walking and Bicycling Conditions
Snow Removal
Snow and ice on sidewalks are barriers,
particularly for people with disabilities. Many
communities have regulations or programs to
control snow and ice on sidewalks.
13
Snapshot of Walking and Bicycling Conditions
Snow Removal
Table 33 Number of Residents Living in
Municipalities with Sidewalk Snow Removal
Information Posted on a Municipal Web Site, NE
Illinois, Winter, 2004.
Prepared by the Chicago Area Transportation
Study, February, 2004. Source Various Web
sites, 2000 Census of Population and Housing.
Note Some communities may have more than one
program thus, some populations were counted
twice. The material collected has been posted at
www.solesandspokes.com and is available upon
request from CATS Planning Division staff.
14
Seasonality
15
International Comparison of Mode Share and
Traffic Fatality Rates
Table 1 Bicycle and Pedestrian Mode Share and
Traffic Fatality Rates, 2002
From a public health perspective, some nations
with high ped/ bike mode shares have lower
overall fatality rates than the USA.

1 Calculated from Andreas Schafer.
"Regularities in Travel Demand An International
Perspective." Journal of Transportation
Statistics. Vol. 3, no. 3. Bureau of
Transportation Statistics. USDOT. Used latest
survey from among reports, Table A-2. 2
Calculated from Organization for Economic
Co-operation and Development, International Road
and Traffic Accident Database, July, 2004
(fatality estimates). (OECD adjusts estimates for
varying lengths of time deaths different
countries apply in attributing deaths to
collisions). Population reflects January 2002
Estimates. http//www.bast.de/htdocs/fachthemen/i
rtad/english/englisch.html 3 Ibid.
16
Pedestrian and Bicycle Injury and Fatality
Crashes, Northeastern Illinois, 2000
TABLE 3 Non-occupant Injury and Fatality Crashes
by County, Northeastern Illinois, 2000
Source Illinois Department of Public Health EMS
Reporting System, 2003. See http//app.idph.stat
e.il.us/emsrpt/index.htm. Numbers reflect
crashes, not victims. Some low numbers resolved
using simultaneous equations involving multiple
queries.
17
Child and Youth Pedestrian and Bicycle Injury
Hospitalization Rates, Northeastern Illinois,
1994-1996
Table 5 Hospitalization Rates for Children and
Adolescents by District and Pedestrian or Bicycle
Travel Northeastern Illinois, 1994-1996
Note Data shows annualized rates of pedestrian
and bicycle injury hospitalization for persons
under age 20 per 100,000 population under age 20.
Source . Cartland J, Meleedy-Rey P, Christoffel
KK. 2001. Child and Adolescent Injury in
Illinois. Child Health Data Lab, Children's
Memorial Hospital. SCRIPTS State and Community
Reports on Injury Prevalence and Targeted
Solutions. Pages 33, 36, 52, 53, 55, 57, 62.
18
Distributions of Ped/Bike Injuries Fatalities
and Population by Age
This chart shows the distributions of the
population and ped/bike injury/ fatality crashes
by age. The chart shows that children are
disproportionate victims.
19
Relationship between Age and Risk of Pedestrian
Death/Injury in Car-Pedestrian Crashes
TABLE 4A Relationship of Impact Speed to Risk of
Death and Injury in Car-Pedestrian Crashes
Sources Davis, Gary A. "Relating Severity of
Pedestrian Injury to Impact Speed in
Vehicle-Pedestrian Crashes." Transportation
Research Record 1773. Transportation Research
Boars, 2001. Pasanen, E. Driving Speeds and
Pedestrian Safety a mathematical model.
Technical Report No. REPT-77, and Nordisk Kabel-
og Traadfabriker, Copenhagen, Denmark, 41 pp.,
1992. Referenced in W.A. Leaf and D.F. Preusser
Literature Review on Vehicle Travel Speeds and
Pedestrian Injuries National Highway Traffic
Safety Administration, October 1999.
20
Non-Motorized and Motorized Trip Injury Collision
Rates by County
Ped/bike and occupant injuryfatality rates per
trip are highest in McHenry and Kane Counties.
High speeds on rural roads may help explain this.
21
Child/Youth BikePed Crash Rates by Chicago
Community Area, 1994-1996
This map shows the rate of child hospitalization
for ped/bike injuries by Chicago community area.
These hospitalization rates are highly correlated
with poverty and crime. The varying rates partly
reflect different exposure levels.
22
Mapping Pedestrian Crashes
5,077 pedestrian crashes could be geocoded for
2003 Of these, 3153 (62) were in low-income or
minority areas. 1,470 pedestrian crashes for
people aged 5 through 17. Of these, 1075 (73)
were in low-income or minority areas. 525
pedestrian crashes for people aged 5 through 9.
Of these, 428 (81) were in low-income or
minority areas.
23
Snapshot of Walking and Biking Conditions
Bicycle Level of Service
BLOS Community Samples
24
Other Factors Alcohol
25
Other Factors Alcohol
26
Snapshot of Walking and Bicycling Conditions
Pedestrian Level of Service
PLOS Community Samples
27
Snapshot of Walking and Bicycling Conditions
BLOS and PLOS
28
Snapshot of Walking and Bicycling Conditions
BLOS and PLOS
Table 24 Weighted Averages of BLOS and PLOS
Samples by County For TIP and Community Samples
29
Snapshot of Walking and Bicycling Conditions
Sidewalk Coverage
Bike and Sidewalk Inventories Soles and Spokes
did not conduct a sidewalk inventory, but
collected municipal sidewalk coverage estimates
in the Soles and Spokes Municipal Survey.
30
Snapshot of Walking and Bicycling Conditions
Sidewalk Coverage
Table 25 Percent of Municipal Population by
Percent of Roadway with Adjacent Sidewalks, By
District, Northeastern Illinois, 2003
Source CATS, Soles and Spokes Municipal Survey
31
Snapshot of Walking and Bicycling Conditions
Bicycle Facilities
Table 26 Percent of Municipalities with Bicycle
Facility Activities, By District, Northeastern
Illinois, 2003
Source CATS, Soles and Spokes Municipal Survey
32
Snapshot of Walking and Bicycling Conditions
Existing and Planned Bicycle Facilities
The CATS Bicycle Inventory System shows a large
system of existing and planned bicycle
facilities. Work on the Bicycle Inventory System
is continuous. The BIS is not designed for
navigation.
33
Chicago Area Transportation Study www.catsmpo.com
Thank You!
