Models of Parallel Computation

1

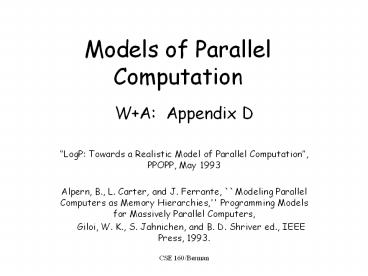

Models of Parallel Computation

• WA Appendix D
• LogP Towards a Realistic Model of Parallel
  Computation, PPOPP, May 1993
• Alpern, B., L. Carter, and J. Ferrante,
  Modeling Parallel Computers as Memory
  Hierarchies,'' Programming Models for Massively
  Parallel Computers,
• Giloi, W. K., S. Jahnichen, and B. D.
  Shriver ed., IEEE Press, 1993.

2
Computation Models

• Model provides underlying abstraction useful for
  analysis of costs, design of algorithms
• Serial computational models use RAM or TM as
  underlying models for algorithm design

3
RAM Random Access Machine

• unalterable program consisting of optionally
  labeled instructions.
• memory is composed of a sequence of words, each
  capable of containing an arbitrary integer.
• an accumulator, referenced implicitly by most
  instructions.
• a read-only input tape
• a write-only output tape

4
RAM Assumptions

• We assume
• all instructions take the same time to execute
• word-length unbounded
• the RAM has arbitrary amounts of memory
• arbitrary memory locations can be accessed in the
  same amount of time
• RAM provides an ideal model of a serial computer
  for analyzing the efficiency of serial
  algorithms.

5
PRAM Parallel Random Access Machine

• PRAM provides an ideal model of a parallel
  computer for analyzing the efficiency of parallel
  algorithms.
• PRAM composed of
• P unmodifiable programs, each composed of
  optionally labeled instructions.
• a single shared memory composed of a sequence of
  words, each capable of containing an arbitrary
  integer.
• P accumulators, one associated with each program
• a read-only input tape
• a write-only output tape

6
More PRAM

• PRAM is a synchronous, MIMD, shared memory
  parallel computer.
• Different protocols can be used for reading and
  writing shared memory.
• EREW (exclusive read, exclusive write)
• CREW (concurrent read, exclusive write)
• CRCW (concurrent read, concurrent write) --
  requires additional protocol for arbitrating
  write conflicts
• PRAM can emulate a message-passing machine by
  logically dividing shared memory into private
  memories for the P processors.

7
Broadcasting on a PRAM

• Broadcast can be done on CREW PRAM in O(1)
• Broadcaster sends value to shared memory
• Processors read from shared memory

8
LogP machine model

• Model of distributed memory multicomputer
• Developed by Culler, Karp, Patterson, etc.
• Authors tried to model prevailing parallel
  architectures (circa 1993).
• Machine model represents prevalent MPP
  organization
• machine constructed from at most a few thousand
  nodes,
• each node contains a powerful processor
• each node contains substantial memory
• interconnection structure has limited bandwidth
• interconnection structure has significant latency

9
LogP parameters

• L upper bound on latency incurred by sending a
  message from a source to a destination
• o overhead, defined as the time the processor is
  engaged in sending or receiving a message, during
  which time it cannot do anything else
• g gap, defined as the minimum time between
  consecutive message transmissions or receptions
• P number of processor/memory modules

10
LogP Assumptions

• network has finite capacity.
• at most ceiling(L/g) messages can be in transit
  from any one processor to any other atone time.
• asynchronous communication.
• latency and order of messages is unpredictable
• all messages are small
• context switching overhead is 0 (not modeled)
• multithreading (virtual processes) may be
  employed but only up to a limit of L/g virtual
  processors

11
LogP notes

• All parameters measured in processor cycles
• Local operations take one cycle
• Messages are assumed to be small
• LogP was particularly well-suited to modeling
  CM-5. Not clear if the same correlation is found
  with other machines.

12
LogP Analysis of PRAM Broadcasting Algorithm

• Algorithm
• Broadcaster sends value to shared memory (well
  assume the value is in P0s memory)
• P Processors read from shared memory (other
  processors receive messages from P0)
• Time for P0 to send P messages o g (P-1)
• Maximum time for other processors to receive
  messages o (P-2)g o L o

13
Efficient Broadcasting in LogP Model

• Gap includes overhead time so overhead lt gap

14
Mapping induced by LogP Broadcasting algorithm on
8 processors
15
Analysis of LogP Broadcasting Algorithm to 7
Processors

• Time to receive one message from P0 for first
  processor (P5) is L2o
• Time to receive message for last processor is
  max3gL2o, 2gL2o, g2L4o, 4o2L,
  g4o2Lmax3gL2o, g2L4o
• Compare to LogP analysis of PRAM Broadcast which
  is o (P-2)g o L o 5g 3o L

16
Scalable Performance

• LogP Broadcast utilizes tree structure to
  optimize broadcast time
• Tree depends on values of L,o,g,P
• Strategy is much more scalable (and ultimately
  more efficient) than PRAM Broadcast

17
Moral

• Analysis can be no better than underlying model.
  The more accurate the model, the more accurate
  the analysis.
• (This is why we use TM to determine
  undecidability but RAM to determine complexity.)

18
Other Models used for Analysis

• BSP (Bulk Synchronous Parallel)
• Slight precursor and competitor to LogP
• PMH (Parallel Memory Hierarchy)
• Focuses on memory costs

19
BSPBulk Synchronous Parallel

• BSP proposed by Valiant
• BSP model consists of
• P processors, each with local memory
• Communication network for point-to-point message
  passing between processors
• Mechanism for synchronizing all or some of the
  processors at defined intervals

20
BSP Programs

• BSP programs composed of supersteps
• In each superstep, processors execute L
  computational steps using locally stored data,
  and send and receive messages
• Processors synchronized at the end of the
  superstep (at which time all messages have been
  received)
• BSP programs can be implemented through
  mechanisms like Oxford BSP library (C routines
  for implementing BSP programs) and BSP-L.

21
BSP Parameters

• P number of processors (with memory)
• L synchronization periodicity
• g communication cost
• s processor speed (measured in number of time
  steps/second)
• Processor sends at most h messages and receives
  at most h messages in a single superstep
  (communication called an h-relation)

22
BSP Notes

• Complete program set of supersteps
• Communication startup not modeled, g is for
  continuous traffic conditions
• Message size is one data word
• More than one process or thread can be executed
  by a processor.
• Generally assumed that computation and
  communication are not overlapped
• Time for a superstep max number of local
  operations performed by any processor g(max
  number of messages sent or received by a
  processor) L

23
BSP Analysis of PRAM Broadcast

• Algorithm
• Broadcaster sends value to shared memory (well
  assume the value is in P0s memory)
• P Processors read from shared memory (other
  processors receive messages from P0)
• In BSP model, processors only allowed to send or
  receive at most h messages in a single superstep.
  Broadcast for more than h processors would
  require a tree structure
• If there were more than Lh processors, then a
  tree broadcast would require more than one
  superstep.
• How much time does it take for a P processor
  broadcast?

24
BSP Analysis of PRAM Broadcast

• How much time does it take for a P processor
  broadcast?

25
PMH Parallel Memory Hierarchy Model

• PMH seeks to represent memory. Goal is to model
  algorithms so that good decisions can be made
  about where to allocate data during execution.
• Model represents costs of interprocessor
  communication and memory hierarchy traffic (e.g.
  between main memory and disk, between registers
  and cache).
• Proposed by Carter, Ferrante, Alpern

26
PMH Model

• Computer is modeled as a tree of memory modules
  with the processors at the leaves.
• All data movement takes the form of block
  transfers between children and their parents.
• PMH is composed of a tree of modules
• all modules hold data
• leaf modules also perform computation
• data in a module is partitioned into blocks
• Each module has 4 parameters for each module

27
Un-parameterized PMH Models for a Cluster of
Workstations
Bandwidth from processor to diskgt bandwidth from
processor to network
Bandwidth between 2 processorsgt bandwidth to disk
28
PMH Module Parameters

• Blocksize s_m tells how many bytes there are per
  block of m
• Blockcount n_m tells how many blocks fit in m
• Childcount c_m tells how many children m has
• Transfer time t_m tells how many cycles it takes
  to transfer a block between m and its parent
• Size of "node" and length of "edge" in PMH graph
  should correspond to blocksize, blockcount and
  transfer time
• Generally all modules at a given level of the
  tree will have the same parameters

29
Summary

• Goal of parallel computation models is to provide
  a realistic representation of the costs of
  programming.
• Model provides algorithm designers and
  programmers a measure of algorithm complexity
  which helps them decide what is good (i.e.
  performance-efficient)
• Next up Mapping and Scheduling
