Title: Solar Orbiter


1

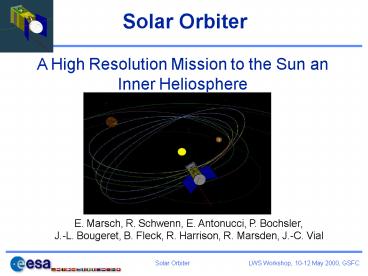

Solar Orbiter
A High Resolution Mission to the Sun an Inner
Heliosphere
E. Marsch, R. Schwenn, E. Antonucci, P. Bochsler,
J.-L. Bougeret, B. Fleck, R. Harrison, R.
Marsden, J.-C. Vial
2
Background
  • The Solar Orbiter (SO), developed from
    InterHelios, was presented at A Crossroads for
    European Solar and Heliospheric Physics and was
    endorsed by ESAs Solar Physics Planning Group
    (SPPG).
  • ESA conducted a pre-assessment study for SO in
    1999.
  • Additional mission scenarios, such as polar
    orbits and/or closer approaches to the Sun, were
    discarded for technical reasons.
  • Technical feasibility of SO demonstrated.
  • SO was one of about 40 responses to the Call for
    Proposals for the next two flexi-missions (F2
    and F3) within ESAs Scientific Programme.
  • On 1 March 2000, ESAs Space Science Advisory
    Committee (SSAC) selected SO, among 5 other
    proposals, for an assessment study.
  • Next selection round (for definition phase) in
    September 2000.
  • Given the realistic cost estimates, international
    partners (e.g. NASA, ISAS, RSA or other national
    agencies) are needed.

3
Solar Physics after SOHO New Goals
  • Unravel couplings between all layers of the solar
    atmosphere
  • make multi-wavelength simultaneous observations
    at very high spatial resolution!
  • Disentangle spatial and temporal variations in
    the solar wind
  • choose orbit enabling S/C co-rotation with the
    Sun!
  • Uncover missing links for understanding the solar
    dynamo
  • observe the Sun from high latitudes!

4
Novel Measurements
  • Observe all layers of the solar atmosphere at
    high spatial resolution (Sun (45 R? ).
  • Separate spatial and temporal variations in the
    solar wind from quasi-corotational orbit (1.3?
    per day).
  • Enable first observations of the polar regions of
    the Sun from out-of-ecliptic vantage points (up
    to 38? in heliographic latitude).

5
Coverage of Solar and Heliospheric Physics
  • Interior
  • Dynamo ? image solar poles and determine magnetic
    field
  • Photosphere and Chromosphere
  • Luminosity ? measure irradiance changes (at high
    latitudes)
  • Flux tubes ? resolve small-scale magnetic
    elements (
  • Corona
  • Loops ? imaging and spectroscopic diagnostics of
    the building blocks of the corona
  • Flares ? measure radio emissions, particles, and
    neutrons
  • Heliosphere
  • Streams ? separate structures from turbulence and
    waves

6
Scientific Payload
  • Solar Instruments
  • Visible-light imager and magnetograph
  • EUV / X-ray imager
  • EUV spectrometer
  • UV and visible-light coronagraph
  • Neutron and ?-ray detector
  • Radiometer
  • Heliospheric Instruments
  • Solar wind plasma analyzer
  • Plasma wave analyzer
  • Magnetometer
  • Energetic particle detector
  • Neutral particle detector
  • Dust detector
  • Radio spectrometer
  • Coronal radio sounding experiment

7
Key Goals for the Near Sun Phase
  • solar magnetic field - structure and evolution
    at the fundamental scale of magnetic elements,
    providing new insights into magnetoconvection
  • coronal heating processes - in the transition
    region and at the coronal base, at a much finer
    scale (
  • coronal and interplanetary disturbances -
    magnetic flux tubes, magnetic activity, flares,
    eruptive prominences and coronal mass ejections
  • evolution of solar active regions - sunspots,
    loops, and prominences.
  • plasma and electromagnetic fields - coronal
    streamer belt and coronal holes extending to the
    near-ecliptic regions (slow and fast solar wind)
  • energetic particles close to the Sun - origin,
    acceleration and transport
  • near-Sun dust - origin and spatial distribution
  • coronal radio emission - and particles
    originating from the same source

8
Key Goals for theOut-of-Ecliptic Phase
  • nature and evolution of the solar polar coronal
    holes, as well as their boundaries
  • origin of solar wind streams at intermediate and
    high latitudes
  • coronal mass ejections their global
    distribution, longitudinal extent, onset and
    propagation
  • magnetic field structure and evolution, in
    particular over the poles where it is poorly
    known
  • working of the solar dynamo, including the
    reversals of the polar field
  • dynamics and rotation of the solar corona near
    the poles
  • magnitude and nature of the solar luminosity
    variations
  • global coronal waves and their effects over the
    poles
  • acceleration of the solar wind over the poles by
    Doppler-velocity measurements.

9
Solar Instrumentation
10
Heliospheric Instrumentation
11
Mission Characteristics
  • Orbit
  • inclination variable (heliographic) 0 ? i ? 38?
  • perihelion down to 45 R?
  • S/C platform
  • 3-axis stabilized, Sun-pointing, better than 3
    arcsec/15 min
  • Launch date 2009, compatible with F2/F3
  • Lifetime total ? 7 years
  • cruise ? 2 years
  • scientific ? 5 years (nominal ? 3 years
    extended ? 2 years)
  • Payload solar-remote package in-situ package
  • Mass S/C ? 1500 kg, P/L ? 100 kg
  • Data rate 70 kbit/s (Ka-band)

12
Spacecraft Overview
  • Total mass 1510 kg
  • Dimensions 3 m x 1.2 m x 1.6 m
  • 3-axis stabilized
  • pointing stability better than 3 arcsec /
    15 min
  • Solar Electric Propulsion (SEP)
  • 4 x 0.15 N stationary plasma thrusters
  • Deployable and rotatable Cruise solar arrays,
    jettisoned after last SEP thrusting
  • Deployable and tiltable Orbit solar
    arrays, 16 GaAs cells, 84 OSR.
  • 4 X-band LGAs, omni coverage, for TTC.
  • One Ka-band HGA, 1.5 m dia., for telemetry after
    Cruise.

13
Trajectory
Perihelion Radius
Solar Latitude wrt Solar Equator
14
Modes of Operation
15
Telemetry Capabilities
16
Programmatics
  • Mission managed and financed mainly by ESA, with
    strong international collaboration (e.g. NASA).
  • PI-type mission, instruments supplied by
    community.
  • Cost estimate (pre-assessment study) 232 Meuro.
  • Maximum use of available technology, of-the-shelf
    (in 2004), or from the proposed Mercury Orbiter
    Cornerstone Bepi-Colombo.
  • Launcher Soyuz-Fregat type.
  • S/C and science operations performed with a
    single ground station, e.g. by ESOC.
  • Seeking international partners for second and
    third ground station, in order to increase
    science telemetry.
  • Design lifetime compatible with a 7-year mission.

17
Summary Solar Orbiter will ...
  • explore unknown territory near the Sun
  • provide unprecedented high-resolution
    observations of the Sun (? 40 km)
  • provide the first images of the solar poles
  • correlate in-situ with remote-sensing
    measurements at 45 R? from a quasi-co-rotational
    vantage point
  • be technically feasible (using electric
    propulsion)
  • be the next logical step and open new grounds in
    solar and heliospheric physics!
