1

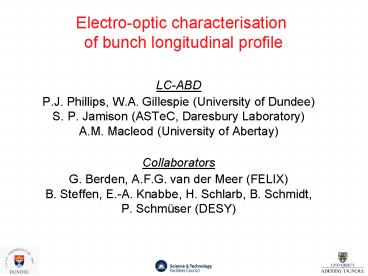

Electro-optic characterisation of bunch
longitudinal profile
  • LC-ABD
  • P.J. Phillips, W.A. Gillespie (University of
    Dundee)
  • S. P. Jamison (ASTeC, Daresbury Laboratory)
  • A.M. Macleod (University of Abertay)
  • Collaborators
  • G. Berden, A.F.G. van der Meer (FELIX)
  • B. Steffen, E.-A. Knabbe, H. Schlarb, B. Schmidt,
  • P. Schmüser (DESY)

2
Why do we need an ultra-fast electron bunch
diagnostic?Machine operation has high influence
on beam shapeWakefieldsSynchrotron
radiationBeam Beam interaction
3
Electro-optic longitudinal bunch profile
measurements
Convert bunch Coulomb field into optical
intensity variation.
Coulomb field encoded into optical probe
Decoding temporal intensity variations in
single laser pulse
e-bunch
Propagating electric field
Effective polarisation rotation proportional to
Coulomb field
4
Temporal Decoding
  • the chirped laser pulse behind the EO crystal is
    measured by a short laser pulse with a single
    shot cross correlation technique
  • approx. 1mJ laser pulse energy necessary

5
Encoding Time Resolution... material response,
R(w)
  • velocity mismatch of Coulomb field and probe
    laser
  • frequency mixing efficiency c (2)(w)

ZnTe
GaP
Theoretical (but based on some experimental data)
6
Experimental setup at the VUV-FEL
Resulting e-bunches at 450 MeV with 1000 pC in a
lt 100 fs spike during FEL operation at 32 nm.
the laser system is housed outside the
accelerator tunnel including 4 nJ, 15 fs TiSa
oscillator 1 mJ, 30 fs TiSa amplifier the
laser beam is transported via a 20m vacuum
transfer line current setup allows sampling,
spectral and temporal decoding currently ZnTe
(185µm) and GaP (170µm) crystal mounted
7
Laser Hutch at FLASH
8
Temporal Decoding
9
Benchmarking EO by LOLA
450 MeV, 1nC20 charge in main peak
10
January-February 2007 results...
Electro-optic bunch profile
Transverse Deflecting Cavity bunch profile (LOLA)
11
Time Calibration....
probe laser
gate laser
bunch
12
Current data taken at FLASH
Data taken with GaP (175 um)Q0.84 nC, r 3.8
mm LOLA Res 3.2 fs /pix
The measured retardation Calculated electric
field Simulated EO signal / phase
retardation Measured LOLA signal
Simulation by B. Steffen
13
For a fitted Gaussian curve we get a s of 80 fs
/- 8fs rms
14
Can we get shorter resolution
  • Lola measurement Actual bunch profile (10 fs
    resolution)
  • Coulomb angle 1/g 50 fs for g 1000
  • Material
  • GaP
  • New material ( Phase matching, c2 considerations)
  • Gate pulse width 50 fs
  • Introduce shorter pulse
  • Spectral interferometry
  • FROG Measurement
  • Try these methods on ERLP

15
Research into Fibre lasers
  • Clock to be distributed by fibre lasers through
    stabilised fibres1
  • Synchronisation to experiments in future
    accelerators
  • Synchronisation of RF to Laser pulses is
    currently to 30 fs over several hundred meters2
  • Inherently low noise

1 FEL 2004 J. Kim et al 2 EPAC 2006 A. Winter et
al
16
Fibre Laser
17
Our Fibre laser interests
  • Fibre system will exist for timing distribution
  • Exploit for robust / reliability distribution of
    EO monitors
  • Dual function of precision arrival time monitor
  • Requires
  • Transport of TiSapphire (SHG of Fibre laser ?)
    knowledge to amplified laser system

18
Conclusions
  • Achieved success at FELIX, DESY
  • Measured an Electron Bunch spike at 80 fs
    (rms)
  • Wish to do measurements at SLAC
