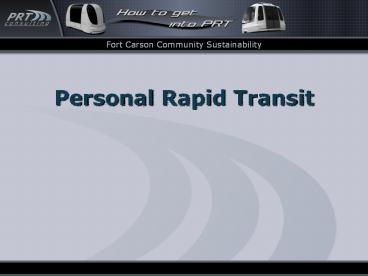

Personal Rapid Transit

1
Personal Rapid Transit
Fort Carson Community Sustainability
2
Outline

• What is PRT?
• Example Systems
• Visualization
• PRT Characteristics
• Comparison with Other Systems
• Video/Animation

3
PRT Consulting, Inc.

• Planning - is PRT appropriate?
• Simulations
• Alternatives analyses (layouts systems)
• Benefit/cost analyses
• Engineering
• Station guideway design
• System operation
• Procurement
• choose the best vendor

Independent Consultant
4
What is Personal Rapid Transit (PRT)?

• Direct origin to destination service
• No need to transfer or stop
• Small vehicles
• Service on demand not scheduled
• Fully automated vehicles (T-Pods)

5
What is Personal Rapid Transit (PRT)?

• T-Pods may be captive to a guideway
• Small guideways elevated, at grade or
  underground
• T-Pods can use all guideways and stations on a
  fully connected network

6
What is Personal Rapid Transit (PRT)?
Open Guideway (ULTra)
Captive Bogey (Postech)
Suspended (JPods)
7
2getthere

• Vehicles carry 4 20 passengers
• Max. speed 25mph
• Capacity up to 2,500pphpd
• Vendor is 2getthere
• http//www.2getthere.eu
• Operating since 1997

8
2getthere T-Pod capacity
9
2getthere T-Pod interior
10
The ULTra system
T-Pod Features

• 2,650 lb gross weight
• 4 passengers
• 25 mph
• 2KW continuous
• battery power
• www.atsltd.co.uk

11
T-Pod interior
12
Infrastructure features

• Elevated guideway costs similar to footbridge
• 6ft U-shaped guideway
• Capacity similar to freeway lane

13
(No Transcript)
14
Morgantown

• In operation since 1975
• 15 second headways
• 5,000 pphpd
• Intermediate stations are bypassed
• 98.5 availability
• (Transit LOS A)

Credit John Bell
15
Morgantown

• Speeds up to 30mph
• 10 maximum gradient
• Capital cost (126M) overran budget
• Operating cost 3.3M/year (1.50/passenger,
  0.94/passenger mile)
• 2 additional stations
• being planned

16
Comparative Visualization Personal Rapid
TransitandConventional Transit
17
Personal Rapid Transit
Conventional Transit
18
Personal Rapid Transit
Conventional Transit
19
Personal Rapid Transit
Conventional Transit
20
Personal Rapid Transit
Conventional Transit
21
Personal Rapid Transit
Conventional Transit
22
PRT Characteristics
23
Trip Time

• 40 of shuttle bus at Heathrow
• 67 of shuttle bus at DIA
• 45 of APM at DIA
• 15min. Time savings at Morgantown
• Results from no waiting and non-stop travel, not
  speed

24
Safety and Security

• One way traffic
• Lower maximum speeds
• Separated from other traffic and pedestrians
• Crowding (a potential security vulnerability) is
  avoided
• 110 million injury-free passenger miles at
  Morgantown (regular transit would have injured
  over 100)

25
Energy Use
26
Operating Cost per Passenger
Source Booz Allen Hamilton
27
Probable Capital Costs

• US5 15 million per one-way mile complete
• Two-way is less than double

28
Comparison Study

• Compared PRT with
• Conventional Transit (Light Rail, Bus)
• Automobile
• Good
• OK
• Bad

29
Comparison Study
More like a car than a bus
30
Comparison Study
First Class Transit
