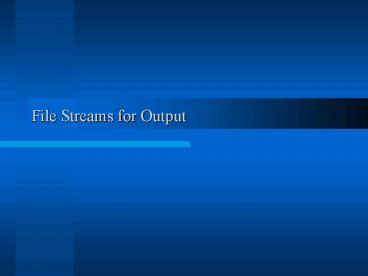

File Streams for Output

1
File Streams for Output
2
Opening and Closing an Output File

• Connect to an output file
• FileOutputStream outputFile
• new FileOutputStream(" output. data" )
• output.data file specification
• Can write 1byte at a time
• Close output streams
• outputFile.close()

3
Writing to Output Stream

• Write strings to that stream
• PrintStream output new PrintStream(output Fi
  le)
• output PrintStream variable
• outputFile FileOutputStream instance
• Use print and println methods
• stream_name.print(information_to_be_printed)
• stream_name.println(information_to_be_printed)

4
Example

• import java.io.
• import java.util.
• public class Demonstrate
• public static void main(String argv) throws
  IOException
• FileOutputStream outputFile new
  FileOutputStream("output.data")
• PrintStream output new PrintStream(outputFile)

• Vector mainVector
• mainVector Auxiliaries.readMovieFile("input.da
  ta")
• int counter
• int size mainVector.size()
• for(counter 0counter lt size counter)
• output.println(
• ((Movid) mainVector.elementAt(counter)).rating
  ()
• )
• outputFile.close()
• System.out.println("File written")

5
Example ( cont )

• ---------------Sample Data---------------
• "Apocalypse Now" 4 7 3 "file///e/phw/onto/ja
  va/apnow.jpg"
• "Bedtime for Bonzo 8 8 7
• ------------------Result----------------
• File written
• ---------------output.data---------------
• 14
• 23

6
Compilation Units and Packages
7
Class Hierarchy
8
Modularized Programs

• Modularized Programs
• Programs that are divided into units that can be
  developed and maintained separately
• File is a Compilation Unit
• All classes in a file are compiled together
• All class names accessible in all other classes
  in the same file
• However, only one of the classes is universally
  accessible

9
Packages

• Can place compilation units into a common package
• Use a package statement at the beginning of each
  compilation unit
• package package_name
• Package names consist of dot-separated components
  which correspond to the final components of the
  path name of the compilation unit
• The initial component of the path name are taken
  from the value of CLASSPATH, an OS environment
  variable

10
Packages ( cont )

• package onto.java.entertainment
• public abstract class Attraction
• ...
• package onto.java.entertainment
• public class Movie extends Attraction
• package onto.java.entertainment
• public class Symphony extends Attraction
• package onto.java.entertainment
• import java.io.
• import java.util.
• public class Auxiliaries

11
Using Packages

• The location of compilation units
• Example

12
Setting CLASSPATH

• On Windows OS
• set CLASSPATHc\phw c\javalib c\java\bin
• On Unix
• setenv CLASSPATH /usr/phwjava/lib java/bin
• You must provide for all the directories that
  contain classes in the value of the CLASSPATH
  variable

13
Why Packages for?

• Access protection
• High degree of interaction within a package
• Reduce access/interaction across package
  boundaries
• Methods/variables are by default accessible
  within the same package
• Name space management
• Avoid name clash (e.g., you can define your own
  Vector class if it is placed other than in
  java.util not recommended, though).
• A class belongs to one package if you omit the
  declaration, the system provides one.

14
Referring to Class

• The difference between Vector and
  java.util.Vector you need to specify import or
  not.
• The correspondence between package name and path
  name enables Java to find compilation units
  specified in the import statement
• Java simply combines CLASSPATH with the package
  name to find it
• Specify a specific public class and the
  compilation unit
• import onto.java.entertainment.Attraction
• You can use Attraction directly

15
Referring to Class ( cont )

• Import all the package's public classes
• import onto.java.entertainment.
• All compilation units are available
• Although package names are hierarchical, import
  declarations are not (e.g.,import java.awt.
  imports only from java.awt, not from its
  subpackages java.awt.image. )
• Java automatically imports all classes in the
  java.lang package

16
Examples

• Load onto.java.entertainment package, and use
  public classes
• import onto.java.entertainment.
• import java.io.
• import java.util.
• public class Demonstrate
• public static void main(String argv)
• Vector mainVector
• mainVector Auxiliaries.readMovieFile("input.da
  ta")
• int counter
• int size mainVector.size()
• for(counter 0 counter lt size counter)
• System.out.println(
• ((Movid) mainVector.elementAt(counter)).rating
  ()
• )

17
Examples ( cont )

• Another way, not using import statement,but use
  package names in class
• names
• import java.io.
• import java.util.
• public class Demonstrate
• public static void main(String argv)
• Vector mainVector
• mainVector
• onto.java.entertainment.Auxiliaries.readMovief
  ile("input.data")
• int counter
• int size mainVector.size()
• for(counter 0counterlt sizecounter)
• System.out.println(
• ((onto.java.entertainment.Movie)
• mainVector.elementAt(counter)).rating())

18
Another Example

• If the CLASSPATH includes .
• package set
• import java.util.
• public class Set
• private Vector v
• ..
• import set.
• public class Main
• public static void main(String args )
• Set a new Set(10)
• ....

19
Protected and Private Variables and Methods
20
Public Instance Variable and Methods

• Marked by public keyword
• Universal access to instance variables and
  methods
• Can read and write instance variables directly
  from any where
• Example
• public abstract class Attraction
• public int minutes
• public attraction(int d) minutes d
• Read gt instance.minutes
• Write gt instance.minutes new.value

21
Limit Access to Instance Variable and Methods

• Private instance variable and method
• Marked by private keyword
• Limit access to instance variables and methods
  to the class in which they are introduced
• Hiding implementation detail
• Access indirectly through public getter and
  setter
• Example
• public class Attraction
• public Attraction(int d) minutes d
• public int getMinutes() return minutes
• public void setMinutes(int d) minutes d
• private int minutes

22
Limit Access to Instance Variable and Methods
(cont)

• Read gt instance.getMinutes()
• Write gt instance.setMinutes(new.value)
• Protected instance variable and method
• Marked by protected keyword
• Limit access to instance variables and methods in
  the same class, compilation unit, or package.
• Also accessible from any subclass of the class
  in which they are declared

23
Default Access

• Access levels for classes/interfaces
• public keyword accessible to all classes
• No keyword accessible only to classes in the
  same package
• Access levels for members of classes/interfaces
• public keyword accessible to all classes
• No keyword accessible only to classes in the
  same package
• protected keyword accessible classes in the same
  package, and to subclasses in other packages
  (with some complex restrictions)
• Package P contains class X and class subX (X
  defines a protected member M)

24
Default Access ( cont )

• Package Q contains class Y (a subclass of X) and
  class subY
• If code in X or subX invokes M on instance of X
  or subX OK
• If code in X or subX invokes M on instance of Y
  or subY OK
• If code in Y invokes M on instance of X or subX
  No
• If code in Y invokes M on instance of Y or subY
  Yes
• If code in subY invokes M on instance of Y No
• private keyword not accessible to any other
  classes
• Public members of non-public class/interface
• Accessible only inside its package
• Complex exceptional cases, though

25
Interface for Imposing Requirement
26
Display Rating Information

• Desired Output
• The Last House on the Left
• Gone with the Wind
• Need a method that produces a string of zero to
  10 stars from an integer
• public class Display
• static String starString(int n)
• String s ""
• int counter
• for(counter 0 counter lt 10 counter)
• if (counter lt n)
• s s ""
• else
• s s " "

27
Display Rating Information ( cont )

• return s
• Change to supply starString with an instance
  rather than with an integer
• Attraction class must have a star-computing
  method
• public abstract class Attraction
• public int starCount() return rating()/ 3
• ...

28
Display Rating Information ( cont )

• public class Display
• static String starString(Attraction x)
• String s ""
• int counter
• int n x.starCount()
• for(counter 0counterlt 10counter)
• if (counter lt n) s s ""
• else s s " "
• return s
• starString method accepts only Attraction
  instances

29
Multiple Inheritance

• If java were to support multiple inheritance,
  solution is as below
• Specify Attraction class to have Object and
  StarProvider class as direct superclasses
• Attraction class inherits the abstract starCount
  method from the abstract StarProvider class
• Declare the parameter of the starString method to
  be a StarProvider parameter to ensure that
  starCount method works
• Java does not provide multiple inheritance.

30
Interface

• Interface
• Java allows to impose requirements on a class
  from multiple class like interfaces
• Difference with abstract class
• No ordinary methods can be defined
• Many interfaces can impose requirements on the
  same class
• Purposes of interface
• Impose requirements without forcing those
  requirements into ordinary superclass-subclass
  chain
• Can serve as a type indicator

31
Interface ( cont )

• Interfaces define only abstract methods, No
  possibility of conflict
• A class can implement multiple interfaces
• Make an interface impose requirements on a
  particular class using an interface
• public class class_name implements
  interface_name
• ...

32
Example

• public interface StarInterface
• public abstract int starCount()
• public abstract class Attraction implements
  StarInterface
• public int starCount() return rating()/ 3
• ....
• public class Display
• static String starString(StarInterface i)
• String s ""
• int counter
• int n i.starCount()
• for(counter 0counter lt 0counter)
• if (counterlt n) s s ""
• return s
