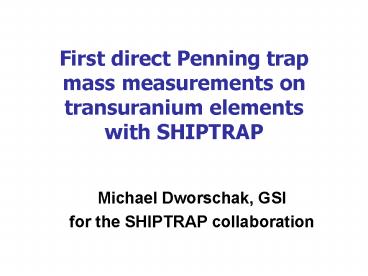

First direct Penning trap mass measurements on
transuranium elements with SHIPTRAP

• Michael Dworschak, GSI
• for the SHIPTRAP collaboration

2
Outline

• Introduction
• SHIPTRAP setup
• Direct mass measurements for Z gt 100
• Conclusions

3
Regions of interest at SHIPTRAP
82
Heavy Elements
126
proton emitters
50
NZ, rp-process
- Strong repulsive force due to large number of
protons - Stability of SHE only due to shell
effects - For nobelium T(SF) gt T(alpha)
82
28
20
50
28
8
20
8
4
Spontaneous Fission

? disrupting force
? backdriving force
E / MeV

? scission point
a
2
5
Shell corrections in the region of heavy elements
6
Deformation in the region of heavy elements
P.Möller et al. At. Data and Nucl. Data Tab. 59,
185 (1995)
7
The Recoil Separator SHIP

velocity filter
5 MeV/u
0.1-1 MeV/u
Mastertitelformat bearbeiten
8
The SHIPTRAP set-up
9
Principle of Penning Traps
Cyclotron frequency
q/m

• PENNING trap
• Strong homogeneous
• magnetic field
• Weak electric 3D
• quadrupole field

end cap
ring electrode
10
Ion Motion in a Penning Trap

• Motion of an ion is the superposition of three
  characteristic
• harmonic motions
• axial motion (frequency fz)
• magnetron motion (frequency f)
• modified cyclotron motion (frequency f)
• In an ideal Penning trap the frequencies of the
  radial motions obey the relation

Typical frequencies q e, m 100 u, B 7
T ? f- 1 kHz f 1 MHz
11
TOF Resonance Mass Spectrometry
Time-of-flight resonance technique
Scan of excitation frequency
Injection of ions into the trap and excitation of
radius r-
Excitation near fc ? coupling of radial motions,
conv.
1 m
Ejection along the magnetic field lines ? radial
energy converted to axial energy
Time-of-flight (TOF) measurement
12
TOF Resonance Mass Spectrometry
Time-of-flight resonance technique
1 m
13
TOF Resonance Mass Spectrometry
Time-of-flight resonance technique
1 m
Resolving power
14
Mass determination
Relation between cyclotron frequency and mass due
to
Fluctuations of magnetic field due to temperature
and pressure changes -gt Calibration needed
Determine atomic mass from frequency ratio with
a well-known reference mass
Normally 85Rb or 133Cs are chosen as reference
masses
15
SHIPTRAP Performance
A 147
Mass resolving power of m/dm 100,000 in
purification trap ? separation of isobars
16
Direct Mass Measurements above Z 100
Requirements

• energy matching of reaction products to trap's
  energy scale
• high efficiency to deal with very low production
  rates
• 1 atom/s _at_ Z102 (s ? mb)
• 1 atom/week _at_ Z112 (s ? pb)
• high cleanliness for low background
• stable and reliable operation over extended time

17
Production of nobelium isotopes
Fusion-evaporation
4.5MeV/u about 1013 particles / s
200 keV/u about 1 particle / s
18
Production of nobelium isotopes
Fusion probability increasing with beam energy
Survival probability of compound nucleus
decreasing with beam energy
208Pb(48Ca,1-3n)253-255No
19
Direct Mass Measurements of 252-254No
20
Direct Mass Measurements of 252-254No

• August 2008
• 206-208Pb(48Ca,2n)252-254No
• doubly-charged nobelium ions extracted
• low production rates
• -gt about 4 h for each resonance
• 133Cs used as reference mass (same q/m ratio)

21
Direct Mass Measurements of 252-254No
Results in agreement with previous AME
values ME uncertainties in the order of 10-30
keV
First direct mass measurements in the region Z gt
100
22
Principle of mass determination with a decay
energies
23
Definitions in the Atomic Mass Evaluation
Primary data determined by at least two
independent measurements
Secondary data determined by only one measurement
24
Combining the results from a decays and Penning
trap

• Difficulties
• decays not between ground states
• "broken" a-chains
• energy summing with conversion electrons

25
Combining the results from a decays and Penning
trap

• Difficulties
• decays not between ground states
• "broken" a-chains
• energy summing with conversion electrons

26
Combining the results from a decays and Penning
trap
27
Link to island of stability

• Combine new, directly measured masses and
  a-decay spectroscopy
• Determine the masses of short-lived higher-Z
  nuclides

To be determined a-decay of 262Sg (15)
28
Direct Mass Measurements of 255Lr
Extend direct mass measurements to higher Z
255Lr

• April 2009
• 209Bi(48Ca,2n)255Lr
• rate of incoming particles for 255Lr only 0.3
  ions/s
• singly and doubly-charged ions extracted

255Lr nuclide with lowest rate ever measured in a
Penning trap
29
The Route to SHE

• increase sensitivity and efficiency
• (non-destructive) detection system with
  single-ion sensitivity
• new cryogenic gas cell
• improve primary beam
• access to more neutron-rich nuclides
• hot-fusion reactions with actinide targets
• connection to gas-filled separator TASCA

30
Summary and Outlook

• First direct mass measurements of nobelium
  isotopes have been performed with SHIPTRAP
• Using results from direct mass measurements more
  primary nuclides could be obtained
• Nobelium isotopes linked to superheavy elements
  by a-decay chains
• Next step go to higher-Z nuclides
• In the long-term future Penning traps can
  contribute to identify long-lived SHE

31
SHIPTRAP Collaborators
M. Dworschak, D. Ackermann, K. Blaum, M. Block,
C. Droese, S. Eliseev, E. Haettner, F. Herfurth,
F. P. Heßberger, S. Hofmann, J. Ketter, J.
Ketelaer, H.-J. Kluge, G. Marx, M. Mazzocco, Yu.
Novikov, W. R. Plaß, A. Popeko, D. Rodríguez, C.
Scheidenberger, L. Schweikhard, P. Thirolf, G.
Vorobjev, C. Weber
Thank you for your attention !
32
(No Transcript)
33
Penning trap basics
Relevant for mass measurements
34
Cyclotron frequency measurement
off res.
on res.
m r w
35
Super Heavy Elements
GSI elements Z 107-112
112
Rg
Ds
Mt
Hs
Bh

• how heavy can the elements be?
• location of the island of stability?
• structure of SHE?
• stability due to shell effects
• ? accurate binding energies needed

252-254No
36
TOF Cyclotron Resonance Curve
TOF as a function of the excitation frequency
off res.
on res.
Resolving power
Determine atomic mass from frequency ratio with
a well-known reference mass.
