Introductie

1

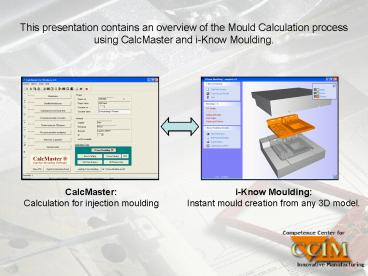

This presentation contains an overview of the
Mould Calculation process using CalcMaster and
i-Know Moulding.
i-Know MouldingInstant mould creation from any
3D model.
CalcMaster Calculation for injection moulding
2
Consider this sample product
Dimensions 195 x 178 x 57 mm Wall thickness 1,2
till 1,5 mm Weight 60 gram PP
3
We start in the CalcMaster
CalcMaster has many features. In this
presentation, Mould Price Calculcation is
demonstrated
4
To calculate the mould price, the user needs to
complete these forms, one by one.
CalcMaster works with a unique rating system,
which determines the mould price by rating a wide
range op product properties.
5
The new interface with i-Know Moulding makes
CalcMaster faster and more easy to use.
i-Know Moulding can be started directly from the
CalcMaster main window
6
The product is imported as STL into i-Know
Moulding
With only one single click, the mould creation
process is started
7
The suggested mould geometry is generated
automatically
i-Know Moulding raises warnings on possible
problems during the tooling based on this geometry
If needed the user can edit the mould creation
process manually
8
The new version of i-Know Moulding can extract
CalcMaster parameters
9
Back in CalcMaster, the parameters can be imported
Open the parameter file, that is exported by
i-Know Moulding
10
Most of the input that is needed for Calculation
has been supplied by i-Know Moulding
The parameters from i-Know Moulding are
translated automatically into the CalcMaster
rating system
11
The user can edit and configure the proposal by
CalcMaster
Like for example, the our rates of the employees
12
On the Calculation Form, the final mould price is
displayed
Suggested mould price
13
CalcMaster has many features
Multiple cavity calculation
Division of the cost price
14
And much more

• Mouldprice calculation.
• Injection moulding data calculation.
• Determining of most economical quantity of
  cavities.
• Calculation of the complete costprice of the
  product.
• Asking quotation for a mouldprice
• Making a complete quotation from the mouldprice
• And
• 2 Components in 2 cavities.
• 2 Components in 1 cavity.
• Left and Right product.
• Stack molds
• Softtools molds
• 11 product in the mold.

15
For more information
i-Know Moulding CCIM. Competence Center for
Innovative Manufacturing. www.ccim.nl CalcMaste
r Injection Moulding Software SchouenBerg
Partners vof. www.schouenberg.com
