Title: How Does Iowas Water Quality Rate


1

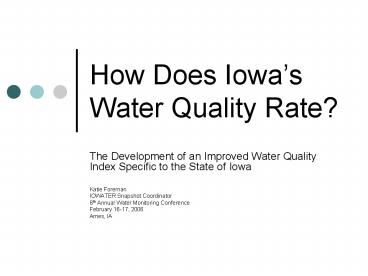

How Does Iowas Water Quality Rate?
  • The Development of an Improved Water Quality
    Index Specific to the State of Iowa
  • Katie Foreman
  • IOWATER Snapshot Coordinator
  • 6th Annual Water Monitoring Conference
  • February 16-17, 2006
  • Ames, IA

2
What does this mean?
(Iowa Geological Survey 2004,1)
3
What is NeededA Yardstick for Measuring Water
Quality
  • Large quantities of water quality data on their
    own do not inform water resources decision making
  • A quick way to draw meaning from data is needed
  • What is clearly needed is a yardstick of water
    quality. (Brown et al. 1970, 339)

4
Value of WQIs
  • In 1972, the Council on Environmental Quality
    stated that accurate and timely information on
    the state of the environment was essential to
    forming policy
  • Indices are one of the most effective tools to
    compare and evaluate environmental conditions
  • Examples include Water Quality Index, Air
    Quality Index, Index of Biotic Integrity, Trophic
    State Index, and Species Diversity Index

5
Process of WQI Calculation
6
Example of a Subindex Rating Curve
7
Qualitative Rating
8
Motivation
  • National Sanitation Foundation Water Quality
    Index (NSFWQI)
  • Most respected and utilized WQI in U.S.
  • One size fits all structure criticized for
    overlooking regional water quality concerns
  • When applied to 3 years of Iowa data
  • Rated streams/rivers 79 medium and 21 good

9
Does Iowa have waters that can be categorized
on the extremes?
  • What about the impaired waters (303 (d) list)???
    (25)
  • How about our excellent waters
  • (Reference sites)??

10
Index Development
  • IWQI developed in 2005 by custom-fitting the
    NSFWQI to Iowa.
  • Geographically specific water quality index to
    represent a full range of water quality
    conditions in Iowa.
  • Index was validated with data of known water
    quality
  • Statistics used to answer the question is the
    IWQI better than the NSFWQI at characterizing
    Iowas water quality?

11
Attributes of NSFWQI IWQI
12
Geographically-Specific Subindex Rating Curves
TDS and TSS
13
Index Performance
  • Is the IWQI better than the NSFWQI at rating
    Iowas water quality?
  • Subset of the validation datasets chosen
  • Most pristine and most impaired water quality
    records
  • Hypothesis test used to determine relative
    performance of the two indices

14
Comparative Analysis Statistics
Most Pristine Water Quality as Rated by the IWQI
and the NSFWQI
Most Impaired Water Quality as Rated by the IWQI
and the NSFWQI
15
  • Is the IWQI better than the NSFWQI at rating
    Iowas water quality?
  • YES!
  • Statistical analysis suggests that IWQI rates the
    most impaired water quality worse and the most
    pristine water quality better than does the
    NSFWQI
  • Why?
  • Index Design Parameters, Subindex Rating Curves
    and Aggregation Function

16
Reason 1 Parameters Included
  • Non point source pollution is the
  • 1 water quality challenge in Iowa
  • IWQI includes two more non point source
    pollutants in the index compared to NSFWQI
  • 84 of Iowas stream miles have major sediment
    impacts (TSS)
  • 81 of Iowas surface water samples have
    detectable levels of pesticides (total
    pesticides)
  • Temperature change excluded

17
Reason 2 Subindex Rating Curves
  • IWQI has geographically specific subindex rating
    curves
  • Distinguishes background from impaired conditions
  • IWQI has consistent maximum (100) and minimum
    (10) values
  • No artificial over or under-estimation of water
    quality conditions
  • Subindex curves appropriate for Iowas waters
  • Phosphorus, DO, and BOD rated more stringently
    (accounts for eutrophication risk)
  • TDS is not rated as stringently (climate and
    geologic variability)

18
Reason 3 Aggregation Function
  • NSFWQI uses the weighted linear sum
  • Eclipsing problems, averages out low numbers
  • Tends to overestimate water quality conditions
  • Arbitrary weights
  • IWQI uses the unweighted harmonic square mean
  • Eclipsing problems minimal
  • Gives high statistical value to lowest number
  • Index score determined with all parameters in
    mind, no arbitrary weights

19
NSFWQI vs. IWQI (2000-2004)
20
Uses for the IWQI
  • Evaluating changes in water quality over time
  • Quantify the effectiveness of water quality
    regulations and protection programs
  • BMPs
  • Comparing water quality conditions in different
    locations ? resource prioritization
  • Determining the extent to which existing water
    quality standards are met ? informing policy
  • Developing reports required by the Clean Water
    Act (305(b) and 303 (d) list)

21
Acknowledgements
  • Dr. R. Rajagopal (University of Iowa)
  • Dr. Mary Skopec (Iowa Geological Survey)
  • Dr. David Bennett (University of Iowa)
  • Rick Langel (Iowa Geological Survey)
  • Tom Wilton (Iowa Department of Natural Resources)
  • Malini De (University of Iowa)
  • Dr. Ed Brands (University of Iowa)
  • Lynette Seigley (Iowa Geological Survey)
  • Eric OBrien (Iowa Geological Survey)
