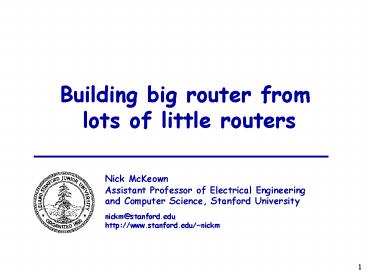

Building big router from lots of little routers

1
Building big router from lots of little routers
Nick McKeown Assistant Professor of Electrical
Engineering and Computer Science, Stanford
University nickm_at_stanford.edu http//www.stanford.
edu/nickm
2
Current/Recent Projects

• Packet Switching
• Scheduling Crossbar Switches
• Speedup and QoS
• Parallel Packet Switches
• Router algorithms
• IP Lookups
• IP Packet Classification
• Internet
• Evolving the Internet to circuit switching and
  optics
• Internet traffic analysis

• 4. Router Architectures
• The Fork Join Router
• Incorporating Optics into Routers
• The Design of Fast Packet Buffers
• 5. Teaching Tools
• Network hardware lab NetFPGA
• Network software lab Virtual Router

More details http//klamath.stanford.edu/
3
Why might this be interesting?

• Widely held assumption Electronic IP routers
  will not keep up with link capacity.
• Background
• Router Capacity (number of lines) x (line-rate)
• Biggest router capacity 4 years ago 10Gb/s
• Biggest router capacity 2 years ago 40Gb/s
• Biggest router capacity today 160Gb/s
• Next couple of generations 1-40Tb/s

4
Larger overall routing capacity
Processing power
Link speed
5
Larger overall routing capacityDo we need more?
Processing Power
Link Speed (Fiber)
10000
1000
2x / 2 years
2x / 7 months
100
Fiber Capacity (Gbit/s)
10
1
1985
1990
1995
2000
0,1
TDM
DWDM
Source SPEC95Int David Miller, Stanford.
6
Instructions per packet
Instructions per packet
What wed like (more features) QoS, Multicast,
Security,
time
7
What limits a routers capacity?
Limited by memory random access time

• Its a packet switch
• Must be able to buffer every packet for an
  unpredictable amount of time.
• Hop-by-hop routing
• Once per 1000bits it must index into a
  forwarding table with 100k entries.

Limited by memory random access time
8
Larger overall capacityWhat limits capacity
today?

• Memory bandwidth for packet buffers
• Shared memory B 2NR
• Input queued B 2R
• Would like ltltR
• Perhaps via intelligent load-balancing?
• Memory bandwidth for IP lookups
• Must perform lookup for each packet
• B R

9
What Id like
R
R
NxN
R
R
The building blocks Id like to use
R
R
R
R
10
Why this might be a good approach

• Larger overall routing capacity
• Reduces aggregate capacity of any one router
• Slower memory per router
• Lower power per router
• Faster line rates
• Redundancy
• Familiarity
• After all, this is how the Internet is built

11
Why this might be a bad idea

• Manageability its harder to manage, maintain,
  upgrade, , a large number of small systems than
  one large one.
• The total space power might be larger.
• The interconnect between the routers might be
  highly redundant.
• How will it perform? (Throughput)
• Can it provide delay guarantees? (QoS)

12
The interconnect might be highly redundant and
wasteful
Excess links contribute to power
R
1
R
2
R
N
R
Today Big routers are limited by their overall
power. Chip-to-chip connections make up approx
50 of the power.
13
Ill be considering Load Balancing architectures
1
R/k
R/k
R
2
R

R

k
14
Method 1 Random packet load-balancing

• Method As packets arrive they are randomly
  distributed, packet by packet over each router.
• Advantages
• Load-balancer is simple
• Load-balancer needs no packet buffering
• Disadvantages
• Random fluctuations in traffic a each router is
  loaded differently
• Packets within a flow may become mis-sequenced
• It is hard to predict the system performance

15
Method 2 Random flow load-balancing

• Method Each new flow (e.g. TCP connection) is
  randomly assigned to a router. All packets in a
  flow follow the same path.
• Advantages
• Load-balancer is simple (e.g. hashing of flow
  ID).
• Load-balancer needs no packet buffering.
• No mis-sequencing of packets within a flow.
• Disadvantages
• Random fluctuations in traffic a each router is
  loaded differently
• It is hard to predict the system performance

16
Observations

• Random load-balancing Its hard to predict
  system performance.
• Flow-by-flow load-balancing Worst-case
  performance is very poor.
• If designers, system builders, network operators
  etc. need to know the worst case performance,
  random load-balancing will not suffice.

17
Method 3 Intelligent packet load-balancing

• Goal Each packet is carefully assigned to a
  middle-stage router so that
• Packets within a flow are not mis-sequenced.
• Throughput is maximized and understood.
• Delay of packets are controlled.
• We call this Parallel Packet Switching

18
Method 3 Intelligent packet load-balancingParal
lel Packet Switching
Router
R/k
R/k
1
rate, R
rate, R
1
1
2
rate, R
rate, R
N
N
k
A packet keeps a link at speed R/k busy for k
times longer than a link of speed R.
Bufferless
19
Parallel Packet Switching

• Advantages
• Single-stage of buffering
• kh a power per subsystem i
• kh a memory bandwidth i
• kh a lookup rate i

20
Parallel Packet Switch

• Questions
• Switching What is the performance?
• IP Lookups How do they work?

21
A Parallel Packet Switch
Arriving packet tagged with egress port
1
Output Queued Switch
rate, R
rate, R
2
1
1
Output Queued Switch
rate, R
rate, R
N
N
k
Output Queued Switch
22
Performance Questions

• Can its outputs be busy all the time? i.e. can it
  be work-conserving? Can it achieve 100
  throughput?
• Can it emulate a single big shared memory switch?
• Can it support delay guarantees,
  strict-priorities, WFQ, ?

23
Work Conservation and 100 Throughput
1
Shared memory switch
R/k
R/k
2
Shared memory switch
R/k
R/k
rate, R
rate, R
1
1
R/k
R/k
k
Shared memory switch
Output Link Constraint
Input Link Constraint
24
Work Conservation
1
1
4
5
R/k
R/k
4
1
2
R/k
2
R/k
2
rate, R
rate, R
1
1
3
R/k
R/k
k
3
Output Link Constraint
25
Work Conservation
1
Shared Memory Switch
S(R/k)
S(R/k)
rate, R
rate, R
S(R/k)
S(R/k)
2
1
1
Shared Memory Switch
rate, R
rate, R
N
N
k
Shared Memory Switch
S(R/k)
S(R/k)
26
Precise Emulation of a Shared Memory Switch
Shared Memory Switch
1
N
N
N
27
Parallel Packet SwitchTheorems

• If S gt 2k/(k2) _at_ 2 then a parallel packet switch
  can be work-conserving for all traffic.
• If S gt 2k/(k2) _at_ 2 then a parallel packet switch
  can precisely emulate a FCFS shared memory switch
  for all traffic.

28
Parallel Packet SwitchTheorems

• 3. If S gt 3k/(k3) _at_ 3 then a parallel packet
  switch can precisely emulate a switch with WFQ,
  strict priorities, and other types of QoS, for
  all traffic.

29
Parallel Packet SwitchTheorems

• 4. If S 1 then a parallel packet switch with a
  small co-ordination buffer at rate R, can
  precisely emulate a FCFS shared memory switch for
  all traffic.

30
Co-ordination buffers
1
Size Nk
Size Nk
Shared Memory Switch
R/k
R/k
rate, R
rate, R
R/k
R/k
2
Shared Memory Switch
rate, R
rate, R
k
Shared Memory Switch
R/k
R/k
31
Parallel Packet Switch

• Questions
• Switching What is the performance?
• Forwarding Lookups How do they work?

32
Parallel Packet SwitchLookahead Lookups
Packet tagged with egress port at next router
Lookup performed in parallel at rate R/k
33
Parallel Packet Switch
Router
1
rate, R
rate, R
1
1
2
rate, R
rate, R
N
N
k

• Possibly gt100Tb/s aggregate capacity
• Linerates in excess of 100Gb/s
