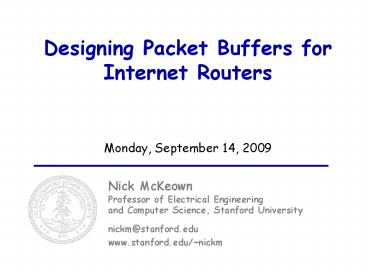

Designing Packet Buffers for Internet Routers

1
Designing Packet Buffers for Internet Routers
Monday, September 14, 2009
Nick McKeown Professor of Electrical Engineering
and Computer Science, Stanford
University nickm_at_stanford.edu www.stanford.edu/ni
ckm
2
Contents

• Motivation
• A 100 Tb/s router
• 160 Gb/s packet buffer
• Theory
• Generic Packet Buffer Problem
• Optimal Memory Management
• Implementation

3
Motivating Design 100Tb/s Optical Router
Optical Switch
Electronic Linecard 1
Electronic Linecard 625
160-320Gb/s
160-320Gb/s
40Gb/s

• Line termination
• IP packet processing
• Packet buffering

• Line termination
• IP packet processing
• Packet buffering

40Gb/s
160Gb/s
Arbitration
40Gb/s
Request
40Gb/s
Grant
(100Tb/s 625 160Gb/s)
4
Load Balanced SwitchThree stages on a linecard
1st stage
2nd stage
3rd stage
R/N
1
1
1
R
R
R
R
R
R
2
2
2
N
N
N
Segmentation/ Frame Building
Reassembly
Main Buffering
5
Advantages

• Load-balanced switch
• 100 throughput
• No switch scheduling
• Hybrid Optical-Electrical Switch Fabric
• Low (almost zero) power
• Can use an optical mesh
• No reconfiguration of internal switch (MEMS)

6
160 Gb/s Linecard
0.4 Gbit at 3.2 ns
R
Fixed-size Packets
R
Segmentation
Lookup/Processing
Load-balancing
1st Stage
R
40 Gbit at 3.2 ns
VOQs
1
R
2
N
2nd Stage
Switching
3 rd stage
R
R
Reassembly
0.4 Gbit at 3.2 ns
7
Contents

• Motivation
• A 100 Tb/s router
• 160 Gb/s packet buffer
• Theory
• Generic Packet Buffer Problem
• Optimal Memory Management
• Implementation

8
Packet Buffering Problem Packet buffers for a
160Gb/s router linecard
40Gbits
Buffer Memory
Buffer Manager

• Problem is solved if a memory can be (random)
  accessed every 3.2ns and store 40Gb of data

9
Memory Technology

• Use SRAM?
• Fast enough random access time, but
• Too low density to store 40Gbits of data.
• Use DRAM?
• High density means we can store data, but
• Cant meet random access time.

10
Cant we just use lots of DRAMs in parallel?
Read/write 1280B every 32ns
Buffer Memory
Buffer Memory
Buffer Memory
Buffer Memory
Buffer Memory
1280B
1280B
Write Rate, R
Buffer Manager
One 128B packet every 6.4ns
Scheduler Requests
11
Works fine if there is only one FIFO
Buffer Memory
1280B
1280B
Write Rate, R
Read Rate, R
128B
Buffer Manager (on chip SRAM)
128B
1280B
1280B
One 128B packet every 6.4ns
One 128B packet every 6.4ns
Scheduler Requests
Aggregate 1280B for the queue in fast SRAM and
read and write to all DRAMs in parallel
12
In practice, buffer holds many FIFOs
1
1280B
1280B
1280B
1280B

• e.g.
• In an IP Router, Q might be 200.
• In an ATM switch, Q might be 106.

How can we writemultiple packets into different
queues?
2
1280B
1280B
1280B
1280B
Q
1280B
1280B
1280B
1280B
Scheduler Requests
13
Parallel Packet Buffer Hybrid Memory Hierarchy
Large DRAM memory holds the body of FIFOs
5
7
6
8
10
9
50
52
51
53
54
12
14
13
15
86
88
87
89
91
90
92
94
93
95
6
8
7
9
11
10
7
9
8
10
11
82
84
83
85
86
DRAM
b degree of parallelism
Writing b bytes
Reading b bytes
Buffer Manager
Arriving
Departing
Packets
Packets
R
R
(ASIC with on chip SRAM)
Scheduler Requests
14
Problem

• Problem
• What is the minimum size of the SRAM needed so
  that every packet is available immediately within
  a fixed latency?
• Solutions
• Qb(2 ln Q) bytes, for zero latency
• Q(b 1) bytes, for Q(b 1) 1 time slots
  latency.

15
Discussion Q1000, b 10
Queue Length for Zero Latency
SRAM Size
Queue Length for Maximum Latency
Pipeline Latency, x
16
Contents

• Motivation
• A 100 Tb/s router
• 160 Gb/s packet buffer
• Theory
• Generic Packet Buffer Problem
• Optimal Memory Management
• Implementation

17
Technology Assumptions in 2005

• DRAM Technology
• Access Time 40 ns
• Size 1 Gbits
• Memory Bandwidth 16 Gbps (16 data pins)
• On-chip SRAM Technology
• Access Time 2.5 ns
• Size 64 Mbits
• Serial Link Technology
• Bandwidth 10 Gb/s
• 100 serial links per chip

18
Packet Buffer Chip (x4)Details and Status
R/4
R/4

• Incoming 4x10 Gb/s
• Outgoing 4x10 Gb/s
• 35 pins/DRAM x 10 DRAMs 350 pins
• SRAM Memory 3.1 Mbits with 3.2ns SRAM
• Implementation starts Fall 2003
