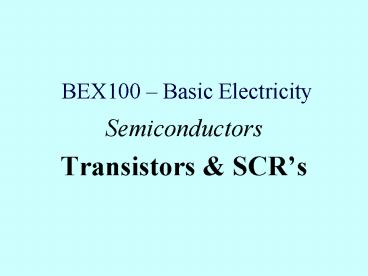

BEX100 Basic Electricity

1
BEX100 Basic Electricity

• Semiconductors
• Transistors SCRs

2
Lesson Objectives

• To understand the basic construction elements and
  schematic symbols of a transistor
• Be able to identify the two main types of
  transistors, (PNP, NPN types) and explain how
  they operate
• Understand what is meant by Amplifier Current
  Gain of a transistor
• Interpret wiring schematics containing
  transistors
• Identify the various application uses for
  transistors
• Understand the basic construction of an SCR and
  how it functions

3
Introduction to Transistors

• A transistor is an electrical device that is used
  to control current flow
• It is made of three layers of semiconductor
  material
• The construction is similar to the diode
• Transistors often take the place of mechanical
  switches and relays
• A transistor can be thought of as two diodes that
  share a common center layer

4
Introduction to Transistors

• The terms used for the 3 terminals of a
  transistor are the emitter, the collector,
  and the base

5
Introduction to Transistors

• The common schematic symbols used for transistors
• The emitter always has a line with the arrow
• The base is the heavy line at the bottom of the
  symbol
• The collector is the line without the arrow

6
Transistor Construction

• Adding a second layer of P-type material to the
  basic diode construction creates a PNP
  transistor
• Adding a second layer of N-type material to the
  basic diode construction creates a NPN
  transistor

7
Basic Transistor Operation

• Supplying a positive/negative voltage to the base
  supplies the electrons needed for current flow

8
Transistor Operation

• Amplification aspects of a transistor

9
Amplifier Current Gain

• Transistors are small electrical controls that
  can perform large electrical tasks. Saturation
  level occurs when the maximum current flow of the
  circuit is reached.

10
The NPN Transistor
11
NPN Transistor Operation

• Supplying a small amount of current to the base
  creates current flow through the transistor
  (switched on)
• Varying the amount of current supplied to the
  base varies its resistance and can vary the
  current flow through the emitter-collector
• No current to base means no current will flow
  (switched off)

12
A Typical NPN Circuit
13
The PNP Transistor
14
PNP Transistor Operation

• Operates the same as the NPN type of transistor
• One difference being the bias of the transistor
  in the circuit
• Another being the polarity of the voltage in the
  circuit
• Has the same amplification ability as the NPN
• Operates as a electrical switch in the circuit

15
A Typical PNP Circuit
16
Transistor Applications
17
The Darlington Pair

• Used when the current level supplied at the base
  is too small to allow sufficient current flow
  through the circuit
• The first transistor is used to supply the
  necessary current to the base of the second
  transistor which controls the circuit

18
Solid State Relays

• Used in situations where a relay-type circuit
  is needed
• A NPN type transistor controls a PNP type
  transistor
• Benefits of solid state relays include faster
  operation, and there are no moving parts to wear
  out

19
HEI Transistorized Ignition System
20
EST Electronic Spark Timing
21
The Hall Effect Switch
22
The Hall Effect Switch

• With vanes open current flows to transistor
• HEI reference voltage is less than 1 volt
• With vanes closed no current flows to
  transistor
• HEI reference voltage is 12 volts

23
SCR Silicon Controlled Rectifiers
24
SCR Silicon Controlled Rectifiers

• SCR Silicon Controlled Rectifiers are a type of
  transistor that by nature do not allow current to
  flow in either direction until triggered
• Unlike the transistors that act as switches, the
  SCR will continue to conduct current even after
  the trigger voltage has been removed
• The main source of voltage must be removed from
  the circuit to stop current flow through the SCR

25
The Silicon Controlled Rectifier

• Schematic symbol is similar to diode
• The Anode is positive
• The Cathode is negative
• The Gate is the trigger
• A momentary voltage is all that is required to
  initiate and maintain current flow

26
SCR Operation
27
SCR Construction Operation

• Constructed with alternating layers of
  semiconductor material
• Similar to combining a PNP and a NPN type
  transistor
• Functions by applying voltage to the gate
  terminal

28
LETS REVIEW

• WHAT ARE THE THREE LAYERS OF A TRANSISTOR?
• WHAT IS THE SCHEMATIC SYMBOL FOR A TRANSISTOR?
• WHAT ARE TWO FUNCTIONS OF TRANSISTORS?
• WHAT ARE TWO THINGS THAT WILL DAMAGE A
  TRANSISTOR?

29
Elizabethtown Technical CollegeBEX100 Basic
ElectricityTransistorsSpring Semester 2001
