Network Management

1
Network Management

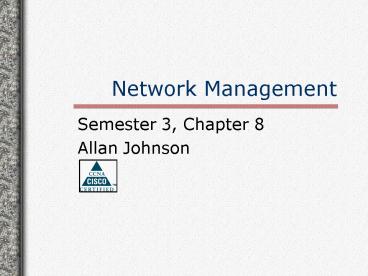

• Semester 3, Chapter 8
• Allan Johnson

2
LAN Management

• This chapter deals mainly with the management of
  LANs. Although the content is not covered on the
  CCNA exam, it is covered on the Comp TIA Net
  exam.
• In addition, network management is when the real
  work begins for a net admin.
• Topics covered include
• Documentation
• Security
• Network Performance
• Server Administration
• Troubleshooting

3
Network Documentation
4
Documentation

• Documenting the network, including
• Cut sheet diagrams
• MDF IDF layouts
• Server/workstation configurations
• Software installed
• Maintenance records
• Security user policies
• ...is the most critical component of good
  network management.
• Documentation is also the least implemented
  component of network administration.

5
MDF IDF Layouts

• The Physical and Logical layouts of all wiring
  closets includes
• physical location of rack mounts, equipment and
  servers
• patch panel labeling scheme for identifying cable
  terminations
• Configuration details of all equipment

6
Server/Workstation Configurations

• Includes details about
• Hardware specifications
• Make model
• Number type of drives
• Cards installed
• Physical location Logical addressing
• IP and MAC address
• Subnet
• Topology
• Purchase date and warranty information

7
Software Maintenance Records

• Software listings include
• All software installed on each computer
• The standard configuration used for each type of
  workstation
• Operating system information
• Maintenance records assist net admin to
  anticipate potential problems and include
• All repairs and upgrades made to a computer

8
Security User Documents

• Physical Security
• How are MDFs IDFs locked
• Who has access to MDFs IDFs
• How are host devices protected (security cables,
  etc.)
• Soft Security
• User policies rights outlining what is and what
  is not permissible on the network
• Password protection
• Firewall support

9
Network Security
10
Security

• Network security includes two major components
• Controlling Access
• Data Protection and Recovery

11
Access

• The network policy established during the
  documentation phase determines the criteria used
  to select passwords, such as
• password length
• aging of passwords
• time of day access is allowed
• Acceptable Use Policies make sure users are aware
  of the companys definition of what is allowed
  and not allowed on the network. It also normally
  includes consequences for violation of the policy.

12
Data Recovery

• Data recovery, the second component of security,
  involves protecting data from loss
• Methods for protecting data include
• Tape backup
• Fault tolerance
• Controlling Environmental Factors
• Power Conditioning
• Preventing Virus Corruption

13
Tape Backup

• Magnetic tapes are the most popular media used
  for backing up data because of the cost and
  capacity.
• They are much cheaper than removable hard drives
• Tape backups record and restore data
  sequentially.
• This can make it difficult to find a particular
  file. However, tape backups are used to fully
  restore all lost data.
• Most Tape Backup systems use an archive bit set
  to on or off. If the bit is on, then the data
  has been changed since the last backup.

14
Types of Tape Backup Systems

• Several options are available when using tapes.
• Full backup--all files are backed up periodically
• Incremental and Differential backups--uses an
  archive bit to determine if a file has been
  created or modified since the last full backup
• Copy backup--backs up user selected data to tape
• Daily backup--backs up data created or modified
  for that day

15
Fault Tolerance

• Fault tolerance involves establishing redundancy
  techniques to keep a system up and running when a
  failure occurs.
• RAID (Redundant Array of Inexpensive Disks)
• RAID 0--stripes data across multiple disk no
  redundancy
• RAID 1--(mirroring) provides redundancy by
  writing all data to two or more drives
• RAID 2--no longer used because of expense
• RAID 3/4--stores parity on one disk 3 stripes at
  the byte level and 4 stripes at the block level
  across remaining disks.
• RAID 5--similar to 3/4 but stripes data with
  parity across multiple drives. Requires at least
  3 drives. 5 drives is ideal.

16
Environmental Factors

• Electrical Static Discharge can approach 20,000
  volts and fry sensitive computer components
• Protect against by grounding yourself using
  grounding strap before working on computers
• Dust and dirt should be avoided. Periodically
  clean keyboards, monitors, and towers
• Avoid excessive heat
• Follow TIA/EIA 568A standards to avoid EMI and
  RFI noise
• For example, Shielded Twisted Pair (STP) cable is
  a possible solution to prevent EMI/RFI corruption
  of data.

17
Power Conditioning

• Power conditioning is the process of implementing
  procedures to control the power supplied to your
  network. They include
• Isolating Transformer--to control voltage spikes
  and high frequency noise
• Regulators--to maintain a constant level of
  voltage
• Line Conditioner--an isolating transformer/regulat
  or combination.
• Uninterruptible Power Supply--maintains a charged
  battery to supply voltage to devices in the event
  of a power failure.

18
Software Viruses

• Preventing software viruses is the final topic
  under network security. Types include
• Worm--a program that spreads across computers and
  usually reproduces copies of itself in a
  computers memory
• Virus--a program that usually has a negative
  effect on executable programs
• Trojan Horse--destructive program disguised as a
  game, utility or other application
• Preventing viruses includes...
• Know where your data is coming from
• Avoid allowing others to use floppies on your
  computer
• Maintain updated virus checking software

19
Network Performance
20
Monitoring the Network

• Part of documenting the network is establishing
  baselines for the various performance issues
  including...
• Bandwidth utilization
• Collision counts
• Broadcast traffic
• A baseline sets the acceptable performance of the
  network, but must be updated as the network is
  updated or expanded.

21
Server Administration
22
Types of Networks

• Peer-to-Peer Networks
• Also known as a Workgroup Network, it is designed
  for a small number of users.
• No more than 10 devices should be on one
  peer-to-peer network.
• Advantages relatively easy to configure, users
  control resources, no dedicated server needed
• Disadvantages no central management
• Client-Server Networks
• Uses a dedicated server running a NOS to control
  resources and manage the network.

23
Types of Client-Server NOSs

• UNIX
• Open standard with proprietary versions offered
  by HP, IBM, and Sun (among others) as well as a
  free versions (FreeBSD and Linux).
• Multi-user, multi-tasking environment using NFS
  security.
• Kernel based which isolates the hardware layer
  from improperly operating applications.

24
Types of Client-Server NOSs

• NetWare
• various versions as discussed in Ch. 7
• uses two file services FAT and DET
• Windows NT
• uses domains to control services with a Primary
  Domain Controller and Backup Domain Controller
• Similar to UNIX except uses a different file
  system structure

25
Network Troubleshooting
26
Scientific Method

• Network troubleshooting is a systematic process
  that uses the scientific method
• Identify the network/user problem
• Gather data about the network/user problem
• Analyze data and come up with possible solutions
• Choose and implement best solution
• Evaluate solutions success and modify data
  collected, if necessary
• If problem still exists, return to Step 3.

27
Typical Troubleshooting Scenario

• User calls and says he cant access the network
  (problem identified).
• Gather data by asking the user questions,
  checking logs, and hardware configurations.
• Analyze the data collected to determine possible
  solutions. Check the physical layer by pinging
  the user. If unsuccessful, ping the NIC from the
  the users computer using the loopback address
  127.0.0.1. Continue to ping along the network to
  find problem. If no problem, then check software.

28
Typical Troubleshooting Scenario

• Implement the best solution to solve the problem.
• Evaluate the implemented solution to see if the
  problem has been solved. If not, return to Step
  3.
