Building a program verifier

1

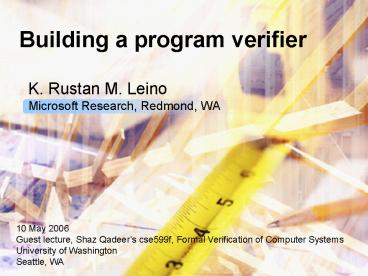

Building a program verifier

• K. Rustan M. LeinoMicrosoft Research, Redmond, WA

10 May 2006Guest lecture, Shaz Qadeers cse599f,
Formal Verification of Computer
SystemsUniversity of WashingtonSeattle, WA
2
Spec research goals

• Build the best such system we can build today
• Experiment with the system to get a feel for what
  it is like to use
• Advance the state of the art

3
Spec demo Chunker
4
Basic architecture of a verifier
program with specifications
verification conditiongenerator
verification condition
theorem prover
correct or list of errors
5
Spec verifier architecture
Spec
Spec compiler
MSIL (bytecode)
Spec program verifier
translator
inference engine
Boogie PL
V.C. generator
verification condition
automatictheorem prover
correct or list of errors
6
Core language

• Program outcomes
• terminate
• go wrong
• block
• diverge

7
Core language

• x E
• evaluate E and change x to that value
• havoc x
• change x to an arbitrary value
• assert E
• if E holds, terminate otherwise, go wrong
• assume E
• if E holds, terminate otherwise, block
• S T
• execute S, then T
• S T or goto A or B
• execute either S or T, choosing blindly
• change point of control to block A or block B,
  choosing blindly

8
Example translation if

• Tr if P then S else T end
• Start goto Then or Else
• Then assume P Tr S goto After
• Else assume P Tr T goto After
• After

9
Example translation loop

• Tr while invariant J B do S end
• LoopHead assert J goto LoopBody or AfterLoop
• LoopBody assume B Tr S goto LoopHead
• AfterLoop assume B

10
Example translation partial expressions

• Tr x a / b assert b ? 0 x
  a / b
• Tr x (T) y //
  type cast assert y null ? typeof(y) lt T x
  y

11
Example translation fields of objects

• Tr x o.f assert o ? null x
  Heap o, f
• Tr o.f x assert o ? null Heap
  o, f x

x Select(Heap, (o,f))
Heap Update(Heap, (o,f), x)
12
Example translation OO things

• class C Object int x C() virtual
  int M(int n)
• static void Main() C c new C() c.x
  12 int y c.M(5)

13
BoogiePL translation of OO things (0)

• // types
• const Object name
• const C name
• axiom C lt Object
• function typeof(o ref) returns (t name)
• // fields
• const C.x name
• const allocated name
• // the heap
• var Heap ref,nameint

14
BoogiePL translation of OO things (1)

• // method declarations
• procedure C..ctor(this ref)
• requires this ! null typeof(this) lt C
• modifies Heap
• procedure C.M(this ref, n int) returns (result
  int)
• requires this ! null typeof(this) lt C
• modifies Heap
• procedure C.Main()
• modifies Heap

15
BoogiePL translation of OO things (2)

• // method implementations
• implementation C.Main()
• var c ref, y int
• start
• // C c new C()
• havoc c
• assume c ! null
• assume Heapc, allocated 0
• assume typeof(c) C
• Heapc, allocated 1
• call C..ctor(c)
• // c.x 12
• assert c ! null
• Heapc, C.x 12
• // int y c.M(5)

16
Verification-condition generation

• 0. passive features assert, assume,
• 1. control flow goto (no loops)
• 2. state changes , havoc
• 3. loops

17
Weakest preconditions

• The weakest precondition of a statement S with
  respect to a predicate Q on the post-state of S,
  denoted wp(S,Q), is the set of pre-states from
  which execution
• does not go wrong, and
• if it terminates, terminates in Q

18
VC generation passive features

• wp( assert E, Q )
• E ? Q
• wp( assume E, Q )
• E ? Q
• wp( S T, Q )
• wp( S, wp( T, Q ))

19
VC generation acyclic control flow

• For each block A, introduce a variable Aok with
  the meaning Aok is true iffevery program
  execution starting in the current state from
  block A does not go wrong
• The verification condition for the program
• A S goto B or C
• is
• ( Aok ? wp( S, Bok ? Cok ) ) ?
• ?
• Aok

20
VC generation state changes

• Replace definitions and uses of variables by
  definitions and uses of different incarnations of
  the variables
• x?x0, y?y0 x E(x,y) x1 E(x0,y0)
  x?x1, y?y0
• x?x0, y?y0 havoc x skip x?x1, y?y0

21
VC generation state changes (cont.)

• Given x?x0 ,y?y0 S S x?x1, y?y0 x?x0,
  y?y0 T T x?x2, y?y0
• then we have
• x?x0, y?y0 if E(x,y) then S else T end if
  E(x0,y0) then S x3 x1else T x3
  x2end
• x?x3, y?y0

22
VC generation state changes (cont.)

• Replace every assignment x Ewith assume x
  E

23
VC generation loops
loop head
assert LoopInv( x )
assume Guard( x ) x
loop body
after loop
assume Guard( x )
24
VC generation loops
assert Passert P assume P
loop head
assert LoopInv( x ) assume LoopInv( x )
assume Guard( x ) x
loop body
after loop
assume Guard( x )
25
VC generation loops
assert LoopInv( x )
loop head
assert LoopInv( x ) assume LoopInv( x )
assume Guard( x ) x
loop body
after loop
assume Guard( x )
assert LoopInv( x )
26
VC generation loops
assert LoopInv( x )
loop head
havoc x
assume LoopInv( x )
loop target
assume Guard( x ) x assert LoopInv( x )
loop body
after loop
assume Guard( x )
27
VC generation loops
assert LoopInv( x )
loop head
havoc x
assume LoopInv( x )
assume Guard( x ) x assert LoopInv( x
)assume false
loop body
after loop
assume Guard( x )
28
Programming methodology
light-weight rules forsimpler reasoning
29
Object invariants

• class C
• private int xprivate int y
• invariant x lt y
• public void M() int t 100 / (y x) x
  x 1 P(t) y y 1

30
When do object invariants hold?

• class C
• private int xprivate int y
• invariant x lt y
• public C() x 0 y 1
• public void M() int t 100 / (y x) x
  x 1 P(t) y y 1

invariant checked to holdat end of constructor
invariant assumed to holdon entry to method
invariant may betemporarily broken here
what if P calls back into M?
invariant is restored here
invariant checked to holdon exit from method
31
Object states

• Mutable
• Object invariant may not hold
• Field updates allowed
• Valid
• Object invariant holds
• Field updates not allowed

32
Valid vs. mutable objects

• class C
• private int x
• private int y
• invariant x lt ypublic void M()
• requires this.inv Valid
• expose (this) x x 1 P() y y
  1

represent explicitlythat invariant
holds (without revealingwhat the invariant is)
change this.invfrom Valid to Mutable
field updates allowedonly on Mutable objects
check invariantthen, change this.invfrom
Mutable to Valid
33
Aggregate objects

• class Set
• Hashtable h
• invariant public void Add(Element e)
• requires this.inv Valid
• expose (this)
• h.Add(e, e)
• class Hashtable
• invariant
• public void Add(object key, object
  val) requires this.inv Valid

how do we know h is Valid here?
34
Aggregate objects

• class Set
• Hashtable h
• invariant public void Add(Element e)
• requires this.inv Valid
• expose (this)
• h.Add(e, e)
• public Hashtable Leak() return h
• class Hashtable
• invariant
• public void Add(object key, object
  val) requires this.inv Valid

how do we know h is Valid here?
Perhaps it isnt! void Violation(Set
s) requires s.inv Valid Hashtable g
s.Leak() expose (g) g.x
s.Add()
35
Object states

• Mutable
• Object invariant may not hold
• Field updates allowed
• Valid
• Object invariant holds
• Field updates not allowed
• Committed
• Valid and owned
• Cannot be exposedowner must be exposed first,
  which makes this object Valid

36
Ownership

• For any s Set,
• s uniquely owns s.h
• validity of s implies validity of s.h

• class Set
• owned Hashtable h
• invariant public void Add(Element e)
• requires this.inv Valid
• expose (this)
• h.Add(e, e)
• class Hashtable
• invariant
• public void Add(object key, object
  val) requires this.inv Valid

ownership of htemporarilyrelinquished here
ownership of hre-obtained here
37
Object states a picture of the heap
expose (s)
s Set
ownership
h
Mutable
Hashtable
Valid
Committed
38
Object states a picture of the heap
expose (s)
s Set
ownership
h
Mutable
Hashtable
Valid
Committed
39
Object states a picture of the heap
expose (s)
s Set
ownership
h
Mutable
Hashtable
Valid
Committed
40
Object states a picture of the heap
expose (s)
s Set
ownership
h
Mutable
Hashtable
Valid
Committed
41
Summary of object invariants

• invariant
• owned T f
• inv Mutable, Valid, Committed
• expose
• updates of o.f require o.inv Mutable
• Inv (o) can mention only the fields of o and the
  fields of owned fields
• example invariant this.n this.h.Count
• (?o ? o.inv Mutable ? Inv (o))
• (?o ? o.inv Mutable ? o.f.inv Committed)

42
Summary

• Programming/specification language
• Programming/specification methodology
• object invariants
• frame conditions
• Semantics in terms of core language
• VC generation
• VCs for good prover performance
