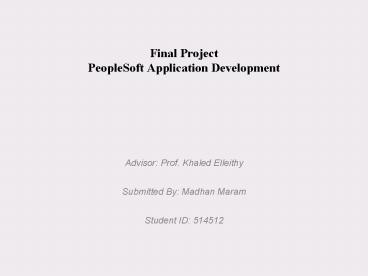

Final Project PeopleSoft Application Development

1
Final ProjectPeopleSoft Application Development

• Advisor Prof. Khaled Elleithy
• Submitted By Madhan Maram
• Student ID 514512

2
What is ERP?

• ERP attempts to integrate all departments
  and functions across a company onto a single
  computer system that can serve all those
  different departments' particular needs.
• That is a tall order, building a single software
  program that serves the needs of people in
  finance as well as it does the people in human
  resources and in the warehouse. Each of those
  departments typically has its own computer system
  optimized for the particular ways that the
  department does its work. But ERP combines them
  all together into a single, integrated software
  program that runs off a single database so that
  the various departments can more easily share
  information and communicate with each other.

3
Architecture Diagram
4
PeopleTools - Some areas of focus

• PeopleSoft Internet Architecture
• Application Designer
• Application Engine
• Component/component Interface
• File/File Layout
• PeopleCode
• Security Manger
• Integration Broker
• Portals
• Reporting
• Data Archiving

5
Application Development

• PeopleSoft Applications are made up of a
  navigational structure, menus, components and
  pages. Using these elements new data or change,
  delete and modify the existing data in the
  application. PeopleSoft web browsing and working
  with database.

6
Application Designer

• Every PeopleSoft Internet Architecture (PIA)
  application contains a collection of related
  objects that work together for a specific
  purpose.
• Developing and customizing PeopleSoft
  applications is a step-by-step process where you
  define and build the objects, establish
  relationships among objects, implement security,
  run your
• PeopleSoft application within an Internet
  Browser, and test every aspect thoroughly.
• You use one interactive tool, Application
  Designer, for the majority of these activities.
  Application Designer is an integrated development
  environment that enables you to work with the
  numerous objects of a business application in a
  single work area.
• The following section introduces you to
  Application Designer's development environment.

7
Application Engine

• Called App Engine is mostly used for batch
  processing, for example we have to schedule a
  students registration list for the whole
  semester on a particular date, and we can
  schedule and automates the process.
• Application Engine is the People Tool that you
  use to develop batch or online programs that are
  effective alternatives to COBOL or SQR programs
  (for non-report processing). Using Application
  Engine, you can create programs that perform
  high-volume, background processing against your
  data.
• Application Engine is comprised of two distinct
  components the "front-end" where you define your
  batch program and the"back-end," which entails
  running and monitoring our program .

8
Web Interface

• Navigation
• Left-hand navigation .
• Updated structure
• Security Enhancements
• Create Row Level Security for Various Profiles
• Improved Home Pages

9
Peoplecode

• Plays the major role in the application,
  considering the administration at UB. Not all
  users get the same access towards the
  application. This security is contained in the
  application sample.
• The PeopleSoft Internet Architecture falls into
  the category of PeopleSoft online security, also
  known as runtime security. Only authorized users
  can connect to the web and application servers,
  and only authorized application servers can
  connect to a given database.

10
Security

• Plays the major role in the application,
  considering the administration at UB. Not all
  users get the same access towards the
  application. This security is contained in the
  application sample.
• The PeopleSoft Internet Architecture falls into
  the category of PeopleSoft online security, also
  known as runtime security. Only authorized users
  can connect to the web and application servers,
  and only authorized application servers can
  connect to a given database.

11
Web Interface

• Navigation
• Left-hand navigation .
• Updated structure
• Security Enhancements
• Create Row Level Security for Various Profiles
• Improved Home Pages

12
A few technical aspects in developing

• How the tables are created.
• How the pages are created, various tools used.
• How the relations are developed.
• How components are developed.
• How permissions and roles are created for access
  to only specific personnel in a business.
• How reports are generated.
• How search Engines can be developed.
• How batch processes are scheduled.
• Security Administration.

13
Creation of Records

• Open Application DesignerFile New gt Select type
  gt Record
• The Records are thus created very much similar to
  any Online Objects.
• The fields, Application Engine Programs, and
  every other online objects skeletal build
  initiates through Application Designer.
• The ability to create robust and powerful
  internet applications of PeopleSoft functions
  like web pages.
• Support as many existing page controls and
  concepts as possible.
• Ability for the application to operate in a menu
  system independently.

14
Opening an Existing Record

• Select File, Open or click the Open toolbar
  button to open an existing record definition.
• Select Record from the Object Type list and then
  click Select.
• In the Open Object dialog, enter the first letter
  of the record you are searching for and click
  Select.
• You can narrow the search criteria by specifying
  Type and/or Project. You can also open an
  existing record from the project tree view by
  double-clicking a record name.

15
Few of the Records created for the Application

• Course Tables
• Session tables
• Instructor tables
• Location tables
• Route tables
• Review tables
• Suggestions tables
• Enrollment tables
• Tasks Tables
• Task Review tables

16
Adding Controls to Pages

• Add controls to your page definition by the
  following
• dragging and dropping a field definition (or
  record field in your project workspace) into a
  page
• using the Page Definition Toolbar
• using the Insert menu.

17
Developing RelationshipsRelationships are built
using levels

• LEVELS
• Level 0 Course RecordsLevel 1 Session
  RecordLevel 2 Instructor Record
• The Records have a parent child relation,
  PeopleSoft holds this relation having at least
  one additional primary key together with all in
  the child record.
• This is explained with Multiple Sessions for a
  single course available for the semester. The
  level 2 record contains all the primary keys in
  Level 1 Record and an extra primary key.

18
Creating Components

• For all the WebPages, there will be a
  corresponding component create.
• The hierarchy All the online pages are built in
  application designer and are attached to a
  Component.
• The Components are Attached to Menu.
• The Menus are classifies as USE and SET UP
• The Set up menu Mostly are Configuration
  tables. A one time bulk data entry
• The USE tables are Transaction Tables, These are
  Informative and Helps to Query out the
  Information from the Database.
• The Components are Added to the MenuFile New
  Menu Insert Component

19
List of Pages Created

• Address Page
• Bus and Bus Routes Pages
• Course and Sub Pages
• Curriculum and Tasks page
• Enrollment Pages
• Equipment Pages
• Expenses Pages
• Location Pages
• Review and Search pages
• Session and Student Pages
• Suggestion and Suggestion Review Pages
• Task Effort Pages

20
List of Batch Programs

• Application Engine Programs
• To Load PeopleSoft tables from External Files
• These files are scheduled through Process
  Scheduler
• This loads Bulk data in to Application tables
  replicating the enterprise batch processing.
• The programs to write the bulk data in to a Flat
  File.
• The Programs using component Interface to load
  information, which helps to validate the
  information prior to loading.

21

• Local ApiObject Session
• Local ApiObject MM_CI_READ_CS
• Local ApiObject MM_SESSIONCol
• Local ApiObject MM_SESSIONItm
• Local ApiObject PSMessages
• Local string ErrorText, ErrorType
• Local number ErrorCount
• Local boolean Error
• Local File Source
• Local Record c_rec, s_rec
• Local Rowset c_rs
• Function CheckErrorCodes()
• PSMessages Session.PSMessages
• ErrorCount PSMessages.Count
• For i 1 To ErrorCount
• ErrorText PSMessages.Item(i).Text
• ErrorType PSMessages.Item(i).Type

22

• / Set Component Interface Standard Properties /
• MM_CI_READ_CS.InteractiveMode False
• MM_CI_READ_CS.GetHistoryItems True
• Source GetFile("C\TEMP\cou_sess.TXT", "R",
  FilePath_Absolute)
• Source.SetFileLayout(FileLayout.MM_COU_SES_FL)
• c_rec CreateRecord(Record.MM_COURSE_TBL)
• s_rec CreateRecord(Record.MM_SESSION)
• c_rs CreateRowset(Record.MM_COURSE_TBL,
  CreateRowset(Record.MM_SESSION))
• c_rs Source.ReadRowset()
• /read from rowset to rec and values of fields/
• While c_rs ltgt Null
• c_rs.GetRow(1).MM_COURSE_TBL.CopyFieldsTo(c_r
  ec)
• courseid c_rec.RV_COURSE_ID.Value
• / Set Component Interface Get Keys /
• MM_CI_READ_CS.RV_COURSE_ID courseid

23

• / Set MM_SESSION Collection Field Properties --
  Parent PS_ROOT Collection /
• MM_SESSIONCol MM_CI_READ_CS.MM_SESSION
• MM_SESSIONItm MM_SESSIONCol.Item(row)
• MM_SESSIONItm.sessionid
  s_rec.SESSIONID.Value
• MM_SESSIONItm.START_DT
  s_rec.START_DT.Value
• MM_SESSIONItm.END_DT s_rec.END_DT.Value

• MM_SESSIONItm.DURATION
  s_rec.DURATION.Value
• MM_SESSIONItm.R_DURATION_UNIT
  s_rec.R_DURATION_UNIT.Value
• MM_SESSIONItm.MIN_STUDENTS
  s_rec.MIN_STUDENTS.Value
• MM_SESSIONItm.MAX_STUDENTS
  s_rec.MAX_STUDENTS.Value
• MM_SESSIONItm.LANGUAGE_OPTION
  s_rec.LANGUAGE_OPTION.Value
• MM_SESSIONItm.STATUS s_rec.STATUS.Value

• MM_SESSIONItm.LOCATION
  s_rec.LOCATION.Value
• / MM_SESSIONItm.START_TIME
  s_rec.START_TIME.Value
• MM_SESSIONItm.END_TIME
  s_rec.END_TIME.Value/
• End-For
• c_rs Source.ReadRowset()

24
File Layout

• A File Layout is a definition (or mapping) of a
  file to be processed. It identifies where in a
  file data fields are located. Once a File Layout
  has been created, you can write PeopleCode
  programs that use the file object, which in turn
  use the File Layout, to either read data from or
  write data to a file.
• Types of File layouts.
• Fixed Positional Each field has a starting
  position and a length which is their descriptive
  location.
• Sequence Positional (CSV) Fields are separated
  and the order of appearance is their descriptive
  location.
• Tagged (XML) Each field has predefined tags (or
  identifiers) surrounding it.
• In the Application that I have developed File
  Layout is used with application engine program
  for importing data in to the system and to send
  data out of the system. Replicating the arching
  job process at the corporate level.

25
Sample Input File

• ADCC DATA COMMUNICATIONS 06/11/2003
  11/13/2003 5M 9 15OA
• AC1 CHECK
  09/09/2003 10/09/2003 45D 9 5OA
• C1 F4
  0D 0 0 AL1 0 0
• C1 G6
  0D 0 0 AL1 0 0
• C1 S2
  10/06/200310/12/2003 4D 3
  7NAL1 2 3
• AIB INTEGRATION BROKER
  10/16/200310/18/2003 2D 0 0 A
• AD CC1 FINAL PROJECT
  10/08/200210/17/2002 0D 2 6IA
• AL1 TWO TIER
  10/16/200310/30/2003 4D 4 7II

26
Sample Output File

• E(0Nl0Ol8Dl88F(s16.66Ha9Lk2G
•
  REPORT GENERATION
• DCC DATA COMMUNICATIONS 11-JUN-2003
  13-NOV-2003
• C1 CHECK 09-SEP-2003 24-FEB-2004
• IB INTEGRATION BROKER 16-OCT-2003
  18-OCT-2003
• DCC1 FINAL PROJECT 08-OCT-2002 17-OCT-2002
• L1 TWO TIER 16-OCT-2003 30-OCT-2003
• The Special Characters at the top of the report
  defines the printer configuration.

27
Main Menu AND Base Table Menu
28
All the base records are loaded

• Instructor
• Location
• Student
• Equipment
• Bus, etc.,

29
Sample Online Pages
30
Interface

• Thanks for the interest you showed in
  presentation, also special thanks to Professor
  Khaled elleithy and all CS department for the
  support throughout my course curriculum

31
Thanks
