Creating Graphical User Interfaces GUIs in Java

1

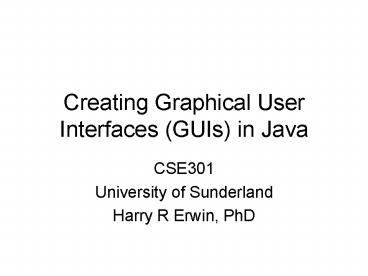

Creating Graphical User Interfaces (GUIs) in Java

• CSE301
• University of Sunderland
• Harry R Erwin, PhD

2
Graphical User Interfaces

• Are based on a real-world (typically desktop)
  metaphor.
• Apples user interface guidelines are a good
  starting point for understanding the semantics.
• Programming a GUI is very strange and wonderful
  and often difficult.
• We will learn how to do this in Java.

3
Smalltalk History(Goldberg and Robson)

• Xerox PARC during the 1970s was exploring how
  computing power would be used in business. (Xerox
  sells products for the office environment.)
• They concentrated on two research areas
• A programming language to serve as an interface
  between models in the mind and those in computing
  hardware.
• A user interface to match the human communication
  system to that of the computer.
• This resulted in the Smalltalk system.

4
The Smalltalk Approach

• Smalltalk was a graphical, interactive
  programming environment.
• Smalltalk was a big system, built on a model of
  communicating objects.
• Smalltalks primary vocabulary was
• object,
• message,
• class,
• instance, and
• method. (Sounds familiar?)

5
The Desktop Metaphor

• Xerox invented the desktop metaphor for
  SmallTalk
• The display screen contains one or more
  rectangular areas called views.
• Views may overlap.
• Each view has a title.
• The mouse has three buttons
• Leftselect.
• Middleaction menu popup.
• Rightview menu popup.

6
Apples Guidelines (Apple 2002)

• Apple made the desktop metaphor more explicit
• File folders
• Documents
• Wastebasket
• Operations based on see and point
• The user selects an object on the screen, and
• Then applies a verb to it.
• Direct manipulation
• Objects remain visible
• Effects of actions are immediately visible.

7
Apple Guidelines (II)

• User control
• The user, not the computer, initiates and
  controls actions.
• Feedback and communication
• Keep users informed about whats happening
• Progress indicators
• Immediate direct feedback
• Consistency
• Avoid forcing the user to retrain to use your
  application. Take advantage of their task
  knowledge.

8
Apple Guidelines (III)

• What you see is what you get (WYSIWYG)
• No significant differences between what is seen
  on the screen and what is printed by the printer.
  Applies to all data.
• All commands should be easily found.
• Forgiveness
• Make most actions easily reversible.
• Perceived stability
• Be consistent.
• Aesthetic integrity
• Make your displays pleasant to view over time.

9
Apple Guidelines (IV)

• Modelessness
• Let the user do what she wants most of the time.
• Knowledge of your audience
• Understand the user and the users expectations.
• Worldwide compatibility
• Cultural values
• Language differences
• Text display/editing
• Accessibility for persons with disabilities

10
Then Why is Programming a GUI so Hard?

• In doing this, Apple decided that ease of use was
  more important than ease of programming.
• The GUI programming model was very different from
  most programmers previous experience in the
  1980s.
• Very similar approaches (and implementations) are
  also present in most later systems
• X11
• Windows
• Java
• As a result, GUI programming is not easy in any
  of these systems.

11
General Approach

• All applications have an event-handling loop that
  receives asynchronous events from the GUI and
  services them.
• Events may trigger other events to be serviced.
• Display is asynchronous with event handling, but
  event servicing may change the display.
• Organizing this system to support multiple views
  or windows and both high and low-level events
  leads to a number of design approaches. We will
  study how Java does it.

12
Java GUI Frameworks

• Abstract Window Toolkit (java.awt)
• The original set of windowing components designed
  for Java. These were implemented as separate
  processes using the GUI features of the
  underlying operating system.
• Swing (or Java Foundation Classesjavax.swing)
• A second generation set of light-weight
  windowing components introduced in Java 1.2.
  These were implemented as Java threads and so
  avoided the overhead of process context switches
  and enforced a common look and feel.
• SWT (part of Eclipse)
• Discussed at http//java.sun.com/docs/books/tutor
  ial/uiswing/index.html

13
AWT

• The foundation of GUI in Java
• Implemented in separate processes
• Rudimentary
• Supported by most web browsers, so that most
  applets should use AWT instead of Swing.

14
AWT Features

• Basic facilities for creating a graphical user
  interface
• Drawing graphics (not covered in this module)

15
Using AWT

• Import
• java.awt.
• java.awt.event.
• Everything inherits from java.awt.Component
• The AWT GUI is organized by containers,
  inheriting from java.awt.Container (which
  inherits from Component).
• The arrangement of controls is managed by various
  layout managers.
• Notification of changes is handled by events and
  event listeners that run in a GUI thread.

16
Swing

• Built on AWT
• Written in pure Java
• Uses less classes and is faster
• Common look and feel
• Designed to explicitly support the
  Model-View-Controller pattern (future lecture).
• Supports handicapped accessibility.
• Not supported by all web browsers 8(

17
To Use Swing

• You must import the following
• java.awt.
• java.awt.event.
• javax.swing.
• javax.swing.event.
• javax.swing.border.
• javax.swing.text.
• These are stored in
• swing.jar
• swingall.jar
• windows.jar
• Point to these using your CLASSPATH.

18
Creating the Graphical User Interface

• This is a four-step process (see Flanagan, Java
  Foundation Classes in a Nutshell)
• Create and configure the components. This uses
  the standard Java syntax for reference types.
• Add the components to a container. Containers
  are subclasses of java.awt.Container.
• Arrange or lay out the components. Do it
  yourself, or use a LayoutManager.
• Handle the events generated by the components.
  You add event listeners to do this.
• We will explore this.

19
Creating the Components

• These are the building blocks of your interface.
• Flanagans Java Foundation Classes in a Nutshell
  is a good reference. Study it to understand what
  components are available to you and how to use
  them. Remember the role inheritance plays in
  this.
• The names of Components often tell you exactly
  what they do.
• Every component has properties that can be used
  to configure it. The JavaBeans specification
  formalizes this.

20
AWT Component List

• Button
• Canvas
• Checkbox
• CheckboxMenuItem
• Choice
• Component
• FileDialog
• Label
• List

• Menu
• MenuBar
• MenuComponent
• MenuItem
• PopupMenu
• Scrollbar
• TextArea
• TextComponent
• TextField

21
Swing Component List

• JAWT-name for most AWT components
• JColorChooser
• JComboBox
• JEditorPane
• JFileChooser
• JOptionPane
• JPasswordField
• JProgressBar
• JRadioButton

• JRadioButtonMenuItem
• JSeparator
• JSlider
• JTable
• JTextPane
• JToggleButton
• JToolBar
• JToolTip
• JTree

22
How to Add Components to a Container

• See Flanagan (Java Foundation Classes in a
  Nutshell) for the details.
• Most Container classes are specialized. You will
  most frequently use
• Applet (or JApplet)
• JFrame
• JDialog
• JDesktopPane (with JInternalFrame)
• JPanel
• You use the add() method to add Components to a
  Container. Since Containers are also Components,
  you can create a hierarchy of Containers, all
  displayed within a JFrame, JDesktopPane, or
  JApplet.

23
AWT Containers

• Applet
• Container
• Dialog
• Frame
• Panel
• ScrollPane
• Window

24
Swing Containers

• JAWT-name for AWT containers
• Box
• JDesktopPane
• JInternalFrame
• JLayeredPane
• JRootPane
• JSplitPane
• JTabbedPane
• JViewport

25
Laying out the Components

• You can design your own layout or use one of the
  LayoutManagers that Java provides.
• LayoutManager classes include
• BorderLayout
• CardLayout
• FlowLayout
• GridBagLayout
• GridLayout
• BoxLayout (nice)
• OverlayLayout
• ScrollPaneLayout
• ViewPortLayout

26
Event Handling

• The part of the project many students dont get
  around to doing. To do anything, you have to
  handle events.
• java.awt and javax.swing use the event-handling
  API defined by the JavaBeans component model.
  This is based on events and event listeners.
• events extend java.util.EventObject.
• event listeners extend java.util.EventListener.
• Applets may have to use an older API for browser
  compatibility. 8(

27
Warnings

• java.awt.event and javax.swing.event mostly
  define interfaces and event adapters. Event
  adapters are empty classes implementing specific
  interfaces that you can subclass very easily for
  your specific needs.
• You must define your own implementations, since
  this is the code that modifies your model.
• Events are dispatched by an automatically created
  thread called the event dispatch thread. You must
  synchronize with it if other threads modify your
  model. (See Lecture 20.)

28
Event Listeners

• The object notified of an event is an event
  listener.
• An event listener can handle several types of
  events, and more than one event listener can
  monitor a specific event.
• One of the most important things to know about a
  Component is what events it can generate, so read
  the documentation.
• Event listeners can register themselves with
  multiple components and can have other functions,
  as well.
• Event listener interfaces with more than one
  method generally have associated event adapters
  that you can use.

29
Component Events

• Low-level events reflect things like keypresses
  and mouse clicks. Avoid handling these unless you
  must.
• Individual Components can handle low-level events
  for you. For example a JButton handles mouse
  clicks and releases. Take advantage of this.
• Components generate higher-level ActionEvents for
  you to handlee.g., button pushes. Sometimes,
  these events can also be handled for you. Your
  GUI initialization code needs to tell the system
  what events you want it to handle transparently
  in this way.
• See Chapter 10 of Java Examples in a Nutshell.

30
Using Inner Classes in your GUI

• To handle an event, you must implement the
  corresponding event listener. 8(
• It is quite common to create special classes to
  handle these events. 8(
• Inner classes were invented to simplify this. 8)
• An inner class can implement an event listener
  interface or extend an event adapter class. 8)
• See Chapter 2 of Flanagan, Java Foundation
  Classes in a Nutshell for lots of examples. 8))

31
Example
import java.awt.BorderLayout import
java.awt.Container import java.awt.HeadlessExcept
ion import java.awt.event.WindowAdapter import
java.awt.event.WindowEvent import
java.util.Observable import java.util.Observer i
mport javax.swing.JFrame public class
NavalCRTGUI extends JFrame implements Observer
/ _at_throws java.awt.HeadlessException
/ public NavalCRTGUI() throws HeadlessException
super("ASW Results Analyzer") final
NavalCRTGUI theGUI this // Handle window
close requests (inner class) this.addWindowListe
ner( new WindowAdapter() public void
windowClosing(WindowEvent e)
System.exit(0) )
32
Example (II)
// All content of a JFrame (except for the
menubar) goes in the // Frame's internal
"content pane", not in the frame itself. // The
same is true for JDialog and similar top-level
containers. Container contentPane
this.getContentPane() contentPane.setLayout(new
BorderLayout()) / (non-Javadoc)
_at_see java.util.Observerupdate(java.util.Observabl
e, java.lang.Object) / public void
update(Observable o, Object arg) // focus
events will be used to update // the ASW state
of the system // changes to the outputs will be
reported as observables public static void
main(String args) NavalCRTGUI display new
NavalCRTGUI() display.setSize(1000,
800) display.setVisible(true)
33
Adding Content andSetting Up the Observer
Box thePanel Box.createVerticalBox() // set
up situation pane thePanel.add(new JLabel("The
Situation")) Box theSituationPanel
createSituationPanel() // creates a typical
component thePanel.add(theSituationPanel) ((O
bservable)theBattle).addObserver((Observer)this)
// this is the JFrame being built. update(theBat
tle,null) // the JFrame is an Observer and has
an update // method. This // will result in the
GUI being initialized // from the domain class.
That is good.
34
Typical Component Constructor
private JTextField createAShip() final
JTextField bFactors new JTextField() // gets
preserved bFactors.setText(String.valueOf(theBatt
le.getABomber(3).getFactors())) FocusAdapter
bFactorsAdapter new FocusAdapter() // inner
class public void focusLost(java.awt.event.Focus
Event event) String s bFactors.getText()
try int f Integer.parseInt(s) if
(f lt 0) f 0 else if (f gt 99) f
99 theBattle.getABomber(3).setFactors(f)//
the model bFactors.setText(String.valueOf(f))
catch (NumberFormatException e)
bFactors.setText("0") theBattle.getABom
ber(3).setFactors(0)// the model theBattl
e.recompute()// telling the model to
recompute // end of inner class
definition bFactors.addFocusListener(bFactorsAdap
ter)// event handler return bFactors
35
Summary

• First create and configure your components.
  Create methods keep this clean.
• Add the components to containers. Remember,
  containers are also components, so you can nest
  them.
• Arrange or lay out the components. Do it
  yourself, or use a LayoutManager. Box layout is
  easy to use.
• Handle the events generated by the components.
  You must create event listeners to do this. These
  should usually be built using inner classes. (I
  usually do this in the Create methods.) These are
  the important hidden parts of the GUI that affect
  the rest of the system.
