Title: Materials Characterization


1

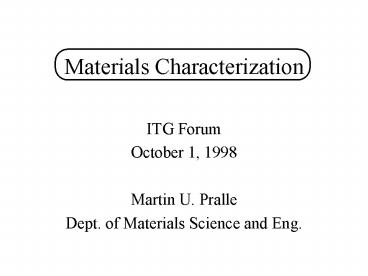

Materials Characterization
  • ITG Forum
  • October 1, 1998
  • Martin U. Pralle
  • Dept. of Materials Science and Eng.

2
Transmission Electron Microscopy
Electron Gun
  • Operates exactly like a Light Microscope except
    with electrons
  • Electrons are focused by electromagnetic lenses
  • Samples must be very thin to pass electrons
    through (lt1000 Å)
  • Samples diffract electrons and then are
    recombined in the image

Condenser lens
Objective lens
Sample
Diffraction lens
Screen
Camera
3
Supramolecular Objects
triblock rodcoil molecule
diblock coil
Self- Organization
rigid aromatic rod
mushroom shaped nanostructure
Stupp, S. I. LeBonheur, V. Walker, K. Li, L.
S. Huggins, K. Keser, M. Amstutz, A. Science
1997, 276, 384-389.
4
TEM Sample Preparation
sample
Embed in epoxy Cut with a diamond knife
Utramicrotomy
Thin sliver
Solution cast/crystallized
Diamond knife
Dry from solution on a water surface or direct to
a TEM grid
Grind to thin disc and then bombard with ions
until it thins down and a hole forms
Ion milling (not available in ITG)
Freeze fracture Cryo
5
Order in Self Organized Material
solution cast film
FFT
9.2 nm
  • 120 Å nanostructures
  • nanostructures exhibit positional order on an
    oblique superlattice
  • layered material

Intensity (au)
SAXS pattern shows molecular layer
spacing Extended length 110 Å
1
2
3
2? (deg)
6
Interference or High resolution
Contrast
Scattering or Diffraction
Diffracted only
Scattered or Diffracted
Phase
q
Results from defocusing the TEM
Aperature
6.3 nm
7
Osmium Tetraoxide, OsO4 RuO4 Uranyl
Acetate Phosphotungstic Acid
Double bonds Double bonds and phenyl
rings Esters, amines, ethers Ethers
Staining
unstained
stained
crystalline
stained
8
Electron Diffraction
e- beam
Bragg Law
q
2dsinqnl
Atomic Planes
dspacing
sinq a rring
Calibrate using gold standard
dspacingrringconstant
constant/runknown dspacing(of unknown)
9
Structure Determination
7.95 Å
(110)
5.15 Å
(210)
(200)
  • a - b plane reveals a rectangular unit cell
    projection
  • The unit cell dimensions a 7.95 Å and b 5.15 Å
    match those observed for polymer PPV

hydrogen in blue carbon in white oxygen in red
Molecules are perpendicular to the film
10
(No Transcript)
11
(No Transcript)
