Document Clustering with Prior Knowledge

1

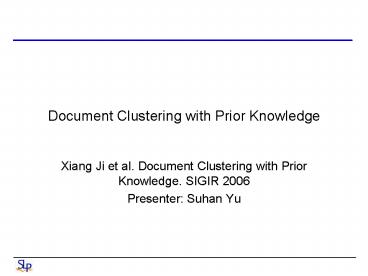

Document Clustering with Prior Knowledge

• Xiang Ji et al. Document Clustering with Prior
  Knowledge. SIGIR 2006
• Presenter Suhan Yu

2
Traditional Clustering Methods

• Methods
• K-Means
• Ratio Cut
• Average Association
• Normalized Cut
• Min-Max Cut
• Important question
• For each given data set, there are always many
  possible ways of partitioning the data set.

3
Traditional Clustering Methods

• Related Work on Semi-Supervised Learning
• Wagstaff et al. introduced two types of
  constraints must link , cannot link
• Basu, et al. developed a semi-supervised K-means
  that make use of labeled data to generate initial
  seed cluster, and to guide the clustering
  process.

4
Normalized Cut

• J. Shi and J. Malik. Normalized cuts and image
  segmentation. IEEE Transaction on Pattern
  Analysis and Machine Intelligence, 2000.
• Model the given document set using a undirected
  graph G(V,E,W)
• V vertex set, represents a document vector
• E edge set, assigned a weight to reflect the
  similarity between the two documents.
• W graph affinity matrix

5
Normalized Cut
Measures how tightly the cluster S is connected
with the rest of the data set.
Measures how compact the entire data set is.
6
Normalized Cut

• Let be the
  indicator vector of the cluster ,and each
  element takes a binary value 1,0
• Then we get

Ddiagonal matrix
1
2
3
7
Normalized Cut
1
2
3
4
4
1
2
3
Minimize the cost function
8
Normalized Cut
9
Normalized Cut
10
Incorporating Prior Knowledge

• The prior knowledge is provided in the form of
  indicating several pairs of documents which the
  user whishes to be grouped into the same cluster.
• Constraint vector

11
The flow path of CNC

• Create the graph affinity matrix in
  which each element represents the similarity
  between the two documents.
• Compute the diagonal matrix D
• Form the constraint matrix U by the user
• Form the matrix
  and compute its K smallest eigenvalues and
  the corresponding eigenvectors.

• Project each document into the eigen-space
  spanned by the K eigenvectors. Apply K-means
  algorithm to find the K document clusters within
  this eigen-space

12
Data description

• This paper evaluated the performance of their
  document clustering model using two data set
  Reuters-21578 and 20 Newsgroups document corpora.
• Newsgroups data set contains 20000 documents that
  were collected from 20 newsgroups in the public
  domain.

13
Evaluation

• Given the two set of document clusters C, C,
  their mutual information metric is defined as

0 two sets are independent 1 two sets are
identical
14
Result
15
Result
16
Result
17
Conclusion

• This paper proposed a constrained spectral
  clustering method (CNC) to incorporate users
  prior knowledge during the document cluster
  analysis.
• CNC model is a very effective semi-supervised
  document clustering tool, especially with very
  low amount of training samples.
• CNC model did not form constraints for prior
  knowledge related to cannot-link constraint.
