Phase equilibrium I: Definition of phase

1

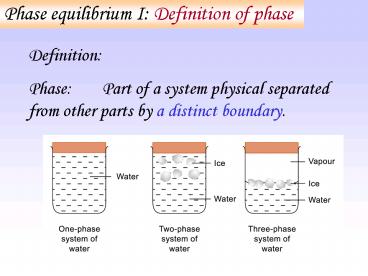

Phase equilibrium I Definition of phase
Definition Phase Part of a system physical
separated from other parts by a distinct boundary.
2
Phase equilibrium I Homogeneous and heterogeneous
Definition Homogeneous one phase
only. Heterogeneous more than one phase.
3
Phase equilibrium I Vapour pressure and phase
diagram
Vaporization A(l) ? A(g) Condensation A(g) ?
A(l) Phase equilibrium two phases co-exist and
they are in dynamic equilibrium.
4
Phase equilibrium IGeneral phase diagram of one
component
Fusion / Vaporization / Sublimation/ Triple
point/ Critical point
High P with low T Solid
High T with low P gas/vapour
5
Phase equilibrium I Phase diagram of water
Character Negative slope for fusion
curve. Increase pressure at constant temp. will
cause melting.
6
Phase equilibrium I Phase diagram of CO2
Character Triple point is higher than 1.0
atm. Increase temp. at 1 atm / atmospheric
pressure will cause sublimation. i.e. No melting
for dry ice.
