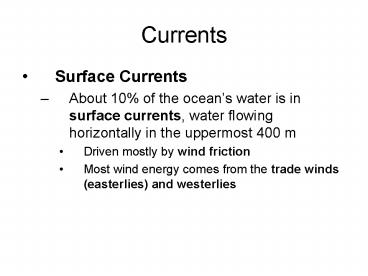

Currents

1
Currents

• Surface Currents
• About 10 of the oceans water is in surface
  currents, water flowing horizontally in the
  uppermost 400 m
• Driven mostly by wind friction
• Most wind energy comes from the trade winds
  (easterlies) and westerlies

2
(No Transcript)
3
Gyres

• Water flows clockwise around the N. Atlantic
• This results in an Ekman Spiral
• This causes a build up of water in the center of
  the ocean,
• Hill of water about 2 m higher than the rest of
  the ocean.
• This hill is maintained by wind energy, friction
  with the surrounding continents, and the coriolis
  effect.
• Geostrophic Gyres
• Gyres in balance between the pressure gradient
  and the Coriolis effect are called geostrophic
  gyres (Geoearth strophe turning), and their
  currents are called geostrophic currents.

4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
Currents in Gyres

• Western Boundary Currents
• Located on the gyres western end
• Ex Gulf Stream (G.S.), Kuroshio, Brazil,
  Agulhas, East Australian
• Eastern Boundary Currents
• Located on gyres Eastern Boundary Currents
• Ex Canary Current, Benguela Current, California
  current, West Australian Current, Humboldt or
  Peru current
• Transverse Currents
• These are currents that connect the E.B.C.s and
  W.B.C.s
• The N. and S. Equatorial Currents in the Talantic
  and Pacific are formed by the push of the trade
  winds.
• Countercurrents and Undercurrents
• Equitorial Currents are usually accompanied by
  countercurrents flowing on the surface in
  opposite direction of the main flow.
• Countercurrents also exist beneath surface
  currents, undercurrents, they are 100 to 200 m
  below the surface and can carry as much water as
  the surface currents.

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Upwelling

• Upwelling process by which deep, cold,
  nutrient-rich water is brought from depths to the
  surface
• Coastal Upwelling the movement of surface water
  away from a coast line causes deeper water to be
  brought up in order to replace it.
• This deeper water is colder, because it is
  farther from the sun.

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
El Niño

• During an El Niño the trade winds weaken, stop
  all together, or even reverse direction.
• Causes that pile of warm water in the Western
  Pacific to slosh back along the equator until it
  hits the South America
• The presence of that warm water creates a cap on
  the water column and effectively shuts down
  upwelling.

31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Thermohaline Circulation

• Thermohaline (thermotemperature, halinesalt)
  circulation is the movement of water due to its
  density
• Responsible for the majority of non-surface water
  movement in the oceans, both vertical and
  horizontal

40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
