Applied Logic

1

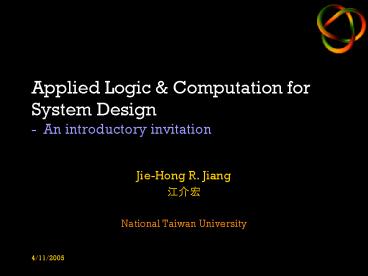

Applied Logic Computation for System Design-
An introductory invitation

• Jie-Hong R. Jiang
• ???
• National Taiwan University

2
Science engineering

• System design is both a scientific and an
  engineering task
• Science
• Discovering hidden truths of natural/artificial
  systems (in theory)
• Engineering
• Searching effective solutions to optimization
  problems (in practice)

3
Interdisciplinary study

• System design maps computation tasks to physical
  systems
• Computer science
• Automata and logic
• Algorithms and complexity
• Electrical engineering
• Circuits and systems
• Control and communication
• Physics

4
Logic?

• Reason!
• Logic is the foundation of math
• Math is the foundation of science
• Logic is the foundation of science

Aristotle (384-322 B.C.)
5
Applied logic?

• Reason the correctness of the constructed systems
• Demonstrating the absence or existence of some
  properties in a design

A silly bug (big bang - present)
6
Computation?

• Logic in action!

Charles Babbage (1791-1871)
7
Applied Computation?

• Analyze, optimize, and verify the designed systems

8
System modeling

• Models of computation
• Classical systems
• FSMs, timed/hybrid automata, Petri nets, dataflow
  process network, etc.
• Quantum systems
• Hamiltonian formulation of quantum computation
• Perturbation theory and quantum search

9
System synthesis

• Closing the gap between synthesis and
  verification
• Certificate synthesis tools
• Breaking the infinite loop between synthesis and
  physical design
• Design closure
• Design in uncertainty
• Statistical optimization
• Interface/unknown component synthesis

System Level
Register Transfer Level
Gate Level
Transistor Level
Layout Level
Mask Level
10
System analysis

• Timing/power analysis
• Efficient FSM initialization
• FSM composability analysis

11
System verification

• Invariant verification of systems under
  specialized transformations
• Reduction techniques
• Property-dependent abstraction/refinement
• Similarity exploitation
• RTL decision procedures
• SAT extensions
• Conformance checking between different design
  levels
• Transaction level to register transfer level
  conformance checking
• RTL to gate level equivalence checking

12
For more info

• http//cc.ee.ntu.edu.tw/jhjiang
• (warning under construction)
