Title: REVERSIBLE CELLULAR AUTOMATA WITHOUT MEMORY

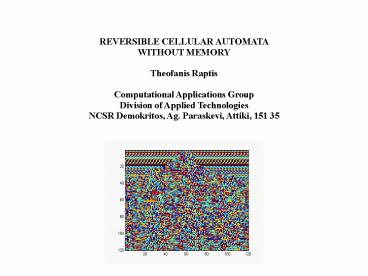

1
REVERSIBLE CELLULAR AUTOMATA WITHOUT
MEMORY Theofanis Raptis Computational
Applications Group Division of Applied
Technologies NCSR Demokritos, Ag. Paraskevi,
Attiki, 151 35
2
  • A. Cellular History
  • First CA introduced by John von Neumann in the
    50's as an abstract model of self-replication.
  • Later used by Edward Fredkin to introduce the
    idea of Digital Mechanics in the 60s.
  • John Conway's Game of Life at 70s.
  • Revival after Stephen Wolfram's classic paper at
    84 on the properties of elementary 1-D CA.
  • Several classes of CA proven capable of
    Universal Computation (equivalence with a
    Universal Turing Machine) including the Game of
    Life.
  • Possibility of a CA computer extensively
    discussed after Toffoli and Margolus work based
    on Fredkin ideas.
  • Japanese company announced the first CA
    asynchronous computer possible in 5 years based
    on work by Morita, Matsui and Pepper.

3
  • B. Why Reversibility?
  • Fredkin' s view on the exact transcription of
    all physical laws on a computational substrate
    required reversibility.
  • Landauer theorem heat dissipation or entropy
    production in a logical circuit due to
    irreversibility of classical logic gates (bit
    erasure)
  • Bennet 88 To erase 1 bit of classical
    information within a computer, 1 bit of entropy
    must be expelled into the computer's environment
    (waste heat)
  • First classical reversible gates introduced by
    Fredkin and Toffoli
  • Billiard Ball Model of computation (BBM) as a
    special type of classical CA.
  • Possibility of Cold Computing

4
  • C. Elementary CA
  • Definition We refer to CA as a tuple ltL, S, N,
    Rgt where
  • L is a n-D lattice of Cell sites
  • S a set of Cell states with integer values in
    0, b-1 (b symbols)
  • N a neighbourhood of lattice sites Si ? S of
    arbitrary topology.
  • R a discrete map (Transition Table)

R(Si i?N t) ? Skt1
5
  • Theorem Every n-D CA can be decomposed in 3
    ???? linear mappings.
  • Proof
  • Perform dimensional reduction by introducing a
    disconnected neighborhood.

.....Ln-2 Ln-1
Ln Ln1...
6
  • Let the unfolded one-dimensional representation
    correspond to a Ln long configuration vector St
    containing the values of the lattice sites.
  • Let h be a mapping from the initial
    Configuration Space to a new vector in the
    Address Space defined by
  • C is a Ln x Ln circulant Toeplitz matrix with
    rows
  • ... 0 1 b2 ... bN-1 0 ...
  • Let g be a mapping from the Address Space to
    the Pointer Space of unit vectors of length
    bN defined by the correspondence

7
  • Let R be a varying kernel mapping from the
    constant Rule vector back to the Configuration
    Space
  • Dynamics equivalent to the sequence

0 1 0 0 0 1 1 0 1 0 1
0 1 1 0 1 1 1 1
... 2 1 0 4 6 3 5 ..........
... 1 0 0 1 1 0 0 ..........
8
Continuous generalisation
A Self-Modulator
R
Yt
h
St
  • Y(?) C(?)S(?) Ordinary Filter
  • S(?) E(?, Y)r(?) Const. Input Adaptive
    Filter

9
  • D. Inverting the Non-Invertible
  • Origin of Irreversibility
  • Varying Kernel of 3rd map irretrievable
  • Alternative explanation
  • Mapping of const. Rule vector is a contraction
    from a higher to a lower symbolic alphabet (whole
    neighborhood mapped to single symbol)
  • Correction Retain the same number of input and
    output bits (neighborhood to neighborhood
    mapping)
  • Obstacle
  • non-matching of resulting neighborhoods
  • Remedy 3-step time evolution!

10
.... Ytn ................ Ytn3
................ Ytn6 .... 1st Sublattice
........... Ytn1 ................ Ytn4
................ 2nd Sublattice
.................. Ytn2 ................ Ytn5
.... .... 3rd Sublattice
.
Ytn1 R(2-1Yt-1n 4Yt-1n3 mod2)
3-step time corresponds to a Shift of Logic Gates
11
Examples of Gate Definition Reversible-AND Rever
sible-XOR 0 0 0 0 0 0 0 0 0 0 0 0 1
0 0 1 0 0 1 0 0 1 0 1 0 1 0 0 1 0
0 1 0 0 1 1 1 1 0 1 1 1 1 1 0 1 1
0 0 0 1 0 0 1 0 0 1 0 0 1 1 0 1 1 0 1
1 0 1 1 0 0 0 1 1 0 1 1 0 1 1 0 1
0 1 1 1 1 1 0 1 1 1 1 1 1 Equivalent to
permutations of the octant alphabet in the
Address Space AND 0 1 2 7 4 5 6 3 XOR 0 5 6
3 4 1 2 7
12
  • E. WHAT WE EARNED
  • Each step totally reversible
  • Time evolution of asymmetric patterns
  • Enormous number of rules possible even for 1-D
    CA
  • Elementary CA Rule space cardinality
  • bits/Rule (R) bN
  • Rules possible b(R)
  • (b number of alphabet symbols, N Nearest
    Neighbours)
  • N (2r1)D for a symmetric local
    Neighborhood
  • RCA Rule Space cardinality (R)!
  • 1D binary (23)! 40320 mappings possible
  • 2D binary (29)!
  • 3D binary (227)!

13
  • 1-D Examples
  • AND RCA XOR - RCA

Random Permutations
14
  • F. Statistical Mechanics of RCA. Is it possible?
  • Need for appropriate parametrisation of Rule
    Space
  • Introduce a new parameter k analogous to
    Langton's ? in ordinary CA
  • k 1 nb - N , k ? 0,1
  • n number of invariant addresses (fixed points)
    under permutations
  • Introduce a measure µ of the number of
    independent cycles per permutation.
  • Problem most RCA have no fixed points.
    Insufficient information due to the presence of
    the Right Shift operator.

15
k
µ
16
  • G. Applications
  • Possible implementation of the composite mapping
    hgR
  • All-optical implementation of h
  • Problem with gR due to varying kernel
  • All-optical RCA-Machine?
  • Problem Find rules that immitate various
    logical circuits under various initial conditions
  • Possible solution by training via genetic
    algorithms

17
  • References
  • E. F. Codd, Cellular Automata (1968), Academic
    Press, NY.
  • S. Wolphram, Universality and Complexity in
    Cellular Automata, Physica D, 10, 135 (1984).
  • A. Adamatzky, Identification of Cellular
    Automata (1994), Taylor Francis.
  • K. Lindgren, M. Nordahl, Universal Computation
    in simple One Dimensional Cellular Automata ,
    Complex Systems, 4 (1990), 299
  • T. Raptis, D. Whitford, R.T. Kroemer,
    Applications of Cellular Automata and Dynamical
    Systems to the Identification and Reconstruction
    of Biological Sequences , EMBL-EBI Symposium on
    Gene Prediction, Cambridge, 2000.
