Title: 10. Galactic spiral structure


1

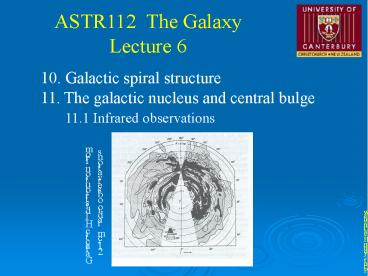

10. Galactic spiral structure 11. The galactic
nucleus and central bulge 11.1 Infrared
observations
Galactic HI distribution from 21-cm radio
observations
2
  • Spiral structure from stars and gas
  • 1949 spiral structure first traced in Andromeda
    galaxy,
  • M31 using OB stars and HII nebulae
  • 1951 spiral structure first demonstarted in the
    Galaxy
  • by Morgan, Osterbrock and Sharpless (Yerkes
    Observ.)
  • using OB stars and young associations, and
    showing
  • parts of three spiral arms
  • The arms are
  • (a) the Perseus arm (2 kpc
    out from Sun)
  • (b) the Local or Orion arm
    (passing near Sun)
  • (c) the Sagittarius arm (2
    kpc towards centre)

3
Young Popn I objects define the location of the
galactic spiral arms The pitch angle is
about 25º (angle between arm and a circle
through the arm, centred on the galactic centre,
G.C.)
4
  • Radio observations of CO in dense molecular
    clouds
  • provide an excellent tracer of the arms, and
    show an
  • extension of the Sagaittarius arm at about l
    300º
  • Radio observations
  • can also be made of
  • HII clouds, and this
  • enables their loca-
  • tions to be mapped
  • well beyond the limit
  • of optical visibility

5
Densities of HI and CO gas as function of
distance from galactic centre. Note that HI
extends out to 16 kpc, but CO only to about 9
kpc, the distance of the Sun from centre.
6
  • Spiral arms from HI clouds
  • Observations use 21-cm emission line (more
    precisely
  • 21.105 cm or ? 1420.406 MHz for gas at
    rest)
  • For R lt Ro and b 0º, then in direction l we
    have
  • VR T cosa To sinl
    (To 220 km/s)
  • a and T depend on the distance from the Sun
    and
  • hence VR depends on cloud distance. Measuring
    VR
  • from Doppler effect allows distance and
    location of
  • clouds to be mapped
  • Note there are two locations for any given
    velocity, so
  • there is always some ambiguity in HI maps

7
HI cloud distances are obtained from their
radial velocities. But note the ambiguity
in distance for clouds with R lt Ro
8
HI 21-cm profiles in different galactic longitudes
9
More 21-cm profiles in different
directions. Notice the very narrow profile in l
180º
10
  • For R gt Ro then HI observations can still be
  • used to map HI in the outer Galaxy, provided
  • the rotation curve is assumed to be known, so
  • that VR gives distances
  • HI mapping fails within 20º of G.C. and
  • anticentre, as here VR depends little on
    distance
  • HI spiral arms are observed to have a pitch
    angle
  • of about 5º, which is not in very good
  • concordance with the value from HII regions or
  • very young OB stars

11
HI spiral arms in the outer Galaxy (and
elsewhere)
12
A galactic plane 21-cm HI map is based on the
Doppler shift of the HI clouds and the
intensity of the emission from the clouds to
locate the HI in the Galaxy
13
  • Density wave theory of spiral structure
  • Differential rotation means spiral arms should
    be wound
  • up tight and cease to exist in a few times 108
    years
  • This fundamental problem can be overcome by the
  • density wave theory of Lin and Shu (1969)
  • The spiral arm pattern rotates as a solid body,
    i.e.
  • ?p constant, and at an angular velocity less
    than the
  • stars and gas
  • ?p lt ?(R)
  • The spiral arms are a wave travelling backwards
  • through the disk material

14
The wind-up problem for differentially rotating
spiral arms. After a few rotations, the arms
should be so tightly wound that in effect
they can no longer be seen in spiral
galaxies. In practice they must there- fore
rotate as a solid body.
15
  • In the density-wave theory, gas and dust fall
    into the
  • trailing edges of the arms, giving a high
    density there
  • of gas and dust and dense molecular clouds,
    where
  • star formation takes place. Young stellar
    objects,
  • including OB stars emerge from the leading
    edges
  • of the arms. This model is confirmed by
    observation.
  • Pattern speed corresponds to one rotation of
    spiral
  • arms in 400 106 years
  • Lin-Shu density wave theory explains long
    stability
  • and maintenance of spiral arms, but not their
    origin
  • or formation

16
Diagram of rotation curve and pattern speed
17
Arms move at circular velocity Tp ?pR Material
(stars and ISM) move at T(R)?(R).R ?p
constant ?(R) gt ?p
18
  • The galactic nucleus and central bulge
  • The galactic nucleus (centre) is invisible at
  • optical wavelengths extinction AV 25 to 30
    mag.
  • (one photon in 1010 to 1012 reaches us.)
  • Dust extinction is much less in IR and absent in
  • the radio region of the spectrum

19
Galactic centre direction in visible light. We
can only see a few kpc in this direction, a third
of the way to the centre.
20
Infrared observations (a) 2.2 µm Radiation
comes from millions of cool bulge
stars (mainly K giants) possibly 106
stars/pc3 (b) 420 µm Radiation from warm dust
clouds at temperatures
of a few 100 K At least 4
discrete sources resolved
luminosities of 106 L? (Rieke, Low) (c) 100 µm
Large extended very bright source, about 1½º
long, aligned with the galactic
equator. It is probably
cool IS dust heated to about 30 K by
stars in general
21
? 2.2 µm cool stars ? 12.4
µm warm Scale 1 arcmin ? 2.5 pc
circumstellar dust
22
Radio and infrared contour map of the galactic
centre. The elongated contour is for 100 µm
emission from T 30 K cool interstellar dust.
Other warmer IR discrete sources and radio
sources are also shown. The area covers about
300 200 pc at the galactic centre.
23
Infrared observations In general the infrared
brightness of an object depends on its
temperature. Using Wiens law
?maxT 3000 µm.K Thus 2.2 µm ? T 1500 K (cool
stars) 10 µm ? T 300 K (warm dust)
100 µm ? T 30 K (cool diffuse dust
layer) Actually the coolest stars are about
3000 K and would radiate strongly at 1 µm
24
Galactic centre in visible light near IR (2.2
microns) and far IR. The near IR shows cool
stars in the centre the far IR shows thermal
radiation from dust grains.
25
A near IR view of the whole Milky Way showing
the distribution of cool stars, including the
concentration in the galactic centre. A far IR
view of the Milky Way showing the dust
distribution. Both images were from the COBE
satellite, 1995.
26
End of lecture 6
Spiral galaxy Messier 51
