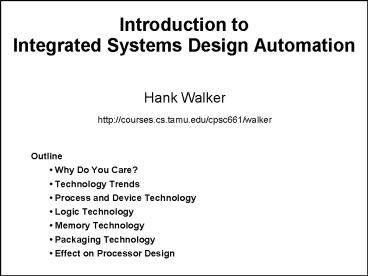

Introduction to Integrated Systems Design Automation

1
Introduction toIntegrated Systems Design
Automation
Hank Walker http//courses.cs.tamu.edu/cpsc661/wa
lker

• Outline
• Why Do You Care?
• Technology Trends
• Process and Device Technology
• Logic Technology
• Memory Technology
• Packaging Technology
• Effect on Processor Design

2
Why Do You Care About Technology?

• IC design is often technology driven
• try building a 1 GHz, low-power uP with vacuum
  tubes
• designers say what they need
• but technologists tell them what they get
• Competitive designs must balance utility and cost
• use available technology to balance
• - speed
• - standards
• - weight
• - form factor
• - power consumption - now the most critical issue
• - reliability
• - cost
• You usually have to shove 10 lb. into a 5 lb. bag

3
Good Technology Trends

• More Transistors at Lower Cost
• bigger chips - at introduction
• smaller geometries
• 250M transistors common in 2005
• Higher Speed
• faster transistors
• shorter distances
• Smaller Size and Weight
• higher packing densities
• packaging advances
• Merger of IC and Packaging Technology
• chip is the package

4
Bad Technology Trends

• Abstractions Break Down
• must listen to the silicon to achieve optimal
  designs
• concurrent circuit-layout-device design
• concurrent electrical-packaging design
• technology-dependent architectural, RTL, logic
  design
• except when design is simple and slow and
  boring
• Law of Large Numbers Stops Working
• number of atoms now matters
• transistors dont shut off - lots of wasted
  leakage power
• you've got to remember your quantum mechanics
• Diverging Requirements
• desktop - high speed, low cost, power limits
• portable - low power, low weight, small size,
  low voltage, low cost
• embedded - low cost, harsh environment, high
  reliability

5
Process Technology

• Geometries
• lateral 65 nm today, 4 nm demonstrated
• vertical 15 nm today, 3 atoms demonstrated
• shrinking 15/year
• limited by deposition, etch, implant,
  lithography equipment
• limited by - new fab cost 3B
• Die Size (big chips)
• 2 cm2 at introduction, 1 cm2 in volume
• growing 20/year
• limited by yield
• 2x transistors/chip every 1.5 years

6
System on a Chip (SoC)
Blade server
Intro
Volume
2005
7
Process Technology

• Interconnect
• TiN, poly, 8-9 layers of copper
• more metal layers in future
• minimum resistance
• - copper is it, silver no good
• lower capacitance
• - low-K dielectrics
• on-chip transmission lines
• - controlled impedance
• - crosstalk elimination
• optical waveguides?
• superconductors dont help much - still LC

Interconnect delays not scaling with technology
8
Device Technology

• Current
• CMOS
• - strained Si channel
• - elevated source/drain soon
• BiCMOS - CMOS NPN, maybe PNP
• thin-film MOS transistors
• - replace resistors as SRAM pullups
• - LCD displays
• GaAs MESFETs
• RF, high temperature applications
• SiGE BJTs, MOSFETs
• RF
• Future
• 3D devices - FinFET, trigate

metal
field oxide
metal
field oxide
9
Systems are Getting Faster

• Must scale VTH and VDD to increase speed
• Causes more leakage
• P4 leaks 20A, 1/3 of its power!

10
Motorola BiCMOS Technology

• 100 ps ECL gate delay
• 0.5 µm channel length
• 3 layer metal
• silicides
• dual well

Still used in RF, high power circuits
11
Process and Device Issues

• BJT, MOSFET R.I.P.?
• fundamental limits reached in 10 years
• - but it has always been 10 years away
• delay some by going vertical
• Supply voltage - 0V
• limit electric fields
• reduce hot carriers
• Increased variability
• number of atoms in a region is now countable
• Technology CAD
• process and device simulation
• a key limit to progress
• Growing fabrication line cost
• 3B for new Intel fabs

12
Logic Technology

• Bipolar/BiCMOS
• Still used for analog circuits
• Fewer circuit compromises
• Does not scale well
• Still excellent for high power, high voltage
• CMOS
• Used for all logic
• Used for most analog due to lower cost
• Now increasing RF usage
• TI one-chip cell phone

Z
Z
13
Logic Technology

• Design Styles
• standard cells - library of functions
• sea of gates - big bag of gates, routing on top
• full custom - very high volume only
• mixed custom/semi-custom on all large chips
• mixed analog/digital - common in consumer
  products
• Trends
• time-to-market dominates over manufacturing
  cost
• - product life of 1-2 years
• increasing percentage of designs are ASIC/FPGA
• - maybe volume too
• semicustom logic surrounding standard core
• e.g µP with custom I/O interfaces
• Xilinx Virtex II Pro PowerPC on FPGA

14
Memory

• Density
• 2x every 1.5 years
• Cost
• Declines 30/year most important metric
• SRAM
• Usually mixed with logic on same chip
• EEPROM (flash)
• Lower programming voltages for integration with
  logic
• Scaling problems
• ROM
• Declining importance
• Time to market, field programmability

15
Memory

• I/O
• asynchronous synchronous
• memory-interface bus memory-CPU bus
• - DDR, RAMBUS
• Increasing Specialization
• VRAM
• cache RAM
• mixed DRAM/SRAM
• synchronous DRAM

16
Memory Issues

• Density Limits
• traditional DRAM beyond Gb unlikely
• electric fields
• radiation
• delayed some with deep trenches, new
  dielectrics
• already close to area of two wires crossing
• MRAM SRAM w/magnet
• DRAM speed lagging logic
• - Must amplify small charge
• - More bits longer I/O path
• - Higher speed higher cost, lower density

17
Memory vs. Logic Speed
18
Packaging

• Power
• distribute power with low IR drop
• constant power, lower supply voltage higher
  current
• large numbers of pins to supply current 1000s
  of pins
• Signal Delay and Integrity
• controlled impedance to control delays
• shielding to reduce cross-talk
• transmission lines
• I/Os
• Rent's Rule I/O count
• 64-bit addr, 64-bit data, instr and data caches
  256 pins
• TAB or flip-chip on glass for flat panel
  displays

19
Packaging

• Cooling
• fin tower and low-speed fan near its limit
• - 130W for P4, check heat sinks on Apple desktop
• higher fan speed too noisy for office
  environment
• air impingement manifolds in current PCs
• heat pipe to larger heat sink some laptops
• chilled air - requires A/C in cabinet
• liquid impingement - plumbing, big package
• liquid microchannels - small, low flow,
  800-1000W/cm2!
• portables limited to conduction, some natural
  convection
• LAPTOP TOO HOT FOR YOUR LAP!
• Size, Weight
• eliminate pins
• eliminate package - glop of epoxy covering chip

20
Packaging

• Multi-Chip Modules (MCMs)
• IC processing to pattern interconnect layers on
  substrate
• Put L3 cache close to processor
• Pin Grid Arrays (PGAs)
• fallen from favor - area, lead length
• Leadless Chip Carriers (LCCs)
• continues as mainline solution
• multiple rows to increase pinouts without area
  increase
• Dual In-line Package (DIP)
• only for small chips

21
Exotica

• Process and Device
• HEMT (high electron mobility transistor)
• high Tc superconductors - interconnect and
  devices
• quantum well devices (particle in a box)
• Packaging
• LN2 cooling
• - 2x speed improvement with optimized process
• - small geometry devices require it to work
• - refrigeration is expensive, noisy, unreliable
• - thermoelectric cooling might be solution
• wafer scale integration
• - system on monolithic substrate
• - Cost competition w/regular ICs
• May see specialized use over next 10 years

22
Effect on Architectural Design

• Problems
• isochronic regions shrinking rapidly
• - speed
• takes multiple clock cycles to go across chip
• global knowledge is expensive, or stale
• memory speeds not keeping up with logic speeds
• A return to the bad old days of core?
• Do memory fetch, then go get a cup of coffee
• portable systems - maybe no power or disk
• Solutions
• small memories close to logic cache hierarchy
• loosely coupled components multiple cores on
  a chip
• yesterday's supercomputer problems in todays
  desktops
• (flash) EEPROM for nonvolatile programmability
  w/o battery or disk

23
Effect on Logic Design

• Problems
• delays across packages and boards
• limited I/O count
• power dissipation balance
• clocking
• Solutions
• simultaneous partitioning across package levels
• more knowledge of circuit-layout-package
• iterate if necessary
• - possible with automatic synthesis
• self-timed logic?

24
Effect on Circuit Design

• More device options
• bipolar, CMOS, thin-film devices
• optimized for both logic and memory
• Everything is sort of analog
• I-V curves and logic transitions degrade
• more current-mode operation
• Device variability increases
• simpler circuits
• fewer matched timing chains
• must use physically-based statistical design
• self-timed logic?
• More complex simulation
• mixed circuit/device
• interconnect parasitics
• use characterized cell library as much as
  possible

25
Effect on Layout Design

• Global routing
• critical to performance
• simultaneous place and route
• Delay and Crosstalk Control
• selective use of on-chip transmission lines
• 2.5D 3D topology
• complex design rules
• parasitic extraction
• tight loop back to circuit design

26
Effect on Package Design

• Packaging as important to uPs as supercomputers
• system cost
• system performance
• system weight
• system form factor
• environmental limitations
• Can't throw design over wall to MechEs
• concurrent package and electrical design
• constraints of packaging on electrical design
• electrical and thermal behavior of packaging on
  circuit
• - within package as well as on MCM or board
• ECEs must learn some ME

package dominates in portables
27
Bad Market Trends
System Price
Time to Market
Time
Time

• Competitive pressure
• decreasing time to market
• decreasing market window
• falling system price
• Result
• build more complex systems in less time with
  fewer people
• shove 10 lb into a 5 lb bag

28
The Problem

• Electronic systems are most complex artifacts
  built
• 1B transistors in dual-core Itanium
• 25M transistors in Power4 CPU core now a
  commodity
• Were only human
• best humans can design 10s of transistors per day
  by hand
• 1000 person-years for original Pentium
• 100M design cost (200M in todays dollars)
• 2-3 year design time 300-500 designers -
  barely doable
• cannot keep on that trend
• Product failure corporate death
• IC fab cost 3B in 2003 (TI Richardson fab)
• 493k/day interest _at_ 6 interest rate
• chip-in-product sales 20M/day
• delay death

29
Conclusion

• Design automation is crucial for economic
  survival
• Design automation must
• improve our productivity faster than technology
  curve
• achieve greater optimality
• achieve higher-quality results
• handle additional physical effects
• and do it all on larger designs
• DA tools are primary limiting factor in IC design
• a race between EDA and technology
• solving yesterdays problem tomorrow - Mark
  Pinto

30
EDA Tools

• Product-Level Design
• synthesis across boards and chips
• multi-level optimization
• focus on meeting user-level specs
• humans mostly out of tool loop
• Product engineers are primary tool users
• other engineers act as consultants
• tool users and developers in same location
• Design for Manufacturability/Profitability
• CAD tools will know manufacturing process
• statistical design
• merger of design and manufacturing engineering

31
Two Visions of Computer Design

• 1. Team of design experts aided by CAD tool
  gurus.
• - gurus fix tools when they break
• 2. Team of CAD tool gurus aided by design
  experts.
• - experts supply knowledge tools don't have

Dave Ditzel, then at Sun
32
Homework

• Skim the Semiconductor Industry Association
  International Technology Roadmap for
  Semiconductors (ITRS)
• http//public.itrs.net
• The industry consensus on technology needs to
  stay on technology trends
• Read chapters on design and test
