Page 1 of 29

1

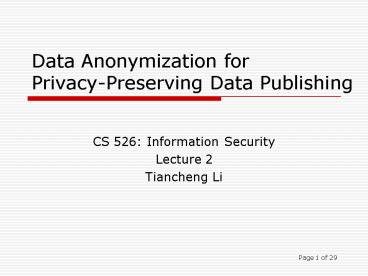

Data Anonymization forPrivacy-Preserving Data
Publishing

• CS 526 Information Security
• Lecture 2
• Tiancheng Li

2
Outline

• Background Data Publishing and Privacy
• Privacy Measures
• k-Anonymity
• l-Diversity
• t-Closeness
• Privacy in Other Contexts
• Privacy in Web Search
• query log privacy
• personalization privacy
• Privacy in Social Networks

3
Background

• Motivation
• Data Collection a large amount of
  person-specific data has been collected in recent
  years.
• Data Mining data and knowledge extracted by data
  mining techniques represent a key asset to the
  society.
• Analyzing trends/patterns.
• Formulating public policies.
• Regulatory Laws some collected data must be made
  public.
• Privacy
• The data usually contains sensitive information
  about respondents.
• Respondents privacy may be at risk.

4
Privacy-Preserving Data Publishing

• Two opposing goals
• To allow researchers to extract knowledge about
  the data
• To protect the privacy of every individual
• Microdata table
• Identifier (ID), Quasi-Identifier (QID),
  Sensitive Attribute (SA)

5
Re-identification by Linking
Vote Registration Data
The Microdata

• Anonymization
• The first step to remove identifiers
• Not enough by linking with external databases
• Alice has ovarian cancer!

6
Real Threats of Linking Attacks

• Fact 87 of the US citizens can be uniquely
  linked using only three attributes Sex
• Sweeney Sweeney, 2002 managed to re-identify
  the medical record of the government of
  Massachusetts.

• Census data (income), medical data, transaction
  data, tax data, etc.

7
k-Anonymity Generalization

• k-Anonymity
• Each record is indistinguishable from at least
  k-1 other records
• These k records form an equivalent class
• k-Anonymity ensures that linking cannot be
  performed with confidence 1/k.
• Generalization
• Replace with less-specific but semantically-consis
  tent values

Zipcode
Age
Sex
8
k-Anonymity Generalization
The Microdata
The Generalized Table

• 3-Anonymous table
• Suppose that the adversary knows Alices QI
  values (47677, 29, F).
• The adversary does not know which one of the
  first 3 records corresponds to Alices record.

9
Attacks on k-Anonymity

• k-Anonymity does not provide privacy if
• Sensitive values in an equivalence class lack
  diversity
• The attacker has background knowledge

A 3-anonymous patient table
Homogeneity Attack
Background Knowledge Attack
10
l-Diversity

• Principle
• Each equivalence class has at least l
  well-represented sensitive values
• Distinct l-diversity
• Each equivalence class has at least l distinct
  sensitive values
• Probabilistic inference

8 records have HIV
10 records
2 records have other values
11
l-Diversity

• Probabilistic l-diversity
• The frequency of the most frequent value in an
  equivalence class is bounded by 1/l.
• Entropy l-diversity
• The entropy of the distribution of sensitive
  values in each equivalence class is at least
  log(l)
• Recursive (c,l)-diversity
• The most frequent value does not appear too
  frequently
• r1the i-th most frequent value.

12
Limitations of l-Diversity
l-Diversity may be difficult and unnecessary to
achieve.

• A single sensitive attribute
• Two values HIV positive (1) and HIV negative
  (99)
• Very different degrees of sensitivity
• l-diversity is unnecessary to achieve
• 2-diversity is unnecessary for an equivalence
  class that contains only negative records
• l-diversity is difficult to achieve
• Suppose there are 10000 records in total
• To have distinct 2-diversity, there can be at
  most 100001100 equivalence classes

13
Limitations of l-Diversity
l-Diversity is insufficient to prevent attribute
disclosure.
Skewness Attack

• Two sensitive values
• HIV positive (1) and HIV negative (99)
• Serious privacy risk
• Consider an equivalence class that contains an
  equal number of positive records and negative
  records
• l-diversity does not differentiate
• Equivalence class 1 49 positive 1 negative
• Equivalence class 2 1 positive 49 negative

l-Diversity does not consider the overall
distribution of sensitive values
14
Limitations of l-Diversity
l-Diversity is insufficient to prevent attribute
disclosure.
A 3-diverse patient table
Similarity Attack

• Conclusion
• Bobs salary is in 20k,40k, which is relative
  low.
• Bob has some stomach-related disease.

l-Diversity does not consider semantic meanings
of sensitive values
15
t-Closeness A New Privacy Measure

• Adversarial belief

A completely generalized table
ExternalKnowledge
Overall distribution Q of sensitive values
16
t-Closeness A New Privacy Measure

• Adversarial belief

A released table
ExternalKnowledge
Overall distribution Q of sensitive values
Distribution Pi of sensitive values in each
equi-class
17
t-Closeness A New Privacy Measure

• Adversarial belief

• Rationale
• Q should be public information
• Knowledge gain is separated
• About whole population (from B0 to B1)
• About individuals (from B1 to B2)
• We bound knowledge gain between B1 and B2
• Principle
• The distance between Q and Pi is bounded by a
  threshold t.
• l-diversity considers only Pi

ExternalKnowledge
Overall distribution Q of sensitive values
Distribution Pi of sensitive values in each
equi-class
18
Distance Measures

• Measure distance between
• P(p1,p2,,pm), Q(q1,q2,,qm)
• Distance measures
• Trace-distance
• KL-divergence
• Semantic meanings
• Q 20K,30K,40K,50K,60K,70K,80K,90K,100K
• P120K,30K,40K
• P220K,60K,100K
• Intuitively, DP1,QDP2,Q
• Sensitive values have ground distances.
• DP,Q is dependent upon the ground distances.

19
Earth Movers Distance

• Formulation
• P(p1,p2,,pm), Q(q1,q2,,qm)
• dij the ground distance between element i of P
  and element j of Q.
• Find a flow Ffij where fij is the flow of mass
  from element i of P to element j of Q that
  minimizes the overall work
• subject to the constraints
• Simple formulas for EMD can be derived for
  several common ground distances.

20
Ground Distances

• EMD for numerical attributes
• Ordered distance
• EMD for categorical attributes
• Equal distance
• Hierarchical distance

21
Types of Information Disclosure

• Identity Disclosure
• An individual is linked to a particular record in
  the published data.
• k-Anonymity Sweeney, 2002.
• Attribute Disclosure
• Sensitive attribute information of an individual
  is disclosed.
• l-Diversity Machanavajjhala et al., 2006.
• t-Closeness Li et al., 2007.
• Membership Disclosure
• Information about whether an individuals record
  is in the published data or not is disclosed.
• d-presence Nergiz et al., 2007.

22
Query Log Privacy

• In August 2006, AOL query log release
• 657K users, 20M queries, over 3 months
  (03/01-05/31)
• A face is exposed for AOL searcher No. 4417749
• Websites removed, employees terminated
• Two opposing goals
• The need of analyzing data for research/service
  purposes
• Improve services for both users and advertisers
  (Personalized search)
• The requirement for protecting user privacy
• Various government laws and regulations
• Personal information should be protected
• Income, evaluations, intentions to acquire
  goods/services

23
Query Log Privacy

• Structure of AOL query log
• Note ClickURL is the truncated URL
• Example how an anonID can be re-identified by
  NYT
• Find all log entries for AOL User 4417749
• Multiple queries for businesses and services in
  Lilburn, GA
• That area has around 11K citizens
• A number of queries for a Jarrett Arnold
• That area has only 14 citizens with the last name
  Arnold
• NYT contacts the 14 citizens
• NYT finds out AOL User 4417749 is Thelma Arnod

24
Personalization Privacy

• Personalized search/advertisements
• What Tailored and customized search results for
  a specific user
• How Based on personal/unique information sent to
  or generated by a personalized search provider
• Why Search engines can have a difficult time
  with ambiguous queries

Personalized Search, in Communications of the
ACM, 2002. Privacy-Enhancing Personalized Web
Search, in WWW 2007.
25
Personalization Privacy
26
Personalization Privacy

• Personal information used for personalization
• Previous search histories
• Age, name, location
• Interests, activities, career
• Two general approaches
• Re-ranking results from search engines locally
  with personal information
• Main Issue bandwidth requirements
• Sending personal information and queries together
  to the search engine
• Main Issue privacy issues

27
Social Networks
Friendship Graph

• Graph
• Nodes are entities
• Edges are relationship between entities
• Privacy
• Identity disclosure
• Link disclosure
• Naïve Anonymization
• Naïve anonymization is not enough
• E.g., if the attacker knows David has
• only one friend, David is uniquely identified

Naïve Anonymization
28
Privacy in Social Networks
Naïve Anonymization

• Adversarial Knowledge
• Node degrees
• Sub-graph structures
• Node Degrees
• The number of neighbors a node has
• Sub-graph Structures
• The sub-graph structure in the neighbors of a node

29
Questions?

• Thank you!
