Title: Barret Memorial Lecture


1

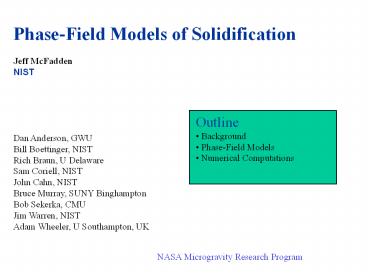

Phase-Field Models of Solidification Jeff
McFadden NIST
Dan Anderson, GWU Bill Boettinger, NIST Rich
Braun, U Delaware Sam Coriell, NIST John Cahn,
NIST Bruce Murray, SUNY Binghampton Bob Sekerka,
CMU Jim Warren, NIST Adam Wheeler, U Southampton,
UK
NASA Microgravity Research Program
2
Modeling at various length scales
40 ?m
10 mm
2 nm
Atomistic scale Å
Dendrite scale ?m
Grain scale mm
How to connect these various scales ?
Component scale cm - m
M. Rappaz, EPFL
3
Dendritic Microstructure
Polished and etched microstructure after freezing
Liquid decanted during freezing
4
Freezing a Pure Liquid
Glicksman
5
Stefan Problem
  • Interface is a surface
  • No thickness
  • Physical properties
  • Surface energy, kinetics
  • Conservation of energy

6
Surface Energy
  • Critical Nucleus and Coarsening
  • Grain Boundary Grooves
  • Wavelength of instabilities

7
Critical Nucleus and Coarsening
Critical Nucleus
Coarsening Minimize the total surface energy for
a given volume of inclusions
P. Voorhees R. Schaefer (1987)
8
Grain Boundary Grooves
S.C. Hardy (1977)
9
Wavelength of Instabilities
Ice cylinder growing into supercooled water,
Instability wavelength depends on surface energy
S. Hardy and S. Coriell (1968)
10
Morphological Instability
Point effect
Mullins Sekerka (1963, 1964)
11
Phase-Field Model
The phase-field model was developed around 1978
by J. Langer at CMU as a computational technique
to solve Stefan problems for a pure material. The
model combines ideas from
12
Cahn-Allen Equation
13
Ordering in a BCC Binary Alloy
14
Parameter Identification
  • 1-D solution
  • Interface width
  • Surface energy
  • Curvature-dependence (expand Laplacian)

15
Phase-Field Models
Main idea Solve a single set of PDEs over the
entire domain
Phase-field model incorporates both bulk
thermodynamics of multiphase systems and surface
thermodynamics (e.g., Gibbs surface excess
quantities).
16
Phase-Field Model
17
Free Energy Function
18
Phase-Field Equations
Penrose Fife (1990), Fried Gurtin (1993),
Wang et al. (1993)
19
Planar Interface
  • Particular phase-field equation
  • where

20
Sharp Interface Asymptotics
  • Consider limit in which
  • Different distinguished limits possible.
  • Caginalp (1988), Karma (1998), McFadden et al
    (2000)
  • Can retrieve free boundary problem with
  • Or variation of Hele-Shaw problem...

21
Numerics
  • Advantages - no need to track interface
  • - can compute complex
    interface shapes
  • Disadvantage - have to resolve thin interfacial
    layers
  • State-of-the-art algorithms (C. Elliot, Provatas
    et al.) use
  • adaptive finite element methods
  • Simulation of dendritic growth into an
    undercooled liquid...

22
Provatas, Goldenfeld Dantzig (1999) Dendrite
Simulation
23
Anisotropic Equilibrium Shapes
W. Miller G. Chadwick (1969)
Cahn Hoffmann (1972)
24
Sharp Interface Formulation
  • Sharp interface limit
  • McFadden Wheeler (1996)
  • is a natural extension of
    the Cahn-Hoffman of sharp interface
    theory
  • Cahn Hoffman (1972, 1974)
  • is normal to the -plot
  • Isothermal equilibrium shape given by
  • Corners form when -plot is concave

Phase field
25
Diffuse Interface Formulation
26
Corners and Edges

Taylor Cahn (1998), Wheeler McFadden
(1997) Eggleston, McFadden, Voorhees (2001)
27
Cahn-Hilliard Equation
28
Phase Field Equations - Alloy
Wheeler, Boettinger, McFadden (1992)
29
Alloy Free Energy Function
One possibility
30
(No Transcript)
31
Inclusion of Surface Properties
Examples
  • Surface Adsorption
  • Wetting in Multiphase Systems
  • Solute Trapping

(More than a computational device)
32
Surface Adsorption
McFadden and Wheeler (2001)
33
Solute Trapping
At high velocities, solute segregation becomes
small (solute trapping)
Results agree well with other trapping models
(Aziz 1988)
N. Ahmad, A. Wheeler, W. Boettinger, G. McFadden
(1998)
34
Wetting in Multiphase Systems
Kikuchi Cahn CVM for fcc APB (CuAu)
35
Early Phase-Field Calculations
  • G. Caginalp E. Socolovsky (1991, 1994)
  • R. Kobayashi (1993, 1994)
  • A. Wheeler, B. Murray, R. Schaefer (1993)
  • 2nd order accurate finite differences on 2-D
    uniform mesh
  • Explicit time-stepping for phase-field equation
  • Implicit (ADI) for energy equation
  • Mesh convergence an issue
  • Vector machines (Cray)
  • Roldan Pozo (benchmarks on PC cluster at NIST)

36
Adaptive Meshing
  • R. Braun, B. Murray, J. Soto (1997)
  • VLUGR2, vectorized, adaptive finite
    difference solver
  • R. Almgren A. Almgren (1996)
  • 2-D, second-order accurate, semi-implicit
  • N. Provatis, N. Goldenfeld, J. Dantzig (1999)
  • 2D, Galerkin FE, dynamically adaptive,
    quadtree
  • M. Plapp A. Karma (2000)
  • Hybrid FD Mesh/diffusion Monte Carlo method

37
A. Karma W.-J. Rappel (1997)
  • Uniform 300x300x300 mesh
  • Grid-corrected anisotropy

38
W. George J. Warren (2001)
  • 3-D FD 500x500x500
  • DPARLIB, MPI
  • 32 processors, 2-D slices of data

39
J. Jeong, N. Goldenfeld, J. Dantzig (2001)
Charm FEM framework, hexahedral elts, octree,
32 processors, METIS
40
Conclusions
  • Phase-field models provide a regularized version
    of Stefan problems for computational purposes
  • Phase-field models are able to incorporate both
    bulk and surface thermodynamics
  • Can be generalised to
  • include material deformation (fluid flow
    elasticity)
  • models of complex alloys
  • Computations
  • provides a vehicle for computing complex
    realistic microstructure
