Title: Human Posture Measurement System

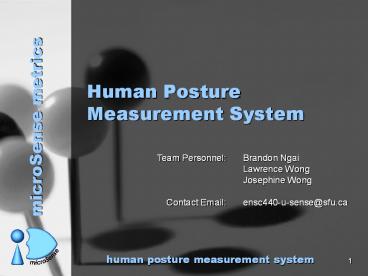

1
Human Posture Measurement System
Brandon Ngai Lawrence Wong Josephine
Wong ensc440-u-sense_at_sfu.ca
Team Personnel Contact Email
2
Overview
  • Overview of project
  • Functional specifications
  • System design
  • System testing
  • Current progress
  • Future improvements

3
The Objective
  • To develop a portable human monitoring device
    that tracks and records the movement of different
    parts of the body
  • Should combine motion-sensing, data-logging, and
    data-transmission capabilities

4
The Motivation
  • Motivated by the research needs of Dr. Steve
    Robinovich (SFU) and Dr. David Rempel (U of
    California)
  • Limited number of tools available for human
    movement and injury prevention research

5
Intended Applications
  • Study of the loss of balance and falling in the
    elderly
  • Prevention of hip-fractures and possible
    life-threatening injuries
  • Examination of the causes of work-related
    injuries in construction workers
  • Prevention of carpal tunnel syndrome

6
Current Solutions
  • Similar devices are commercially-available
  • Data-loggers
  • MicroStrain Virtual Corset
  • Motion-capture system

7
MicroStrain Virtual Corset
  • Measures the angle of inclination of the trunk of
    the body
  • Operates at 900 µA at 3.6V
  • Commonly used in human movement research studies

8
MicroStrain Virtual Corset
  • Limitations include
  • High cost
  • 1,000US per unit
  • Uses specialized batteries
  • Limited measurement range
  • Reduced resolution between 85 and 90

9
Motion-Capture System
  • Markers are mounted on the subject
  • Video cameras are used to track the markers
  • Requires a minimum of 3 cameras

10
Motion-Capture System
  • Limitations include
  • High cost
  • Difficult to transport
  • Mostly limited to lab settings
  • Complex software packages are required to extract
    the data from the video feed

11
The microSense Solution
  • Pager-sized sensor units that operate
    autonomously from other units
  • Measuring the angle of inclination of a body
    segment in three-dimensional space (with respect
    to gravity)
  • Stores acquired data in internal flash memory for
    up to 12 days
  • Uploads data to a computer via USB

12
The Device In Action

13
Functional Specifications
  • 0.5 degree resolution
  • Measures 360 of rotation about the x-axis and
    y-axis
  • Acquires data at 32 samples per second
  • Stores up to 1 Gbit of data (12 days)
  • Powered by 2 AA batteries (final design)

14
Device Limitations
  • Insensitive to rotation about the vertical axis
  • Sensor measures changes in orientation with
    respect to gravity
  • Unavoidable with the chosen sensor technology

15
System Overview
  • Uses two micro-electrical system (MEMS)
    accelerometers to measure the angles of
    inclination
  • Controlled by a PIC18 microcontroller with
    built-in USB capabilities
  • Raw data is stored in 1 Gbit flash memory chip
  • Angle outputs are calculated by the computer
    terminal

16
System Block Diagram
17
Device Schematic
18
Inclination Sensors
  • 2 x Analog Devices ADXL203E MEMS accelerometers
  • Mounted perpendicular to each other
  • Most sensitive when the measurement axis is
    perpendicular to gravity

19
Data Acquisition
  • Continuous data acquisition at 32 samples per
    second
  • Sensors provide analog outputs
  • Digitalized using the 10-bit ADC on the PIC18
    microcontroller
  • Non-linear relationship between sensor output and
    angle of inclination
  • Calculated using arcsin function

20
Flash Memory
  • Toshiba TC58DVG20A1 1-Gbit NAND flash memory
  • Holds 128Mb of data
  • Durable and reliable
  • Interfaces with the PIC18 microcontroller via 8
    address/data lines and 7 control lines

21
Data Structure
  • 2 bytes per sample

22
Data Storage
  • A 1-Gbit chip can store up to 12 days of data at
    32 samples per second
  • 2-Gbit NAND flash memory chips are also available
  • More difficult to acquire

23
Data Transmission
  • Data is transmitted to a computer via an USB
    cable
  • The computer automatically recognizes the sensor
    device
  • Data transmission begins at the users command
  • Graphical user interface

24
Data Conversion
  • Angle measurements are calculated from the raw
    data by the computer

25
Graphical User Interface
  • Windows-based GUI
  • Allows user to establish and terminate data
    communications with the sensor units
  • Allows user to initiate data transfer

26
Data Output
  • System outputs a comma separated value (CSV) file
  • Lists the angles of inclination with respect to
    the x-axis and y-axis at each sampling time
  • Readable using Microsoft Excel

27
Design Challenges
  • Component identification and acquisition
  • Long shipping delays
  • Need for adapter boards for small packages
  • Subdividing the system
  • Difficulties in integrating the system modules

28
Testing Protocol
  • Real-time testing
  • Used to verify sensor accuracy and
    sensor-to-microcontroller communications
  • System testing
  • Required to verify data storage and retrieval
  • Ensures the proper integration of the system

29
Real-Time Testing
  • Device is connected to a computer via USB
  • Enables sensor calibration
  • Device outputs are compared to a 1-axis digital
    level for accuracy

30
System Testing
  • Need for extensive system testing to determine
    the accuracy and reliability of the device

31
Testing Challenges
  • Difficult to test each system module
    independently of other modules
  • Heavily reliant on USB-to-PC interface during
    testing
  • Difficult to verify timer operation
  • Hard to pinpoint problems and debug the system

32
Device Characteristics
33
Device Characteristics
34
Power Consumption
  • Prototype is powered by 3 AA batteries
  • Standby mode
  • 13mA of current
  • Data acquisition mode
  • 45mA of current
  • Data transmission mode (USB connected)
  • 50mA of current
  • Need to minimize power consumption

35
Current Status
  • Device can measure, record, and transmit data
  • Can also operate in real-time mode (for system
    testing)
  • Currently developing a time-stamping algorithm
    (to synchronize data from multiple sensors)
  • Need to test the system for accuracy and
    reliability

36
Future Improvements
  • Final prototype will require 2 AA batteries
  • Users will be able to mark key events in the data
    with the press of a button
  • May implement wireless data transmission

37
