Progress on Photon Beam and Simulation

1

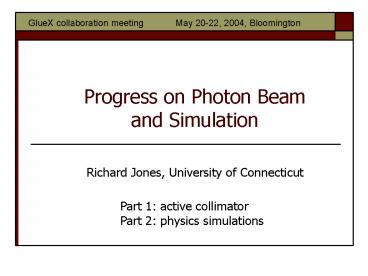

Progress on Photon Beam and Simulation
GlueX collaboration meeting May 20-22, 2004,
Bloomington
Richard Jones, University of Connecticut
Part 1 active collimator Part 2 physics
simulations
2
Photon Beam open issues for the TDR

• photon source
• deformation of thin crystals
• improved mounting technique
• tagging spectrometer
• conceptual design under revision talk by J.
  Kellie
• detailed field calculations available P.
  Brindza
• possible advance-purchase item
• photon tagger instrumentation
• tagging microscope
• photon beam instrumentation
• beam line shielding
• beam position control
• photon beam polarimetry

3
I. Active collimator prototype

• Tungsten pin-cushion detector
• used on SLAC coherent bremsstrahlung beam line in
  1970s
• technology developed at SLAC through several
  iterations, refined construction method
• reference Miller and Walz, NIM 117 (1974) 33-37
• SLAC experiment E-160 (ca. 2002, Bosted et.al.)
  still uses them, required building new ones
• performance is known

4
Design was part of the senior project of
Connecticut undergraduate Chris Gauthier
5
Basic design tungten pins on tungsten wedges
12 cm
5 cm
6
Manufacturing challenge cutting the pins

• challenges to overcome
• choice of material
• too soft, pins bend and break during tool
  extraction
• too hard, pins are brittle and break off
• how to mount pins in base plate
• tungsten wire forced into holes SLAC method 1
• machined out of one piece using EDM SLAC method
  2
• to the rescue FSU physics machine shop
• have their own in-house EDM machine
• willing to try new things, come up with their own
  ideas
• based on drawings from Connecticut, built 2
  wedges
• raw tungsten too brittle, pins too fragile
• machinable tungsten (95W, 5NiCu) excellent
  result!

7
Courtesy of P. Eugenio
8
Prototype status and plans

• Parts for a working prototype are assembled
• aluminum housing made in Connecticut machine shop
• one tunsten pin quadrant delivered by FSU
• data acquisition computer
• electronics purchased by Jlab and delivered to
  Connecticut
• 8-channel sampling ADC card (pci)
• special preamplifier with pA sensitivity (2
  channels)
• Still needed to complete project
• tungsten pins to instrument opposing quadrant
  (from FSU)
• boron nitride insulating support (ordered by
  Jlab, expected 7/04)
• software to read out currents and filter noise
  (student project 7/04)
• couple days of parasitic time in Hall B during
  photon running

9
II. Physics simulations

• Hardware development
• built and commissioned new GlueX simulations
  cluster at UConn
• Software development (more about this on Friday)
• upgraded XML geometry database tools to Apache
  XERCES 2
• worked with Curtis to update geometry description
  of CDC
• new tools to support use of XML schemas in place
  of DTDs
• Background studies
• prior background studies have focused on region
  upstream of target
• new information needed to assess design choices
  for vertex counter
• geometry for simulations proposed by Werner
• new results as of this week more about this
  from Werner

10
GlueX simulation cluster

• parts purchased by Jlab (GlueX RD funds)
• 16 AMD 2800 processors
• 8 AMD 64-bit opteron processors
• 1 GB ram per node
• 20 GB local disk storage per node
• 5 TB of shared disk storage
• 28K total cost (incl. rack UPS)
• collaboration access
• uses web interface (no logins)
• uses certificates for security
• browse results with paw
• ROOT support coming

11
Electromagnetic background study preliminary
results
photon beam
12
background study preliminary results
photon beam
13
background study impact profile
14
background study origin of charges hitting vtx
cylinder
inner surface impacts
outer surface impacts
15
background study preliminary
endcap impacts
all charged hits over 1 MeV
16
background study preliminary

• Latest results are new
• still have to be carefully checked
• removed vacuum pipe from region downstream of
  target
• accidentally the air that replaced it has no
  magnetic field!
• Rates are very high downstream of target
• most important around hole in FDC, Cerenkov, TOF
  and LGD
• will set an upper limit on the attainable beam
  intensity
• rates far downstream of target sensitive to
  magnetic field, but
• Werners result is probably accurate for the
  vertex counter
• Backgrounds in each forward detector must be
  checked
• important information for the TDR
• may affect design choices in VTX, FDC and Cerenkov
