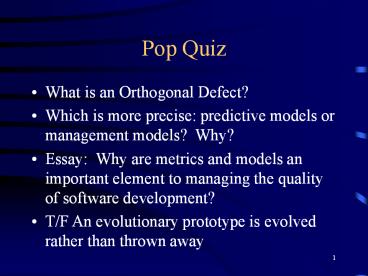

• What is an Orthogonal Defect?
• Which is more precise predictive models or
  management models? Why?
• Essay Why are metrics and models an important
  element to managing the quality of software
  development?
• T/F An evolutionary prototype is evolved rather
  than thrown away

2
Software Quality EngineeringCS410

• Class 10
• Quality Management Models

3
Quality Management Models

• Quality Management Models
• Tools for helping to monitor and manage the
  quality of software when it is under development
• Goal - provide early warning signs so that timely
  improvement actions can be planned and
  implemented
• Models must cover entire development phase
  (front-end and back-end) to be useful
• Some Reliability Models can be used as Quality
  Management Models

4
Quality Management Models

• Rayleigh Model Framework
• Based on the two assumptions
• 1. Defect rate observed during development is
  positively correlated with defect rate observed
  in the field
• 2. Given the same error injection rate, if more
  defects are found and removed early then fewer
  will remain in later stages (I.e. the field)
• Do it right the first time
• It is important to manage quality throughout the
  entire development process

5
Quality Management Models

• 1. Best scenario is to prevent errors from being
  injected into the development process (and hence,
  into the product)
• 2. When errors are introduced, improve front-end
  processes (design reviews, code reviews, etc.) to
  remove as many of them, as early as possible.
• 3. Unit testing serves as the last chance to
  catch errors in the front-end process (the
  gatekeeper for front-end process escapes).

6
Quality Management Models

• The Rayleigh model is a good Quality Management
  model because it promotes defect prevention and
  early defect detection
• As an in-process tool, the data can indicate the
  quality direction of the current project
• Comparison to previous models would show whether
  the defect removal is more/less/same front-end
  loaded
• same - quality should be similar to previous
  products
• more - quality should be better than previous
  products
• less - quality action should be taken

7
Quality Management Models

• Rayleigh curve shifts
• Left - more front-end loaded (early defect
  removal)
• Right - less front-end loaded
• Up - more error injection
• Down - less error injection (defect prevention)
• Goal - shift the curve left and down as much as
  possible
• Fig 9.2 p. 223

8
Quality Management Models

• Actions for shifting the curve
• Left (early defect removal)
• focus on design reviews / code inspections
• moderator training
• inspection checklists
• in-process measurements to track effectiveness
• mini-builds (prior to formal integration)

9
Quality Management Models

• Actions for shifting the curve
• Down (defect prevention)
• implementation of DPP
• use of CASE tools
• improved communications between interface owning
  groups

10
Quality Management Models

• Challenge - knowing exactly what the differences
  in the curve represent
• Lower defect removal rates (lower curve) could be
  less errors injected, or ineffective design
  reviews and code inspections
• Higher defect removal (higher curve) could mean
  higher error injection or better design reviews
  and code inspections
• Additional indicators are needed to help
  interpret the data

11
Quality Management Models

• Quality of process metrics can be used as
  additional indicators, for example
• Inspection effort (expressed in hours) combined
  with defect rate
• Inspection Effort and Defect Rate when compared
  to historical data

12
Quality Management Models

• Best case - high effort / low defects Indicator
  that the design and/or code contained fewer
  defects, and that the design reviews and code
  inspections were effective, and better quality
  was ensured.
• Good / Not Bad case - high effort / high defects
  Indicator that error injection may be higher, but
  process was effective in detecting defects.

13
Quality Management Models

• Unsure case - low effort / low defects Not sure
  whether less defects were injected, or whether
  less time spent in design reviews and code
  inspections turned up less defects.
• Worst case - low effort / high defects Indicator
  of high error injection, but process was not
  effective in detecting defects.

14
Quality Management Models

• PTR Sub-model
• Continuous integration of some product life
  cycles make parametric models difficult.
• Spiral and Iterative models make it difficult to
  differentiate between front-end and back-end
  processes.
• These life cycles sometimes have the concept of
  continuous integration.
• Different Quality management models are required
  for this type of product development life cycle.

15
Quality Management Models

• PTR (Problem Tracking Reports) are a common tool
  used for managing the change process during
  development and testing.
• Non-parametric model that is a sub-model of the
  overall defect removal model.
• PTR model spreads over time the number of defects
  that are expected to be removed during formal
  testing so that precise tracking may be done.

16
Quality Management Models

• PTR model is a function of
• 1. Planned or actual lines of code integrated
  over time.
• Can be estimated from historical data, design
  documents, and estimating tools
• 2. Expected overall PTR rate per KLOC.
• Can be estimated from historical data.
• 3. PTR-surfacing pattern after the code is
  integrated.
• Depends on testing activities and integration
  plans (eg. weekly integration - faster discovery
  / fix / integration cycle than bi-weekly or
  monthly)

17
Quality Management Models

• Deriving PTR Sub-model Curve
• 1. Determine code integration plan
• 2. Multiple expected PTR rates times expected
  KLOCs to derive expected PTRs per integration
• 3. Spread PTRs over time depending on PTR spread
  pattern and sum of number of PTRs
• 4. Update model when integration plan changes or
  actual integration data becomes available
• 5. Plot the curve and track current project in
  terms of months until GA (General Availability)

18
Quality Management Models

• Example PTR Sub-model
• Fig 9.7 p. 229
• Note - PTR sub-model is non-parametric and
  therefore cannot make projections. It is used
  for tracking current data.
• Goal - compared to the model, if the actual curve
  (actual defect arrivals) increases, and peaks
  earlier, then it will decline faster relative to
  the GA date (I.e. less defects will be shipped to
  the field)

19
Quality Management Models

• PTR Arrival/Backlog Projection Model
• Goal - determine whether the scheduled
  code-freeze date can be met without sacrificing
  quality. In other words - will the PTR arrival
  rate and PTR backlog decrease to the acceptable
  levels?
• Other models do not answer this question
• PTR Sub-model - cannot predict
• Reliability Growth Models - predictions are made
  too late

20
Quality Management Models

• Model uses a general linear approach, and assumes
  that relevant variables observed over time
  perform an adequate prediction.
• Predictor Variables
• Chronological Time - eg. weeks
• Time Lag Variables - PTR mean time to resolution
• Cumulative KLOC integrated - total of all
  integrations
• Significant activities - eg. component test,
  system test, etc.
• PTR Arrival constant f(Week, Week2, Week3,
  KLOC, KLOC2, Arrivals in preceding week, System
  Test) e
• Example Fig. 9.11 p. 235

21
Quality Management Models

• Reliability Growth Models
• Models from previous products can be used to
  track the defect rates of the current product
• To experience significant quality improvement,
  the current defect arrival rate must fall below
  the model curve
• Comparing to a model allows for quality actions
  to be identified and implemented.
• Models can be good for determining the end date
  of testing
• Other models should be used in conjunction
  because the Reliability Growth Models do not
  focus on the front-end of the process

22
Quality Management Models

• Criteria for Model Evaluation
• Most Important Criteria
• Timeliness of quality indication
• Raises a red flag
• Allows more time to react and recover
• Scope of process coverage
• Should address each phase
• Should address quality of stage deliverables
• Capability
• Ability for model to provide information for
  planning and managing software development

23
Quality Management Models

• In-Process Metrics and Reports
• A defect tracking and reporting system and a set
  of related in-process metrics is an important
  element in implementing Quality Management
  Models.
• Especially important for large projects.
• Multiple teams
• Metric data and feedback needs to be available to
  all levels, and all teams

24
Quality Management Models

• Example - Using an Inspection Effort/Defect Rate
  report and matrix to access the rigor and
  effectiveness of the inspection process
• Fig. 9.14 p. 240 and Fig. 9.15 p. 242
• A tool to help measure process quality by
  tracking inspection effort and defects
  detected/removed

25
Quality Management Models

• Example - Inspection Report showing defect origin
• Fig. 9.16 p. 245
• Among the defects found by this stage, what is
  the percentage that should have been found by the
  previous stage?
• Does not require the total defect data like the
  DRE approach does.
• This approach can be used as an in-process
  quality management tool

26
Quality Management Models

• Orthogonal Defect Classification
• Orthogonal - pertaining to, or composed of right
  angels (Websters II)
• In context A set of mutually independent cause
  categories
• ODC - A method for in-process quality management
  based on defect cause (or type) analysis, where
  a distribution of defect types is associated with
  process phases

27
Quality Management Models

• Concept By examining the distribution of defect
  types, one can tell which development phase the
  current project is at (or should be at).
• Eight Defect types
• 1. Function (missing or incorrect functions) -
  Design Phase
• 2. Interface - low-level design
• 3. Checking - low-level design or code
  implementation

28
Quality Management Models

• Eight Defect types (cont.)
• 4. Assignment - Code Phase
• 5. Timing/Serialization - low-level design
• 6. Build/Package/Merge - library tools
• 7. Documentation - publications
• 8. Algorithms - low-level design

29
Quality Management Models

• Keys to ODC - look at the majority of defect
  types vs. where the project actually is. May be
  an indicator of an out of control condition.
• Defect Trigger - a condition that allows (forces)
  a defect to surface.
• Challenges for ODC
• What are defect triggers?
• Can defects really be classified as orthogonal?
• Overlap and interrelations between proposed
  defect types
• Indirect method for accessing project progress

30
Quality Management Models Summary

• Quality Management Models, unlike reliability
  models, need to focus on
• Timeliness - for quality indications
• Scope of coverage - all phases of development
  process
• Capability - provides information (indicators and
  attributes) about quality
• Tracking and reporting systems and sets of
  related in-process metrics are needed to make
  Quality Management Models work.
• Defect cause analysis (eg. ODC) can lead to a
  better understanding of quality of the project.
