Pop Quiz

1

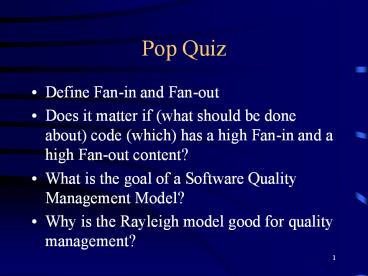

Pop Quiz

• Define Fan-in and Fan-out
• Does it matter if (what should be done about)
  code (which) has a high Fan-in and a high Fan-out
  content?
• What is the goal of a Software Quality Management
  Model?
• Why is the Rayleigh model good for quality
  management?

2
Software Quality EngineeringCS410

• Class 11
• Complexity Metrics and Models

3
Complexity Metrics and Models

• Complexity Metrics and Models
• Provide clues to help focus quality improvement
  efforts by looking at the program-module level.
• Focused on internal dynamics of design and code
• Studied by Computer Scientists and Software
  engineers
• In contrast, Reliability and Quality Management
  Models are
• Unit of analysis is not as granular
• Focused on external behavior of process (eg.
  inspection defects), or product (eg. failure
  data).
• Studied by researchers, reliability experts, and
  project managers

4
Lines of Code (LOC)

• A representation of program size
• Can be measured in different ways (chap. 4)
• HLL Source Statements
• Assembler Statements
• Executable lines
• Executable lines plus data definitions

5
Lines of Code (LOC)

• General assumption
• The more lines of code, the more defects are
  expected, and a higher defect density (defects
  per KLOC) is expected
• Research has shown that the general assumption
  may not be true in all cases.
• A optimum code size may exist in which expected
  defect rates would be contained within an
  acceptable upper limit.
• Such an optimum may depend on language, project,
  product, and environment

6
Lines of Code (LOC)

• A curvilinear (p. 76-77) relationship more
  accurately describes the relationship between
  code size and defect density
• Example Fig. 10.1 p. 255
• Module size affects defect density
• Small modules require more external interfaces
• Large modules become very complex
• Key is to use empirical data, historical data,
  and comparative data to establish a guideline for
  module size

7
Halsteads Software Science

• Halstead (1977) stated that Software Science is
  different from computer Science and that Software
  Science consists of programming tasks.
• A programming task is the act of selecting and
  arranging a finite number of program tokens
  which are basic syntactic units distinguishable
  by a compiler.

8
Halsteads Software Science

• Tokens can be classified as either operators or
  operands.
• Primary measures for Halsteads Software Science
  are
• n1 the number of distinct operators that
  appear in a program
• n2 the number of distinct operands that appear
  in a program
• N1 the total number of operator occurrences
• N2 the total number of operand occurrences

9
Halsteads Software Science

• Based on the four primitives a system of
  equations describing the program can be applied
• Total Vocabulary
• Vocabulary (n) n1 n2
• Overall Program Length
• Length (N) N1 N2
• Potential Minimum Volume (in bits) for algorithm
• Volume (V) NLog2(n1 n2)

10
Halsteads Software Science

• Program Level (a complexity measure)
• Level (L) n1 n2
• Program Difficulty
• Difficulty (D) (n1/2) x (N2/n2)
• Development Effort
• Effort V / L
• Projected number of faults
• Faults (B) V / S
• where S equals a mean number of decisions between
  errors (3000 used as default)

11
Halsteads Software Science

12
Halsteads Software Science

• Problems with Halsteads Software Science
• Faults equation is oversimplified. It simply
  states that the number of faults in a program is
  a function of its volume.
• Equations do not provide relevant information,
  only good for comparison
• Data for predictions must be available to perform
  equations, which means code must already be
  written.

13
Cyclomatic Complexity

• McCabe (1976) designed a system to indicate a
  programs testability and understandability
  (maintainability).
• A.K.A. McCabes Complexity Index or CPX
• Based on graph theory of cyclomatic number of
  regions in a (flow) graph
• Represents the number of linearly independent
  paths comprising a program
• Gives an upper bound to the number of test-cases
  that would be required for path testing

14
Cyclomatic Complexity

• General formula
• V(G) e - n 2p
• where
• e number of edges
• n number of nodes
• p number of unconnected parts to the graph
• or
• V(G) e - n 2
• If all parts are connected

15
Cyclomatic Complexity

• Example
• set of processing a
• If cond1 Then
• set of processing b
• else
• set of processing c
• set of processing d
• If cond2 then
• set of processing e
• else
• set of processing f
• set of processing g

16
Cyclomatic Complexity

• Example
• More complexity

17
Cyclomatic Complexity

• Cyclomatic Complexity also can be computed based
  on the decision in a program
• n binary decisions V(g) n 1
• three-way decision counts as 2n 1 binary
  decisions
• n-way decision counts as n - 1 binary decisions
• loops count as 1 binary decision
• note does not distinguish between different type
  of control flow (eg. loops vs. IF-THEN-ELSE)
• Cyclomatic complexities are additive
• The Cyclomatic Complexity of one large graph is
  the sum of the individual graphs complexities.

18
Cyclomatic Complexity

• McCabes recommendation
• To achieve a good testability and
  maintainability, no program module should have a
  Cyclomatic Complexity greater than 10.
• Cyclomatic complexity correlates strongly with
  program size (LOC).
• There also tends to be a positive correlation
  between Cyclomatic Complexity and defects.
• Cyclomatic Complexity appeals to many software
  developers because it is tied to decisions and
  branches (logic).

19
Syntactic Constructs

• Studies that look at syntactic makeup of a
  program.
• Shen (1985)
• Found a correlation between the number of unique
  operands and the presence of defects
• Lo (1992)
• Found correlation between field defects in
  modules, and LOC, IF-THEN-ELSEs, DO-WHILEs,
  unique operands, and number of calls
• DO-WHILE turned out to be the greatest factor,
  and a positive correlation between DO-WHILE use
  and defects was discovered (programmers needed
  training)

20
Structure Metrics

• Previous metrics all assume that each module is a
  independent entity.
• Structure metrics take into account that
  (significant) interactions between modules exist.
• Yourdon/Constantine (1979) Myers (1978) both
  proposed fan-in and fan-out metrics based on the
  idea of coupling.

21
Structure Metrics

• Fan-out number of modules called
• Fan-in number of modules called by
• Module Coupling connectedness
• Other Factors
• Inputs, Outputs, and Global Variables
• Low Module Coupling relatively low number of
  inputs, outputs, and calls
• High Coupling relatively high number of inputs,
  outputs, and calls

22
Structure Metrics

• Small/Simple modules are expected to have high
  fan-in. These modules are usually located at the
  lowest levels of the system structure.
• Large/Complex modules are expected to have low
  fan-in.
• Modules should generally not have both high
  fan-in and high fan-out. If so - then module is
  good candidate for redesign (functional
  decomposition).

23
Structure Metrics

• Modules with high fan-in are expected to have low
  defect levels.
• Fan-in is expected to have negative or
  insignificant correlation with defects
• Modules with high fan-out are expected to have
  higher defect levels.
• Fan-out is expected to have positive correlation
  with defects

24
Structure Metrics

• Card and Glass (1990) System Complexity Model
• System Complexity is equal to the sum of
  structural complexity plus data complexity
• where
• structural complexity is equal to mean of squared
  values of fan-out (fan-in is insignificant)
• data complexity is average I/O variables

25
Complexity Metrics and Models Criteria for
Evaluation

• Explanatory Powers - the metrics/model ability to
  explain the interrelationships among complexity,
  quality, and other programming and design
  parameters.
• Applicability - the degree to which the
  metrics/models can be applied by software
  engineers to improve the quality of design, code
  and test.

26
Complexity Summary

• Complexity metrics and models describe the
  complexity characteristics of software components
  (modules).
• Software complexity traditionally has a positive
  correlation to defects.
• A key to achieving good quality software is to
  reduce the complexity of software designs and
  implementations.

27
Pop Quiz

• What are metrics and models for?
• List some advantages of Halsteads Software
  Science (you may want some disadvantages, too)
• What is the Back End?
• So whats the Front End?
• How good is good enough?

28
Software Quality EngineeringCS410

• Class 11b
• Measuring and Analyzing
• Customer Satisfaction

29
Customer Satisfaction

• Customer satisfaction is the ultimate validation
  of quality!
• Product quality and customer satisfaction
  together form the total meaning of quality.
• TQM links customer satisfaction to product
  quality, and focuses on long-term business
  success.
• Customer Focus - achieve high Customer
  Satisfaction
• Process - reduce process variation and achieve
  continuous process improvement
• Human side of Quality - quality culture
• Measurement and Analysis - goal-oriented
  measurement

30
Customer Satisfaction

• Customer satisfaction is important because
• Enhancing customer satisfaction is the bottom
  line of business success
• Retaining existing customers is becoming tougher
  with ever-increasing market competition
• Studies show that it is five times more costly to
  recruit a new customer than it is to retain an
  old customer
• Dissatisfied customers tell 17 to 20 people about
  their (negative) experiences
• Satisfied customers tell 3 to 5 people about
  their (positive) experiences

31
Customer Satisfaction Surveys

• Three type of Survey
• Face-to-Face
• Telephone Interviews
• Mailed Questionnaires
• Face-to-face interviews
• interviewer asks questions from pre-structured
  questionnaire and records the answers
• advantage - high degree of validity of the data
  because the interviewer can note specific
  reactions and eliminate misunderstandings about
  questions being asked
• disadvantages - cost, interviewer bias, recording
  errors, training

32
Customer Satisfaction Surveys

• Telephone Interviews
• Similar to face-to-face interviews
• interviewer asks questions from pre-structured
  questionnaire and records the answers over the
  phone
• advantage - interviews can be monitored to ensure
  consistency and accuracy
• advantage - less expensive than face-to-face
• advantage - can be automated (computer-aided)
• disadvantage - lack of direct observations, and
  lack of contacts (due to not scheduling a
  meeting)

33
Customer Satisfaction Surveys

• Mailed Questionnaire
• Does not require interviewers and is therefore
  less expensive
• disadvantage - lower response rates, and samples
  may not be representative of the population
  (skewed results - only the people who really have
  something to say may respond)
• Questionnaire must be carefully constructed,
  validated and pre-tested before being used.

34
Customer Satisfaction Surveys

• Comparison of three survey methods

35
Customer Satisfaction Surveys

• Sampling methods
• When customer base is very large it is not
  possible (or feasible) to sample every customer
• Customer satisfaction must be estimated based on
  a sub-set of population
• Four types of probability sampling
• Simple random sampling
• Systematic sampling
• Stratified sampling
• Cluster sampling

36
Customer Satisfaction Surveys

• Simple random sampling
• Every sample of size n has the same chance of
  being selected from the population
• Method
• List each individual is listed once (and only
  once)
• Some mechanical (I.e. a random number generator)
  process is used to draw the sample
• On each draw the already selected individuals are
  removed from the list
• Probabilities of being selected are always equal
  for each of the remaining individuals

37
Customer Satisfaction Surveys

• Systematic sampling
• Similar to simple random except that a ratio of
  samples is selected and a random number is only
  used for the starting point
• Method
• Determine population (p)
• Determine desired sample size (s)
• Determine sampling ratio (k p/s)
• Determine the sampling fraction (f 1/k)
• Randomly select starting point between 1 and k
• Example

38
Customer Satisfaction Surveys

• Stratified sampling
• Individuals are classified into non-overlapping
  groups called strata and then simple random
  samples are selected from each stratum.
• Strata selection is usually based on some aspects
  of the customer environment.
• Cluster Sampling
• Individuals are group into many clusters (groups)
  based on some characteristic and then a cluster
  is selected and sampled.

39
Customer Satisfaction Surveys

• Sampling considerations
• Simple random sampling is generally the least
  expensive sampling method.
• Systematic sampling can be biased if
• The list is ordered
• Cyclical characteristics conflict with k
• Stratified Sampling is usually more efficient,
  and yields greater accuracy than simple sampling
  (individuals in each stratum are represented).
• Cluster sampling is generally less efficient, but
  also less expensive than stratified sampling.

40
Customer Satisfaction Surveys

• Sample size
• How large should sample size be?
• Dependant on
• Confidence level desired
• Margin of error that can be tolerated
• Larger sample sizes give higher confidence levels
  and lower margins of error.
• Power of sample is dependant on absolute size
  rather than percentage of population.

41
Customer Satisfaction Surveys

• Analyzing Satisfaction Data
• Five-point (Likert scale) is the most commonly
  used measure.
• Run charts can be used to show graphical
  representation of survey results.
• Note - margin of error can also be included.
• Example - fig. 11.3 p. 280
• Data can be viewed as
• percent satisfied - where are we doing well
• percent unsatisfied (neutral, dissatisfied, and
  very dissatisfied) - where do we need to focus

42
Customer Satisfaction Surveys

• Specific Attributes
• Measuring specific attributes of the software
  helps to provide data which will indicate areas
  of improvement.
• The profile of customer satisfaction with those
  attributes indicates the areas of strength and
  weakness of the software product.
• Notes
• Must be careful with correlating weakness with
  priority, it may not always be the desirable
  case.
• More important is correlation of specific
  attribute to overall satisfaction level.

43
Customer Satisfaction SurveysSpecific Attributes
Examples

• IBM - CUPRIMDSO
• Capability
• Usability
• Performance
• Reliability
• Installability
• Maintainability
• Documentation
• Service
• Overall

• Hewlett-Packard - FURPS
• Functionality
• Usability
• Reliability
• Performance
• Serviceability

44
Customer Satisfaction Surveys

• Overall Satisfaction
• Each attribute has some correlation to the
  overall satisfaction rating.
• Determining the correlation is the key to
  prioritizing improvement plans.
• Methods for determining correlation (pp.
  281-287)
• Least squares multiple regression
• Logistic regression

45
Customer Satisfaction Surveys

• Method for determining priorities
• 1. Determine the order of significance of each
  quality attribute on overall satisfaction by
  statistical modeling.
• 2. Plot the coefficient of each attribute from
  the model (Y-axis) against its satisfaction level
  (X-axis).
• 3. Use the plot to determine priority by
• Top to Bottom
• Left to right if same coefficients
• Example Fig. 11.4 p. 287

46
Customer Satisfaction Surveys

• Satisfaction with the company
• Adds a broader view to Customer Satisfaction
• Overall satisfaction and loyalty is attributed to
  a set of common attributes of the company
• Ease of doing business
• Partnership
• Responsiveness
• Knowledge of the customers business
• Customer driven

47
Customer Satisfaction Surveys

• Key dimensions of company satisfaction
• Technical solutions quality.reliability,
  availability, ease of use, pricing, installation,
  new technology, etc.
• Support and Service flexible, accessible,
  product knowledge, etc.
• Marketing solution, central point of contact,
  information, etc.
• Administration purchasing procedure, billing
  procedure, warranty expiration notification, etc

48
Customer Satisfaction Surveys

• Key dimensions of company satisfaction
• Delivery on time, accurate, post-delivery
  process, etc.
• Company image technology leader, financial
  stability, executives images, etc.
• Perceived performance is equally as important as
  actual performance.
• Company level data is an important aspect of
  overall customer satisfaction.

49
Customer Satisfaction Surveys

• How good is good enough?
• Is it worth it to spend x to gain y amount of
  satisfaction?
• The key to this question lies in the relationship
  between customer satisfaction and market share.
• Basic assumption - Satisfied customers continue
  to purchase products from the same company and
  dissatisfied customers will purchase from other
  companies.

50
Customer Satisfaction Surveys

• As long as market competition exists, then
  customer satisfaction will be the key to customer
  loyalty.
• Even in a monopoly, customer dissatisfaction will
  encourage the development and emergence of
  competition.
• Answer to How good is good enough
• Better than the competition.

51
Customer Satisfaction Surveys

• Customer Satisfaction Management Process should
  cover
• 1. Measure and monitor overall CS of own company
  and competition over time.
• 2. Analyze specific satisfaction dimensions,
  attributes, strengths, weaknesses, and priorities
• 3. Perform root cause analysis to identify
  inhibitors of each dimension and attribute
• 4. Set satisfaction targets (overall and
  specific), taking competition into consideration
• 5. Formulate and implement action plans based on
  results of 1-4.

52
Customer Satisfaction Summary

• Customer Satisfaction at both the product level
  and company level must be analyzed and managed.
• Company data is valuable for a comprehensive
  approach to Total Quality Management (TQM)
• Product data is valuable for identifying specific
  areas for product improvements
• Challenge - knowing why customers chose a
  competitor. CS surveys only target customers who
  have chosen your company. May need independent
  consulting data for this.

53
Pop Quiz

• Name several kinds of Customer Satisfaction
  survey

54
Software Quality EngineeringCS410

• Class 11c
• AS/400 Software Quality Management

55
AS/400

• What is it?
• Application System/400 (AS/400)
• A midrange based multi-user, multi-programming
  operating system from IBM Rochester, MN
• Who uses it?
• Small, medium, and large Information Technology
  (IT) companies, as well as universities, and
  research organizations.
• Customer base is estimated at 250,000

56
AS/400

• How big is it?
• Initial release (August 1988) 7.1 million lines
  of code (7,000 KLOC)
• Approx. 10 new releases since GA (general
  availability)
• Typical release has 2 million lines of
  new/changed code
• Estimated size of current product 21.1 million
  (21,000 KLOC) lines of code (assuming a 70/30
  split of new/changed code per release, and one
  release per year since GA)

57
AS/400

• Track Record
• Market Driven Quality (MDQ - a system based on
  the TQM management style and corporate culture)
  implemented in 1990
• Benchmark studies against Motorola, IBM Houston
  (NASA Shuttle software), and other recognized
  leaders - 1990
• Received Malcolm Baldrige National Quality Award
  - 1990
• ISO 9000 Certification - 1992

58
AS/400

• Key AS/400 quality strategy
• Defect Prevention Process (DPP)
• Focus on Design Review/Code Inspection (DR/CI)
• Component test improvements
• Departmental 5-UP measurements (key metrics)
• Customer Satisfaction
• Post-release defect rate
• Customer problem calls
• Fix Response time
• Number of defective fixes
• Quality Recognition
• Management commitment
• Quality culture

59
AS/400

• AS/400 Software Quality Management System (SQMS)
• Goal - to reduce the product defects and increase
  the customer satisfaction
• Five key elements
• People
• In-process quality management
• Continuous process improvement
• post-GA product quality management
• Customer satisfaction management

60
AS/400

• People
• Most important element of SQMS
• Must be highly motivated to meet quality goals
• Must be talented (and trained) to execute and
  improve the development process
• In-process product quality management
• Measure the results of various process steps
• Determine if the product is on target for
  achieving the product quality goals
• Help define action plans for quality improvements

61
AS/400

• Continuous process improvement
• Provides a foundation for improving process
• Triggered by customer reported defects, and DPP
• Supported by tools and technology that promote
  process automation, increase defect discovery, or
  reduce defect injection
• Post-GA product quality management
• Addresses customer problems (both defect oriented
  and non defect oriented)

62
AS/400

• Post-GA product quality mgmt (cont.)
• Goals
• Fix problems quickly
• Fix problems with high quality
• Learn from errors that were made
• Gather valuable metrics
• Feed next release requirements phase
• Suggest process improvements

63
AS/400

• Customer satisfaction management
• Understand overall customer satisfaction
• Analyze customer satisfaction in regard to
  different parameters of the product
• Define product requirements
• Help prioritize problems based on customer
  satisfaction
• Monitor critical situations and help to minimize
  impacts to customers business

64
AS/400

• Summary
• There are no silver bullets
• Many quality improvement techniques and solutions
  exist, but the key is placing them into practice
  systematically and persistently.
• Lack of functional defects is the most basic
  measure of quality, however Customer Satisfaction
  represents the final evaluation of the product.
