Using EAP-SIM for WLAN Authentication

1

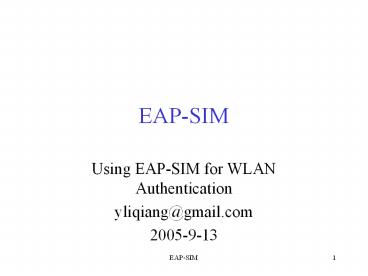

EAP-SIM

• Using EAP-SIM for WLAN Authentication
• yliqiang_at_gmail.com
• 2005-9-13

2
Definition(??)

• EAP-SIM is an Extensible Authentication
  Protocol (EAP) RFC3748 mechanism for
  authentication and session key distribution
  using the Global System for Mobile
  communications (GSM) Subscriber Identity
  Module (SIM).
• ?GSM-SIM???EAP??????????

3
EAP Introduction (??)

• EAP is an authentication framework which
  supports multiple authentication methods.
• ??????????????
• EAP typically runs directly over data link layers
  such as Point-to-Point Protocol (PPP) or IEEE 802
• EAP ????????????? PPP?IEEE 802

4
EAP Introduction (??)

• EAP permits the use of a backend authentication
  server,with the authenticator acting as a
  pass-through for some or all methods and peers.
• EAP ???????????,????????????????????
• Conceptually, EAP implementations consist of the
  following components
• ?????,EAP?????????????

5
IEEE 802.1X EAPOL
Lower Layer
Peer(????)
Authenticator (???)
6
IEEE 802.1X EAPOL
Lower Layer
Peer(????)
Pass-through Authenticator (???)
Radius Protocol
Authentication Server (?????)
AAAAuthentication(??), Authorization (??), and
Accounting (??)
7
GSM authentication(??)

• RAND is a 128-bit random challenge issued from
  the base station to the mobile.
• RAND ????????(??)?128???????
• SRES is a 32-bit response generated by A3 issued
  from the mobile to the base station
• SRES ????(??)?????32?????,?A3???

8
GSM authentication(??)

• Kc is a 64-bit Cipher Key, used for A5.
• Kc?64?????,?A8????????(A5)?
• Ki is the SIMs 128-bit individual subscriber
  key.
• Ki?128???SIM????(????)?
• A3/A8 are specified by each operator rather than
  being fully standardized,but usually implemented
  together as COMP128.
• A3/A8??????????,?????????,?????????COMP128,???
  ???A3,A8?

9
EAP-SIM Introduction(??)

• builds on underlying GSM mechanisms
• ???GSM???????

10
EAP-SIM Introduction(??)

• Provides mutual authentication
• ???????
• several RAND challenges are used for generating
  several 64-bit Kc keys, which are combined to
  constitute stronger keying material.
• ????????Kc,??????????????

11
EAP-SIM Introduction(??)

• EAP-SIM specifies optional support for protecting
  the privacy of subscriber identity using the same
  concept as GSM, which is using pseudonyms/temporar
  y identifiers.
• EAP-SIM????????(??)?
• It also specifies an optional fast
  re-authentication procedure.
• ????????(??)

12
Peer
Authenticator
EAP-Request/Identity
lt------------------------------------------------
---------

EAP-Response/Identity
---------------------------------
------------------------gt

EAP-Request/SIM/Start
(AT_VERSION_LIST) lt---------------------
------------------------------------

EAP-Response/SIM/Start
(AT_NONCE_MT, AT_SELECTED_VERSION)
-------------------------------------------------
--------gt

EAP-Request/SIM/Challenge (AT_RAND, AT_MAC)
lt------------------------------------------
--------------- -----------------------------
-------- Peer runs
GSM algorithms, verifies
AT_MAC and derives session keys
-------------------------
------------
EAP-Response/SIM/Challenge (AT_MAC)
---------------------------------
------------------------gt


EAP-Success lt--------------------------
-------------------------------

• EAP-SIM Full Authentication Procedure(??????)

13
Key Generation

• MK SHA1(IdentitynKc NONCE_MT Version List
  Selected Version)
• K_aut , K_encr , MSK and EMSK are derived from
  MK using Pseudo-Random number Function (PRF)
• Request AT_MAC HMAC-SHA1-128(K_aut, EAP packet
  NONCE_MT)
• Response AT_MAC HMAC-SHA1-128(K_aut,EAP packet
  nSRES)
• In the formula above, the "" character
  denotes concatenation.
• Nonce
• A value that is used at most once or that
  is never repeated within the same cryptographic
  context.
• MAC
• Message Authentication Code

14
Indication of vulnerabilities(??)

• The security of the A3 and A8 algorithms is
  important to the security of EAP-SIM.
• Some A3/A8 algorithms have been compromised
  see for example GSM Cloning for discussion
  about the security of COMP-128 version 1. Note
  that several revised versions of the COMP-128
  A3/A8 algorithm have been devised after the
  publication of these weaknesses and that the
  publicly specified GSM-MILENAGE 3GPP TS 55.205
  algorithm is not vulnerable to any known
  attacks.
• A3/A8???????EAP-SIM???????COMP128-v1?????(??
  ??????SIM????COMP128-v1),????COMP128
  v2,v3???????GSM-MILENAGE,??????????

15
Indication of vulnerabilities(??)

• Mutual Authentication and Triplet Exposure
• EAP-SIM provides mutual authentication. The
  peer believes that the network is authentic
  because the network can calculate a correct
  AT_MAC value in the EAP-Request/SIM/Challenge
  packet. To calculate the AT_MAC it is sufficient
  to know the RAND and Kc values from the GSM
  triplets (RAND, SRES, Kc) used in the
  authentication. Because the network selects the
  RAND challenges and the triplets, an attacker
  that knows n (2 or 3) GSM triplets for the
  subscriber is able to impersonate a valid network
  to the peer.
• EAP-SIM?????????????????????????????AT_MAC,?
  ??AT_MAC??RAND?Kc?????????????RAND,?????????(2-3)K
  c???????????????

16
Security Claims(????)

• Auth. mechanism EAP-SIM is based on the GSM SIM
  mechanism, which is a challenge/response
  authentication and key agreement mechanism based
  on a symmetric 128-bit pre-shared secret.
  EAP-SIM also makes use of a peer challenge to
  provide mutual authentication.
• ????EAP-SIM??GSM-SIM?????,????????/????????????
  ,?????????128???????(Ki)?EAP-SIM?????????(NONCE_MT
  )???????

17
Security Claims(????)

• Ciphersuite negotiation No
• Mutual authentication Yes
• Integrity protection Yes
• Replay protection Yes
• Confidentiality Yes, except method specific
  success and failure indications
• Key derivation Yes
• Description of key hierarchy(page 13)
• Dictionary attack protection N/A
• Fast reconnect Yes
• Cryptographic binding N/A
• Session independence Yes
• Fragmentation No
• Channel binding No
• Indication of vulnerabilities(page 14,15)

18
Example

• Using EAP-SIM for WLAN Authentication

19
Requirements(????)

• Windows XP built-in supplicant
• EAP-SIM plug-in for the Windows XP built-in
  802.1x Supplicant (http//weap.sf.net)
• PC/SC compatible smart card reader
  (QWY LowSpeed CCID smart card reader)
• Wireless Access Point support RADIUS
  (TP-LINK TL-WR541G)
• RADIUS server support EAP-SIM
  (FreeRadius 1.0.4)

20
Network topological diagram (?????)
simtriplets.dat
21
SIM Reader Installation

• Download the driver from http//agsm.sf.net
• Insert the USB smart card reader in a USB
  port,specify the location of the driver.
• Insert your sim-card into smart card reader,run
  agsm2.exe to make sure you can access the
  sim-card.

22
Configure freeradius

• Download freeradius-1.0.4 from http//www.freeradi
  us.org
• cd freeradius-1.0.4 Configuremake install cd
  src\modules\rlm_sim_files make install.
• Add the following to radiusd.conf
• In modules , add
• sim_files
• simtriplets " raddbdir/simtriplets.
  dat "
• in eap add sim
• In authorized , add sim_files before eap.
• Add the following to clients.conf
• client 192.168.1.0/24 secret eap-sim
  shortname eap-sim

23

• Generate simtriplets.dat

• Run agsm2.exe.
• Copy IMSI,RAND,SRES,Kc to simtriplets.dat, at
  least 5 entries.
• simtriplets.dat
• IMSI RAND
  SRES Kc
• 1460001551807128,52632FE305874545AC9936926D796256,
  8184a227,5F05b4a2CE884400
• 1460001551807128,ECEB1577E275414e9DD9EF98B277E54A,
  00fb682e,B6c0de73256c0400

Make sure insert 1
24
Configure AP
25
EAP-SIM plug-in installation

• Download wEAP-SIM from http//weap.sf.net
• Install.
• Enable tracing.
• EnableConsoleTracing
• set HKEY_LOCAL_MACHINE\SOFTWARE\MICROSOFT\TRAC
  ING\ EnableConsoleTracing to nozero
• set HKEY_LOCAL_MACHINE\SOFTWARE\MICROSOFT\TRA
  CING\ wEAP-SIM\ EnableConsoleTracing to nozero
• EnableFileTracing
• set HKEY_LOCAL_MACHINE\SOFTWARE\MICROSOFT\TRA
  CING\ wEAP-SIM\ EnableFileTracing to nozero

26
Authenticate the client
27
References

• http//www.intel.com/technology/itj/2005/volume09i
  ssue01/art07_next_generation/p05_simpl_network.htm

• draft-haverinen-pppext-eap-sim-16.txt
• RFC3748 Extensible Authentication Protocol
  (EAP)
• S5.Brumley-comp128.pdf
• GSM Cloning http//www.isaac.cs.berkeley.edu/isa
  ac/gsm.html
