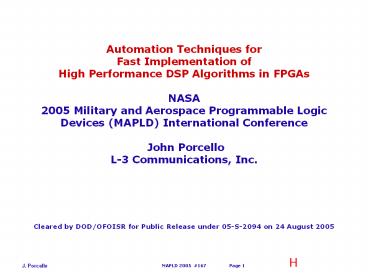

Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs
NASA2005 Military and Aerospace Programmable
Logic Devices (MAPLD) International Conference
John PorcelloL-3 Communications,
Inc.Cleared by DOD/OFOISR for Public
Release under 05-S-2094 on 24 August 2005
2
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Outline
• Background
• Automation Techniques
• DSP Algorithm Design
• HDL Coding and Synthesis
• Timing Placement
• Hardware-In-The-Loop (HITL) Test and Verification
• Case Study Direct Digital Synthesizer (DDS)
  using Xilinx Virtex-4 XtremeDSP
• Summary

3
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Background
• Field Programmable Gate Arrays (FPGAs) are
  the leading implementation path for
  Reprogrammable, High Performance Digital Signal
  Processing (DSP) Applications. The performance
  advantage of FPGAs over Programmable DSPs is a
  driving factor for implementing DSP designs in an
  FPGA.
• Using VHDL and Verilog Hardware Description
  Languages (HDL) is often a lengthy development
  path to implement a DSP design into an FPGA.
• FPGA development tools are using HDL and non-HDL
  DSP Intellectual Property (IP) to reduce the
  design and implementation time. This concept and
  approach is successful at reducing the design and
  implementation cycle and increasing productivity
  in many applications.
• However, High Performance DSP implementations
  using dedicated HDL still provide the greatest
  flexibility for implementing High Performance DSP
  Algorithms WHY?

4
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Three (3) Reasons to use a dedicated HDL
  Implementation Path for a High Performance DSP
  Application
• 1) Control Available IP cant achieve required
  performance and functionality.
• 2) Complexity Increasing DSP Algorithm
  Complexity requires unique tailoring for the
  application.
• 3) Components FPGA architectures are increasing
  the number of dedicated components other than
  FPGA fabric (embedded multipliers, hard
  microprocessors, dedicated transceivers,
  application specific devices, etc). Low level
  control is required to maximize these components
  into a high performance design.

5
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Major Advantages and Disadvantages using the HDL
  Implementation Path for High Performance DSP
  Applications
• Low Level Control and flexibility to achieve
  required or specific performance ()
• Design, development and integration of various IP
  cores ()
• Source level control of DSP design ()
• Considerable design and implementation path
  relative to non-HDL implementation path (-)
• Extensive Debug, Test and Verification Path (-)
• Can we reduce or eliminate any of these
  disadvantages to improve productivity?

6
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• YES
• The Objectives of Automation Techniques -
  Identify and apply methods useful for faster
  implementation of High Performance DSP Designs.
• Reduce Design and Implementation Time
• Perform Error Checking
• Develop greater insight into successful high
  performance DSP Implementations by automating
  techniques
• Specific focus areas to achieve objectives
• DSP Algorithm Design
• HDL Coding and Synthesis
• Timing Placement
• Hardware-In-The-Loop (HITL) Test and Verification
• If one of these processes cannot meet required
  performance, it is often necessary to back up and
  apply techniques to collect data to study the
  problem.

7
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Automation Techniques - Not a new concept. No
  single direct formula for applying them.
  Automation Techniques are a function of DSP
  design and FPGA implementation processes.
  Automation Techniques are a means to improve and
  refine these processes. A look at the overall
  design through to implementation is required.
  Automation Techniques are then developed to
  improve processes. Consider the following
  processes and goals
• Process Goal
• DSP Algorithm Design Produce a DSP Algorithm
  structured for an FPGA (function).
• HDL Coding and Synthesis Synthesizable DSP
  functions and
• performance (implementation).
• Timing Placement DSP timing and
  interface performance (speed).
• H/W-In-The-Loop (HITL) DSP numerical and
  interface performance
• Test and Verification (accuracy, speed).
• Automation Techniques can be applied to improve
  these processes.

8
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Considerations for developing Automation
  Techniques
• 1) Technical Automation Technique(s) are often
  required to go beyond the basics, and increase
  technical capabilities
• A substantial amount of data will be generated,
  tested or analyzed to quantify performance. This
  includes the DSP design (truth vectors) and FPGA
  testing (DUT).
• Develop greater insight into DSP Design and FPGA
  Implementation.
• Solve a specific problem. Current processes not
  effective.
• Improve DSP Design and FPGA Implementation
  processes in terms
• of efficiency and productivity.
• 2) Cost Development of Automation Techniques
  easily provide a cost benefit for processing
  large amounts of data. Other techniques may
  require substantial Non-Recurring Engineering
  (NRE) to design, develop and implement. In these
  cases, Automation Techniques must provide
  substantial benefit to justify the NRE.
  Substantial effort to develop Automation
  Techniques for High Performance DSP Algorithms
  can often be applied when there is significant
  near-term benefit (current project) or long-term
  benefit (marketing new DSP algorithms with
  increased functionality and/or improved
  performance).

9
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design - The DSP Algorithm has the
  greatest impact on the implementation and
  performance.
• Best practice matches the DSP Algorithm to the
  FPGA Architecture. Knowledge of target hardware
  architecture is important to reduce a DSP
  Algorithm to equivalent high performance
  functions within an FPGA.
• The class of DSP Algorithm is significant (wide
  variation)
• Filter, FFT, Multiply and Accumulate (MAC),
  Up/Down Converters
• Carrier Recovery, Timing and Synchronization
• Direct Digital Synthesizers (DDS), Waveform
  Generators
• Systolic Arrays, Matrix Methods, Statistical DSP
• Beam Forming, Image Processing
• Wideband, High Speed Spectral Processing
• Full parallel (unrolled, unfolded)
  implementations of iterative DSP Algorithms yield
  significant increase in performance at the
  expense of FPGA resources.

10
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design - Systolic Array Design
  using the Xilinx Virtex-4 XtremeDSP Tile
• Systolic Arrays are small, interconnected arrays
  of DSP Processing Elements (PEs). Very useful for
  many high performance DSP applications such as
  Digital Filters and Matrix Processing. Systolic
  arrays are typically full parallel structures
  processing one data sample per clock. Used in
  many VLSI designs, they can be 1-Dimensional or
  Multidimensional.
• Systolic array can be mapped from DSP equations
  consisting of iterative algorithms that can be
  unrolled (Filters, FFTs, etc.) . Latency is
  higher since data flow is through each element.
  However, structures of this type may be
  implemented using FPGA fabric and/or dedicated
  FPGA components over high speed interconnects.

1D Systolic Array
Input
Output
Processing Element (PE)
11
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design - Systolic Array Design
  using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
• FPGA Embedded Component
• Xilinx Virtex-4 XtremeDSP Tile
• consists of two (2) DSP48 slices
• Dedicated, pipelined MULT,
• Add/Subtract, ACC, MACC,
• Shift, Divide, Square Root, etc.
• High speed, dedicated interconnects
• between DSP48 slices and to other
• XtremeDSP tiles
• Dynamically configurable functions
• (via OPMODE)
• Highest performance achieved
• w/out FPGA fabric

Processing Element (PE)
1D Systolic Array
Ref. Xilinx XtremeDSP Design Considerations User
Guide, Courtesy of Xilinx, Inc.
Input
Output
Processing Element (PE)
12
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design - Systolic Array Design
  using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
• 1 Dimensional Systolic Array
• FIR filter with constant coefficients,
  relatively easy
• to manage design and implementation.

1D Systolic Array FIR Filter
with
1D Systolic Array FIR Filter
Input
Output
Processing Element (PE)
Routing over dedicated, high speed interconnect
13
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design - Systolic Array Design
  using the Xilinx Virtex-4 XtremeDSP Tile (cont.)
• 2 Dimensional Systolic Array Increasing
  capabilities in DSP applications at the expense
  of increasing algorithm complexity.

2D Systolic Array N-Point FFT
2D Systolic Array FFT
Routing over FPGA fabric
Input
with
Reduce to Even and Odd PEs
Apply DSP Algorithm Automation Techniques to
manage complex DSP design, debugging, test and
validation.
Output
14
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• DSP Algorithm Design Automation Techniques
• DSP Design Validation, Quantifying Required
  Algorithm Performance and Limitations Automating
  tools and simulations to perform extensive
  end-to-end test, data reduction and analysis, and
  algorithm validation. Automated techniques are
  useful in DSP designs where algorithm confidence
  level over a broad performance range requires
  substantial baseline of test data. Techniques may
  utilize scripts or custom programs (MATLAB,
  C/C, etc.) to verify algorithm numerical
  accuracy or maximum error, using simulated or
  actual test data. Methods used to validate a DSP
  algorithm are very important.
• Testing and Debugging DSP Modular Functions
  Automating generation of truth data or vectors
  for test and analysis of synthesizable DSP
  functional building blocks.
• Algorithm Strength Reduction Testing and
  evaluating alternate, equivalent DSP Algorithms
  and mathematically equivalent functions
  (symmetry, periodicity, transform reduction,
  etc.). Functions that will have a higher
  performance and/or consume fewer FPGA resources.

15
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• HDL Coding and Synthesis
• HDL Coding style directly impacts FPGA
  Implementation.
• Good Coding techniques use HDL Coding Styles that
  support Scalable and Modular DSP designs (use of
  generics, VHDL generate, etc.). Important to
  tailor HDL coding to maximize Synthesis Tool.
• Full Parallel implementations often require
  dividing up the DSP processing into small
  operations that can be performed during very
  short clock periods. This amounts to isolating
  functions or breaking up processing over several
  clock cycles at increased latency (and additional
  FPGA resources) to maintain throughput.
• Maximize DSP processing onto high-speed
  interconnects for dedicated DSP components, such
  as the XtremeDSP tile, whenever possible.

16
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• HDL Coding and Synthesis Automation Techniques
• Autocoding Functions Autocoding routines can be
  used to automatically implement (or change) HDL
  code
• Custom DSP Functions that must be divided up
  across several clock cycles to operate at maximum
  speed
• Clocking Techniques, Positive and Negative Edge
  HDL implementations
• Built-In-Test (BIT) Vector Generators / Vector
  Receivers support debug, test and verification
  up to the system level. Place multiple BIT blocks
  at full throughput. Useful for debugging,
  analysis and insight into successful High
  Performance DSP Designs. Can be combined with
  HITL testing for performance verification.
• HDL Converters convert code (interpret code)
  from another language to Synthesizable HDL.
  Effective converter tools may be implemented for
  porting algorithms to FPGA platforms.

17
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• HDL Coding and Synthesis Automation Techniques
• Synthesis Profiling Batch processing multiple
  Synthesis runs to obtain insight into the
  synthesis of a design
• Establish desired variations in an HDL design for
  analysis. Generate multiple versions or
  incrementally modify HDL parameters in the design
  via C/C, script or equivalent code.
• Batch process Synthesis Tool with synthesis
  constraints and obtain synthesis report. Batch
  processing via script or command line, refer to
  synthesis tool manual, such as the Xilinx
  Synthesis Technology (XST) User Guide for an XST
  design flow.
• Extract desired performance parameters from the
  Synthesis Report via C/C, script or equivalent
  code.
• (continued next slide)

18
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• HDL Coding and Synthesis Automation Techniques
• Synthesis Profiling (continued)
• Repeat process until sufficient information from
  multiple synthesis runs are collected.
• Analyze the results of the multiple Synthesis
  runs. Profile the performance impact of
  parameters on the synthesis of the design.
• Useful for profiling effect of DSP Design and HDL
  coding parameters on Synthesis, performing design
  tradeoffs, best-match analysis between DSP design
  and FPGA Implementation, and obtaining insight
  into successful High Performance DSP Designs.
• Combine with Timing and Placement Profiling for
  analyzing the entire FPGA implementation flow.
  FPGA Implementation Tools are usually well suited
  for command line processing of the entire
  implementation flow (example Xilinx XFLOW).

19
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Timing and Placement
• Timing and Placement constraints direct the FPGA
  implementation tools and control the maximum
  speed and placement of the design. These
  constraints will directly impact many important
  performance criteria such as design margin, DSP
  throughput, pin placement, and data I/O.
• Effective methods exist such as the use of
  Relationally Placed Macros (RPMs) to create
  instances of specific DSP functions and direct
  their placement within the FPGA.
• Timing Analysis reveals details of the speed of a
  given implementation and design margin against
  performance requirements. The Timing Analysis
  must be carefully interpreted to draw conclusions
  and identify where recoding and/or change to
  synthesis, timing and placement constraints is
  necessary.
• Timing Analysis also reveals which functions
  within the DSP algorithm are the issue and may
  not be achievable given fixed resources (FPGA
  type) and performance requirements. This
  indicates that a fundamental change in the DSP
  function or HDL coding is required.

20
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Timing and Placement (cont.)
• High Performance DSP designs often require
  considerable attention to the data I/O for signal
  processing, in addition to the internal
  functionality of the algorithm.
• Successful High Performance DSP designs carefully
  match DSP functionality to high speed I/O lines.
  Interfacing the FPGA to other high performance
  components has to remain a consideration through
  design and implementation.
• Timing and Placement will take a substantial
  amount of time for large DSP implementations.
  Most tools are capable of running at the command
  line, which supports batch processing.
• Many timing and placement constraints are
  available for FPGA implementation. Careful
  interpretation and selection of timing and
  placement constraints is required.

21
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Timing and Placement Automation Techniques
• Timing and Placement Profiling Same as Synthesis
  Profiling with a few additional notes
• Establish desired variations to constraints
  and/or pin placement of the design. Profile
  timing and placement constraints against a single
  synthesized design. Profiling a single set of
  constraints against multiple designs amounts to
  processing entire flow for different designs.
• Batch process Translation, Mapping and Place
  Route Tools with timing and placement constraints
  and obtain performance parameters. Use C/C,
  script or equivalent code used to extract desired
  performance parameters from these reports.
• Repeat process until sufficient information from
  multiple runs are collected.

22
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Timing and Placement Automation Techniques
• Timing and Placement Profiling (continued)
• Analyze and Interpret the results of multiple
  runs. Timing reports are available after the MAP
  and PAR processes.
• Profile timing and placement constraints only
  when multiple runs will provide insight into
  performance. Such as being combined with
  synthesis profiling over the entire
  implementation flow.
• Using timing analysis tools is a better approach
  than timing and placement profiling for debugging
  a single implementation that does not meet timing.

23
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Hardware-In-The-Loop (HITL) Test and Verification

• HITL Direct Input and/or Output through one or
  more interfaces with the FPGA
• Analog-To-Digital Converter (ADC)
• Digital-To-Analog Converter (DAC)
• On Chip Debugger (Dedicated IP cores for data
  capture and transfer via JTAG, local bus, I/O
  pins)
• Logic Analyzer interface to pins
• HITL is a real-time test configuration. HITL
  provides a significant advantage in terms of
  incremental design, test and verification
• Real-Time Divide-and-Conquer Debugging and Test
  of modules and subsystems
• Inject and/or transmit real-time signals
  (interface testing)
• Event and anomaly capture
• Practical Performance Benchmarking, HITL used as
  a
• True Measure-Of-Performance

24
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Hardware-In-The-Loop (HITL) Test and Verification
  Automation Techniques
• HITL Automation Techniques are used to automate
  generating, collecting and processing large
  amounts of test data. This supports design
  validation, on-chip debugging, test and
  verification
• Test Equipment Utilize COTS and/or custom
  automation software to control test instruments
  and inject input or store/analyze output.
  Supports interface and end-to-end testing
• HITL Data Reduction and Analysis Collection and
  batch processing of large amounts of HITL data
• HITL Generated Performance Curves Useful for
  quantifying actual performance data (Threshold
  Sensitivity, Frequency Stability, Error, etc.),
  compare to theoretical for design insight

25
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Case Study - Direct Digital Synthesizer (DDS)
  using Xilinx Virtex-4 XtremeDSP
• Objective High Speed, High Resolution Multimode
  DDS for
• Communications, Radar, Navigation, Tracking
• SIGINT, ELINT
• High Speed Spectral Processing
• Software Defined Radio (SDR)
• EW, ECM, Self-Protection Jamming
• Performance (Algorithm FPGA Only Pre DAC)
• Frequency Resolution lt 1 Hz
• Frequency Tuning Speed lt 1 uSec
• Spurious lt -100 dBc
• Harmonics lt -100 dBc
• Maximum Clock Speed gt 200 MHz

26
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Case Study - DDS using Xilinx Virtex-4 XtremeDSP

DDS Block Diagram
(I) Inphase
DDS Transform
Phase Accumulate
Phase Per CLK
(Q) Quadrature
AM Mod
PM Mod
FM Mod
27
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Case Study - DDS using Xilinx Virtex-4 XtremeDSP

Automation Technique DSP Algorithm Verification
and Analysis Tools
DDS Block Diagram
(I) Inphase
DDS Transform
Phase Accumulate
Phase Per CLK
(Q) Quadrature
AM Mod
PM Mod
FM Mod
Automation Technique HDL Coding and Synthesis
One time handcrafting required to meet
performance. Now that a solution is verified, a
scalable Autocoding function will be developed to
implement this solution into the next High
Performance DSP design
Note Although Timing Placement was important
and required adjustment, no Automation Techniques
were necessary to meet Performance Requirements
28
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Case Study - DDS using Xilinx Virtex-4 XtremeDSP

DDS Output Power Spectrum
Automation Technique HITL Debugging, Testing,
Performance Analysis and Verification
29
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Case Study - DDS using Xilinx Virtex-4 XtremeDSP

Automation Technique DSP Analysis and HITL
Performance Analysis provides insight into this
design. This class of DDS capable of faster
frequency tuning speed, higher frequency
resolution, and clock speed greater than 300 MHz
using Register Balancing and Double Data Rate
(DDR) techniques.
DDS Spectrogram
30
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Summary
• Automation Techniques can be applied to improve
  DSP design and FPGA implementation processes.
  Automation Techniques are a means to shorten
  development time, improve efficiency and manage
  substantial design, debugging, test and
  verification efforts. There is no direct formula
  for applying them. Examine the DSP design
  techniques, FPGA implementation flow and tools
  used for a project. Do not blindly apply
  automation techniques. Look for processes where a
  benefit can be realized by applying Automation
  Techniques. Refer to the Summary of Automation
  Techniques matrix, or create new techniques to
  meet requirements.
• Objectives of Automation Techniques
• Reduce Design and Implementation Time
• Perform Error Checking
• Develop greater insight into successful high
  performance DSP Implementations by automating
  techniques

31
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Summary (cont.)
• Specific focus areas to achieve objectives
• DSP Algorithm Design
• HDL Coding and Synthesis
• Timing Placement
• Hardware-In-The-Loop (HITL) Test and Verification
• Automation Techniques may be required to go
  beyond basic DSP design and FPGA implementation.
  Development of Automation Techniques easily
  provide a cost benefit for processing large
  amounts of data. Other Automation Techniques may
  require substantial NRE. For these cases,
  techniques must provide substantial benefit to
  the design and implementation process.

32
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Summary (cont.)
• Designing effective Automation Techniques for
  High Performance DSP Implementations requires
  understanding of DSP Design and FPGA
  Implementation Tools.
• Automation Techniques can be used to profile
  Synthesis, Timing and Placement of FPGA
  Implementations. Careful interpretation of this
  data is required.
• Automation Techniques can be used for High
  Performance DSP Designs that require substantial
  amounts of data, test, analysis and verification.


33
Automation Techniques for Fast Implementation of
High Performance DSP Algorithms in FPGAs

• Summary (cont.)
• Summary of Automation Techniques
