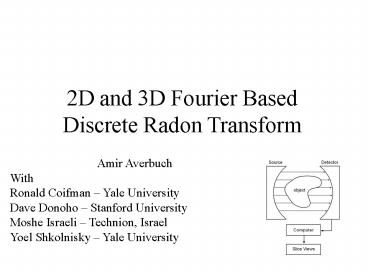

2D and 3D Fourier Based Discrete Radon Transform

1
2D and 3D Fourier Based Discrete Radon Transform

• Amir Averbuch
• With
• Ronald Coifman Yale University
• Dave Donoho Stanford University
• Moshe Israeli Technion, Israel
• Yoel Shkolnisky Yale University

2
Research Activities

• Polar processing (Radon, MRI, diffraction
  tomography, polar processing, image processing)

• Dimensionality reduction (hyperspectral
  processing, segmentation and sub-pixel
  segmentation, remote sensing, performance
  monitoring, data mining)
• Wavelet and frames (error correction,
  compression)
• Scientific computation (prolate spheroidal wave
  functions)
• XML (fast Xpath, handheld devices, compression)
• Nano technology (modeling nano batteries,
  controlled drug release, material science
  simulations) - interdisciplinary research with
  material science, medicine, biochemistry, life
  sciences

3
Participants previous and current

• Dr Yosi Keller Gibbs Professor, Yale
• Yoel Shkolnisky - Gibbs Professor, Yale
• Tamir Cohen submitted his Ph.D
• Shachar Harrusi Ph.D student
• Ilya Sedelnikov - Ph.D student
• Neta Rabin - Ph.D student
• Alon Shekler - Ph.D student
• Yossi Zlotnick - Ph.D student
• Nezer Zaidenberg - Ph.D student
• Zur Izhakian Ph.D student

4
Computerized tomography
5
CT-Basics
6
CT-Basics
7
Typical CT Images
8
CT Scanner
9
CT-Basics
10
CT-Basics
11
Introduction CT Scanning

• X-Ray from source to detector
• Each ray reflects the total absorption along the
  ray
• Produce projection from many angles
• Reconstruct original image

12
2D Continuous Radon Transform
The 2D continuous Radon is defined as
13
2D Continuous Fourier Slice Theorem
2D Fourier slice theorem
where
is the 2D continuous Fourier transform of f.
The1D Fourier transform with respect to s of
is equal to a central slice, at angle
?, of the 2D Fourier transform of the function
f(x,y).
14
Discretization Guidelines

• We will look for both 2D and 3D definitions of
  the discrete Radon transform with the following
  properties
• Algebraic exactness
• Geometric fidelity
• Rapid computation algorithm
• Invertibility
• Parallels with continuum theory

15
2D Discrete Radon Transform - Definition

• Summation along straight lines with ?lt45
• Trigonometric interpolation at non-grid points

16
2D Discrete Radon Transform Formal Definition
17
2D Definition - Illustration
18
2D Discrete Radon Definition Cont.
19
2D Definition - Illustration
20
Selection of the Parameter t

• Radon(ysxt,I)
• Sum over all lines with non trivial projections.
• Same arguments for basically vertical lines.

21
Selection of the Parameter m

• Periodic interpolation kernel.
• Points out of the grid are interpolated as points
  inside the grid.
• Summation over broken line.
• Wraparound effect.

22
Selection of the Parameter m Cont.

• Pad the image prior to using trigonometric
  interpolation.
• Equivalent to elongating the kernel.
• No wraparound over true samples of I.
• Summation over true geometric lines.
• Required

23
The Translation Operator
The translation operator
Example translation of a vector with
24
The Shearing Operator
For the slope ? of a basically horizontal line
For the slope ? of a basically vertical line
Motivation The shearing operator translates the
samples along an inclined line into samples along
horizontal/vertical line.
25
The Shearing Operator -Illustration
26
The Shearing Operator -Illustration
27
Alternative Definition of the Discrete Radon
Transform
and are padded versions of along the
y-axis and the x-axis respectively
28
2D Discrete Fourier Slice Theorem
Using the alternative discrete Radon definition
we prove
where
29
Discretization of ?

• The discrete Radon transform was defined for a
  continuous set of angles.
• For the discrete set Tthe discrete Radon
  transform is discrete in both T and t.
• For the set T, the Radon transform is rapidly
  computable and invertible.

30
Illustration of T
T2
T1
31
Fourier Slice Theorem Revisited
where
We define the pseudo-polar Fourier transform
32
The Pseudo-Polar Grid
The pseudo polar Fourier transform is the
sampling of on a special pointset called the
pseudo-polar grid.
The pseudo-polar grid is defined by
33
The Pseudo-Polar Grid - Illustration
P2
P1
34
The Pseudo-Polar Grid - Illustration
35
The Fractional Fourier Transform
The fractional Fourier transform is defined as
We can use the fractional Fourier transform to
compute samples of the Fourier transform at any
spacing.
36
Resampling in the Frequency Domain
Given samples in the frequency domain, we
define the resampling operator
37
2D Discrete Radon Algorithm
Gk,n
38
2D Discrete Radon Algorithm Cont.

• Description (PP1I)
• Pad both ends of the y-direction of the image I
  and compute the 2D DFT of the padded image. The
  results are placed in I.
• Resample each row k in I using the operator Gk,n
  with a 2k/n.
• Flip each row around its center.

39
Papershttp//www.math.tau.ac.il/amirhttp//pant
heon.yale.edu/yk253/

• Optical Snow Analysis using the 3D-Xray
  Transform, submitted.
• Fast and Accurate Polar Fourier Transform,
  submitted.
• Discrete diffraction tomography, submitted.
• 2D Fourier Based Discrete Radon Transform,
  submitted.
• Algebraically accurate 3-D rigid registration,
  IEEE Trans. on Signal Proessing.
• Algebraically Accurate Volume Registration using
  Euler's Theorem and the 3-D Pseudo-Polar FFT,
  submitted.
• Fast Slant Stack A notion of Radon Transform for
  Data in a
• Cartesian Grid which is Rapidly Computible,
  Algebraically Exact, Geometrically
• Faithful and Invertible, SIAM Scientific
  Computing.
• Pseudo-polar based estimation of large
  translations, rotations and scalings in images,
  IEEE Trans. on Image Processing.
• The Angular Difference Function and its
  application to Image Registration, IEEE PAMI.
• 3D Discrete X-Ray Transform, Applied and
  Computational Harmonic Analysis
• 3D Fourier Based Discrete Radon Transform,
  Applied and Computational Harmonic Analysis
• Digital Implementation of Ridgelet Packets,
  Beyond wavelets chapter in book.
• Multidimensional discrete Radon transform,
  chapter in book.
• The pseudopolar FFT and its Applications,
  Research Report
• A signal processing approach to symmetry
  detection, IEEE Trans. on Image Processing
• Fast and accurate pseudo-polar protein docking,
  submitted.
