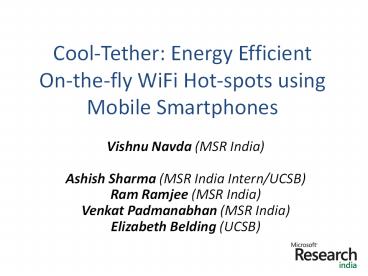

Cool-Tether: Energy Efficient On-the-fly WiFi Hot-spots using Mobile Smartphones

1
Cool-Tether Energy Efficient On-the-fly WiFi
Hot-spots using Mobile Smartphones
Vishnu Navda (MSR India) Ashish Sharma (MSR
India Intern/UCSB) Ram Ramjee (MSR India) Venkat
Padmanabhan (MSR India) Elizabeth Belding (UCSB)
2
Context

• Trends
• Near-ubiquitous cellular wireless broadband
  (2.5/3G)
• Popularity of Internet enabled smartphones
• Commoditization of WiFi technology
• WiFi equipped devices

• Can smartphones be used as Internet gateways to
  devices, at home, at work and on the move?
• Avoid need for separate provisioning
• Opportunity to tether multiple phones

3
Existing Tethering Mechanisms

• USB cable
• Multi-phone tethering not supported
• Wires are inconvenient
• Bluetooth
• Low data rates ? high energy/bit cost
• WiFi Ad-hoc mode
• No power-save support

• Do not support multi-phone tethering
• Agnostic of energy consumption

4
Design Goals of Cool-Tether

• Optimize wireless energy consumption on phones
• WAN and WiFi interfaces
• Support for multi-phone tethering
• Efficiently stripe data over multiple phones

GPRS/ EDGE/ 3G
Web
Client/ Laptop
WiFi
WAN
5
Energy Consumption on WAN Interface
communication
11s residual tail
High energy overhead for communication
sleep
Power consumed by EVDO wireless radio

• Sporadic communication incurs multiple tails
• Striping data over multiple phones incurs
  multiple tails

6
Wi-Fi Connectivity Options
3. Using reverse infrastructure mode is energy
efficient
7
Energy-aware Design

• Make communication bursty
• Proxy in the cloud Gatherer
• Use optimal of phones
• Energy-aware Striper
• Use reverse Infrastructure mode for WiFi

8
A Typical Web Browsing Session
9
Aggregation using Proxy Support
Key idea Transform many short bursts into fewer
long spurts Reduce tail overhead
Proxy Gatherer
10
Energy-Aware Striper
Key idea Choose optimal number of phones to
transfer a given data chunk
Energy-Aware Striper
11
Striping using Optimal of Phones
To transfer S bits of data, given n phones, where
each phone has B bps bandwidth, PBase base power
drain, and Esetup constant tail energy, the
optimal number of phones to use is given by
12
Cool-Tether Architecture
Infrastructure Proxy Gatherer Striper

• Infrastructure
• Web Proxy
• other protocols possible
• Gatherer
• fetch embedded objects
• Striper
• stripe over multiple phones
• Smartphones
• Byte-Exchanger
• persistent TCP connections
• WiFi Client mode
• Client
• WiFi AP mode
• Assembler
• combines responses from multiple phones

Client WiFi AP Assembler
WiFi
WAN
Smartphones Byte-Exchanger WiFi client
Additional Client(s) WiFi client
13
Impact of Proxy and Gatherer

• Single phone experiment
• Standard Web-access workload
• sessions think times
• No Proxy (Baseline)
• all web requests issued by laptop
• separate connections for each request
• Proxy
• single TCP connection
• No DNS requests
• Proxy Gatherer
• gather and send web page with embedded objects

ProxyGatherer reduces energy consumption by 26
and workload completion times by 19 over
baseline
14
of Phones to use with Different Workloads
Experimental and analytical numbers match
15
Comparison with prior work COMBINE

• COMBINE approach
• client side striping
• energy agnostic
• (1)Ad-hoc CAM or (2)Reverse Infrastructure PSM
• (3) Cool-Tether
• Proxy Gatherer Striper
• Reverse Infrastructure PSM

• Reverse Infrastructure achieves 50 saving over
  Ad-hoc
• Cool-Tether achieves 38 to 72 savings compared
  to COMBINE

16
Related Work

• Mobile Wireless Access
• GPRSWeb(Cambridge) proxy caching
• Multi-path striping
• COMBINE(MSR) client-side striping energy
  agnostic
• PRISM(UMich) focuses on TCP problems
• MAR(Cambridge, MSR Cambridge), PluriBus(MSR
  Redmond) improves download performance energy
  agnostic

17
Summary

• Cool-Tether provides energy-efficient, affordable
  connectivity using smartphones
• leverages unique characteristics of WAN link
• employs cloud proxy to optimize energy drain
• uses reverse infrastructure mode for WiFi

18
Thanks

• http//research.microsoft.com/navda
