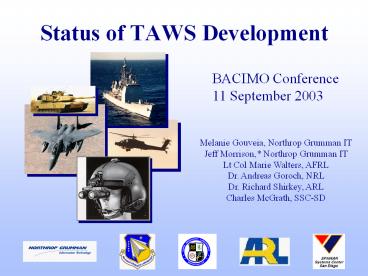

Status of TAWS Development

1
Status of TAWS Development

• BACIMO Conference
• 11 September 2003

Melanie Gouveia, Northrop Grumman IT Jeff
Morrison, Northrop Grumman IT Lt Col Marie
Walters, AFRL Dr. Andreas Goroch, NRL Dr. Richard
Shirkey, ARL Charles McGrath, SSC-SD
2
Presentation Outline

• Major TAWS Versions
• TAWS Version 3.2 Features
• TAWS Version 4.0 Features
• Plans for TAWS Version 4.1

3
Major TAWS Versions
4
TAWS Version 3.2 Features

• Environmental/Meteorological Data
• Automated ingest of COAMPS weather data from the
  Navys TEDS
• More efficient regional weather download from
  TEDS
• Targets / Backgrounds
• Navys improved water background model for
  MWIR/LWIR
• Additional targets in the TAWS target database
• Sensors
• Armys ACQUIRE sensor performance model for
  IR/TV/NVG detection ranges and detection
  probabilities
• Additional sensors in the TAWS sensor database
• Geographic Data
• Ability to initialize background and albedo from
  Army TECs high-resolution terrain features
  database
• Ability to determine target shadowing and target
  masking from NIMA DTED or Army TEC terrain
  elevations database

5
TAWS 3.2 Features (cont.)

• Interface to PFPS 3.2
• Load sortie/intel information from PFPS 3.2 route
  server or CRD file
• Send output to FalconView map server
• Usability Enhancements
• Merge NOWS capabilities into TAWS
• Allow separate saves for weather, sortie, intel
  input components
• Copy across function for weather parameters
• Startup location is the last location used
• Flexible graphs
• Preferred output products automatically appear
  when analysis is done
• Preferred file locations
• Classified or unclassified processing
• Customizable Toolbar
• Miscellaneous
• New Illumination Quick Look option
• New Analyze over Grid option
• DII/COE Level 6 compliant

6
User Preferences Classification
Session classification level always visible.
Classification level defaults to highest level of
sensor and target data files.
User can upgrade the session classification level.
7
User Preferences Output
8
Flexible Graphs
Specify exactly what you want to see on each plot.
Include results for multiple sensors on a single
plot.
Include results for multiple targets on a single
plot.
9
Separate Saves for Weather/Sortie/Intel

• Save to File and Load from File buttons on TAWS
  Meteorological Data, Sortie Properties, and
  Target/ Background Properties dialogs allow the
  user to save and load these parameters separately
• Data may be saved and loaded from either Single
  Point-Based Analysis or Multiple Map-Based
  Analysis
• Saved weather data may be used by IRTSS

10
Interface with PFPS 3.2
Can add TAWS icon to CFPS toolbar.
Option to ingest TAWS sortie from the currently
focused PFPS route.
Have TAWS automatically send all available
by-view-direction graphs to FalconView.
11
Version 3 Targets
Working on a list of 86 high-priority targets.
Includes several buildings.
Includes mobile and stationary AAA.
Download from HQ Air Combat Command/Weather
Operations Division https//do.acc.af.mil/do
w/dowx/current/cwt_programs/taws/taws.htm Naval
METOC Professional Development Detachment
http//www.pdd.navy.smil.mil/metoctda.htmeo
12
Plans for TAWS Version 3.3

• Interface to PFPS 3.3.1
• Load sortie/intel information from PFPS 3.3.1
  route server or CRD file
• Send output to FalconView map server

13
TAWS Version 4.0 Features

• Environmental/Meteorological Data
• Integrate Armys GMDB weather getter
• Atmospheric Transmission
• Allow upward and near-horizontal LOS paths for
  the IR/Laser
• Implement multi-layer transmission model for
  LWIR/MWIR
• Targets / Backgrounds
• Support wakes for ship/boat targets
• Support airborne targets for the IR/Laser
• Additional targets in the TAWS target database
• Sensors
• Support recognition/identification ranges
• Support TV CCD sensors
• Additional sensors in the TAWS sensor database

14
TAWS 4.0 Features (cont.)

• Interface to PFPS
• Ingest PFPS additional points
• Usability Enhancements
• Port TAWS GUI to Java and update to NITES II
  framework
• Port TAWS core objects to ANSI-standard C for
  platform independence
• Allow more flexible output tables
• Use JMTK as map server
• Include weapons fan map overlay output product
• Use JAWS target categories/subcategories

15
Recognition/Identification Ranges
Can show detection, recognition, and
identification ranges on a single plot.
16
Platform-Independent TAWS Architecture
TAWS GUI
CORE UTILITIES
CORE OBJECTS
CORE MODELS
TAWS CORE
EXTERNAL UTILITIES
PFPS
MPS
JMTK
17
NITES II-Style GUI
18
Illumination Analysis Panel
19
Point-Based Analysis Panel
20
Map-Based Analysis Panel
21
Docked Result Graphs
22
Undocked Result Graph
23
Plans for TAWS Version 4.1

• Environmental/Meteorological Data
• Download aerosol information from NAAPS model
• Include user-editable temperature/relative
  humidity profile
• Download Land Surface Model (LSM) parameters from
  AFWA
• Access climatology database for default values
• Atmospheric Transmission
• Implement multi-layer transmission model for
  TV/NVG and Laser
• Implement Army model for smoke plumes
• Targets / Backgrounds
• Editable targets
• Additional targets in the TAWS target database
• Sensors
• Support Laser Marker (Near-IR Pointer)
• Additional sensors in the TAWS sensor database

24
Summary

• TAWS Version 3 focus on usability enhancements
  for Windows platforms
• TAWS Version 4 focus on platform-independence,
  NITES II look-and-feel
